Abstract

The utility model relates to an angularly adjustable nursery stock watering device relates to gardens planting technical field, and it includes the base, the both sides of the upper surface of base are provided with two locating plates, it is connected with the watering pipe to rotate between the locating plate, the one end of watering pipe is connected with the inlet tube, the apopore has been seted up to the circumference lateral wall of watering pipe, the locating plate is connected with the swing subassembly that is used for adjusting watering pipe water spray angle. The utility model discloses it can water the nursery stock uniformly, improves the survival rate of nursery stock.

Description

Angle-adjustable nursery stock watering device

Technical Field

The utility model belongs to the technical field of the gardens technique of planting and specifically relates to a nursery stock watering field is related to.

Background

At present, urban greening is an important part in urban construction, a large number of greening lands for greening are planned in many urban constructions, various plants and trees are planted, and particularly, when seedlings are planted and cultured, the seedlings need to be irrigated frequently.

Present nursery stock watering adopts artifical watering, and artifical watering causes very big manpower extravagant, and the cost is promoted, and current watering is put when watering, can produce the inhomogeneous problem of watering, leads to partial soil moisture less, and partial soil moisture is too much, is unfavorable for the growth of nursery stock, leads to the survival rate reduction of nursery stock.

Therefore, a new solution is needed to solve this problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing an angularly adjustable nursery stock watering device, it can water the nursery stock uniformly, improves the survival rate of nursery stock.

The above utility model discloses an above-mentioned utility model purpose can realize through following technical scheme:

the utility model provides an angularly adjustable nursery stock watering device, includes the base, the both sides of the upper surface of base are provided with two locating plates, it is connected with the watering water pipe to rotate between the locating plate, the one end of watering water pipe is connected with the inlet tube, the apopore has been seted up to the circumference lateral wall of watering water pipe, the locating plate be connected with be used for adjusting the swing subassembly of watering water pipe water spray angle.

Through adopting above-mentioned technical scheme, the inlet tube leads to water to the watering water pipe, and water enters into and waters the nursery stock through the delivery port after the watering water pipe, and swing subassembly drive watering water pipe reciprocating rotation simultaneously for carry out more even watering to the nursery stock.

The utility model discloses further set up to: the swing subassembly includes fixed connection in the second motor of one of them locating plate lateral wall, locating plate and fixedly connected with carousel are passed to the output of second motor, the surface of carousel is provided with the perpendicular to the slide bar of carousel, the inside wall of locating plate just is located the top of carousel and rotates and is connected with the transfer line, the spout has been seted up to the lateral wall of transfer line, slide bar sliding connection in the spout, the transfer line is provided with first gear with the locating plate junction, the watering water pipe be provided with first gear engagement's second gear.

Through adopting above-mentioned technical scheme, the second motor drive rolling disc rotates to drive the slide bar and rotate and reciprocating sliding in the spout, the slide bar drives the transfer line reciprocating swing in the spout reciprocating sliding simultaneously, drives the pipe of watering through first gear and second gear meshing and rotates.

The utility model discloses further set up to: and positioning rings for positioning the irrigation water pipe are arranged at two ends of the irrigation water pipe and abut against the outer side wall of the positioning plate.

Through adopting above-mentioned technical scheme, play limiting displacement to the watering pipe, avoid watering pipe and locating plate to break away from, influence normal watering work.

The utility model discloses further set up to: one side of the base is provided with a water collecting tank, and the water collecting tank and one end of the irrigation water pipe, which is far away from the water inlet pipe, are provided with a water pump and a water hose.

Through adopting above-mentioned technical scheme, through the water catch bowl, can collect the rainwater and water, water pump and water hose water suction in with the water catch bowl water pipe in waters, save the water resource, practice thrift the cost.

The utility model discloses further set up to: and a filter screen is arranged at the end part of the water hose connected with the water collecting tank.

Through adopting above-mentioned technical scheme, filter the impurity in the water catch bowl, avoid impurity to enter into and lead to the fact the jam in leading to water hose, influence the normal watering operation of device.

The utility model discloses further set up to: and valves are arranged at two ends of the irrigation water pipe.

Through adopting above-mentioned technical scheme, when watering in using the water catch bowl, open the valve that is close to water catch bowl one end, close another valve, when there is not water in the water catch bowl, close the valve that is close to water catch bowl one end, open the valve of inlet tube one end, avoid when watering, water pressure is not enough, leads to unable normal watering.

The utility model discloses further set up to: the lower surface of base is provided with the dead lever that inserts in earth, the tip of dead lever is sharp-pointed form.

Through adopting above-mentioned technical scheme, insert through the dead lever and fix in earth, hoisting device is carrying out the stability of during operation.

To sum up, the utility model discloses a beneficial technological effect does: the inlet tube leads to water to the watering pipe, and water enters into and waters the nursery stock through the delivery port after the watering pipe, and swing subassembly drive watering pipe reciprocating rotation simultaneously must carry out more even watering to the nursery stock, improves the survival rate of nursery stock.

Drawings

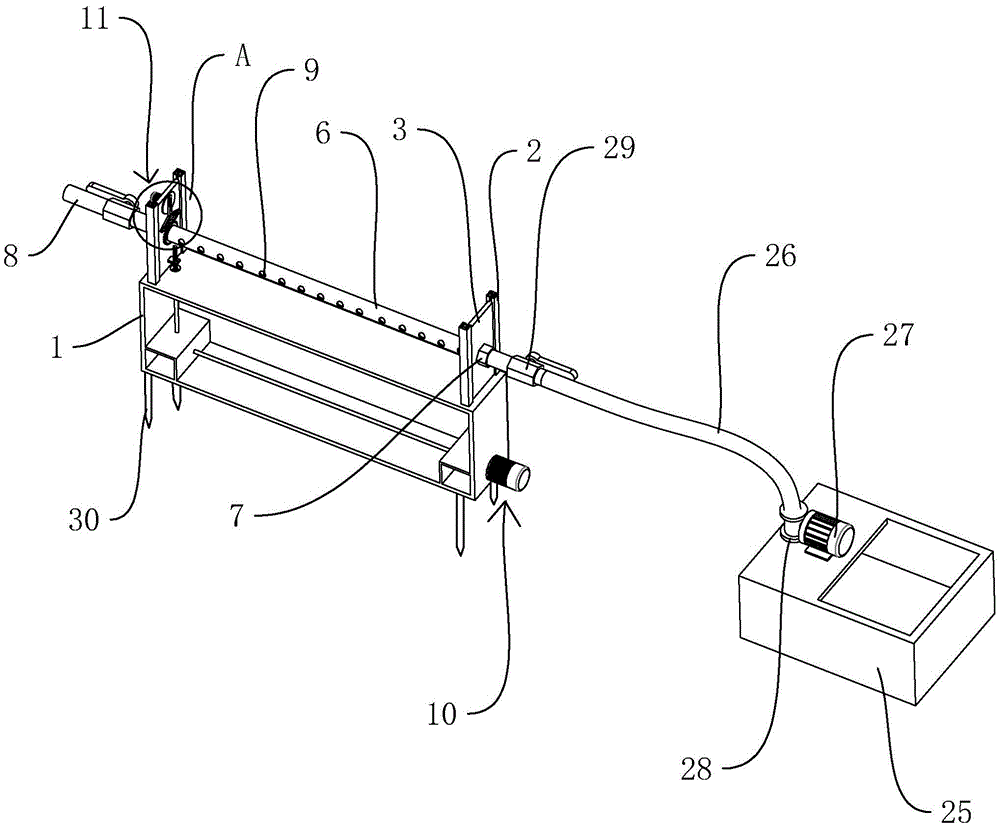

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is a schematic structural view of the driving assembly.

Fig. 3 is a partially enlarged schematic view of a portion a in fig. 1.

Fig. 4 is a mechanism diagram of the positioning plate.

In the figure, 1, a base; 2. a sliding track; 3. positioning a plate; 4. a groove; 5. a roller; 6. watering the water pipe; 7. positioning rings; 8. a water inlet pipe; 9. a water outlet hole; 10. a drive assembly; 11. a swing assembly; 12. a first motor; 13. rotating the rod; 14. a first bevel gear; 15. a drive rod; 16. a second bevel gear; 17. connecting blocks; 18. a second motor; 19. a turntable; 20. a slide bar; 21. a transmission rod; 22. a chute; 23. a first gear; 24. a second gear; 25. positioning a rod; 26. a sliding groove; 27. a water collection tank; 28. a water hose; 29. a water pump; 30. a filter screen; 31. a valve; 32. and (5) fixing the rod.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Referring to fig. 1 and 4, for the utility model discloses a nursery stock tree crown moisturizing device, including base 1, two sets of slip tracks 2 of base 1's upper surface both sides fixedly connected with, equal sliding connection has locating plate 3 in every group slip track 2, and recess 4 has been seted up to the lateral wall that slip track 2 is connected with locating plate 3, and two lateral walls of locating plate 3 all are connected with two gyro wheels 5 that roll in recess 4 to reduce and locating plate 3 between the frictional force, improve device life. Two locating plates 3 rotate and are connected with watering pipe 6, and the both ends threaded connection of watering pipe 6 has the position collar 7 of going on fixing a position it, and the position collar 7 supports tightly in the lateral wall of locating plate 3, avoids watering pipe 6 and locating plate 3 to break away from when watering. One end of the irrigation water pipe 6 is connected with a water inlet pipe 8, and a row of water outlet holes 9 are formed in the circumferential side wall of the irrigation water pipe 6 along the length direction of the circumferential side wall. The lower end of the base 1 is provided with a driving component 10 for driving the watering pipe 6 to lift, and the positioning plate 3 is connected with a swinging component 11 for adjusting the water spraying angle of the watering pipe 6. When carrying out the watering operation, water pipe 6 is led to inlet tube 8, moisturizes through apopore 9 crown to the nursery stock, and when the long crown portion of nursery stock became high, drive assembly 10 control watering pipe 6 rose to the realization continues to moisturize the crown of nursery stock, and 11 drive watering pipe 6 reciprocating rotation of while swing assemblies make and carry out more even watering to the nursery stock, in order to guarantee the survival rate of nursery stock.

Referring to fig. 2, the driving assembly 10 includes a first motor 12 fixedly connected to the outer side wall of the base 1, the lower end of the base 1 is rotatably connected to a rotating rod 13, the output end of the first motor 12 is fixedly connected to the end of the rotating rod 13, first bevel gears 14 are fixedly connected to two sides of the rotating rod 13, two driving rods 15 vertically arranged are arranged on two sides of the base 1 in a penetrating manner, and second bevel gears 16 meshed with the first bevel gears 14 are fixedly connected to the bottom ends of the driving rods 15. The inner wall fixedly connected with connecting block 17 of locating plate 3, the upper end of actuating lever 15 is provided with screw thread and threaded connection in connecting block 17 and passes connecting block 17. The first motor 12 drives the rotating rod 13 to rotate, the first bevel gear 14 and the second bevel gear 16 drive the two driving rods 15 to rotate, and the driving rods 15 drive the two connecting blocks 17 to move up and down while rotating, so that the two positioning plates 3 are driven to move up and down simultaneously, and the height of the watering pipe 6 is controlled.

Referring to fig. 3, the swing assembly 11 includes a second motor 18 fixedly connected to an outer side wall of one of the positioning plates 3, an output end of the second motor 18 penetrates through the positioning plate 3 and is fixedly connected with a rotating plate 19, a sliding rod 20 perpendicular to the rotating plate 19 is arranged on a surface of the rotating plate 19, a transmission rod 21 is rotatably connected to an inner side wall of the positioning plate 3 and located above the rotating plate 19, a sliding groove 22 is formed in a side wall of the transmission rod 21, the sliding rod 20 is slidably connected in the sliding groove 22, a first gear 23 is arranged at a connection position of the transmission rod 21 and the positioning plate 3, a second gear 24 meshed with the first gear 23 is fixedly connected to one end of the watering pipe 6, and the second motor 18 drives the rotating plate to rotate, so. The slide bar 20 slides in the slide groove 22 to drive the transmission rod 21 to swing back and forth, and the watering pipe 6 is driven to rotate by the meshing of the first gear 23 and the second gear 24, so that more uniform watering of the seedlings is realized.

Referring to fig. 1, one side of the base 1 is provided with a water collecting tank 25, one end of the water collecting tank 25 and the end of the irrigation water pipe 6 far away from the water inlet pipe 8 are connected with a water hose 26 and a water pump 27, and rainwater can be collected to irrigate through the water collecting tank 25, so that water resources are saved, and the cost is saved. A filter screen 28 is installed at an end portion of the water hose 26 connected to the water collection tank 25 to filter the impurities in the water collection tank 25. Watering pipe 6's both ends all are provided with valve 29, when using water catch bowl 25 to water, open the valve 29 that is close to water catch bowl 25 one end, close another valve 29, when not having water in the water catch bowl 25, close the valve 29 that is close to water catch bowl 25 one end, open the valve 29 of inlet tube 8 one end, avoid when watering, water pressure is not enough, lead to unable normal watering.

Referring to fig. 1, the lower surface of base 1 is provided with dead lever 30 that inserts in earth, and the tip of dead lever 30 is sharp-pointed form, inserts through dead lever 30 and fixes in earth, and hoisting device is carrying out the stability of during operation.

The implementation principle of the embodiment is as follows: when carrying out the watering operation, accessible water catch bowl 25 or inlet tube 8 lead to water to watering pipe 6, water waters the nursery stock through apopore 9, second motor 18 works, drive transfer line 21 reciprocal swing simultaneously and drive watering pipe 6 and rotate, water more evenly the nursery stock, along with the growth of nursery stock, first motor 12 drive dwang 13 rotates, drive two actuating levers 15 through first bevel gear 14 and second bevel gear 16 and rotate, two connecting blocks 17 of drive during actuating lever 15 pivoted reciprocate, thereby drive two locating plates 3 and reciprocate simultaneously, realize the control to watering pipe 6 height, guaranteed to water more evenly comprehensively more the nursery stock, the survival rate of nursery stock has been improved.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. The utility model provides an angularly adjustable nursery stock watering device, includes base (1), its characterized in that: the improved water spraying device is characterized in that two positioning plates (3) are arranged on two sides of the upper surface of the base (1), a watering pipe (6) is connected between the positioning plates (3) in a rotating mode, one end of the watering pipe (6) is connected with a water inlet pipe (8), a water outlet hole (9) is formed in the circumferential side wall of the watering pipe (6), the positioning plates (3) are connected with a swing assembly (11) used for adjusting the water spraying angle of the watering pipe (6), the swing assembly (11) comprises a second motor (18) fixedly connected to the outer side wall of one of the positioning plates (3), the output end of the second motor (18) penetrates through the positioning plates (3) and is fixedly connected with a turntable (19), a sliding rod (20) perpendicular to the turntable (19) is arranged on the surface of the turntable (19), a transmission rod (21) is rotatably connected to the inner side wall of the positioning plates, the side wall of the transmission rod (21) is provided with a sliding groove (22), the sliding rod (20) is connected in the sliding groove (22) in a sliding mode, a first gear (23) is arranged at the joint of the transmission rod (21) and the positioning plate (3), and the watering pipe (6) is provided with a second gear (24) meshed with the first gear (23).

2. The nursery stock watering device of angularly adjustable of claim 1, its characterized in that: the two ends of the irrigation water pipe (6) are provided with positioning rings (7) for positioning the irrigation water pipe, and the positioning rings (7) are abutted against the outer side wall of the positioning plate (3).

3. The nursery stock watering device of angularly adjustable of claim 1, its characterized in that: one side of the base (1) is provided with a water collecting tank (25), and the water collecting tank (25) and one end, far away from the water inlet pipe (8), of the irrigation water pipe (6) are provided with a water pump (27) and a water hose (26).

4. The nursery stock watering device of angularly adjustable of claim 3, its characterized in that: a filter screen (28) is arranged at the end part of the water hose (26) connected with the water collecting tank (25).

5. The nursery stock watering device of angularly adjustable of claim 1, its characterized in that: and valves (29) are arranged at two ends of the irrigation water pipe (6).

6. The nursery stock watering device of angularly adjustable of claim 1, its characterized in that: the lower surface of base (1) is provided with dead lever (30) of inserting in earth, the tip of dead lever (30) is sharp-pointed form.
