The utility model discloses an electric power information storage device relates to electric power information technology field, and it includes the casing, shells inner wall's lower surface is provided with the mount pad, the draw-in groove has been seted up to the upper surface of mount pad, the joint has the fixed plate in the draw-in groove, a plurality of slot has been seted up in the front of fixed plate, the left and right sides of slot all is provided with the cardboard. This electric power information storage device, through setting up the cardboard, the spout, baffle and dampproofing board, people take the baffle earlier, make the accumulator that has electric power information inject in the slot, put down the baffle again, make the baffle can cover the import department of slot, thereby dustproof effect has been played, simultaneously on the dampproofing board under the effect that calcium chloride layer and activated carbon layer absorbed moisture, can drop the complete absorption of moisture in the casing, avoid the accumulator to receive the influence of moisture, the accumulator is deposited under dustproof and dampproofing environment like this, can guarantee the security that electric power information deposited.

Description

Electric power information storage device
Technical Field
The utility model relates to an electric power information technology field specifically is an electric power information storage device.
Background
At present, the information is collected by the electric power information using information collection system, collected information is stored by the storage devices, and the storage devices are placed in the storage device.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an electric power information storage device has solved electric power information storage ware storage environment and has not had dustproof and dampproofing problem.
(II) technical scheme
In order to achieve the above purpose, the utility model adopts the technical proposal that: the utility model provides an electric power information storage device, includes the casing, shells inner wall's lower surface is provided with the mount pad, the draw-in groove has been seted up to the upper surface of mount pad, the joint has the fixed plate in the draw-in groove, a plurality of slot has been seted up in the front of fixed plate, the left and right sides of slot all is provided with the cardboard, and the equal fixed connection in the back of two cardboards is in the front of fixed plate, and the spout has all been seted up to the opposite face of two draw-in grooves, and two spouts joint left and right sides face.
The equal fixedly connected with gag lever post in below of baffle left and right sides face, and two gag lever posts are located two spacing inslots respectively, and two spacing grooves set up the opposite face at two spout inner walls respectively, and are provided with the dampproof board between a plurality of slot, the right flank of casing is articulated through the right flank of two hinges and cabinet door, the back overlap joint of cabinet door is in the front of casing, the equal fixed connection supporting leg in four corners department of casing lower surface.
Preferably, the moisture-proof plate comprises a calcium chloride layer, and an activated carbon layer is arranged on the back surface of the calcium chloride layer.
Preferably, a nameplate is arranged below the slot.
Preferably, a fixed block is arranged above the front face of the baffle, and the fixed block is rectangular.
Preferably, the handle is arranged on the left side of the front face of the cabinet door, and anti-skid grains are arranged on the surface of the handle.
Preferably, the front surface of the cabinet door is provided with an observation window, and the observation window is made of transparent glass.
(III) advantageous effects
The beneficial effects of the utility model reside in that:
1. this electric power information storage device, through setting up the cardboard, the spout, baffle and dampproofing board, people take the baffle earlier, make the accumulator that has electric power information inject in the slot, put down the baffle again, make the baffle can cover the import department of slot, thereby dustproof effect has been played, simultaneously on the dampproofing board under the effect that calcium chloride layer and activated carbon layer absorbed moisture, can drop the complete absorption of moisture in the casing, avoid the accumulator to receive the influence of moisture, the accumulator is deposited under dustproof and dampproofing environment like this, can guarantee the security that electric power information deposited.
2. This electric power information storage device, through setting up mount pad and draw-in groove, made things convenient for people to install the fixed plate in the casing, make the fixed plate can be stable fix in the casing, through setting up gag lever post and spacing groove, when the baffle was taken out, the gag lever post can stop the baffle and take the spout out completely, avoided taking out the installation that two spouts brought because of the baffle out troublesome, thereby guaranteed that the baffle can be stable up-and-down motion in two spouts, through setting up the data plate, can be through writing the relevant information of accumulator on the data plate, make things convenient for people to seek afterwards.
3. This electric power information storage device, through setting up the fixed block, use the fixed block can be quick to take out the baffle, it has brought conveniently to give people to take out the baffle, through setting up the handle, people use the handle can conveniently open the cabinet door, the while antiskid line on handle surface can prevent to skid when people use the handle, through setting up the observation window, because the material of observation window is clear glass, people can observe the information of interior data plate of casing outside the cabinet door, thereby it is convenient to take out the accumulator of needs for people and brought, through setting up the supporting leg, can make the support of casing become more stable.
Drawings

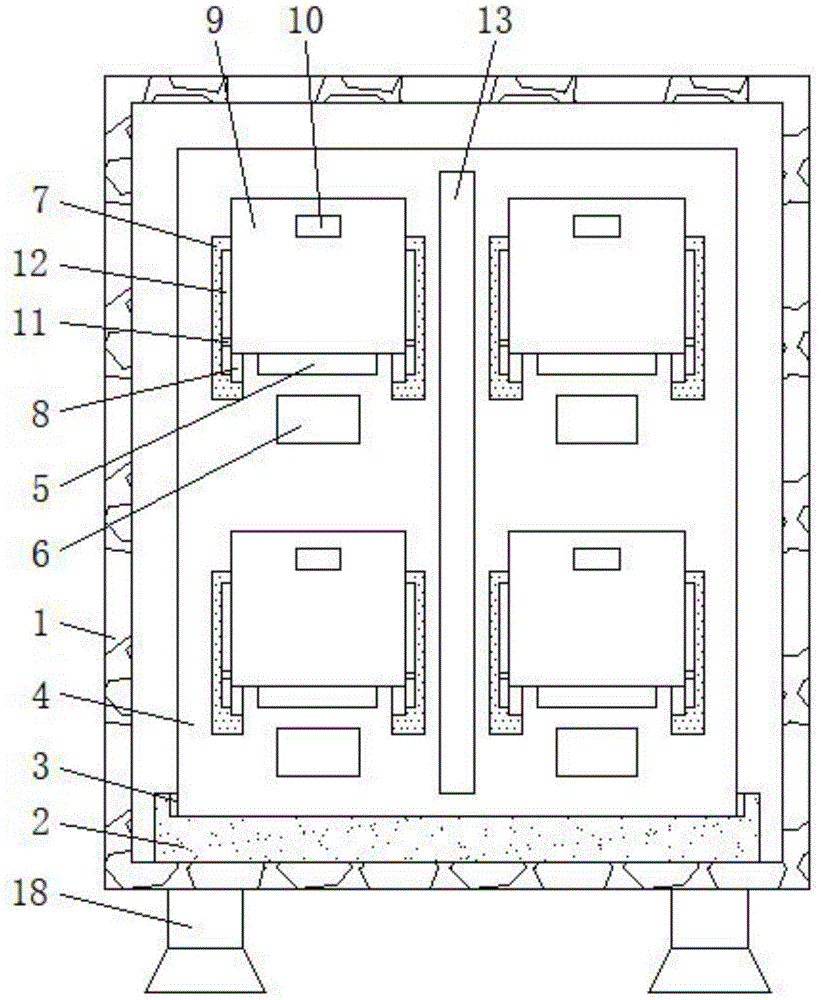

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
FIG. 2 is a front view of the present invention;
fig. 3 is a schematic view of the cross-section structure of the moisture-proof plate viewed from the left.
In the figure: the device comprises a shell 1, a mounting seat 2, a clamping groove 3, a fixing plate 4, a slot 5, a nameplate 6, a clamping plate 7, a sliding groove 8, a baffle 9, a fixing block 10, a limiting rod 11, a limiting groove 12, a damp-proof plate 13, a calcium chloride layer 131, an activated carbon layer 132, a hinge 14, a cabinet door 15, a handle 16, an observation window 17 and supporting legs 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-3, the utility model provides a technical solution: an electric power information storage device comprises a shell 1, wherein a mounting seat 2 is arranged on the lower surface of the inner wall of the shell 1, a clamping groove 3 is formed in the upper surface of the mounting seat 2, a fixing plate 4 is conveniently mounted in the shell 1 by people through the mounting seat 2 and the clamping groove 3, the fixing plate 4 can be stably fixed in the shell 1, the fixing plate 4 is clamped in the clamping groove 3, a plurality of slots 5 are formed in the front surface of the fixing plate 4, a nameplate 6 is arranged below the slots 5, information related to a storage can be written on the nameplate 6 through the arrangement of the nameplate 6, people can conveniently search in the future, clamping plates 7 are arranged on the left side and the right side of each slot 5, the back surfaces of the two clamping plates 7 are fixedly connected to the front surface of the fixing plate 4, sliding grooves 8 are formed in the opposite surfaces of the two clamping grooves 3, and the two, through setting up cardboard 7, spout 8 and baffle 9, people take baffle 9 out earlier, make the accumulator that has electric power information inject in the slot 5, put down baffle 9 again, make baffle 9 can cover the import department of slot 5, thereby played dirt-proof effect, the positive top of baffle 9 is provided with fixed block 10, the shape of fixed block 10 is the rectangle, through setting up fixed block 10, use fixed block 10 can be quick take baffle 9 out, it has brought conveniently to give people to take out baffle 9.
The lower parts of the left side surface and the right side surface of the baffle 9 are fixedly connected with limiting rods 11, the two limiting rods 11 are respectively positioned in the two limiting grooves 12, when the baffle 9 is pulled out, the limiting rods 11 can block the baffle 9 from being completely pulled out of the sliding grooves 8, the trouble of installation caused by the fact that the baffle 9 is pulled out of the two sliding grooves 8 is avoided, the baffle 9 can stably move up and down in the two sliding grooves 8, the two limiting grooves 12 are respectively arranged on the opposite surfaces of the inner walls of the two sliding grooves 8, a damp-proof plate 13 is arranged between the plurality of inserting grooves 5, the damp-proof plate 13 comprises a calcium chloride layer 131, an activated carbon layer 132 is arranged on the back surface of the calcium chloride layer 131, and the damp-proof plate 13 can completely absorb the moisture in the shell 1 under the moisture absorption effect of the calcium chloride layer 131 and the activated carbon layer 132, so as to avoid the influence of the moisture on the storage device, the right side surface of the shell 1 is hinged with the right side surface of a cabinet door 15 through two hinges 14, the back surface of the cabinet door 15 is overlapped on the front surface of the shell 1, the left side of the front surface of the cabinet door 15 is provided with a handle 16, the surface of the handle 16 is provided with anti-skid grains, through the arrangement of the handle 16, people can conveniently open the cabinet door 15 by using the handle 16, meanwhile, the anti-slip lines on the surface of the handle 16 can prevent people from slipping when using the handle 16, the front surface of the cabinet door 15 is provided with an observation window 17, the observation window 17 is made of transparent glass, and by arranging the observation window 17, because the observation window 17 is made of transparent glass, people can observe the information of the nameplate 6 in the shell 1 outside the cabinet door 15, thereby it has brought the convenience to take out the accumulator that needs for people, and the equal fixed connection supporting leg 18 in four corners department of casing 1 lower surface can make casing 1's support become more stable through setting up supporting leg 18.
The utility model discloses an operating procedure does:
s1, when in use, people draw up the baffle 9 through the fixing block 10 to enable the storage device with the electric power information to be inserted into the slot 5, and then put down the baffle 9 to enable the baffle 9 to cover the inlet of the slot 5, so that moisture in the shell 1 can be completely absorbed under the action of moisture absorption of the calcium chloride layer 131 and the activated carbon layer 132 on the moisture-proof plate 13, and the storage device is prevented from being influenced by the moisture;
s2, writing information related to the memory on the nameplate 6, and facilitating people to search in the future;
s3, finally, people close the cabinet door 15 through the handle 16, so that the shell 1 forms a closed environment, external dust is prevented from falling into the shell 1, and meanwhile, people can observe the information of the nameplate 6 in the shell 1 through the observation window 17 outside the cabinet door 15, thereby bringing convenience for people to take out the required storage.
The above-mentioned embodiments further describe the objects, technical solutions and advantages of the present invention in detail, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements and the like made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims (6)

1. An electric power information storage device comprising a housing (1), characterized in that: the lower surface of the inner wall of the shell (1) is provided with an installation seat (2), the upper surface of the installation seat (2) is provided with a clamping groove (3), a fixed plate (4) is clamped in the clamping groove (3), the front surface of the fixed plate (4) is provided with a plurality of slots (5), clamping plates (7) are arranged on the left side and the right side of each slot (5), the back surfaces of the two clamping plates (7) are fixedly connected to the front surface of the fixed plate (4), the opposite surfaces of the two clamping grooves (3) are provided with sliding grooves (8), and the two sliding grooves (8) are respectively clamped on the left side surface and the right side surface of the baffle (9);
the equal fixedly connected with gag lever post (11) in below of baffle (9) left and right sides face, and two gag lever posts (11) are located two spacing grooves (12) respectively, and set up the opposite face at two spout (8) inner walls respectively in two spacing grooves (12), and are provided with dampproofing board (13) between a plurality of slot (5), the right flank of casing (1) is articulated through the right flank of two hinges (14) and cabinet door (15), the back overlap joint of cabinet door (15) is in the front of casing (1), the equal fixed connection supporting leg (18) in four corners department of casing (1) lower surface.
2. The electric power information storage device according to claim 1, wherein: the moisture-proof plate (13) comprises a calcium chloride layer (131), and an activated carbon layer (132) is arranged on the back of the calcium chloride layer (131).
3. The electric power information storage device according to claim 1, wherein: and a nameplate (6) is arranged below the slot (5).
4. The electric power information storage device according to claim 1, wherein: a fixed block (10) is arranged above the front face of the baffle (9), and the fixed block (10) is rectangular.
5. The electric power information storage device according to claim 1, wherein: the cabinet door is characterized in that a handle (16) is arranged on the left side of the front face of the cabinet door (15), and anti-skid grains are arranged on the surface of the handle (16).
6. The electric power information storage device according to claim 1, wherein: the front side of the cabinet door (15) is provided with an observation window (17), and the observation window (17) is made of transparent glass.
