CN209919441U

CN209919441U - Electric safety shaped steel pipe cutting device that uses

Info

Publication number: CN209919441U
Application number: CN201920737063.3U
Authority: CN
Inventors: 樊晓虹; 樊斌; 王子龙; 王丹阳; 王新刚; 赵昊; 刘晓芳
Original assignee: Henan University of Urban Construction
Current assignee: Henan University of Urban Construction
Priority date: 2019-05-22
Filing date: 2019-05-22
Publication date: 2020-01-10
Anticipated expiration: 2029-05-22

Abstract

The utility model discloses an electric safe shaped steel pipe cutting device that uses, including base and transparent guard shield, the cavity has been seted up to the inside of base, the equal fixedly connected with support in front and back both ends position that leans on of base top one side, the top fixedly connected with crossbeam of support, one side position fixedly connected with telescopic link leans on of crossbeam bottom, the bottom of telescopic link is run through transparent guard shield and is extended to its inside, the bottom fixedly connected with cutting machine of telescopic link, the other side position fixedly connected with hydraulic cylinder leans on of crossbeam bottom, hydraulic cylinder's bottom fixedly connected with push pedal. This electrical safety shaped steel pipe cutting device uses through the cooperation of transparent guard shield, swash plate, baffle, connecting rod, scraper blade, hack lever, lead screw, movable block and connect the workbin, makes it have the function of collecting the sweeps to the person of facilitating the use cleans the sweeps, has alleviateed user's burden.

Description

Electric safety shaped steel pipe cutting device that uses

Technical Field

The utility model relates to an electrical technology field specifically is an electrical safety shaped steel pipe cutting device.

Background

Electricity is a generic term in the disciplines or engineering fields of production, transmission, distribution, use, and manufacture of electrical equipment for electrical energy. The method is a science for creating, maintaining and improving limited space and environment by taking electric energy, electric equipment and electric technology as means, and covers three aspects of conversion, utilization and research of the electric energy, including basic theory, application technology, facility equipment and the like. Electrical engineering is one of the core disciplines in the modern science and technology field, and is the indispensable key discipline in the modern high and new technology field.

When the steel guide pipe is cut, a steel guide pipe cutting device is used. However, the existing steel pipe cutting device does not have the function of collecting the sweeps, so that the sweeps generated during cutting splash around along with the driving of acting force, a user is difficult to clean the sweeps after the steel pipe is cut, burden is brought to the user, and the use requirement of the user cannot be met. Therefore, an electrical safety steel conduit cutting device is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an electric safe shaped steel pipe cutting device that uses to propose current steel pipe cutting device in solving above-mentioned background, do not have the function of collecting the sweeps, the sweeps that produces during the cutting splashes everywhere along with the drive of effort, makes the user accomplish the cutting back to the steel pipe, is difficult to clean the sweeps, has brought the burden for the user, can not satisfy the problem of user's user demand already.

In order to achieve the above object, the utility model provides a following technical scheme: an electrical safety steel guide pipe cutting device comprises a base and a transparent shield, wherein a cavity is arranged inside the base, the positions of the front and the rear ends of one side of the top of the base are both fixedly connected with a bracket, the top of the bracket is fixedly connected with a beam, a telescopic rod is fixedly connected to one side of the bottom of the cross beam, the bottom of the telescopic rod penetrates through the transparent shield and extends into the transparent shield, the bottom of the telescopic rod is fixedly connected with a cutting machine, the position of the bottom of the cross beam close to the other side is fixedly connected with a hydraulic cylinder, the bottom of the hydraulic cylinder is fixedly connected with a push plate, the positions close to the two sides of the bottom of the push plate are fixedly connected with clamping blocks, a placing plate is arranged at the position close to the other side of the top of the base, the top of the placing plate is fixedly connected with a clamp, the bottom of the transparent shield is fixedly connected with a first discharging pipe, and the bottom of the first discharging pipe penetrates through the base and extends into the base.

An inclined plate is fixedly connected to the position, close to one side, of the top of the inner cavity of the base, baffles are fixedly connected to the front end and the rear end of the inclined plate, one side, opposite to the two baffles, of the two baffles is in contact with the first blanking pipe, a sliding plate is fixedly connected to the position, close to the other side, of the top of the inner cavity of the base, a sliding groove is formed in the bottom of the sliding plate, a sliding block is fixedly connected to the position, close to one side, of the bottom of the sliding plate, the top of the sliding block extends into the sliding groove and is in contact with the inner wall of the sliding groove, a connecting rod is fixedly connected to the bottom of the sliding block, a scraping plate is fixedly connected to the position, close to one side, of the rear end of the connecting rod, the bottom of the scraping plate is in contact with the bottom of the, reciprocating motor is through its output fixedly connected with lead screw that is located one side, the lead screw lean on one side position threaded connection have the movable block, the top and the bottom of movable block all with the inner wall fixed connection of hack lever, the bottom of second unloading pipe is provided with the material receiving box, the cavity has been seted up to the inside of material receiving box, the bottom of second unloading pipe extends to the inside of material receiving box, the equal fixedly connected with fixed plate in top position that leans on of material receiving box both sides, the bottom fixedly connected with threaded rod of fixed plate.

Preferably, the bottom of the base is fixedly connected with four support legs, and the four support legs are respectively arranged at the positions close to the four corners of the bottom of the base.

Preferably, the reciprocating motor is of a model TM2301C52A, and the hydraulic cylinder is of a model SC32 x 350.

Preferably, the top of the threaded rod penetrates through the fixing plate and the base in sequence and extends to the inside of the base, and the threaded rod is in threaded connection with the base.

Preferably, a through groove is formed in a position, close to the bottom, of one side of the transparent shield, and a notch is formed in a position, close to the bottom, of the other side of the transparent shield.

Preferably, one end of the screw rod is fixedly connected with a limiting block, and one side of the limiting block is in contact with the moving block.

Compared with the prior art, the beneficial effects of the utility model are that: this electrical safety shaped steel pipe cutting device, through transparent guard shield, the swash plate, the baffle, the connecting rod, the scraper blade, the hack lever, the lead screw, the movable block and the cooperation of connecing the workbin are used, make it have the function of collecting the sweeps, thereby the person of facilitating the use cleans the sweeps, user's burden has been alleviateed, and the setting through transparent guard shield, the sweeps that has the high temperature when will cutting blocks, the guard action to the user has been played, it splashes on one's body to have reduced the sweeps, cause the condition of scald to user's health, the practicality and the security of this device have been improved, user's user demand has been satisfied.

Drawings

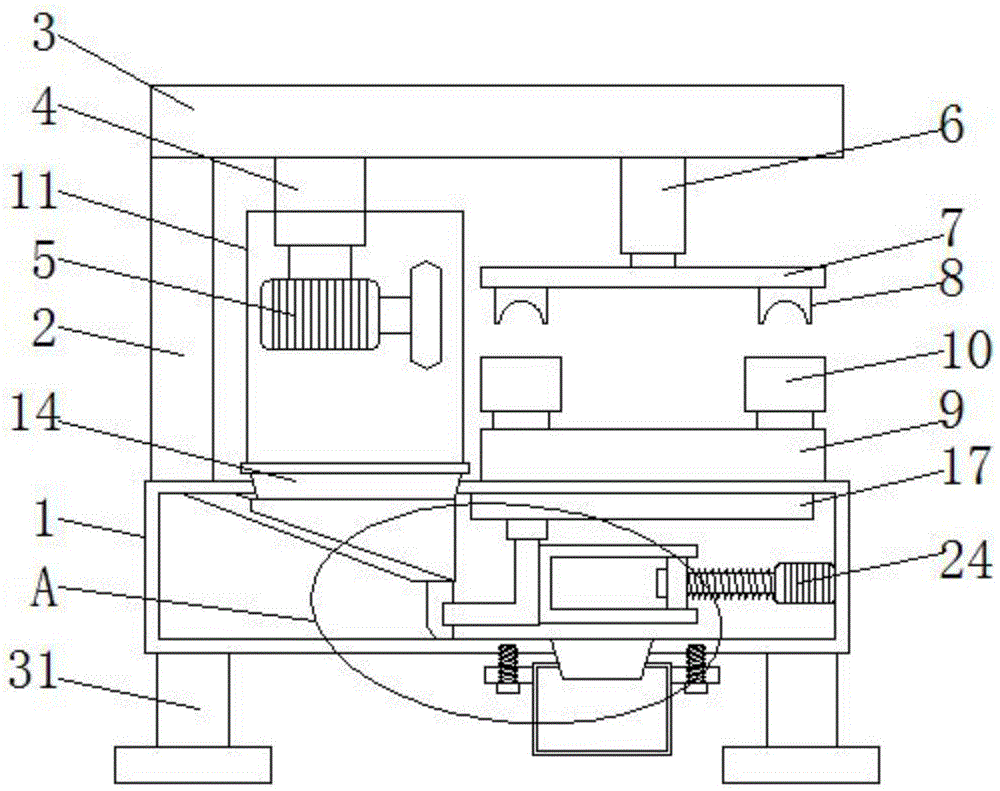

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a front view of the structure of the present invention;

FIG. 3 is a partially enlarged schematic view of A in FIG. 1;

FIG. 4 is a left side view of the transparent shield of the present invention;

FIG. 5 is a right side view of the transparent shield of the present invention;

fig. 6 is a bottom view of the sliding chute of the present invention;

fig. 7 is a right side view of the structure clip of the present invention.

In the figure: 1. a base; 2. a support; 3. a cross beam; 4. a telescopic rod; 5. a cutter; 6. a hydraulic cylinder; 7. pushing the plate; 8. a clamping block; 9. placing the plate; 10. clamping; 11. a transparent shield; 12. a through groove; 13. a recess; 14. a first blanking pipe; 15. a sloping plate; 16. a baffle plate; 17. a slide plate; 18. a chute; 19. a slider; 20. a connecting rod; 21. a squeegee; 22. a frame bar; 23. a second blanking pipe; 24. a reciprocating motor; 25. a screw rod; 26. a moving block; 27. a limiting block; 28. a material receiving box; 29. a fixing plate; 30. a threaded rod; 31. and (3) a support leg.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-7, the present invention provides a technical solution: the utility model provides an electric safe shaped steel pipe cutting device that uses, including base 1 and transparent guard shield 11, the cavity has been seted up to base 1's inside, base 1 top one side lean on the equal fixedly connected with support 2 in front and back both ends position, the top fixedly connected with crossbeam 3 of

support

2, 3 bottom of crossbeam lean on one side position fixedly connected with telescopic link 4, transparent guard shield 11 is run through and extends to its inside in the bottom of telescopic link 4, the bottom fixedly connected with cutting machine 5 of

telescopic link

4, 3 bottom of crossbeam lean on opposite side position fixedly connected with hydraulic cylinder 6, the bottom fixedly connected with push pedal 7 of

hydraulic cylinder

6, 7 bottom of push pedal lean on equal fixedly connected with clamp splice 8 in both sides position, board 9 is placed by opposite side position at base 1 top, the top fixedly connected with clamping 10 of placing board 9, the first unloading pipe 14 of bottom fixedly connected with of transparent guard shield 11, base 1 is run through and extends to its inside to first unloading.

An inclined plate 15 is fixedly connected to the position close to one side of the top of an inner cavity of a base 1, baffles 16 are fixedly connected to the front end and the rear end of the inclined plate 15, one opposite side of the two baffles 16 is in contact with a first discharging pipe 14, a sliding plate 17 is fixedly connected to the position close to the other side of the top of the inner cavity of the base 1, a sliding groove 18 is formed in the bottom of the sliding plate 17, a sliding block 19 is fixedly connected to the position close to one side of the bottom of the sliding plate 17, the top of the sliding block 19 extends into the sliding groove 18 and is in contact with the inner wall of the sliding groove 18, a connecting rod 20 is fixedly connected to the bottom of the sliding block 19, a scraping plate 21 is fixedly connected to the position close to one side of the rear end of the connecting rod 20, the bottom of the scraping plate 21 is in contact with the bottom of the inner cavity of the base 1, the top of the, reciprocating motor 24 is through its output fixedly connected with lead screw 25 that is located one side, lead screw 25 leans on one side position threaded connection to have a movable block 26, the top and the bottom of movable block 26 all with the inner wall fixed connection of hack lever 22, the bottom of second unloading pipe 23 is provided with material receiving box 28, the cavity has been seted up to material receiving box 28's inside, the bottom of second unloading pipe 23 extends to the inside of material receiving box 28, the equal fixedly connected with fixed plate 29 in top position that leans on of material receiving box 28 both sides, the bottom fixedly connected with threaded rod 30 of fixed plate 29.

The utility model discloses in: the bottom of the base 1 is fixedly connected with four support legs 31, and the four support legs 31 are respectively arranged at the positions close to the four corners of the bottom of the base 1; by the arrangement of the four legs 31, a stable support is provided for the device.

The utility model discloses in: the reciprocating motor 24 is of the type TM2301C52A and the hydraulic cylinder 6 is of the type SC32 x 350.

The utility model discloses in: the top of the threaded rod 30 penetrates through the fixing plate 29 and the base 1 in sequence and extends into the base 1, and the threaded rod 30 is in threaded connection with the base 1; the receiving box 28 is locked by the arrangement of the threaded rod 30.

The utility model discloses in: a through groove 12 is arranged at the position close to the bottom of one side of the transparent shield 11, and a notch 13 is arranged at the position close to the bottom of the other side of the transparent shield 11; through the arrangement of the through groove 12 and the notch 13, the length of the steel pipe to be cut can be adjusted at will by a user.

The utility model discloses in: one end of the screw rod 25 is fixedly connected with a limit block 27, and one side of the limit block 27 is in contact with a moving block 26; the moving block 26 is prevented from sliding out of the shape travel range of the lead screw 25 by the arrangement of the limit block 27.

The working principle is as follows: when the device is used, firstly, a user puts a steel pipe on a clamp 10, one end to be cut extends into a transparent shield 11 from a notch 13, secondly, a push plate 7 is pushed to move through a hydraulic cylinder 6, the steel pipe to be cut is clamped tightly through a clamping block 8 driven by the push plate 7 to move, after the clamping, the user starts a cutting machine 5, a telescopic rod 4 is moved up and down to cut the steel pipe, scraps generated in the cutting process of the steel pipe are blocked through the transparent shield 11, the scraps cannot splash around, so that the scraps flow onto an inclined plate 15 from a first discharging pipe 14 under the action of gravity, the scraps cannot generate a side flow condition through the arrangement of a baffle 16, the scraps flow into the bottom of a base 1 for temporary storage under the action of gravity through the arrangement of the inclined plate 15, and the temporarily stored scraps are positioned at the rear end of a scraper 21 through the arrangement of the inclined plate 15, after the user finishes cutting required steel pipe, the user starts reciprocating motor 24, rotates through reciprocating motor 24 and drives lead screw 25 to rotate, rotates through lead screw 25 and drives movable block 26 to move, moves through movable block 26 and drives hack lever 22 to move, moves through hack lever 22 and drives connecting rod 20 to move, moves through connecting rod 20 and drives scraper blade 21 and scrape the sweeps of base 1 inner chamber bottom backward to let the sweeps flow into in the material receiving box 28 through second unloading pipe 23 and collect.

In summary, the following steps: the electrical safety steel conduit cutting device has the function of collecting scraps by matching the transparent protective cover 11, the inclined plate 15, the baffle 16, the connecting rod 20, the scraper 21, the frame rod 22, the lead screw 25, the moving block 26 and the material receiving box 28, thereby facilitating a user to clean the scraps, lightening the burden of the user, blocking the scraps with high temperature during cutting by arranging the transparent protective cover 11, playing a role of protecting the user, reducing the condition that the scraps splash on the body of the user and scald the body of the user, improving the practicability and safety of the device, meeting the use requirement of the user, solving the problem that the existing steel conduit cutting device does not have the function of collecting the scraps, leading the scraps generated during cutting to splash around along with the driving of acting force, leading the user to finish the cutting of a steel pipe, difficult to clean the scraps, brings burden to the user and can not meet the use requirement of the user.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an electric safety shaped steel pipe cutting device that uses, includes base (1) and transparent guard shield (11), its characterized in that: the cutting device is characterized in that a cavity is formed in the base (1), a support (2) is fixedly connected to the positions of the front end and the rear end of one side of the top of the base (1) close to the front end and the rear end of the base (1), a cross beam (3) is fixedly connected to the top of the support (2), a telescopic rod (4) is fixedly connected to the position of one side of the bottom of the cross beam (3), the bottom of the telescopic rod (4) penetrates through a transparent shield (11) and extends to the inside of the transparent shield, a cutting machine (5) is fixedly connected to the bottom of the telescopic rod (4), a hydraulic cylinder (6) is fixedly connected to the position of the other side of the bottom of the cross beam (3), a push plate (7) is fixedly connected to the bottom of the hydraulic cylinder (6), clamping blocks (8) are fixedly connected to the positions of the two sides of the bottom of the push plate (7, the bottom of the transparent shield (11) is fixedly connected with a first discharging pipe (14), and the bottom of the first discharging pipe (14) penetrates through the base (1) and extends into the base;

the base is characterized in that an inclined plate (15) is fixedly connected to the top of an inner cavity of the base (1) by one side, baffles (16) are fixedly connected to the front end and the rear end of the inclined plate (15), one side of the two baffles (16) opposite to each other is contacted with a first blanking pipe (14), a sliding plate (17) is fixedly connected to the top of the inner cavity of the base (1) by the other side, a sliding groove (18) is formed in the bottom of the sliding plate (17), a sliding block (19) is fixedly connected to the bottom of the sliding plate (17) by one side, the top of the sliding block (19) extends into the sliding groove (18) and is contacted with the inner wall of the sliding groove (18), a connecting rod (20) is fixedly connected to the bottom of the sliding block (19), a scraper (21) is fixedly connected to the rear end of the connecting rod (20) by one side, the bottom of the scraper (21) is contacted with the bottom of the inner, the other side of the connecting rod (20) is fixedly connected with a frame rod (22), the position, close to one side, of the bottom of an inner cavity of the base (1) is fixedly connected with a second blanking pipe (23), one side of the inner cavity of the base (1) is fixedly connected with a reciprocating motor (24), the reciprocating motor (24) is fixedly connected with a lead screw (25) through an output end positioned on one side of the reciprocating motor, the position, close to one side, of the lead screw (25) is in threaded connection with a movable block (26), the top and the bottom of the movable block (26) are fixedly connected with the inner wall of the frame rod (22), the bottom of the second blanking pipe (23) is provided with a material receiving box (28), a cavity is formed in the material receiving box (28), the bottom of the second blanking pipe (23) extends to the inside of the material receiving box (28), and the positions, close to the top, the bottom of the fixed plate (29) is fixedly connected with a threaded rod (30).

2. An electrical safety type steel pipe cutting apparatus according to claim 1, wherein: the bottom fixedly connected with four stabilizer blades (31) of base (1), four stabilizer blades (31) set up respectively in the position of being close to the four corners of base (1) bottom.

3. An electrical safety type steel pipe cutting apparatus according to claim 1, wherein: the model of the reciprocating motor (24) is TM2301C52A, and the model of the hydraulic cylinder (6) is SC32 × 350.

4. An electrical safety type steel pipe cutting apparatus according to claim 1, wherein: the top of threaded rod (30) runs through fixed plate (29) and base (1) in proper order and extends to the inside of base (1), threaded rod (30) and base (1) threaded connection.

5. An electrical safety type steel pipe cutting apparatus according to claim 1, wherein: the position, close to the bottom, of one side of the transparent shield (11) is provided with a through groove (12), and the position, close to the bottom, of the other side of the transparent shield (11) is provided with a notch (13).

6. An electrical safety type steel pipe cutting apparatus according to claim 1, wherein: one end of the screw rod (25) is fixedly connected with a limiting block (27), and one side of the limiting block (27) is in contact with a moving block (26).
