Screening plant is used in processing of new forms of energy raw and other materials

Technical Field

The utility model relates to a new forms of energy material technical field specifically is a screening plant is used in processing of new forms of energy raw and other materials.

Background

Can use the screening plant to sieve raw and other materials when new forms of energy raw and other materials are processed, then can use the screening plant when sieving, and the raw and other materials of the new forms of energy have many kinds, the mesh diameter of the sieve that uses when sieving with different raw and other materials is different, and the mesh diameter of screening plant sieve is all fixed for the processing of current new forms of energy raw and other materials, can not adjust the mesh diameter of sieve, then can not adjust the screening dynamics of sieve according to the new forms of energy raw and other materials of difference, consequently, can not satisfy the user demand of processing.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a screening plant is used in processing of new forms of energy raw and other materials has solved the mesh diameter of current screening plant sieve for processing of new forms of energy raw and other materials and all is fixed, can not adjust the mesh diameter of sieve, then can not adjust the problem of the screening dynamics of sieve according to the new forms of energy raw and other materials of difference.

(II) technical scheme

In order to achieve the above purpose, the utility model adopts the technical proposal that: the utility model provides a screening plant is used in processing of new forms of energy raw and other materials, includes the casing, shells inner wall's the left and right sides face respectively with the left and right sides face fixed connection of first otter board, the upper surface overlap joint of first otter board has the second otter board, the surface of second otter board is provided with a plurality of teeth, the through-hole has been seted up to the right flank of casing, the right flank fixedly connected with fixed block of casing, the upper surface joint of fixed block has rotary device, rotary device's top fixed connection is at the lower surface of fluted disc, the fluted disc pass the through-hole and with the tooth meshing.

The right flank fixedly connected with supporting shoe of casing, the upper surface joint of supporting shoe has the cutting ferrule, the kelly has been cup jointed in the cutting ferrule, the top fixedly connected with of kelly draws the piece, the surface of kelly has cup jointed first spring, the top fixed connection of first spring draws the lower surface of piece, the bottom fixed connection of first spring is at the upper surface of cutting ferrule, the bottom joint of kelly advances in the draw-in groove that fluted disc upper surface central point put and seted up, the upper surface joint of second otter board has the second bearing, the second bearing cup joints the second pivot, the bottom fixed connection of second pivot is at the upper surface of first otter board.

The left surface of casing is provided with discharging device, the equal fixedly connected with gyro wheel in four corners department of the lower surface of casing, and four gyro wheels respectively sliding connection in four spouts that the bottom plate upper surface was seted up, the left side fixedly connected with fixed plate of bottom plate upper surface, and the equal fixedly connected with resilient means in both sides around the fixed plate right flank, and resilient means's right-hand member fixed connection is at the left surface of casing, the right side fixedly connected with drive arrangement of bottom plate upper surface.

Preferably, the driving device comprises a motor, the lower surface of the motor body is fixedly connected to the upper surface of the base plate, and the output shaft of the motor is eccentrically and fixedly connected with a movable rod.

Preferably, the right flank of casing is provided with the power, and the right flank of power is provided with the switch, the output of power is connected with the input electricity of switch through the wire, the output of switch is connected with the input electricity of motor through the wire.

Preferably, the rotating device comprises a first bearing, the bottom end of the first bearing is clamped on the upper surface of the fixed block, a first rotating shaft is sleeved in the first bearing, and the top end of the first rotating shaft is fixedly connected to the lower surface of the fluted disc.

Preferably, the discharging device comprises a discharging pipe, the discharging pipe is arranged on the left side face of the shell, and a valve is arranged on the surface of the discharging pipe.

Preferably, the elastic device comprises a telescopic rod, a second spring is sleeved on the surface of the telescopic rod, the left ends of the second spring and the telescopic rod are fixedly connected to the right side face of the fixed plate, and the right ends of the second spring and the telescopic rod are fixedly connected to the left side face of the shell.

(III) advantageous effects

The beneficial effects of the utility model reside in that:

1. this screening plant is used in processing of new forms of energy raw and other materials, through setting up first otter board, the second otter board, the tooth, the fluted disc and drawing mutually supporting of piece, at first upwards the pulling draws the piece, draw piece rebound drive kelly rebound, make the kelly break away from the draw-in groove, then people just can rotate the fluted disc, the rotatory tooth rotation that drives of fluted disc, the tooth is rotatory just can make the second otter board rotate, make the crisscross distribution of mesh on mesh and the first otter board on the second otter board, just can adjust the screening dynamics of first otter board, can adjust the screening dynamics of sieve according to the new forms of energy raw and other materials of difference, consequently, can satisfy the needs of processing.

2. This screening plant is used in processing of new forms of energy raw and other materials, through setting up drive arrangement, motor in the drive arrangement can drive the movable rod rotatory at the during operation, can drive the casing when the movable rod contacts with the casing and remove left, through setting up resilient means, when movable rod and casing separation, second spring in the resilient means can drive the casing and remove right because the elasticity of self, just can make the casing shake about going on, thereby make the effect of new forms of energy raw and other materials when the screening better, through setting up second bearing and second pivot, can make the second otter board can not separate with first otter board when rotatory, can also make the second otter board position can not take place the skew when rotatory simultaneously.

3. This screening plant is used in processing of new forms of energy raw and other materials, through setting up discharging device, when people open the valve in the discharging device, just can be with the new forms of energy raw and other materials after the screening discharge from the discharging pipe, give people and bring the convenience when getting the material, through setting up rotary device, rotary device can fix the fluted disc, can also make the fluted disc more stable when rotatory simultaneously.

Drawings

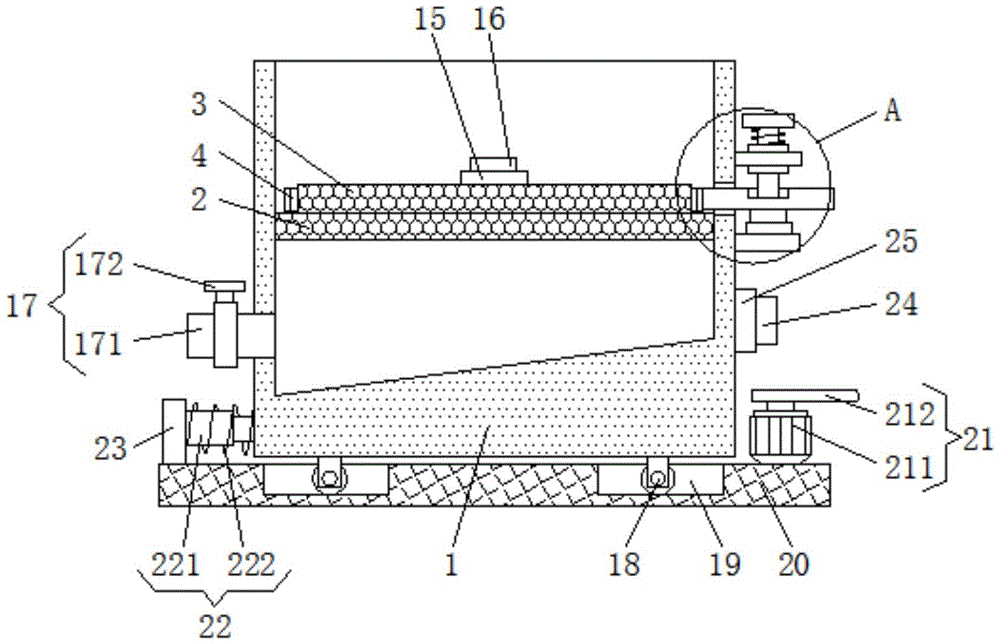

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

FIG. 2 is an enlarged schematic view of part A of the utility model;

fig. 3 is a schematic structural view of the second screen plate of the present invention.

In the figure: the automatic feeding device comprises a shell 1, a first screen plate 2, a second screen plate 3, teeth 4, through holes 5, a fixing block 6, a rotating device 7, a first bearing 71, a first rotating shaft 72, a fluted disc 8, a clamping groove 9, a supporting block 10, a clamping sleeve 11, a clamping rod 12, a first spring 13, a pulling block 14, a second bearing 15, a second rotating shaft 16, a discharging device 17, a discharging pipe 171, a valve 172, an idler wheel 18, a sliding groove 19, a bottom plate 20, a driving device 21, a motor 211, a movable rod 212, an elastic device 22, a telescopic rod 221, a second spring 222, a fixing plate 23, a power supply 24 and a switch 25.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-3, the utility model provides a technical solution: a screening device for processing new energy raw materials comprises a shell 1, a power supply 24 is arranged on the right side face of the shell 1, a switch 25 is arranged on the right side face of the power supply 24, the output end of the power supply 24 is electrically connected with the input end of the switch 25 through a wire, the output end of the switch 25 is electrically connected with the input end of a motor 211 through a wire, the utility model can obtain electric energy by arranging the power supply 24, the operation control of people on the working state of the motor 211 can be facilitated by arranging the switch 25, the left side face and the right side face of the inner wall of the shell 1 are respectively fixedly connected with the left side face and the right side face of a first screen plate 2, a second screen plate 3 is lapped on the upper surface of the first screen plate 2, the new energy raw materials can be screened by arranging the first screen plate 2 and the second screen plate 3, a plurality of teeth 4 are arranged on the, the right side surface of the shell 1 is fixedly connected with a fixed block 6, the upper surface of the fixed block 6 is clamped with a rotating device 7, the rotating device 7 comprises a first bearing 71, the bottom end of the first bearing 71 is clamped on the upper surface of the fixed block 6, a first rotating shaft 72 is sleeved in the first bearing 71, the top end of the first rotating shaft 72 is fixedly connected to the lower surface of the fluted disc 8, the fluted disc 8 can be fixed by the rotating device 7 through the rotating device 7, meanwhile, the fluted disc 8 can be more stable when rotating, the top end of the rotating device 7 is fixedly connected with the lower surface of the fluted disc 8, through setting up fluted disc 8, the rotatory 4 rotations of tooth that drive of

fluted disc

8, 4 rotations of tooth just can make second otter board 3 rotate, make mesh on the second otter board 3 and the crisscross distribution of mesh on the first otter board 2, just can adjust the screening dynamics of first otter board 2, fluted disc 8 passes through-hole 5 and meshes with tooth 4.

The right side surface of the shell 1 is fixedly connected with a supporting block 10, the upper surface of the supporting block 10 is clamped with a clamping sleeve 11, a clamping rod 12 is sleeved in the clamping sleeve 11, the top end of the clamping rod 12 is fixedly connected with a pulling block 14, the pulling block 14 moves upwards to drive the clamping rod 12 to move upwards, so that the clamping rod 12 is separated from a clamping groove 9, the fixed state of the fluted disc 8 can be released, the surface of the clamping rod 12 is sleeved with a first spring 13, through the arrangement of the first spring 13, when people loosen the pulling block 14, the first spring 13 drives the clamping rod 12 to move downwards due to the elasticity of the first spring 13, so that the clamping rod 12 can be clamped into the clamping groove 9, the fluted disc 8 can be fixed, the top end of the first spring 13 is fixedly connected to the lower surface of the pulling block 14, the bottom end of the first spring 13 is fixedly connected to the upper surface of the clamping sleeve 11, the bottom end of the clamping rod 12 is clamped into the clamping groove 9 arranged, the upper surface joint of second otter board 3 has second bearing 15, has cup jointed second pivot 16 in second bearing 15, through setting up second bearing 15 and second pivot 16, can make second otter board 3 can not separate with first otter board 2 when rotatory, can also make second otter board 3 position can not take place the skew when rotatory simultaneously, and the bottom fixed connection of second pivot 16 is at the upper surface of first otter board 2.

The left side surface of the shell 1 is provided with the discharging device 17, the discharging device 17 comprises a discharging pipe 171, the discharging pipe 171 is arranged on the left side surface of the shell 1, a valve 172 is arranged on the surface of the discharging pipe 171, through the arrangement of the discharging device 17, when people open the valve 172 in the discharging device 17, the screened new energy raw materials can be discharged from the discharging pipe 171, convenience is brought to people in material taking, four corners of the lower surface of the shell 1 are fixedly connected with rollers 18, the four rollers 18 are respectively connected in four sliding grooves 19 formed in the upper surface of the bottom plate 20 in a sliding manner, the left side of the upper surface of the bottom plate 20 is fixedly connected with a fixing plate 23, elastic devices 22 are fixedly connected to the front side and the rear side of the right side surface of the fixing plate 23, each elastic device 22 comprises an expansion link 221, a second spring 222 is sleeved on the surface of the expansion link 221, the left ends of the, the second spring 222 and the right end of the telescopic rod 221 are both fixed on the left side of the housing 1, and by providing the elastic means 22, when the movable rod 212 is separated from the housing 1, the second spring 222 in the elastic device 22 will drive the housing 1 to move rightwards due to its own elastic force, so that the housing 1 can vibrate leftwards and rightwards, therefore, the effect of the new energy raw materials is better when the new energy raw materials are screened, the right end of the elastic device 22 is fixedly connected to the left side surface of the shell 1, the right side of the upper surface of the bottom plate 20 is fixedly connected with the driving device 21, the driving device 21 comprises a motor 211, the lower surface of the body of the motor 211 is fixedly connected to the upper surface of the bottom plate 20, the output shaft of the motor 211 is eccentrically and fixedly connected with a movable rod 212, by arranging the driving device 21, the motor 211 in the driving device 21 drives the movable rod 212 to rotate during operation, and when the movable rod 212 contacts with the housing 1, the housing 1 is driven to move leftward.

The utility model discloses an operating procedure does:

s1, firstly, people pull the pull block 14 upwards, the pull block 14 moves upwards to drive the clamping rod 12 to move upwards, the clamping rod 12 is separated from the clamping groove 9, then people can rotate the fluted disc 8, the fluted disc 8 rotates to drive the teeth 4 to rotate, the teeth 4 rotate to drive the second screen plate 3 to rotate, meshes on the second screen plate 3 and meshes on the first screen plate 2 are distributed in a staggered mode, and the screening force of the first screen plate 2 can be adjusted;

s2, when people finish adjustment, the pulling block 14 is loosened, and at the moment, the first spring 13 drives the clamping rod 12 to move downwards due to the elasticity of the first spring, so that the clamping rod 12 can be clamped into the clamping groove 9, and the fluted disc 8 is fixed;

s3, then people pour the raw materials into the housing 1, and operate the switch 25 to make the motor 211 work, the motor 211 drives the movable rod 212 to rotate when working, when the movable rod 212 contacts with the housing 1, the housing 1 is driven to move leftwards, when the movable rod 212 is separated from the housing 1, the second spring 222 in the elastic device 22 drives the housing 1 to move rightwards due to its own elastic force, so that the housing 1 can vibrate leftwards and rightwards, and the effect of the raw materials of new energy resources is better when screening.

The above-mentioned embodiments further describe the objects, technical solutions and advantages of the present invention in detail, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements and the like made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims

1. The utility model provides a new forms of energy raw and other materials processing is with screening plant, includes casing (1), its characterized in that: the left side surface and the right side surface of the inner wall of the shell (1) are fixedly connected with the left side surface and the right side surface of the first screen plate (2) respectively, the upper surface of the first screen plate (2) is lapped with the second screen plate (3), a plurality of teeth (4) are arranged on the surface of the second screen plate (3), a through hole (5) is formed in the right side surface of the shell (1), the right side surface of the shell (1) is fixedly connected with a fixed block (6), the upper surface of the fixed block (6) is connected with a rotating device (7) in a clamping mode, the top end of the rotating device (7) is fixedly connected to the lower surface of a fluted disc (8), and the fluted disc (8) penetrates through the through hole (5) and;

a supporting block (10) is fixedly connected to the right side surface of the shell (1), a clamping sleeve (11) is clamped on the upper surface of the supporting block (10), a clamping rod (12) is sleeved in the clamping sleeve (11), the top end of the clamping rod (12) is fixedly connected with a pulling block (14), a first spring (13) is sleeved on the surface of the clamping rod (12), the top end of the first spring (13) is fixedly connected to the lower surface of the pulling block (14), the bottom end of the first spring (13) is fixedly connected to the upper surface of the cutting sleeve (11), the bottom end of the clamping rod (12) is clamped into a clamping groove (9) formed in the center of the upper surface of the fluted disc (8), a second bearing (15) is clamped on the upper surface of the second screen plate (3), a second rotating shaft (16) is sleeved in the second bearing (15), the bottom end of the second rotating shaft (16) is fixedly connected to the upper surface of the first screen plate (2);

the left surface of casing (1) is provided with discharging device (17), the equal fixedly connected with gyro wheel (18) in four corners department of the lower surface of casing (1), and four gyro wheels (18) sliding connection respectively in four spout (19) that bottom plate (20) upper surface was seted up, the left side fixedly connected with fixed plate (23) of bottom plate (20) upper surface, and the equal fixedly connected with resilient means (22) in both sides around fixed plate (23) right flank, and the right-hand member fixed connection of resilient means (22) is at the left surface of casing (1), the right side fixedly connected with drive arrangement (21) of bottom plate (20) upper surface.

2. The screening device for processing the new energy raw materials as claimed in claim 1, wherein: drive arrangement (21) include motor (211), the lower surface fixed connection of motor (211) fuselage is at the upper surface of bottom plate (20), the eccentric fixedly connected with movable rod (212) of output shaft of motor (211).

3. The screening device for processing the new energy raw materials as claimed in claim 2, wherein: the right flank of casing (1) is provided with power (24), and the right flank of power (24) is provided with switch (25), the output of power (24) passes through the wire and is connected with the input of switch (25) electricity, the output of switch (25) passes through the wire and is connected with the input of motor (211) electricity.

4. The screening device for processing the new energy raw materials as claimed in claim 1, wherein: rotating device (7) include first bearing (71), the bottom joint of first bearing (71) is at the upper surface of fixed block (6), cup jointed first pivot (72) in first bearing (71), and the top fixed connection of first pivot (72) is at the lower surface of fluted disc (8).

5. The screening device for processing the new energy raw materials as claimed in claim 1, wherein: discharging device (17) include discharging pipe (171), discharging pipe (171) are seted up at the left surface of casing (1), the surface of discharging pipe (171) is provided with valve (172).

6. The screening device for processing the new energy raw materials as claimed in claim 1, wherein: the elastic device (22) comprises an expansion rod (221), a second spring (222) is sleeved on the surface of the expansion rod (221), the left ends of the second spring (222) and the expansion rod (221) are fixedly connected to the right side face of the fixing plate (23), and the right ends of the second spring (222) and the expansion rod (221) are fixedly connected to the left side face of the shell (1).
