The utility model discloses a machine is strolled to multi-functional space belongs to body-building apparatus technical field, has solved traditional space strolling machine function singleness, interesting relatively poor, be unfavorable for the problem of people's body-building continuation. The hand exercising device mainly comprises a vertical rod, a cross rod, a movable rod, a foot pedal and a handrail, wherein the handrail comprises a bent pipe section and a straight pipe section, and a hand exercising mechanism is arranged on the straight pipe section. The utility model has the advantages of ingenious structural design and comprehensive functions, can exercise the waist and the legs of the human body and also can exercise the upper limbs of the human body, and can obtain more and more comprehensive fitness effects within the same fitness time; the hand exercising mechanism can be rotated positively and negatively while the legs swing, so that the interestingness is strong, and the body building continuity of people is facilitated; the palm massage device has the function of massaging the palm while moving the hand, and the massage points stimulate the acupuncture points of the palm to achieve the effect of comfortable massage; the structure design is simple, the mass production is easy to manufacture, the practicability is strong, and the outdoor fitness field can be widely popularized.

Description

Multifunctional space walker
Technical Field
The utility model belongs to the technical field of body-building apparatus, specifically speaking especially relates to a multi-functional space walking machine that is interesting strong, can temper human waist and legs portion and can temper human upper limbs.
Background
Along with the continuous improvement of the body building consciousness of people, more and more body building apparatuses are installed in urban public places such as residential communities, park squares and schools, and the spacewalk machine is one of common body building apparatuses. When in use, the handrails are tightly held by both hands, and both feet respectively stand on the two pedals, so that the legs can naturally and alternately swing back and forth as the space walking. Has the functions of strengthening heart and lung, strengthening muscle strength of lower limbs/waist and improving flexibility/coordination ability of lower limbs; it has regulating effect on lumbar muscle strain, hip joint pain, lower limb movement disorder, muscular atrophy, etc. However, the space walker on the market only considers leg movement, only exercises waist and lower limbs, has single function, and obtains poor exercise results under the same time cost; in addition, the single function also makes the equipment interesting and low, and is not beneficial to the continuity of body building of people.
Disclosure of Invention
The utility model aims at providing a multifunctional spacewalk machine which has strong interest, can exercise the waist and the legs of the human body and also can exercise the upper limbs of the human body aiming at the defects existing in the prior art.
The utility model discloses a realize through following technical scheme:
a multifunctional space walking machine comprises two vertical rods standing on the ground, cross rods are arranged on opposite surfaces of the two vertical rods respectively, each cross rod is provided with a movable rod movably connected with the cross rod, the bottom of each movable rod is provided with a foot pedal fixedly connected with the movable rod, a handrail fixedly connected with the vertical rods is further arranged between the two vertical rods, each handrail comprises a bent pipe section and a straight pipe section, a hand exercise mechanism is arranged on each straight pipe section, and each hand exercise mechanism comprises a left hand holding pipe assembly and a right hand holding pipe assembly; the left holding tube assembly comprises a left holding tube which is sleeved outside the straight tube section and is rotatably connected with the straight tube section through a bearing I, protrusions I distributed along the circumferential direction of the left holding tube are arranged at the end heads of the two tail ends of the left holding tube, and the bottom surface of each protrusion I extends downwards until the protrusion I is in clearance fit with the surface body of the straight tube section; the right hand is held the pipe assembly and is included right hand and is held the pipe, right hand is held the pipe coupling outside the straight tube section, and right hand is held the pipe through bearing II with the straight tube section rotates and is connected, right hand is held the pipe both ends end and is equipped with along its circumference distribution protruding II, protruding II bottom surfaces extend downwards until with straight tube section clearance fit.
Preferably, the left-hand holding tube assembly and the right-hand holding tube assembly have the same structural dimension and specification, and are symmetrically distributed on the straight tube section by taking the longitudinal center line of the straight tube section as a symmetric axis.
Preferably, the number of the bearings I is two, and the bearings I are respectively positioned at the two tail ends of the left holding tube; and the number of the bearings II is two, and the bearings II are respectively positioned at the two tail ends of the right hand-holding pipe.
Preferably, the left hand holding tube and the right hand holding tube are respectively provided with a plurality of convex massage points for massage.
Preferably, the raised massage points are irregularly and regularly arranged.
Preferably, the convex massage points are arc-shaped protrusions or pebble-shaped protrusions.
Preferably, the raised massage points are integrated with the left-hand holding tube and the right-hand holding tube by adopting a die casting process.
Preferably, the bulges I and II are annular.
Preferably, the bulge I and the left holding tube are integrated into a whole by adopting a die casting process or a welding process; the bulge II and the right hand-held pipe form a whole by adopting a die casting process or a welding process.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model has the advantages of ingenious structural design and comprehensive functions, can exercise the waist and the legs of the human body and also can exercise the upper limbs of the human body, and can obtain more and more comprehensive fitness effects within the same fitness time;
2. the utility model can rotate the hand exercising mechanism in the positive and negative directions while the legs swing, which is highly interesting and beneficial to the sustainability of the body-building of people;
3. the utility model has the function of massaging the palm while moving the hand, and the massage points stimulate the acupuncture points of the palm to achieve the effect of comfortable massage;
4. the utility model discloses structural design is simple, easily makes the volume production, and the practicality is strong, can obtain extensively popularization in outdoor body-building field.
Drawings

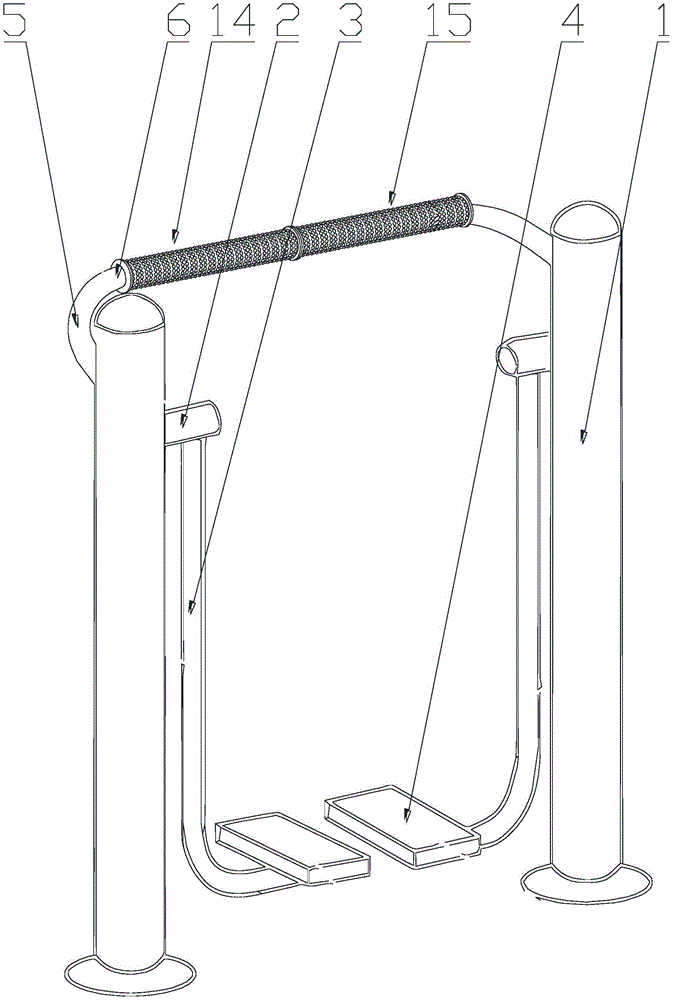

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a first schematic structural view of the hand exercising mechanism of the present invention;
FIG. 3 is a schematic structural view of a hand exercising mechanism of the present invention;
fig. 4 is a schematic sectional structure of the present invention.
In the figure: 1. a vertical rod; 2. a cross bar; 3. a movable rod; 4. a foot pedal; 5. bending the pipe section; 6. a straight pipe section; 7. holding the tube by the left hand; 8. a bearing I; 9. a bulge I; 10. a right-hand holding tube; 11. a bearing II; 12. a bulge II; 13. raised massage points; 14. a left hand grip tube assembly; 15. the pipe assembly is held to the right hand.
Detailed Description
The present invention will be further explained with reference to the accompanying drawings:
a multifunctional space walking machine comprises two vertical rods 1 standing on the ground, cross rods 2 are arranged on opposite surfaces of the two vertical rods 1 respectively, each cross rod 2 is provided with a movable rod 3 movably connected with the cross rod, the bottom of each movable rod 3 is provided with a foot pedal 4 fixedly connected with the movable rod, a handrail fixedly connected with the cross rod 1 is further arranged between the two vertical rods 1, each handrail comprises a bent pipe section 5 and a straight pipe section 6, a hand exercise mechanism is arranged on each straight pipe section 6, and each hand exercise mechanism comprises a left hand holding pipe assembly 14 and a right hand holding pipe assembly 15; the left holding tube assembly 14 comprises a left holding tube 7, the left holding tube 7 is sleeved outside the straight tube section 6, the left holding tube 7 is rotatably connected with the straight tube section 6 through a bearing I8, protrusions I9 distributed along the circumferential direction of the left holding tube 7 are arranged at the end heads of the two tail ends of the left holding tube 7, and the bottom surface of each protrusion I9 extends downwards until the protrusion I9 is in clearance fit with the surface body of the straight tube section 6; the right hand is held the pipe assembly 15 and is included right hand and is held pipe 10, right hand is held pipe 10 and is cup jointed outside the straight tube section 6 and right hand is held pipe 10 through bearing II 11 with straight tube section 6 rotates and is connected, right hand is held pipe 10 both ends end and is equipped with along its circumference distribution protruding II 12, protruding II 12 bottom surface downwardly extending until with straight tube section 6 clearance fit.
Preferably, the left-hand tube-holding assembly 14 and the right-hand tube-holding assembly 15 have the same structural dimensions and specifications, and are symmetrically distributed on the straight tube section 6 by taking the longitudinal center line of the straight tube section 6 as a symmetric axis.
Preferably, the number of the bearings I8 is two, and the bearings I are respectively positioned at the two tail ends of the left holding tube 7; the number of the bearings II 11 is two, and the bearings II are respectively positioned at the two tail ends of the right hand-holding pipe 10.
Preferably, the surfaces of the left hand holding tube 7 and the right hand holding tube 10 are provided with a plurality of convex massage points 13 for massage.
Preferably, the convex massage points 13 are arranged irregularly.
Preferably, the convex massage points 13 are arc-shaped protrusions or pebble-shaped protrusions.
Preferably, the raised massage points 13 are integrally formed with the left and right grip tubes 7, 10 by a mold casting process.
Preferably, the bulges I9 and II 12 are annular.
Preferably, the bulge I9 and the left holding tube 7 are integrated by adopting a die casting process or a welding process; the bulge II 12 and the right hand-held tube 10 are integrated into a whole by adopting a die casting process or a welding process.
Example 1:
the hand exercising device comprises two vertical rods 1 standing on the ground, cross rods 2 are respectively arranged on opposite surfaces of the two vertical rods 1, each cross rod 2 is provided with a movable rod 3 movably connected with the cross rod, the bottom of each movable rod 3 is provided with a foot pedal 4 fixedly connected with the movable rod, a handrail fixedly connected with the vertical rods 1 is further arranged between the two vertical rods 1, each handrail comprises a bent pipe section 5 and a straight pipe section 6, a hand exercising mechanism is arranged on each straight pipe section 6, and each hand exercising mechanism comprises a left hand holding pipe assembly 14 and a right hand holding pipe assembly 15; the left holding tube assembly 14 comprises a left holding tube 7, the left holding tube 7 is sleeved outside the straight tube section 6, the left holding tube 7 is rotatably connected with the straight tube section 6 through a bearing I8, protrusions I9 distributed along the circumferential direction of the left holding tube 7 are arranged at the end heads of the two tail ends of the left holding tube 7, and the bottom surfaces of the protrusions I9 extend downwards until the protrusions are in clearance fit with the surface body of the straight tube section 6; the right hand holding pipe assembly 15 comprises a right hand holding pipe 10, the right hand holding pipe 10 is sleeved outside the straight pipe section 6, the right hand holding pipe 10 is rotatably connected with the straight pipe section 6 through a bearing II 11, two tail end heads of the right hand holding pipe 10 are provided with protrusions II 12 distributed along the circumferential direction of the right hand holding pipe, and the bottom surfaces of the protrusions II 12 extend downwards until the protrusions are in clearance fit with the straight pipe section 6. The bulges I9 and II 12 are mainly designed to prevent skin and meat from being hurt by the assembled joint during alternate rotation.
The using method comprises the following steps: the feet stand on the foot pedal, the hands tightly hold the hand exercising mechanism, the two legs are alternately swung back and forth, the walking is natural as the space walking, and the left holding tube assembly 14 and the right holding tube assembly 15 are alternately rotated by the hands while the two legs are swung. Namely, the upper limbs of the human body are exercised while the legs and the waist are exercised.
The waist and leg exercising device is ingenious in structural design and comprehensive in function, can exercise the waist and leg of a human body and the upper limbs of the human body at the same time, and can obtain more and more comprehensive body-building effects within the same body-building time; the hand exercising mechanism can be rotated positively and negatively while the legs swing, so that the interestingness is strong, and the body building continuity of people is facilitated; the structure design is simple, the mass production is easy to manufacture, the practicability is strong, and the outdoor fitness field can be widely popularized.
Example 2:
this embodiment includes that the coexistence is equipped with horizontal pole 2 on the 1 opposite face of two montants respectively at subaerial montant 1, all is equipped with swing joint's movable rod 3 with it on every horizontal pole 2, and 3 bottoms of movable rod are equipped with fixed connection's foot footboard 4 with it, still are equipped with fixed connection's handrail with it between two montants 1, and the handrail includes bend 5 and straight tube section 6, its characterized in that: a hand exercising mechanism is arranged on the straight pipe section 6 and comprises a left hand holding pipe assembly 14 and a right hand holding pipe assembly 15; the left holding tube assembly 14 comprises a left holding tube 7, the left holding tube 7 is sleeved outside the straight tube section 6, the left holding tube 7 is rotatably connected with the straight tube section 6 through a bearing I8, protrusions I9 distributed along the circumferential direction of the left holding tube 7 are arranged at the end heads of the two tail ends of the left holding tube 7, and the bottom surfaces of the protrusions I9 extend downwards until the protrusions are in clearance fit with the surface body of the straight tube section 6; the right hand holding pipe assembly 15 comprises a right hand holding pipe 10, the right hand holding pipe 10 is sleeved outside the straight pipe section 6, the right hand holding pipe 10 is rotatably connected with the straight pipe section 6 through a bearing II 11, two tail end heads of the right hand holding pipe 10 are provided with protrusions II 12 distributed along the circumferential direction of the right hand holding pipe, and the bottom surfaces of the protrusions II 12 extend downwards until the protrusions are in clearance fit with the straight pipe section 6. The bulges I9 and II 12 are mainly designed to prevent skin and meat from being hurt by the assembled joint during alternate rotation. The bulge I9 and the left holding tube 7 are integrated into a whole by adopting a die casting process or a welding process; the bulge II 12 and the right hand-held tube 10 are integrated into a whole by adopting a die casting process or a welding process.
The left-hand holding tube assembly 14 and the right-hand holding tube assembly 15 of the embodiment have the same structure, size and specification, and are symmetrically distributed on the straight tube section 6 by taking the longitudinal center line of the straight tube section 6 as a symmetric axis; the number of the bearings I8 is two, and the bearings I are respectively positioned at the two tail ends of the left holding tube 7; the number of the bearings II 11 is two, and the bearings II are respectively positioned at the two tail ends of the right hand-holding pipe 10; the design of two bearings is favorable to the stability of structure, and protruding I9, protruding II 12 are the ring form, and structural design is pleasing to the eye, the security is high.
In addition, in the present embodiment, a plurality of convex massage points 13 for massaging are respectively disposed on the surfaces of the left hand holding tube 7 and the right hand holding tube 10, the convex massage points 13 are irregularly arranged, the convex massage points 13 are arc-shaped or pebble-shaped, and the convex massage points 13 are integrated with the left hand holding tube 7 and the right hand holding tube 10 by a mold casting process.
The waist and leg exercising device is ingenious in structural design and comprehensive in function, can exercise the waist and leg of a human body and the upper limbs of the human body at the same time, and can obtain more and more comprehensive body-building effects within the same body-building time; the hand exercising mechanism can be rotated positively and negatively while the legs swing, so that the interestingness is strong, and the body building continuity of people is facilitated; the palm massage device has the function of massaging the palm while moving the hand, and the massage points stimulate the acupuncture points of the palm to achieve the effect of comfortable massage; the structure design is simple, the mass production is easy to manufacture, the practicability is strong, and the outdoor fitness field can be widely popularized.
In summary, the present invention is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention, and all equivalent variations and modifications of the shapes, structures, characteristics and spirit described in the claims of the present invention should be included in the claims of the present invention.

Claims (9)

1. The utility model provides a multi-functional space walker, includes the coexistence on subaerial montant, two be equipped with the horizontal pole on the montant opposite face respectively, every all be equipped with swing joint's movable rod with it on the horizontal pole, the movable rod bottom is equipped with fixed connection's foot footboard with it, two still be equipped with fixed connection's handrail with it between the montant, the handrail includes bend section and straight tube section, its characterized in that: the straight pipe section is provided with a hand exercising mechanism, and the hand exercising mechanism comprises a left hand holding pipe assembly and a right hand holding pipe assembly; the left holding tube assembly comprises a left holding tube which is sleeved outside the straight tube section and is rotatably connected with the straight tube section through a bearing I, protrusions I distributed along the circumferential direction of the left holding tube are arranged at the end heads of the two tail ends of the left holding tube, and the bottom surface of each protrusion I extends downwards until the protrusion I is in clearance fit with the surface body of the straight tube section; the right hand is held the pipe assembly and is included right hand and is held the pipe, right hand is held the pipe coupling outside the straight tube section, and right hand is held the pipe through bearing II with the straight tube section rotates and is connected, right hand is held the pipe both ends end and is equipped with along its circumference distribution protruding II, protruding II bottom surfaces extend downwards until with straight tube section clearance fit.
2. A multi-functional space walker according to claim 1, wherein: the left hand holding tube assembly and the right hand holding tube assembly are identical in structural dimension and specification, and are symmetrically distributed on the straight tube section by taking the longitudinal center line of the straight tube section as a symmetrical axis.
3. A multifunctional spacewalk machine as claimed in claim 1 or claim 2 wherein: the bearings I are two and are respectively positioned at the two tail ends of the left holding tube; and the number of the bearings II is two, and the bearings II are respectively positioned at the two tail ends of the right hand-holding pipe.
4. A multi-functional space walker according to claim 1, wherein: the left hand holding tube and the right hand holding tube are provided with a plurality of convex massage points for massage.
5. A multifunctional spacewalk machine as claimed in claim 4 wherein: the convex massage points are arranged irregularly.
6. A multifunctional spacewalk machine as claimed in claim 5 wherein: the convex massage points are arc-shaped or pebble-shaped.
7. A multifunctional spacewalk machine as claimed in claim 6 wherein: the raised massage points are integrated with the left hand holding tube and the right hand holding tube by adopting a die casting process.
8. A multi-functional space walker according to claim 1, wherein: the bulges I and II are annular.
9. A multifunctional spacewalk machine as claimed in claim 1 or claim 8 wherein: the bulge I and the left holding tube are integrated into a whole by adopting a die casting process or a welding process; the bulge II and the right hand-held pipe form a whole by adopting a die casting process or a welding process.
