The utility model discloses an automatic 2D writing exercise teaching system which comprises an exercise platform and a test platform which are provided with demonstration writing screens for the calligraphy copy or martial arts action imitation of practitioners respectively. The demonstration writing screens gradually display text strokes or martial arts action in the form of spot trajectory. The size and speed of the displayed text or image are suitable for body exercise. The practitioners carry out calligraphy exercise and martial arts exercise action through copying or imitating the spot trajectory from the front side of the demonstration writing screens. The practitioners carry out calligraphy and martial arts exercise through the exercise platform. The rest platform judges the exercise result of the practitioners through testing the writing shape, speed and strength or the practitioners. The exercise platform and the test platform are connected through a main controller. By using the automatic 2D writing exercise teaching system, the comprehensive cultural quality of students can be improved directly, the writing speed and quality of students are improved, and lots of valuable learning time of the whole student group is saved.
Description
Technical field
The utility model relates to a kind of full-automatic two dimension and writes body-building tutoring system, is specifically related to one drills to improve one's handwriting, body building of wushu are combined and shown by spot tracks, follows the trail of the rehearsal equipment of imitation for student.
Background technology
The calligraphy exercising method of China Chinese character, adopt copying copybook conventionally, the copybook that uses has plane version, also has concave surface version, be placed on surface level or gradient face on depict for practitioner.This calligraphy exercising method, both without controlled rule, lacks again the method for practical operation, and very large to student's limitation, efficiency is also lower.
Drills to improve one's handwriting person has such cognition conventionally, after not practising for a long time, will produce wrist, arm and send out heavy turning sour, the sensation of having a pain in the back, this is because the hand motion of drills to improve one's handwriting person in the time of exercise caused in small space by narrow, even if practitioner keeps proper sitting posture or stance, but due to the restriction of human body custom, cannot unfold, the time is not grown or can cause and feel exhausted, and breathes and hinders.
The exercise method that China is traditional, modal is various wushu exercises, for example five-animal exercises, eight-section brocade, imitation boxing, taijiquan, Eight Trigram Palm, focus on the balance of movement of human body, quiet moving combination especially, have to open and have relaxation, guiding Tu Na, has significant body-building effect, and the degree of freedom of wushu practitioner's health and degree of unfolding are that current drills to improve one's handwriting person is incomparable, drills to improve one's handwriting person only regards calligraphy to write to practise, and causes civilization and cultural succession to lack.
Chinese character develops for a long time through unrestrained, font architecture changes all the time, its stroke tendency with have an effect all-embracing, of an identical nature with the fist reason of Kung fu, but in prior art, still lack Chinese traditional calligraphy exercise and the effective combination of Kung fu, reach inside and outside and repair together, teaching method, theory and the equipment of civil and military consubstantiality.
Utility model content
For problems of the prior art, the purpose of this utility model is to provide a kind of full-automatic two dimension to write body-building tutoring system, this writes body-building tutoring system and has the imitation display screen of large-size, the word of imitation can be shown by spot tracks, character size is amplified to is enough to allow practitioner's four limbs and trunk freely unfold, breathe the degree of agitating, practitioner follows the trail of imitation spot tracks, be association of activity and inertia, unfold muscles and bones, balance is breathed, can effectively help student to change thoracic breathing into abdominal respiration, improve vital capacity and eyesight.In practicing calligraphy, reach the effect of body-building.
The purpose of this utility model is achieved through the following technical solutions:
Full-automatic two dimension is write body-building tutoring system, comprise exercising platform and test platform, exercising platform and test platform are provided with the demonstration writing screen for practitioner's calligraphic copying or wushu movement imitation, demonstrate on writing screen with spot tracks form display text stroke or wushu movement gradually, size and the speed of shown word or image are suitable for human health, and practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
Practitioner carries out the exercise of calligraphy and wushu by exercising platform, test platform by practitioner write shape, speed and strength is tested, practitioner's practice result is passed judgment on; Described exercising platform is connected by master controller with test platform.
Further, the demonstration writing screen of described exercising platform is provided with the laser pen that can move at two dimensional surface behind, the all-moving surface of laser pen is parallel with described demonstration writing screen, laser pen is radiated at the demonstration writing screen back side by strokes of characters or wushu movement gradually with spot tracks form, size and the speed of shown word or image are suitable for human health, see through described demonstration writing screen, practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
Further, the demonstration writing screen of described test platform is provided with the projection screen of display text stroke or wushu movement behind, strokes of characters or body-building action is manifested gradually with spot tracks form and be projected to demonstration writing screen, size and the speed of shown word or image are suitable for human health, see through described demonstration writing screen, practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
Further, described demonstration writing screen is installed by main frame, on main frame, is provided with two-dimension displacement platform behind in demonstration writing screen, and described laser pen is arranged on and on two-dimension displacement platform, carries out two dimensional surface and move.
Further, described two-dimension displacement platform comprises X-direction slide rail and Y direction slide rail, and Y direction slide rail is located on X-direction slide rail by slider frame, and laser pen is located on Y direction slide rail by slider frame; On described X-direction slide rail and Y direction slide rail, be provided with photoelectric limit switch; The gear train of described two-dimension displacement platform is made up of Timing Belt, driving-chain or screw mandrel.
Further, the demonstration writing screen of described exercising platform adopts black ground glass material, can see through laser and form hot spot.
Further, described main frame both sides are provided with stereo set, and main frame below is provided with earphone, and in demonstration writing screen demonstration strokes of characters or wushu movement, stereo set or earphone are synchronously play instant report lecture.
Further, two groups of laser pens are set on described two-dimension displacement platform, can carry out strokes of characters or wushu movement demonstration simultaneously, practise for two people simultaneously.
Further, described exercising platform and test platform are provided with submaster controller, and the word that the submaster controller of exercising platform is demonstrated as required or wushu movement drive two-dimension displacement platform movement, are provided with submaster controller touch control screen one jiao of demonstration writing screen; The word that the submaster controller of test platform is demonstrated as required or wushu movement drive projection screen, are provided with submaster controller touch control screen one jiao of demonstration writing screen;
Described master controller can be by each submaster controller of network remote control, demo content by network transmission to each submaster controller.
Further, the projection screen of described test platform adopts liquid crystal display or LED screen, and the demonstration writing screen of test platform adopts touch-screen, and that can test practitioner writes shape, speed and strength.
Adopt the body-building tutoring system of writing of said structure setting to have the following advantages:
This is write, and body-building tutoring system is pioneering combines Chinese traditional calligraphy exercise and Traditional Wushu of China, under the guiding of spot tracks, user copies the action of font, can with wushu movement natural combination, both realize attending classes, reached again the effect improving the health.
Accompanying drawing explanation
Fig. 1 is the front view that the utility model adopts exercising platform embodiment 1;
Fig. 2 is the front view that the utility model adopts exercising platform embodiment 1;
Fig. 3 is the left view that the utility model adopts exercising platform embodiment 1;
Fig. 4 is the front view that the utility model adopts exercising platform embodiment 2;

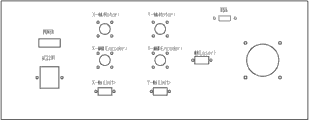

Fig. 5 is the backboard front view of submaster controller that the utility model adopts;
Fig. 6 is the left view that the utility model adopts exercising platform embodiment 3;
Fig. 7 is the front view of test platform that the utility model adopts;
Fig. 8 is the left view of test platform that the utility model adopts;
Fig. 9 is the front view of test platform that the utility model adopts.
In figure: 1. column, 2. touch control screen, 3. audio amplifier, 4. demonstration writing screen, 5. X-direction slide rail, 6. limit switch, 7. Y direction slide rail, 8. laser pen, 9. transmission shaft, 10. Timing Belt, 11. servomotors, 12. earphones, 13. brace summers, 14. support bars, 15. slide blocks, 16. projection screens, 17. slide rails.
Embodiment
The described full-automatic two dimension of the utility model is write body-building tutoring system, comprise exercising platform and test platform, exercising platform and test platform are provided with the demonstration writing screen for practitioner's calligraphic copying or wushu movement imitation, demonstrate on writing screen with spot tracks form display text stroke or wushu movement gradually, size and the speed of shown word or image are suitable for human health, and practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
Practitioner carries out the exercise of calligraphy and wushu by exercising platform, test platform by practitioner write shape, speed and strength is tested, practitioner's practice result is passed judgment on; Described exercising platform is connected by master controller with test platform.
Technological means and effect of taking for reaching predetermined goal of the invention for further setting forth the utility model, below in conjunction with accompanying drawing and preferred embodiment, the structure to exercising platform and test platform, workflow are described in detail as follows respectively.
One of embodiment of exercising platform that the utility model adopts as shown in Figure 1, Figure 2, Figure 3 shows, in this embodiment, exercising platform is provided with the demonstration writing screen 4 of writing imitation or action imitation for practitioner, demonstration writing screen 4 is provided with the laser pen 8 that can move at two dimensional surface behind, and the all-moving surface of laser pen 8 is parallel with demonstration writing screen 4.
If the content of demonstration is word, practitioner is in studying calligraphy, can reach the object of body-building, demonstration writing screen 4 can also be demonstrated simple wushu movement or body-building action, two arms of for example guide people do the combination action of two dimensional surface, practitioner follows the trail of and imitates spot tracks also can reach the object of body-building, practitioner's biped, two kidney, left and right brain balance is stored up, left and right meridian balance.
As shown in Figure 1, Figure 2, Figure 3 shows, demonstration writing screen 4 is installed by main frame, main frame is mainly made up of column 1 and brace summer 13, on main frame, is provided with two-dimension displacement platform behind in demonstration writing screen 4, and laser pen 8 is arranged on and on two-dimension displacement platform, carries out two dimensional surface and move.
Two-dimension displacement platform comprises X-direction slide rail 5 and Y direction slide rail 7, and Y direction slide rail 7 is erected on X-direction slide rail 5 by slide block 15, and laser pen 8 is erected on Y direction slide rail 7 by slide block 15.
On X-direction slide rail 5 and Y direction slide rail 7, be provided with limit switch 6, adopt in the present embodiment photoelectric limit switch, can certainly adopt other forms of limit switch.
The gear train of two-dimension displacement platform is made up of Timing Belt, driving-chain or screw mandrel, as shown in Figure 1, Figure 2, Figure 3 shows, main frame both sides are provided with transmission shaft 9, on transmission shaft 9, be provided with band gear and Timing Belt 10, Y direction slide rail 7 is fixing with Timing Belt 10, driven along X-direction slide rail 5 and move left and right by Timing Belt 10, transmission shaft 9 is driven by servomotor 11.The movement of slide block 15 on Y direction slide rail 7 also can realize by the similar kind of drive, is not explained in detail at this.
Described main frame both sides are provided with stereo set, audio amplifier 3 as shown in Figure 1, Figure 2, main frame below is provided with earphone 12, when demonstration writing screen 4 is demonstrated strokes of characters or wushu movement, stereo set or earphone can synchronously be play instant report lecture, also can play other and dub, such as music, poetic prose are chanted etc., in order to regulate practitioner's mood.
In the utility model, exercising platform is provided with submaster controller, the word that submaster controller is demonstrated as required or body-building action drives two-dimension displacement platform movement.The backplane interface of submaster controller as shown in Figure 5.Be provided with touch control screen 2 in order to control submaster controller 4 one jiaos of demonstration writing screens.
The exercising platform that adopts said structure to arrange, applicable student carries out being used by slow and fast exercise instrument.
Be the embodiment 2 of exercising platform that the utility model adopts as shown in Figure 4, in this embodiment, two groups of laser pens 8 be set on two-dimension displacement platform, can carry out strokes of characters or body-building action demonstration simultaneously.
Two groups of laser pens 8 are set, demonstrate two groups of spot tracks simultaneously, two arms that can guide people move simultaneously, reach the object of body-building.
Single group laser pen 8 is set, is applicable to carrying out drills to improve one's handwriting, then reach the effect of body-building.Two groups of laser pens 8 are set certainly, also can carry out drills to improve one's handwriting for two people simultaneously.
As shown in Figure 6, be the embodiment 3 of exercising platform that the utility model adopts, as different from Example 1, in this embodiment, the main frame of exercising platform adopts wall-hanging installation.
What adopt this mounting structure writes body-building tutoring system, is more conducive to save installing space, is applicable to the indoor use of average family.
As Fig. 7, shown in Fig. 8, one of embodiment of test platform that the utility model adopts, in this embodiment, test platform is provided with the demonstration writing screen 4 of writing imitation or wushu movement imitation for practitioner, demonstration writing screen 4 is provided with the projection screen 16 of display text stroke or wushu movement behind, strokes of characters or body-building action is manifested gradually with spot tracks form and be projected to demonstration writing screen 4, size and the speed of shown word or image are suitable for human health, see through described demonstration writing screen, practitioner is from demonstrating writing screen 4 fronts by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
In the present embodiment, projection screen 16 can adopt liquid crystal display or LED display.
As shown in Figure 7, the behind of demonstration writing screen 4 is provided with liquid crystal or the LED display (all not showing in figure) of 4 vertical combinations, sets up by column 1.Or be provided with as shown in Figure 9, the LED display of 4 transverse combinations.According to the needs of physical size, demonstration writing screen can be constituted by the liquid crystal of varying number or LED screen.
In the present embodiment, the main frame of test platform also can adopt the wall-hanging structure of exercising platform in similar embodiment 3 to install.
Due to liquid crystal display or more horn of plenty of LED screen displaying contents, the thickness of stroke also can require to make complex display according to calligraphy, makes the effect of drills to improve one's handwriting, body building of wushu better.
The display speed of liquid crystal display or LED screen also will be faster than the laser pen 8 in embodiment 1, so the present embodiment can also be served as an exercise instrument use fast, embodiment 1 practises at a slow speed instrument as one and uses.
In the present embodiment, described main frame both sides are provided with stereo set, as the audio amplifier 3 in Fig. 7, Fig. 9, main frame below is provided with earphone 12, when demonstration writing screen 4 is demonstrated strokes of characters or wushu movement, stereo set or earphone can synchronously be play instant report lecture, also can play other and dub, such as music, poetic prose are chanted etc., in order to regulate practitioner's mood.
The below of main frame is provided with slide rail 17, and the wiring of earphone 12 is suspended on slide rail 17, the convenient mobile exercise action that does not affect again practitioner.
In the present embodiment, write body-building tutoring system and be provided with submaster controller, the word that submaster controller is demonstrated as required or body-building action control projection screen 16 carry out image demonstration.Be provided with touch control screen 2 in order to control submaster controller 4 one jiaos of demonstration writing screens.
In the utility model, the demonstration writing screen 4 of test platform adopts touch-screen, for example capacitance plate, that can test practitioner writes shape, speed and strength, thus to practitioner practice result pass judgment on.
Test platform can be used as calligraphy, Martial Arts Teaching exam and appraisal of research results instrument uses, and can significantly improve student's writing speed and writing quality.
In the utility model, described master controller can be by each submaster controller of network remote control, and demo content is by network transmission to each submaster controller, and described master controller can adopt computing machine to form.
Described is above for the utility model is described, is construed as the utility model and is not limited to above embodiment, meets the various flexible form of the utility model thought all within protection domain of the present utility model.
Claims (10)
1. full-automatic two dimension is write body-building tutoring system, it is characterized in that, comprise exercising platform and test platform, exercising platform and test platform are provided with the demonstration writing screen for practitioner's calligraphic copying or wushu movement imitation, demonstrate on writing screen with spot tracks form display text stroke or wushu movement gradually, size and the speed of shown word or image are suitable for human health, and practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion;
The demonstration writing screen of described exercising platform is provided with the laser pen that can move at two dimensional surface behind, the demonstration writing screen of described test platform is provided with the projection screen of display text stroke or wushu movement behind, described projection screen adopts liquid crystal display or LED screen, and the demonstration writing screen of test platform adopts touch-screen; Described exercising platform is connected by master controller with test platform.
2. the body-building tutoring system of writing as claimed in claim 1, it is characterized in that, the all-moving surface of described laser pen is parallel with the demonstration writing screen of described exercising platform, laser pen is radiated at the demonstration writing screen back side by strokes of characters or wushu movement gradually with spot tracks form, size and the speed of shown word or image are suitable for human health, see through described demonstration writing screen, practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
3. the body-building tutoring system of writing as claimed in claim 1, it is characterized in that, described projection screen manifests strokes of characters or body-building action and is projected to the demonstration writing screen of test platform gradually with spot tracks form, size and the speed of shown word or image are suitable for human health, see through described demonstration writing screen, practitioner is from demonstrating writing screen front by copying or imitating spot tracks to carry out drills to improve one's handwriting and body building of wushu motion.
4. the body-building tutoring system of writing as claimed in claim 2, it is characterized in that, described demonstration writing screen is installed by main frame, on main frame, is provided with two-dimension displacement platform behind in demonstration writing screen, and described laser pen is arranged on and on two-dimension displacement platform, carries out two dimensional surface and move.
5. the body-building tutoring system of writing as claimed in claim 4, it is characterized in that, described two-dimension displacement platform comprises X-direction slide rail and Y direction slide rail, and Y direction slide rail is located on X-direction slide rail by slider frame, and laser pen is located on Y direction slide rail by slider frame; On described X-direction slide rail and Y direction slide rail, be provided with photoelectric limit switch; The gear train of described two-dimension displacement platform is made up of Timing Belt, driving-chain or screw mandrel.
6. the body-building tutoring system of writing as claimed in claim 2, is characterized in that, the demonstration writing screen of described exercising platform adopts black ground glass material, can see through laser and form hot spot.
7. the body-building tutoring system of writing as claimed in claim 4, it is characterized in that, described main frame both sides are provided with stereo set, and main frame below is provided with earphone, in demonstration writing screen demonstration strokes of characters or wushu movement, stereo set or earphone are synchronously play instant report lecture.
8. the body-building tutoring system of writing as claimed in claim 4, is characterized in that, two groups of laser pens are set on described two-dimension displacement platform, can carry out strokes of characters or wushu movement demonstration simultaneously, practises for two people simultaneously.
9. as described in claim 3 or 4, write body-building tutoring system, it is characterized in that, described exercising platform and test platform are provided with submaster controller, the word that the submaster controller of exercising platform is demonstrated as required or wushu movement drive two-dimension displacement platform movement, are provided with submaster controller touch control screen one jiao of demonstration writing screen; The word that the submaster controller of test platform is demonstrated as required or wushu movement drive projection screen, are provided with submaster controller touch control screen one jiao of demonstration writing screen;
Described master controller can be by each submaster controller of network remote control, demo content by network transmission to each submaster controller.
10. the body-building tutoring system of writing as claimed in claim 3, is characterized in that, what the demonstration writing screen of described test platform can be tested practitioner writes shape, speed and strength.
