Abstract
The utility model relates to an integrated draining assembly and a washing machine. The assembly comprises a draining valve and a draining motor, wherein the draining valve comprises a valve body and a valve cover; the draining motor comprises a waterproof box; the draining motor is arranged in the waterproof box; the valve cover and the waterproof box are integrated; the draining motor is in detachable connection with the valve body through the valve cover; a filter chamber is also provided with an emergency water outlet. The integrated draining assembly integrates the draining valve, the draining motor, a filter and an emergency drainpipe, has the characteristics of compact structure and simple installation and can reduce cost, draining noise and failure rate.
Description
Technical field
The utility model relates to washing facility field, especially a kind of integrated drain assembly and washing machine.
Background technology
What rise in the general use now of European roller washing machine is all upper Drainage Design, power consumption, noise is large, and most of China family is put in washing machine in toilet, in toilet, major part is provided with the lower drainage arrangements such as floor drain, in conjunction with Chinese at present actual state, drainage arrangement under should using on roller washing machine, realize drainage pattern under roller washing machine, to solve the problem that on roller washing machine, draining exists.
Application number is the drainage arrangement that 200420079017.2 Chinese patent discloses a kind of roller washing machine, is a kind of fully automatic roll type washing machine that uses lower drainage arrangement.It includes washing machine box body, drainage arrangement, cylinder is filled with water, it is characterized in that described drainage arrangement is lower drainage arrangement, it includes drainpipe, bellows drainpipe lower drainage arrangement, draining valve, traction electric machine, traction electric machine is connected by draught line with draining valve, and the water inlet of draining valve is communicated with bellows drainpipe, and the delivery port of draining valve is communicated with drainpipe.Advantage is: 1. the noise that reduces roller washing machine; 2. reduce the power consumption of roller washing machine; 3. reduce the production cost of roller washing machine.
Application number is the drainage arrangement that the Chinese patent of 200510094181.X discloses a kind of roller washing machine, comprise valve member, air chamber, motor and drainpipe, valve member comprises valve body, valve plug, spring and pull bar, and valve plug, spring and pull bar are all arranged in valve body; One end of pull bar is connected with valve plug, and the other end is connected with the eccentric disc being arranged on motor; Making pull bar at highest distance position place, open the spring housing of closing valve plug in valve plug and proximal most position place is contained on pull bar; Motor is arranged on valve body; One end of air chamber is connected with the outer barrel osculum of washing machine, and the other end is connected with the water inlet on valve body; Drainpipe is connected with the delivery port on valve body.The utility model changes the water pump draining of roller washing machine into valve natural drainage, and valve is controlled separately by motor, and noise is little, energy consumption is low, residual water is few.
But drainage arrangement is independent parts in above-mentioned two patents, washing machine complex manufacturing, fault rate is high, and production cost is high, and in above-mentioned patent, does not all relate to filter and very easily cause the obstruction of water discharge outlet, to user, brings very large puzzlement.
Utility model content
The purpose of this utility model, for overcoming the deficiencies in the prior art, provides a kind of integrated drain assembly, and integrated drainage valve, drain motor, filter, emergent discharge pipe line are in one, compact conformation, simplifies mounting process, reduces costs, reduce fault rate, can realize the lower draining of roller washing machine.
Another object of the present utility model is for providing a kind of washing machine and control method with above-mentioned integrated drain assembly.
In order to realize this object, the utility model adopts following technical scheme:
A kind of integrated drain assembly, this assembly integrated drainage valve, drain motor, filter, emergent discharge pipe line are in one, described draining valve comprises valve body, valve gap, described drain motor comprises compartment, drain motor is arranged in compartment, and described valve gap and described compartment are wholely set, and described drain motor removably connects by valve gap and valve body.
Described valve gap and valve body spin by screw thread and/or buckle clamping.
Described valve body is provided with filter chamber and valve plug chamber, and filter chamber is provided with water inlet, and valve plug chamber is provided with delivery port, in described filter chamber, is provided with filter, is provided with and controls the valve plug that delivery port opens and closes in described valve plug chamber, and valve plug is connected with drain motor.
Described filter comprises filter body and lid of filter, and filter body is fixedly connected with lid of filter, and described lid of filter and the valve body of draining valve spin by screw thread or buckle clamping.
The internal diameter that one snap ring or valve plug chamber are set between described filter chamber and valve plug chamber is less than the internal diameter of filter chamber, and broken-line place forms a boss.
Described valve plug one end contacts with snap ring or boss, and the other end is connected with drain motor, by drain motor, drives valve plug motion to open delivery port; Described valve plug is also provided with return spring, drives valve plug counter motion to set back close delivery port by the restoring force of return spring.
On described filter chamber, be also provided with an emergent water discharge outlet, in described emergent water discharge outlet, connect emergent drainpipe, on described emergent drainpipe, hand control switch is set.
A kind of washing machine, is equipped with above-mentioned integrated drain assembly.
The bottom of described washing machine arranges integrated drain assembly, the water discharge outlet of the urceolus of washing machine is communicated with the water inlet of integrated drain assembly, the drainpipe of described washing machine is communicated with the delivery port of integrated drainage device, and the hand control switch of described emergent drainpipe extends to washing machine shell outside.
Adopt after technical scheme described in the utility model, bring following beneficial effect:
1, the integrated drain motor of integrated drain assembly described in the utility model, draining control valve, filter, emergent discharge pipe line are in one, and compartment and valve gap are wholely set, and compact conformation is simplified mounting process, reduces installation cost, reduces fault rate.
2, integrated drain assembly integrated emergency drain function described in the utility model, avoid due to have a power failure or the washing machine that causes of drainage arrangement fault in the problem that cannot discharge of water;
The function of 3, filtering before the integrated draining of integrated drain assembly described in the utility model, avoids the blockage problem of the discharge pipe line that the foreign matters such as line bits or coin cause;
4, integrated drain assembly described in the utility model can be realized the lower draining of roller washing machine, reduces noise and draining energy consumption, easy to use.
Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in further detail.
Accompanying drawing explanation
Fig. 1: the integrated drain assembly stereogram of the utility model
Fig. 2: the integrated drain assembly front view of the utility model
Fig. 3: the integrated drain assembly top view of the utility model
The A-A cutaway view of Fig. 4: Fig. 3

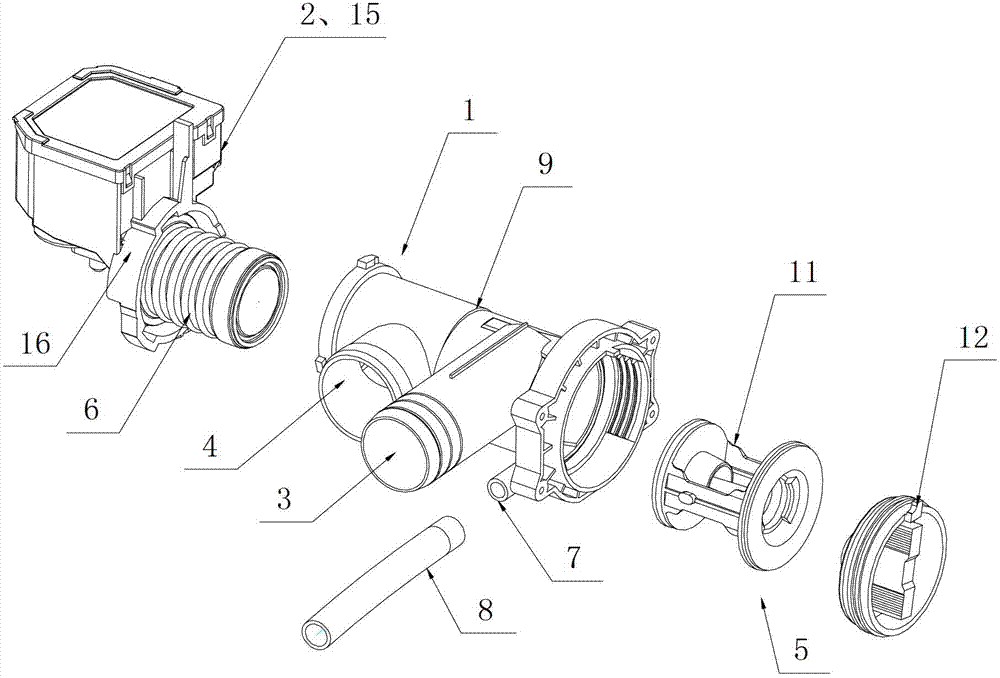

Fig. 5: the integrated drain assembly explosive view of the utility model
Wherein: 1, draining valve, 2, drain motor, 3, water inlet, 4, delivery port, 5, filter, 6, valve plug, 7, emergent water discharge outlet, 8, emergent drainpipe, 9, valve body, 11, filter body, 12, lid of filter, 13, filter chamber, 14, valve plug chamber, 15, compartment, 16, valve gap.
The specific embodiment
As shown in Figure 1, Figure 4, Figure 5,
The integrated drain assembly of one described in the utility model, this assembly comprises draining valve 1 and drain motor 2, described draining valve 1 comprises valve body 9, valve gap 16, described drain motor 2 comprises compartment 15, drain motor is arranged in compartment 15, described valve gap 16 is wholely set with described compartment 15, described drain motor 2 spins by screw thread and/or buckle clamping with valve body 9 by valve gap 16 and valve body 9 valve gap 16 that removably connects, compact conformation, installs simply, reduces costs, reduce drainage noise, reduce fault rate.
Draining valve 1 comprises filter chamber 13 and valve plug chamber 14, filter chamber 13 is provided with water inlet 3, valve plug chamber 14 is provided with delivery port 4, in described filter chamber 13, be provided with the filter 5 of foreign matters such as filtering line bits, coin, in described valve plug chamber 14, be provided with and control the valve plug 6 that delivery port 4 opens and closes, on described filter chamber 13, be also provided with emergent water discharge outlet 7.
It is a kind of integrated drain assembly, this assembly comprises draining valve 1 and drain motor 2, described draining valve 1 is provided with water inlet 3 and delivery port 4, the interior corresponding water inlet 3 of valve body 9 of draining valve 1 arranges filter 5, the interior corresponding delivery port 4 of valve body 9 of described draining valve 1 arranges controls the valve plug 6 that delivery port 4 opens and closes, described valve plug 6 is connected with drain motor 2, and valve body 9 bottoms of described draining valve 1 arrange emergent water discharge outlet 7.
As shown in Figure 1, Figure 2, Figure 3 shows, in emergent water discharge outlet 7, connect emergent drainpipe 8, on this emergent drainpipe, hand control switch is set, the hand control switch of described emergent drainpipe 8 extends to washing machine shell outside, under washing machine normal operating condition, this hand control switch is in closed condition, when washing machine fault or power down mode, the hand control switch of manually controlling emergent drainpipe 8 is opened, the water of washing machine internal enters integrated drain assembly inside by the water inlet 3 of integrated drain assembly, through emergent water discharge outlet 7, emergent drainpipe 8, discharges.Can avoid having a power failure suddenly or when the drainage arrangement of washing machine breaks down, the water of washing machine internal can not be discharged for a long time, causes rotten, breed bacteria.
Preferably emergent water discharge outlet 7 is positioned at the bottom of draining valve 1.
One end of preferably emergent drainpipe 8 is connected with emergent water discharge outlet 7, the other end arranges a plug, plug and emergent drainpipe 8 screw threads spin or buckle clamping, and generally, this plug drainpipe 8 of meeting an urgent need is blocked, when washing machine fault or power down mode, washing machine internal has water to need to discharge, and the drainage system of washing machine can not drive and open, now, manually by plug Unscrew, or firmly break into two with one's hands and the water of washing machine internal can be discharged by emergent water discharge outlet 7, emergent drainpipe 8.
As shown in Figure 4, valve body 9 internal diameters that one snap ring or valve plug chamber 14 are set between filter chamber 13 and valve plug chamber 14 are less than valve body 9 internal diameters of filter chamber 13, broken-line place forms a boss, valve plug 6 is a resilient valve plug 6, preferred rubber valve plug, one end of described valve plug 6 contacts with snap ring or boss, and the other end is connected with drain motor 2, by drain motor 2, drives valve plug 6 motions to open delivery port 4; Described valve plug 6 is also provided with return spring, by the restoring force of return spring, drives valve plug 6 counter motions, sets back, and closes delivery port.
Not during hull-borne, valve plug 6 under the effect of return spring with snap ring or boss close contact, close delivery port 4, if need draining, plumbing motor 2 is powered, drain motor 2 is switched on rear haulage valve plug 6 away from snap ring or boss, and delivery port 4 is opened, and the water of washing machine internal enters integrated drain assembly inside by the water inlet 3 of integrated drain assembly, after filtering, filter 5 discharged by delivery port 4, described drain motor 2 power-off, valve plug 6 relies on return spring restoring force to reset, and delivery port 4 is closed.
Embodiment mono-
In the present embodiment, between the valve body 9 inner filtration chambeies 13 of integrated drain assembly and valve plug chamber 14, a snap ring is set, one end of valve plug 6 contacts with snap ring, the other end is connected with drain motor 2, valve plug 6 inside are provided with return spring, under drain motor 2 no power states, because the effect of return spring withstands on valve plug 6 on snap ring, thereby delivery port 4 is closed, drain motor 2 is switched on rear haulage valve plug 6 along moving away from filter chamber 13 directions, return spring is compressed, make valve plug 6 separation with snap ring, thereby delivery port 4 is opened, current pass through, after drain motor 2 power-off, the restoring force of return spring resets valve plug 6, withstand snap ring, close delivery port 4.
By the motion of drain motor 2 control valve plugs 6, open delivery port 4, the restoring force control valve plug 6 of the return spring by valve plug 6 resets and closes delivery port 4.
Embodiment bis-
In the present embodiment, valve body 9 internal diameters in valve plug chamber 14 are less than valve body 9 internal diameters of filter chamber 13, and broken-line place forms a boss.One end of valve plug 6 contacts with boss, the other end is connected with drain motor 2, valve plug 6 inside are provided with return spring, under drain motor 2 no power states, because the effect of return spring withstands on valve plug 6 on boss, thereby delivery port 4 is closed, drain motor 2 is switched on rear haulage valve plug 6 along moving away from filter chamber 13 directions, and return spring is compressed, makes valve plug 6 separation with boss, thereby delivery port 4 is opened, current pass through, drain motor 2 power-off, and the restoring force of return spring resets valve plug 6, withstand boss, close delivery port 4.
By the motion of drain motor 2 control valve plugs 6, open delivery port 4, the restoring force control valve plug 6 of the return spring by valve plug 6 resets and closes delivery port 4.
Embodiment tri-
The present embodiment middle filtrator 5 is line bits filter, can filter the foreign matters such as line bits, coin, prevent the obstruction of delivery port, described filter 5 removably connects with the valve body 9 of draining valve 1, the dismounting of convenient filter 5, at regular intervals or user feel filter 5 interior may wired bits, during the foreign matter such as coin, filter 5 can be pulled down it is cleared up, avoid washing machine sewer pipe to result in blockage.
Embodiment tetra-
A kind of washing machine described in the present embodiment, described washing machine is equipped with above-mentioned integrated drain assembly.
Washing machine is roller washing machine, integrated drain assembly is arranged on the bottom of described roller washing machine: lower left quarter or right lower quadrant, the water discharge outlet of the urceolus of washing machine is communicated with the water inlet of integrated drainage device 3, the drainpipe of described washing machine is communicated with the delivery port of integrated drainage device 4, in emergent water discharge outlet 7, connect emergent drainpipe 8, on this emergent drainpipe, hand control switch is set, the hand control switch of described emergent drainpipe 8 extends to washing machine shell outside, under washing machine normal operating condition, this hand control switch is in closed condition.
Embodiment five
It described in the present embodiment, is the control method of washing machine described in embodiment tetra-.
During normal operating condition, as need draining, plumbing motor 2 is switched on, and traction valve plug 6 is away from delivery port 4, and delivery port 4 is opened, the water of washing machine internal enters integrated drain assembly inside by the water inlet 3 of integrated drain assembly, after filter 5 filters, by delivery port 4, discharged, after draining finishes, give described drain motor 2 power-off, valve plug 6 relies on return spring restoring force to reset, and delivery port 4 is closed.
When washing machine fault or power down mode, washing machine internal has water to need to discharge, and the drainage system of washing machine can not drive and open, now, manually the hand control switch of emergent drainpipe 8 is opened, the water of washing machine internal can be discharged by emergent water discharge outlet 7, emergent drainpipe 8.
In use, the axis of water inlet 3 and delivery port 4 is horizontal positioned, emergent water discharge outlet 7 is positioned at the bottom of draining valve 1, during draining, plumbing motor 2 is powered, the delivery port 4 of integrated drain assembly is opened, current enter filter 5 by water inlet 3, by delivery port 4, discharge again, if while being with the foreign matters such as wired bits, coin in current, foreign matter can enter filter 5 by water inlet 3, is terminated in inside by filter 5, user can regularly pull down filter 5 filter is cleared up, and avoids causing the obstruction of integrated drain assembly.When power failure suddenly or washing machine fault, washing machine internal has water to need to discharge, and can washing machine internal water be discharged by emergent drainpipe 8, during by emergent drainpipe 8 draining, the foreign matters such as filter 5 also can be considered line to be worth doing, coin etc. are filled into filter 5 inside, avoid the obstruction of emergent drainpipe 8.
The foregoing is only preferred embodiment of the present utility model; it should be pointed out that for the ordinary skill in the art, do not departing under the utility model principle prerequisite; can also make various deformation and improvement, this also should be considered as protection domain of the present utility model.
Claims (10)
1. an integrated drain assembly, this assembly integrated drainage valve (1), drain motor (2), filter, emergent discharge pipe line are in one, described draining valve (1) comprises valve body (9), valve gap (16), described drain motor (2) comprises compartment (15), drain motor is arranged in compartment (15), and described valve gap (16) is wholely set with described compartment (15), and described drain motor (2) removably connects by valve gap (16) and valve body (9).
2. integrated drain assembly according to claim 1, is characterized in that: described valve gap (16) spins by screw thread and/or buckle clamping with valve body (9).
3. integrated drain assembly according to claim 2, it is characterized in that: described valve body (9) is provided with filter chamber (13) and valve plug chamber (14), filter chamber (13) is provided with water inlet (3), valve plug chamber (14) is provided with delivery port (4), in described filter chamber (13), be provided with filter (5), in described valve plug chamber (14), be provided with and control the valve plug (6) that delivery port (4) opens and closes, valve plug (6) is connected with drain motor (2).
4. integrated drain assembly according to claim 3, it is characterized in that: described filter (5) comprises filter body (11) and lid of filter (12), filter body (11) is fixedly connected with lid of filter (12), and described lid of filter (12) spins by screw thread or buckle clamping with the valve body (9) of draining valve (1).
5. integrated drain assembly according to claim 4, is characterized in that: between described filter chamber (13) and valve plug chamber (14), a snap ring is set.
6. integrated drain assembly according to claim 4, is characterized in that: the internal diameter in described valve plug chamber (14) is less than the internal diameter of filter chamber (13), and broken-line place forms a boss.
7. according to the integrated drain assembly described in claim 5 or 6, it is characterized in that: described valve plug (6) one end contacts with snap ring or boss, the other end is connected with drain motor (2), by drain motor (2), drives valve plug (6) motion to open delivery port (4); Described valve plug (6) is also provided with return spring, drives valve plug (6) counter motion to set back close delivery port by the restoring force of return spring.
8. integrated drain assembly according to claim 4, it is characterized in that: on described filter chamber (13), be also provided with an emergent water discharge outlet (7), the upper drainpipe (8) of meeting an urgent need that connects of described emergent water discharge outlet (7), arranges hand control switch on described emergent drainpipe (8).
9. a washing machine, is characterized in that: described washing machine is equipped with the integrated drain assembly as described in as arbitrary in claim 1-8.
10. washing machine according to claim 9, it is characterized in that: the bottom of described washing machine arranges integrated drain assembly, the water discharge outlet of the urceolus of washing machine is communicated with the water inlet of integrated drain assembly (3), the drainpipe of described washing machine is communicated with the delivery port of integrated drainage device (4), and the hand control switch of described emergent drainpipe extends to washing machine shell outside.
