Abstract
The utility model relates to the field of medical instruments, in particular to a fixing bracket for Chinese drugs fume-cleansing. The fixing bracket adopts the structure that a frame body is fixed on a claw-shaped base with a lifting valve and a universal wheel and can provide a supporting point for affected limbs in fume-cleansing; moreover, the direction and height of the frame body can be adjusted. The fixing bracket comprises the claw-shaped base and the frame body, wherein the frame body is fixed on the claw-shaped base through connecting parts, and the claw-shaped base comprises the lifting valve and the universal wheel.
Description
Technical field
This utility model relates to medical instruments field, particularly a kind of fumigation and wash method device.
Background technology
In bone wound recovering, Chinese medicine fumigation and washing can promote the blood circulation of local organization, accelerates the absorption of local organization to blood stasis and transudate, is conducive to the reparation of damaged tissues, alleviate joint swelling pain, avoid joint stuffiness.
At present use in Chinese medicine fumigation and washing and have following problem: Chinese medicine decoction is positioned in washbowl more, the bed that washbowl need be placed in to patient during operation is upper, and position (being mostly arm or lower limb) that will fumigation and wash method is put in washbowl top.Because sick bed is all smaller, limited space, overturns washbowl because of carelessness in operating process, and the thing of spilling decoction often occurs, and more changes the sheet and has increased nurse's workload.Meanwhile, limbs of patient is suspended on washbowl top, without the strong point, very uncomfortable.
Summary of the invention
Goal of the invention of the present utility model is to provide a kind of Chinese medicine fumigation and washing fixed mount, and framework is fixed with on the claw type base with lift valve and universal wheel, and the suffering limb strong point can be provided when fumigation and wash method, and can carry out as required height, direction adjusting.
For solving the problems of the technologies described above, embodiment of the present utility model discloses a kind of Chinese medicine fumigation and washing fixed mount, comprising: claw type base, framework, and wherein framework is fixed on claw type base by connector, and claw type base comprises lift valve and universal wheel.
Compared with prior art, the main distinction and effect thereof are this utility model embodiment:
Framework is fixed with on the claw type base with lift valve and universal wheel, and the suffering limb strong point can be provided when fumigation and wash method, and can carry out as required height, direction adjusting.
Further, heater is for heating fumigation and wash method decoction.
Further, temperature when temperature controller regulates heater to carry out the heating of fumigation and wash method decoction automatically, to be applicable to sufferer needs, avoids scalding or the supercool fumigation and wash method effect that do not reach of decoction.
Further, the width range on upper edge is that the depth bounds of 2 centimetres to 5 centimetres and framework is 10 centimetres to 15 centimetres, steadily places suffering limb while being convenient to patient's fumigation and wash method, does not comfortablely strangle, and also can not spill decoction;
Further, aluminum alloy material Chinese medicine fumigation and washing fixed mount, light firm, be convenient to mobile.
Further, fast pulley and universal wheel support the use, and can fix regulating the laggard line position of direction.
Further, have the Chinese medicine fumigation and washing fixed mount of seat surface and backrest, can be seated and carry out the corresponding affected part of fumigation and wash method, also can seat surface be installed after framework and backrest is used as chair disassembling, one-object-many-purposes, saves space.
Further, by universal joint, connect the connector of horizontal connecting rod and vertical connecting formation, laterally connecting rod can the relative vertical connecting deviation angle scope in any direction ground be 0 degree to 360 degree, especially when sufferer is in bed during fumigation and wash method, horizontal connecting rod can be positioned over to sick bed optional position, make fumigation and wash method convenient.
Further, universal joint has bayonet socket, horizontal connecting rod can be fixed on to concrete position, is difficult for sliding.
Further, laterally connecting rod is provided with the horizontal connecting rod that lift valve or setting comprise the first connection tube and the second connection tube, and can regulate the length of horizontal connecting rod is adaptation actual needs.
Accompanying drawing explanation

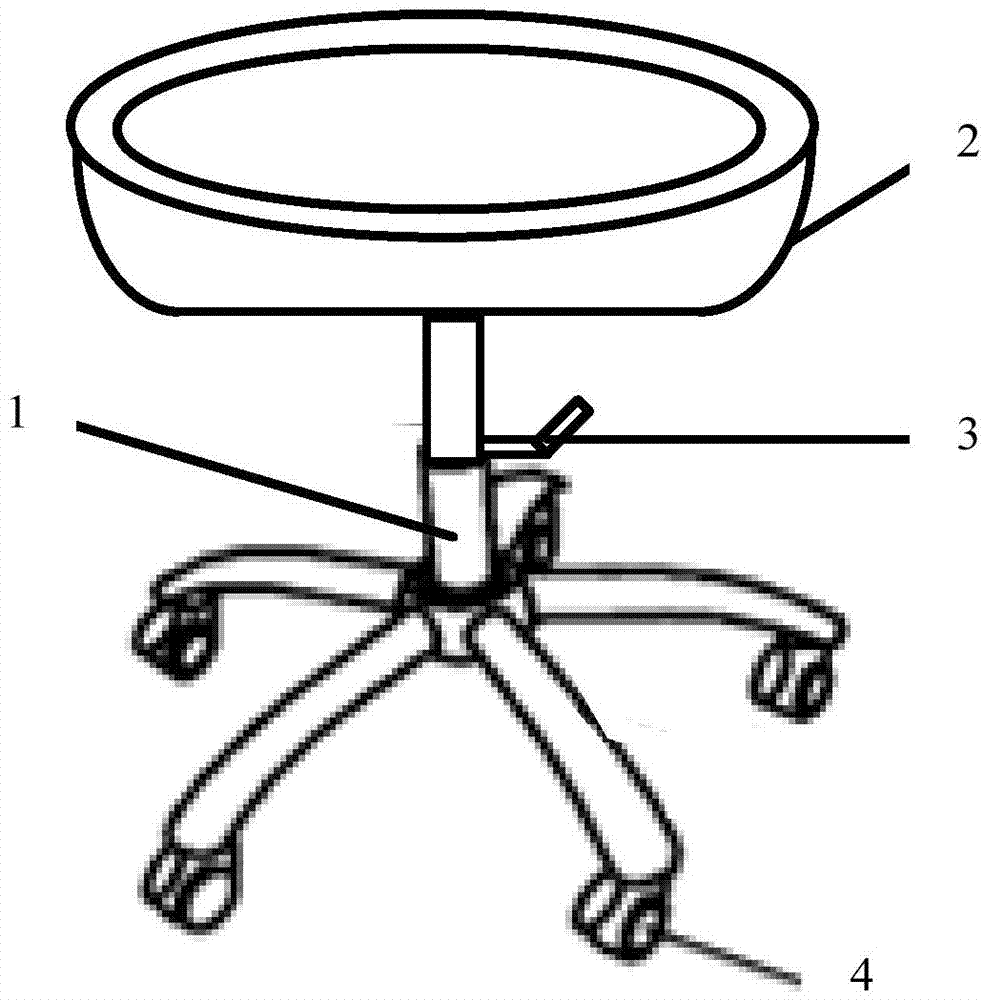

Fig. 1 is the structural representation of a kind of Chinese medicine fumigation and washing fixed mount in this utility model the first embodiment;
Fig. 2 is the structural representation of a kind of Chinese medicine fumigation and washing fixed mount in this utility model the second embodiment;
Fig. 3 is the structural representation of a kind of Chinese medicine fumigation and washing fixed mount in this utility model the second embodiment;
Fig. 4 is the structural representation of a kind of horizontal connecting rod of Chinese medicine fumigation and washing fixed mount in this utility model the second embodiment.
The specific embodiment
In the following description, in order to make reader understand the application better, many ins and outs have been proposed.But, persons of ordinary skill in the art may appreciate that even without these ins and outs and the many variations based on following embodiment and modification, also can realize the each claim of the application technical scheme required for protection.
For making goal of the invention of the present utility model, technical scheme and advantage clearer, below in conjunction with accompanying drawing, embodiment of the present utility model is described in further detail.
This utility model the first embodiment relates to a kind of Chinese medicine fumigation and washing fixed mount.Fig. 1 is the structural representation of this Chinese medicine fumigation and washing fixed mount.As shown in Figure 1, this Chinese medicine fumigation and washing fixed mount comprises: claw type base 1, framework 2, and wherein framework 2 is fixed on claw type base 1 by connector, and claw type base 1 comprises lift valve 3 and universal wheel 4.
Framework is fixed with on the claw type base with lift valve and universal wheel, and the suffering limb strong point can be provided when fumigation and wash method, and can carry out as required height, direction adjusting.
In addition, be appreciated that framework is the framework for placing the fumigation and wash method vessel that fumigation and wash method decoction is housed, or be for placing the basin body of fumigation and wash method decoction.
Connector can be antithesis screw bolt, or buckle etc.
This utility model the second embodiment relates to a kind of Chinese medicine fumigation and washing fixed mount.Fig. 2, Fig. 3 and Fig. 4 are the structural representations of this Chinese medicine fumigation and washing fixed mount.
The second embodiment improves on the basis of the first embodiment, and main improvements are: heater is for heating fumigation and wash method decoction.Temperature when temperature controller regulates heater to carry out the heating of fumigation and wash method decoction automatically, to be applicable to sufferer needs, avoids scalding or the supercool fumigation and wash method effect that do not reach of decoction.The width range on upper edge is that the depth bounds of 2 centimetres to 5 centimetres and framework is 10 centimetres to 15 centimetres, steadily places suffering limb while being convenient to patient's fumigation and wash method, does not comfortablely strangle, and also can not spill decoction.Aluminum alloy material Chinese medicine fumigation and washing fixed mount, light firm, be convenient to mobile.Fast pulley and universal wheel support the use, and can fix regulating the laggard line position of direction.Have the Chinese medicine fumigation and washing fixed mount of seat surface and backrest, can be seated and carry out the corresponding affected part of fumigation and wash method, also can seat surface be installed after framework and backrest is used as chair disassembling, one-object-many-purposes, saves space.By universal joint, connect the connector of horizontal connecting rod and vertical connecting formation, laterally connecting rod can the relative vertical connecting deviation angle scope in any direction ground be 0 degree to 360 degree, especially when sufferer is in bed during fumigation and wash method, horizontal connecting rod can be positioned over to sick bed optional position, make fumigation and wash method convenient.Universal joint has bayonet socket, horizontal connecting rod can be fixed on to concrete position, is difficult for sliding.Laterally connecting rod is provided with the horizontal connecting rod that lift valve or setting comprise the first connection tube and the second connection tube, and can regulate the length of horizontal connecting rod is adaptation actual needs.Specifically:
Also comprise: heater.
In addition, be appreciated that heater comprise heating tube, connect heating tube electric wire, for connecting the plug of electric wire, by heating tube place be equipped with in the fumigation and wash method vessel of fumigation and wash method decoction, or place and be equipped with in the framework of fumigation and wash method decoction, then realize the heating to fumigation and wash method decoction by this plug turn-on power.
Heater also comprises temperature controller.
In addition, be appreciated that temperature controller is according to the variations in temperature of working environment; in the inner generation of switch physical deformation, thereby produce some special effects, produce conducting or disconnect a series of Automatic Control Components that move; also be temperature detect switch (TDS), temperature protector, temperature controller, be called for short temperature controller.Or by temperature protector, temperature is passed to temperature controller; temperature controller sends switch command; thereby the operation of control appliance is to reach desirable temperature and energy-saving effect; its range of application is very extensive, according to different types of temperature controller, is applied in household electrical appliances, motor, freezes or heats etc. in numerous products.
Framework is basin body, and in this framework, the width range on edge is 2 centimetres to 5 centimetres, or the depth bounds of this framework is 10 centimetres to 15 centimetres.
In addition, be appreciated that when framework is basin body, preferably, the width on upper edge is 2 centimetres or 3 centimetres or 4 centimetres or 5 centimetres, and the degree of depth of framework is 10 centimetres or 12 centimetres or 15 centimetres.
In some other embodiments of the present utility model, in framework, the width on edge can also be in other width ranges, such as 0 centimetre to 2 centimetres, or 5 centimetres to 10 centimetres.The depth bounds of framework can also be 5 centimetres to 10 centimetres or 15 centimetres to 30 centimetres.
In some other embodiments of the present utility model, framework is to place the framework of the fumigation and wash method vessel that fumigation and wash method decoction is housed, the internal diameter of framework is less than fumigation and wash method vessel maximum inner diameter, now the width range on the upper edge of these fumigation and wash method vessel is 2 centimetres to 5 centimetres, or the depth bounds of these fumigation and wash method vessel is 10 centimetres to 15 centimetres, on fumigation and wash method vessel, the width on edge can also be in other width ranges, such as 0 centimetre to 2 centimetres, or 5 centimetres to 10 centimetres.The depth bounds of fumigation and wash method vessel can also be 5 centimetres to 10 centimetres or 15 centimetres to 30 centimetres.
The material of Chinese medicine fumigation and washing fixed mount is aluminium alloy.
In addition, be appreciated that, claw type base also comprises claw type foot, atmospheric pressure pole, pallet and screw for being connected each ingredient, this claw type foot can be Samsung foot or star base, the claw type foot that universal wheel is housed has connected atmospheric pressure pole by lift valve, form the support section of support tray, to form claw type base.
In some other embodiments of the present utility model, the material of Chinese medicine fumigation and washing fixed mount is not limited in as aluminium alloy, can also be other alloy materials, can be also metal material, such as ferrum, copper etc.
Claw type base also comprises fast pulley.
In addition, be appreciated that universal wheel is exactly so-called movable castor, its structure allows horizontal 360-degree rotation.Castor is a general designation, comprises movable castor and rigid castors.Rigid castors does not have rotational structure, and can not horizontally rotate can only vertical rotation.These two kinds of castors are all generally collocation use, and such as the structure of handbarrow is two, front fast pulley, back is two movable universal wheels near what promote handrail.
Also comprise seat surface 5 and backrest 6.
Have the Chinese medicine fumigation and washing fixed mount of seat surface and backrest, can be seated and carry out the corresponding affected part of fumigation and wash method, also can seat surface be installed after framework and backrest is used as chair disassembling, one-object-many-purposes, saves space.
As shown in Figure 3, connector comprises universal joint 7, horizontal connecting rod 6 and vertical connecting 5, and wherein, universal joint 7 connects horizontal connecting rod 5 and vertical connecting 6, laterally end 8 fixed frames 2 of connecting rod 5, and vertical connecting 6 connects pawl type base upper end.
Laterally the end fixed frame of connecting rod, can adopt conventional fixture to be fixed, such as screw bolt, fastener, folder etc.Also can be provided with magnetisable material in end, accordingly, framework is metal material, such as copper, ferrum, aluminum etc., by magnetic principle, framework is fixed on to end.
For framework, be fixed on the connecting portion of end, as long as it is just passable to guarantee fixing effect, such as the position by framework bottom centre or position of centre of gravity etc.
Universal joint is the joint that connects two levers, and the common hinge that joint is 90 degree by a pair of relative bearing forms, and lever energy is turned to toward any direction, is mainly divided into following 4 classes:
1, single-unit formula and double-joint type: single-unit formula universal joint can be realized within the scope of 37 ° of diaxon angles rotation, and flexibly, the diameter of axle can be made 8mm-50mm.Double-joint type universal joint can be realized within the scope of 37 ° of diaxon angles rotation flexibly, can compensating axial displacement and the radial displacement diameter of axle can make 8mm-50mm.
2, extension type universal joint: extension type is except having the serviceability of single-unit universal joint and binodal universal joint, can realize within the scope of diaxon angle 37 degree and rotating flexibly, can compensating axial outside displacement and radial displacement, it because Intermediate Gray is flexible, is spline design, can realize the displacement of axial 0mm-1000mm, be convenient to install, the diameter of axle can be made 8mm-50mm, installation length 150mm-4000mm.
3, band spring evener universal joint: band spring evener universal joint, adopt 42CrMo alloy steel material from doing, can realize larger driving torque, add shock mount and can realize automatic telescopic, be used for evener, transverse cutting unit, banding machine process equipment, slitting line (slitter) cut-to-length (cross cut shears) is special.
4, fluid universal joint: for connecting water supply line and waterfog head, so that regulate spray angle, will protect the whole envelopes of thing to live.Its advantage is, at any direction of its adjusting angle, after locking spray angle, even when the large flow high speed centrifugation waterfog head of 300 liters/min sprays, can not become flexible or displacement because of retroaction.
Universal joint has bayonet socket.
As a preferred embodiment of the present utility model, above-mentioned bayonet socket can be integrally formed with universal joint roller bearing, forms and have zigzag universal joint, and each kerf can be realized the function of bayonet socket location.
Laterally connecting rod is provided with lift valve;
Or as shown in Figure 4, laterally connecting rod 5 comprises that the first connection tube 51(solid line characterizes) and the second connection tube 52(dotted line sign);
First end 511 bores of the first connection tube 51 are less than the second end 512 bores of the first connection tube 51, and along the direction of the second end 512 of first end 511 to first connection tubes 51 of the first connection tube 51, it is large that the mouth of pipe bore of the first connection tube 51 becomes;
First end 521 bores of the second connection tube 52 are less than the second end 522 bores of the second connection tube 52, and along the direction of the second end 522 of first end 521 to second connection tubes 52 of the second connection tube 52, it is large that the mouth of pipe bore of the second connection tube 52 becomes;
The second end 512 bores of the first connection tube 51 are greater than first end 521 bores of the second connection tube 52, and are less than or equal to the second end 522 bores of the second connection tube 52.
In some other embodiments of the present utility model, this horizontal connecting rod at least comprises according to the first connection tube of connection tube end bore or caliber size and the second connection tube.In order to be easier to understand the technical solution of the utility model, each embodiment of the present utility model mostly describes with two-stage connection tube, but in fact can expand to easily the connection tube of more mutual classifications, the connection tube end bore of previous stage or the connection tube end bore of caliber size and rear classification or caliber size have above-mentioned feature, as long as all adopt the technical solution of the utility model between every two adjacent classification connection tubes, the classification of two connection tubes can be adjacent, also can have classification distance.If laterally only have two connection tubes in connecting rod, preceding what be fixedly connected with framework is the first connection tube, and posterior and universal is the second connection tube.Certainly, this horizontal connecting rod also can comprise the connection tube of more multi-level (individual), as three grades (individual), level Four (individual), Pyatyi (individual) etc., the horizontal connecting rod between any two connection tubes wherein with context or caliber size relation is now just described in present embodiment.Know the horizontal connecting rod of two connection tubes, just can analogize easily the horizontal connecting rod that obtains more connection tubes.
By the stretching of horizontal connecting rod with above-mentioned feature, can realize the length of any stretching, extension, easy to use.
It should be noted that, in the claim and description of this patent, relational terms such as the first and second grades is only used for an entity or operation to separate with another entity or operating space, and not necessarily requires or imply and between these entities or operation, have the relation of any this reality or sequentially.And, term " comprises ", " comprising " or its any other variant are intended to contain comprising of nonexcludability, thereby the process, method, article or the equipment that make to comprise a series of key elements not only comprise those key elements, but also comprise other key elements of clearly not listing, or be also included as the intrinsic key element of this process, method, article or equipment.The in the situation that of more restrictions not, the key element that " comprises " and limit by statement, and be not precluded within process, method, article or the equipment that comprises described key element and also have other identical element.
Although by reference some preferred implementation of the present utility model, this utility model is illustrated and described, but those of ordinary skill in the art should be understood that and can to it, do various changes in the form and details, and do not depart from spirit and scope of the present utility model.
Claims (10)
1. a Chinese medicine fumigation and washing fixed mount, is characterized in that, comprising: claw type base, framework, and wherein said framework is fixed on claw type base by connector, and described claw type base comprises lift valve and universal wheel.
2. Chinese medicine fumigation and washing fixed mount according to claim 1, is characterized in that, also comprises: heater.
3. Chinese medicine fumigation and washing fixed mount according to claim 2, is characterized in that, described heater also comprises temperature controller.
4. Chinese medicine fumigation and washing fixed mount according to claim 3, is characterized in that, described framework is basin body, and in this framework, the width range on edge is 2 centimetres to 5 centimetres, or the depth bounds of this framework is 10 centimetres to 15 centimetres.
5. Chinese medicine fumigation and washing fixed mount according to claim 4, is characterized in that, the material of described Chinese medicine fumigation and washing fixed mount is aluminium alloy.
6. Chinese medicine fumigation and washing fixed mount according to claim 5, is characterized in that, described claw type base also comprises fast pulley.
7. Chinese medicine fumigation and washing fixed mount according to claim 6, is characterized in that, also comprises seat surface and backrest.
8. Chinese medicine fumigation and washing fixed mount according to claim 5, it is characterized in that, described connector comprises universal joint, horizontal connecting rod and vertical connecting, wherein, described universal joint connects horizontal connecting rod and vertical connecting, the end fixed frame of described horizontal connecting rod, described vertical connecting connects the upper end of pawl type base.
9. Chinese medicine fumigation and washing fixed mount according to claim 8, is characterized in that, described universal joint has bayonet socket.
10. Chinese medicine fumigation and washing fixed mount according to claim 8, is characterized in that, described horizontal connecting rod is provided with lift valve;
Or described horizontal connecting rod comprises the first connection tube and the second connection tube;
The first end bore of described the first connection tube is less than the second end bore of the first connection tube, and along the direction of the second end of first end to the first connection tube of the first connection tube, it is large that the mouth of pipe bore of the first connection tube becomes;
The first end bore of described the second connection tube is less than the second end bore of the second connection tube, and along the direction of the second end of first end to the second connection tube of the second connection tube, it is large that the mouth of pipe bore of the second connection tube becomes;
The second end bore of described the first connection tube is greater than the first end bore of the second connection tube, and is less than or equal to the second end bore of the second connection tube.
