The utility model relates to a color precoating plate. The color precoating plate comprises a base plate, wherein chemical treatment layers are respectively arranged on front surface and back surface of the base plate, the chemical treatment layer on the front surface of the base plate is coated with a bottom coating and a top coating sequentially, and the chemical treatment layer on the back surface of the base plate is sequentially coated with back coatings. The color precoating plate has bright and changeful colors, not only has the strength of steel plates and good secondary processability, but also has good corrosion resistance and flexibility of paint films.
Description
Technical field
The utility model relates to a kind of ornament materials being compound on sheet metal or construction material, refers to a kind of colored pre-coated steel plate of environment-friendly type.
Background technology
Current domestic household electric appliances generally adopt film-covered metal plate as household electrical appliances decorative panel, because its pattern is bright-coloured, the lines flow smoothly, have firmly got market approval.Film-covered metal plate is to post one deck bright film take the plate surface that metallic plate is base material, now the base material of a large amount of bright films that use adopts PVC material, VCM residual in PET-PVC structure is acknowledged as carcinogenic substance, and during PVC burning, the amount of being fuming is very large, if incineration temperature is lower than 800 ℃, the chloride rubbish imperfect combustion of plastics and so on, very easily generates dioxin, contaminated environment.Minority enterprise adopts the material of PET base material or other relative environmental protection, but because production cost is higher, production technology relative complex, colored paint steel plate replaces film-covered metal plate have been become inevitable.
Summary of the invention
The utility model is for the deficiencies in the prior art, improved a kind of pollution-free, make simple, lower-cost colored precoating plate.
Key problem in technology of the present invention is by apply the water paint of environmental protection on base material, and by base material is carried out to degreasing and chemical passivation, and level applies each coating and effectively solidifies, roller coat special coating or printed patterns, Lacquer finish coating on priming coat, then form through overcuring.Finishing coat can change the demand of color according to client, and Lacquer finish coating can play raising glossiness on finishing coat surface, reaches the bright and beautiful effect of color.Its concrete technical scheme: colored precoating plate, comprise substrate, it is characterized in that the positive and negative surface of substrate is provided with chemical treatment layer, is coated with priming coat, finishing coat on the chemical treatment layer of described substrate front surface successively; On the chemical treatment layer of described substrate reverse side, be coated with successively back coating.
As preferably, finishing coat is pearicoat, dumb light coating or conversion coating.
As preferably, substrate is flat cold-rolled sheet, electrolytic galvanized sheet or heat zinc coating plate.
As preferably, on finishing coat, be also coated with finish coat and PE diaphragm.
The beneficial effects of the utility model: the utility model product color is bright-coloured, changeable, both there is the intensity of steel plate and good suitability for secondary processing, there is again corrosion resistance and pliability that paint film is good, be widely used in household electrical appliances industry, building industry etc., other is if the applications such as steel furniture, waiting booth, retail kiosk are also in continuous expansion.
Accompanying drawing explanation

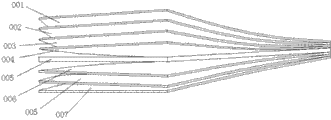

Fig. 1 is structural representation of the present utility model.
The specific embodiment
Colored precoating plate, comprises substrate 006, and the positive and negative surface of substrate 006 is provided with chemical treatment layer 005, is coated with successively priming coat 004, finishing coat 003 on the chemical treatment layer 005 of described substrate 006 front surface; On the chemical treatment layer 005 of described substrate 006 reverse side, be coated with successively back coating 007.On finishing coat 003, be also coated with finish coat 002 and PE diaphragm 001.Finishing coat 003 is pearicoat, dumb light coating or conversion coating.Substrate 006 is flat cold-rolled sheet, electrolytic galvanized sheet or heat zinc coating plate.
To those skilled in the art; under this patent design and specific embodiment enlightenment; some distortion that can directly derive or associate from this patent disclosure and general knowledge; those of ordinary skills will recognize also can adopt additive method; or the substituting of conventional known technology in prior art; and the mutual various combination between feature; etc. unsubstantiality change; can be employed equally; can realize this patent representation function and effect; launch for example no longer one by one to describe in detail, all belong to this patent protection domain.
Claims (4)
1. colored precoating plate, comprises substrate, it is characterized in that the positive and negative surface of substrate is provided with chemical treatment layer, is coated with priming coat, finishing coat on the chemical treatment layer of described substrate front surface successively; On the chemical treatment layer of described substrate reverse side, be coated with successively back coating.
2. colored precoating plate according to claim 1, is characterized in that finishing coat is pearicoat, dumb light coating or conversion coating.
3. colored precoating plate according to claim 1, is characterized in that substrate is flat cold-rolled sheet, electrolytic galvanized sheet or heat zinc coating plate.
4. colored precoating plate according to claim 1, is characterized in that being also coated with on finishing coat finish coat and PE diaphragm.
