Abstract
The utility model discloses a preformed twisted wire winding assistor, relates to an electrician auxiliary tool in an electric power system, and particularly to a tool used for repairing wires of a power transmission line. The preformed twisted wire winding assistor includes a U-shaped frame, one side frame body of the U-shaped frame is provided with a bend, one side of the bend is provided with a first fixing hole, the other side is provided with a second fixing hole, and the first fixing hole and the second fixing hole are arranged in the same vertical central axis; the U-shaped frame is further provided with a fixing rod, and the fixing rod is used cooperated with the first fixing hole and the second fixing hole; the one side frame body of the U-shaped frame and the other side frame body are symmetrical along a horizontal central axis of the U-shaped frame; and one side of the U-shaped frame is individually provided with a wire passing rod. By adopting the preformed twisted wire winding assistor, a technical problem that no efficient, safe and professional tool for winding preformed twisted wires during repairing wires of a power transmission line at present is overcome; and compared with conventional manual work, the preformed twisted wire winding assistor is novel and simple in structure, convenient to use, flexible, safe, time saving and labor saving, and the work efficiency is raised.
Description
Technical field
The utility model relates to electric power system electrician aid, is specially a kind of preformed armor rods using while repairing for transmission line wire and is wound around assistor.
Background technology
At present, 35KV and the above transmission line of operation in electric power system, when wire occurs after disconnected burst of a small amount of defect, common processing method is to use with the aluminium alloy preformed armor rods of wire same model to be wound around and to study for a second time courses one has flunked in conductive line surfaces.Instantly, my company is carrying out when transmission line wire is repaired being wound around preformed armor rods without professional tool, traditional operational method is that every preformed armor rods one end is pressed on wire with left hand, and the right hand is wound around along wire strand direction processed, or adopts the amateur instruments such as screwdriver to assist winding.Above traditional work method is because the preformed armor rods radical being wound around is many, rigidity is large, when radical reaches some, also there will be not attractive in appearance, two ends are uneven, and then bring out electric conductor point discharge, the wire potential safety hazards such as thigh of breaking.Meanwhile, time-consuming in operation process, effort, operating efficiency is not high, and labour intensity is large, and length expends time in.
Utility model content
The technical problems to be solved in the utility model is to provide a kind of preformed armor rods and is wound around assistor, solved the current preformed armor rods that is wound around and lacked technical problem quick, safe professional tool when carrying out transmission line wire repairing, and compare the feature of have that novel structure is simple, easy to use, flexible, safety, time and labour saving are laborsaving, increasing work efficiency with traditional-handwork operation.
Technical solution adopted in the utility model is: a kind of preformed armor rods is wound around assistor, comprise U-shaped, one side frame body is provided with elbow, and a side of elbow is provided with the first fixing hole, opposite side is provided with the second fixing hole, and described the first fixing hole and the second fixed hole position are in same vertical centre axis; Also be provided with fixed lever, fixed lever and the first fixing hole and the second fixing hole are used in conjunction with.
A described U-shaped side frame body and opposite side support body are symmetrical structure along U-shaped horizontal center line axis.
A described U-shaped side is also provided with separately threaded shaft.
Best, the tail end of described elbow is flat and horizontal by 30 ° of angles.
Best, described fixed lever one end is provided with handle.
Best, described fixed lever is threaded rod, during use, with the first fixing hole and the second fixing hole threaded engagement.
Best, the tail end of described threaded shaft is flat.
The beneficial effect that adopts technique scheme to produce is: the utility model is fixed on wire in U-shaped both sides elbow by U-shaped both sides fixed lever and fixing hole, does not need to remove to press wire with hand, can greatly reduce operating personnel's labour intensity; Then one end of preformed armor rods is wrapped in threaded shaft, rotates U-shaped, just can be by quick, safe being wound on wire of preformed armor rods, time and labour saving is laborsaving, has improved operating efficiency.
The utility model is simple in structure, easy to use, has promotional value widely, is specially adapted to the above ultra-high-tension power transmission line of 35KV and repairs wire work.
Accompanying drawing explanation
Below in conjunction with the drawings and specific embodiments, the utility model is described in further detail.

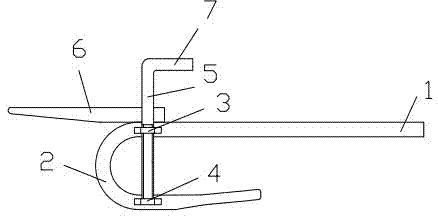

Fig. 1 is the utility model structural representation.
Fig. 2 is the utility model vertical view.
In figure, 1.U type frame, 2. elbow, 3. the first fixing hole, 4. the second fixing hole, 5. fixed lever, 6. threaded shaft, 7. handle, 8. wire, 9. preformed armor rods.
Embodiment
Referring to accompanying drawing 1 and accompanying drawing 2, a kind of preformed armor rods is wound around assistor, comprises U-shaped 1, can adopt 10mm*800mm deformed bar.One side frame body is provided with elbow 2, and elbow 2 arc diameters should be greater than diameter of wire.For better, with wire contact, lead wire and earth wire especially, is pressed into flat by the tail end of elbow 2 and horizontal by 30 ° of angles.One side of elbow 2 is provided with the first fixing hole 3, and opposite side is provided with the second fixing hole 4, and described the first fixing hole 3 and the second fixing hole 4 are positioned at same vertical centre axis, play fixing cord effect.Also be provided with fixed lever 5, described fixed lever 5 is threaded rod, and its one end is provided with handle 7, convenient operation.Fixed lever 5 and the first fixing hole 3 and the second fixing hole 4 threaded engagement are used.
Described U-shaped 1 one side frame body and opposite side support body are symmetrical structure along U-shaped 1 horizontal center line axis.
Described U-shaped 1 one sides are also provided with separately threaded shaft 6, for the convenient operation to preformed armor rods 9, its tail end are pressed into flat, and tail end exposes the elbow 2 about 500mm in circular arc position.
During use, first wire 8 is passed to the elbow of U-shaped both sides, U-shaped both sides fixed lever 5 respectively with the first fixing hole 3 and second fixing hole 4 threaded engagement of U-shaped both sides, to wire 8 is fixed in the elbow of U-shaped both sides, then one end of preformed armor rods 9 is wrapped in threaded shaft 6, the other end is placed on wire 8 surfaces, hold U-shaped 1, and clockwise rotate along wire 8, due to preformed armor rods itself in the shape of a spiral, at preformed armor rods, be wound around under the drive of assistor, can be by quick, safe being wound on wire 8 of preformed armor rods 9.
Claims (5)
1. a preformed armor rods is wound around assistor, it is characterized in that: comprise U-shaped (1), one side frame body is provided with elbow (2), one side of elbow (2) is provided with the first fixing hole (3), opposite side is provided with the second fixing hole (4), and described the first fixing hole (3) and the second fixing hole (4) are positioned at same vertical centre axis; Also be provided with fixed lever (5), fixed lever (5) is used in conjunction with the first fixing hole (3) and the second fixing hole (4);
Described U-shaped (1) one side frame body and opposite side support body are symmetrical structure along U-shaped (1) horizontal center line axis;
Described U-shaped (1) one side is also provided with separately threaded shaft (6).
2. preformed armor rods according to claim 1 is wound around assistor, and the tail end that it is characterized in that described elbow (2) is flat and horizontal by 30 ° of angles.
3. preformed armor rods according to claim 1 and 2 is wound around assistor, it is characterized in that described fixed lever (5) one end is provided with handle (7).
4. preformed armor rods according to claim 3 is wound around assistor, it is characterized in that described fixed lever (5) is threaded rod, during use, with the first fixing hole (3) and the second fixing hole (4) threaded engagement.
5. preformed armor rods according to claim 1 is wound around assistor, it is characterized in that the tail end of described threaded shaft (6) is flat.
