Abstract
The utility model relates to an outdoor detachable cabinet which comprises a cleaning table, a processing table, a storage table, long supporting legs and short supporting legs. The cleaning table is composed of a fixing frame and a cleaning cylinder, the surface of one side of the processing table is a rough surface, the storage table is composed of a fixing plate and a storage drawer, the lateral end faces of the fixing frame, the processing table and the fixing plate are provided with insertion connection holes, the fixing frame, the processing table and the fixing plate are sequentially connected through connecting rods, two first supporting leg insertion holes are formed in the lower end face of the end, far away from the processing table, of the fixing frame, the upper ends of the two long supporting legs are connected the two first supporting leg insertion holes respectively in an inserted mode, the lower end face of the storage drawer is provided with two second supporting leg insertion holes, and the upper ends of the two short supporting legs are connected in the two second supporting leg insertion holes respectively in an inserted mode. After the detachable cabinet is assembled, three table tops of the detachable cabinet form a continuous surface, the multiple functions are achieved, the processing table where vegetables are cut is arranged, the cleaning table for cleaning and the storage table for containing objects are further arranged, and the outdoor detachable cabinet can be arranged in a folded mode after being disassembled, and is small in occupied space and convenient to transport.
Description
Technical field
The utility model relates to a kind of furniture, is specifically related to the detachable cabinet in a kind of open air.
Background technology
At present, conventional cabinet is mostly the structure of rigidity, such as the cabinet made from wooden materials, the interlayer of cabinet and cabinet inside is all predefined, and the cabinet of this structure is all to use in doors, and can not arbitrarily move or move to open air and go to use, some cabinet is non-dismountable formula structure, the place of placing is also fixed, general mobile with regard to not going after placing again, and is applicable to family the inside and uses.For ease of carrying, also occurred on the market a kind of dismountable with cabinet, such as easy wardrobe, convenient carrying, but Simple wardrobe is when in use, many parts need to be overlapped to form to an integral body, overlapping part is used screw or bolt to be connected and fixed, so dismounting is not easily, and the quantity of parts is more, dismounting is more time-consuming, and this is just not suitable for moving to outdoor use.
Utility model content
The utility model wants technical solution problem to be to provide the detachable cabinet in a kind of open air, simple in structure, removes and installs conveniently, and the area that takes up room is little, is particularly suitable for using out of doors.
The utility model is for solving the problems of the technologies described above, the technical scheme providing is: the detachable cabinet in a kind of open air, comprise rinsing table, treatment bench, storage platform, long leg and short supporting leg, described rinsing table is comprised of with the wash bowl that is arranged at fixed mount below the fixed mount of rectangular frame structure, one side surface for the treatment of bench is rough surface, storage platform is comprised of fixed head and the storage drawer that is arranged at fixed head below, described fixed mount, on the side end face for the treatment of bench and fixed head, be provided with spliced eye, fixed mount, treatment bench is connected by connecting rod successively with fixed head, and fixed mount, the upper surface for the treatment of bench and fixed head forms continuous surface, described fixed mount is provided with two leg jack I away from the lower surface for the treatment of bench one end, the upper end of two long leg is plugged on respectively in two leg jack I, the lower surface of described storage drawer is provided with two leg jack II, the upper end of two short supporting legs is plugged on respectively in two leg jack II.
The lower end edge edge of described fixed mount is provided with and stretches to inner baffle plate, and the upper end edge edge of wash bowl is provided with and stretches to outside shelf, and wash bowl is fixed on the lower end of fixed mount by its shelf.
The upper surface of described fixed mount is also provided with a slot, is provided with L shaped shelf in slot.
The bottom of described wash bowl is provided with discharging valve.
The beneficial effects of the utility model are: simple in structure, convenient disassembly, be convenient to load transportation, after assembling, its three table tops form a continuous surface, and function is more, has both been useful on the treatment bench of cutting the dish, also be useful on the rinsing table of cleaning and for the storage platform of placing articles, collapsible placement after dismounting, takes up room little, convenient transportation.
Accompanying drawing explanation

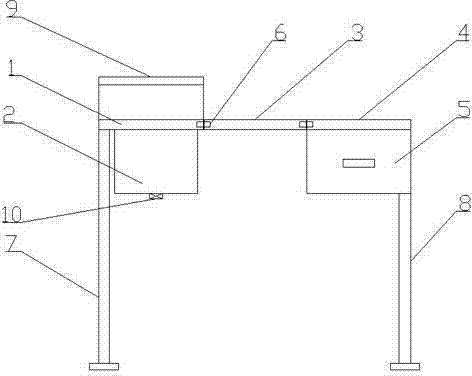

Fig. 1 is structural representation of the present utility model.
Mark in figure: 1, fixed mount, 2, wash bowl, 3, treatment bench, 4, fixed head, 5, storage drawer, 6, connecting rod, 7, long leg, 8, short supporting leg, 9, L shaped shelf, 10, discharging valve.
The specific embodiment
As shown in the figure: the detachable cabinet in a kind of open air, comprise rinsing table, treatment bench 3, storage platform, long leg 7 and short supporting leg 8, described rinsing table is comprised of with the wash bowl 2 that is arranged at fixed mount 1 below the fixed mount 1 of rectangular frame structure, the lower end edge edge of described fixed mount 1 is provided with and stretches to inner baffle plate, the upper end edge edge of wash bowl 2 is provided with and stretches to outside shelf, wash bowl 2 is fixed on the lower end of fixed mount 1 by its shelf, the bottom of described wash bowl 2 is provided with discharging valve 10.One side surface for the treatment of bench 3 is rough surface, storage platform is comprised of fixed head 4 and the storage drawer 5 that is arranged at fixed head 4 belows, described fixed mount 1, on the side end face for the treatment of bench 3 and fixed head 4, be provided with spliced eye, fixed mount 1, treatment bench 3 is connected by connecting rod 6 successively with fixed head 4, and fixed mount 1, the upper surface for the treatment of bench 3 and fixed head 4 forms continuous surface, described fixed mount 1 is provided with two leg jack I away from the lower surface for the treatment of bench 3 one end, the upper end of two long leg 7 is plugged on respectively in two leg jack I, the lower surface of described storage drawer 5 is provided with two leg jack II, the upper end of two short supporting legs 8 is plugged on respectively in two leg jack II.The upper surface of described fixed mount 1 is also provided with a slot, is provided with L shaped shelf 9 in slot.The beneficial effects of the utility model are: simple in structure, convenient disassembly, be convenient to load transportation, after assembling, its three table tops form a continuous surface, and function is more, has both been useful on the treatment bench of cutting the dish, also be useful on the rinsing table of cleaning and for the storage platform of placing articles, collapsible placement after dismounting, takes up room little, convenient transportation.
Claims (4)
1. the detachable cabinet in open air, it is characterized in that: comprise rinsing table, treatment bench, storage platform, long leg and short supporting leg, described rinsing table is comprised of with the wash bowl that is arranged at fixed mount below the fixed mount of rectangular frame structure, one side surface for the treatment of bench is rough surface, storage platform is comprised of fixed head and the storage drawer that is arranged at fixed head below, described fixed mount, on the side end face for the treatment of bench and fixed head, be provided with spliced eye, fixed mount, treatment bench is connected by connecting rod successively with fixed head, and fixed mount, the upper surface for the treatment of bench and fixed head forms continuous surface, described fixed mount is provided with two leg jack I away from the lower surface for the treatment of bench one end, the upper end of two long leg is plugged on respectively in two leg jack I, the lower surface of described storage drawer is provided with two leg jack II, the upper end of two short supporting legs is plugged on respectively in two leg jack II.
2. the detachable cabinet in a kind of open air as claimed in claim 1, it is characterized in that: the lower end edge edge of described fixed mount is provided with and stretches to inner baffle plate, the upper end edge edge of wash bowl is provided with and stretches to outside shelf, and wash bowl is fixed on the lower end of fixed mount by its shelf.
3. the detachable cabinet in a kind of open air as claimed in claim 1, is characterized in that: the upper surface of described fixed mount is also provided with a slot, is provided with L shaped shelf in slot.
4. the detachable cabinet in a kind of open air as claimed in claim 1, is characterized in that: the bottom of described wash bowl is provided with discharging valve.
