Abstract
多功能家电远程控制系统，由继电器模块、主控制模块、家电端控制模块、MCU模块、蓝牙模块和GSM模块组成。所述主控制模块采可对手机传送的数据进行处理，将数据传送给家电端控制模块，使家电端控制模块对数据分析处理后进行对家电的控制。本实用新型的优点在于：低成本、高效率、功能完善、具有多种网络接口且配置灵活的智能家居网关，基于此家居网关实现智能家居系统，以解决当前家庭中存在的大量传统家电设备和信息家电的互连，使之成为一个系统，实现集中控制和管理，同时此家居网关提供对外接口，实现对外部网络的接入，完成异地的访问和控制。
The multifunctional home appliance remote control system consists of a relay module, a main control module, a home appliance control module, an MCU module, a Bluetooth module and a GSM module. The main control module can process the data transmitted by the mobile phone, and transmit the data to the control module of the home appliance, so that the control module of the home appliance can control the home appliance after analyzing and processing the data. The utility model has the advantages of low cost, high efficiency, complete functions, a smart home gateway with various network interfaces and flexible configuration, based on this home gateway, a smart home system can be realized to solve the problems of a large number of traditional home appliances in the current family. The interconnection of information home appliances makes it a system to realize centralized control and management. At the same time, the home gateway provides external interfaces to realize access to external networks and complete remote access and control.
Description
技术领域technical field
本实用新型涉及远程监控技术，具体涉及一种多功能家电远程控制系统。The utility model relates to a remote monitoring technology, in particular to a multifunctional household appliance remote control system.
背景技术Background technique
随着科学技术不断发展，计算机技术、远程控制技术、智能手机都有了很大的发展，人们对科技技术的兴趣也越来越浓，人们对生活的安全、舒适、方便等方面的要求越来越高，以“物联网”为核心的控制系统也花样多变。“智能家居”(Smart Home)，又称智能住宅，它利用先进的计算机技术，互联网技术，网络通信技术和电力电子技术等，为家里的设备(照明设备，智能家电、安防系统)等有机的连接到一起。智能家居控制系统可以让你出门在外也对家里的设备进行通信控制，从而给用户大大提高生活质量，从而在很大程度上给用户提高高效、便捷的生活方式。With the continuous development of science and technology, computer technology, remote control technology, and smart phones have all developed greatly. People are more and more interested in technology and technology. The control system with the "Internet of Things" as the core is also changing. "Smart Home", also known as smart home, uses advanced computer technology, Internet technology, network communication technology and power electronics technology to provide organic information for home equipment (lighting equipment, smart home appliances, security systems) connected together. The smart home control system allows you to communicate and control the devices at home even when you are away from home, thereby greatly improving the quality of life for users, thereby improving the efficient and convenient lifestyle for users to a large extent.
实用新型内容Utility model content
本实用新型的目的在于提供一种多功能家电远程控制系统，具有低成本、多功能、易维护、方便升级的智能家居网关，以实现满足远程控制、监测和交换信息的需求，进而满足人们在家庭中对安全、舒适、方便地工作和生活的需求。The purpose of this utility model is to provide a multi-functional home appliance remote control system, which has a low-cost, multi-functional, easy-to-maintain, and convenient-to-upgrade smart home gateway, so as to meet the needs of remote control, monitoring and information exchange, and further satisfy people's needs in The need for safe, comfortable and convenient work and life in the home.
本实用新型采用如下技术方案：The utility model adopts the following technical solutions:
多功能家电远程控制系统，由继电器模块、主控制模块、家电端控制模块、MCU模块、蓝牙模块和GSM模块组成。The multifunctional home appliance remote control system consists of a relay module, a main control module, a home appliance control module, an MCU module, a Bluetooth module and a GSM module.
所述主控制模块采用STM32F103E芯片，可对手机传送的数据进行处理，将数据传送给家电端控制模块，使家电端控制模块对数据分析处理后进行对家电的控制。The main control module adopts STM32F103E chip, which can process the data transmitted by the mobile phone, and transmit the data to the control module of the home appliance, so that the control module of the home appliance can control the home appliance after analyzing and processing the data.
所述家电端控制模块采用AVR单片机，所述家电端控制模块与继电器模块连接；所述蓝牙模块采用2.0标准，跟手机蓝牙标准完全符合，可以稳定的进行通信；GSM模块采用SIM900芯片，SIM900采用SMT封装，基于STE的单芯片，采用ARM926EJ-S架构，可内置客户应用程序。The control module of the home appliance terminal adopts an AVR single-chip microcomputer, and the control module of the home appliance terminal is connected with the relay module; the Bluetooth module adopts the 2.0 standard, which is completely consistent with the Bluetooth standard of the mobile phone, and can communicate stably; the GSM module adopts the SIM900 chip, and the SIM900 adopts the SMT package, STE-based single chip, using ARM926EJ-S architecture, can be built-in customer applications.
所述蓝牙模块和GSM模块可实现远程控制功能；通过主机上设置的键盘，进行人机交互，实现本地控制功能。The bluetooth module and the GSM module can realize the remote control function; through the keyboard provided on the host computer, human-computer interaction is performed to realize the local control function.
所述MCU模块检测异常情况及指令，并进行及时处理。The MCU module detects abnormal conditions and instructions, and handles them in a timely manner.
本实用新型的优点在于：低成本、高效率、功能完善、具有多种网络接口且配置灵活的智能家居网关，基于此家居网关实现智能家居系统，以解决当前家庭中存在的大量传统家电设备和信息家电的互连，使之成为一个系统，实现集中控制和管理，同时此家居网关提供对外接口，实现对外部网络的接入，完成异地的访问和控制。The utility model has the advantages of low cost, high efficiency, complete functions, a smart home gateway with various network interfaces and flexible configuration, based on this home gateway, a smart home system can be realized to solve the problems of a large number of traditional home appliances in the current family. The interconnection of information home appliances makes it a system to realize centralized control and management. At the same time, the home gateway provides external interfaces to realize access to external networks and complete remote access and control.
附图说明Description of drawings

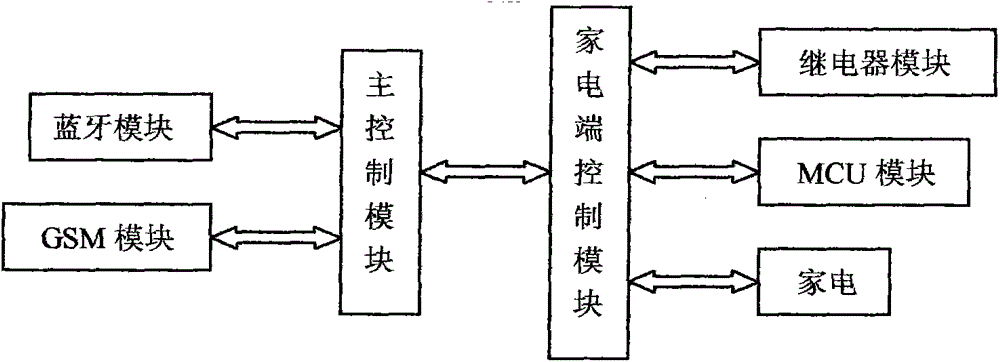

图1是本实用新型控制系统结构示意图。Fig. 1 is a structural schematic diagram of the utility model control system.
具体实施方式Detailed ways
下面结合附图与具体实施方式对本实用新型做进一步说明。The utility model will be further described below in conjunction with the accompanying drawings and specific embodiments.
本实用新型如图1所示，多功能家电远程控制系统，由继电器模块、主控制模块、家电端控制模块、MCU模块、蓝牙模块和GSM模块组成。As shown in Figure 1, the utility model is a multi-functional home appliance remote control system, which is composed of a relay module, a main control module, a home appliance terminal control module, an MCU module, a bluetooth module and a GSM module.
所述主控制模块采用STM32F103E芯片，可对手机传送的数据进行处理，将数据传送给家电端控制模块，使家电端控制模块对数据分析处理后进行对家电的控制。The main control module adopts STM32F103E chip, which can process the data transmitted by the mobile phone, and transmit the data to the control module of the home appliance, so that the control module of the home appliance can control the home appliance after analyzing and processing the data.
所述家电端控制模块采用AVR单片机，所述家电端控制模块与继电器模块连接；所述蓝牙模块采用2.0标准，跟手机蓝牙标准完全符合，可以稳定的进行通信；GSM模块采用SIM900芯片，SIM900采用SMT封装，基于STE的单芯片，采用ARM926EJ-S架构，可内置客户应用程序。The control module of the home appliance terminal adopts an AVR single-chip microcomputer, and the control module of the home appliance terminal is connected with the relay module; the Bluetooth module adopts the 2.0 standard, which is completely consistent with the Bluetooth standard of the mobile phone, and can communicate stably; the GSM module adopts the SIM900 chip, and the SIM900 adopts the SMT package, STE-based single chip, using ARM926EJ-S architecture, can be built-in customer applications.
所述蓝牙模块和GSM模块可实现远程控制功能；通过主机上设置的键盘，进行人机交互，实现本地控制功能。The bluetooth module and the GSM module can realize the remote control function; through the keyboard provided on the host computer, human-computer interaction is performed to realize the local control function.
所述MCU模块检测异常情况及指令，并进行及时处理。The MCU module detects abnormal conditions and instructions, and handles them in a timely manner.
当主机通电后，主机会对蓝牙模块和GSM模块进行初始化，当需要控制家里设备时，把手机蓝牙与主机控制系统蓝牙建立连接后，通过手机按键来控制家电；GSM模块与主机控制系统连接，通过手机按键来控制家电；也可通过主机上设置的键盘，实现主机控制家电。When the host is powered on, the host will initialize the Bluetooth module and the GSM module. When it is necessary to control the home equipment, connect the Bluetooth of the mobile phone to the Bluetooth of the host control system, and then control the home appliances through the keys of the mobile phone; the GSM module is connected to the host control system. The home appliance can be controlled by the keys of the mobile phone; the home appliance can also be controlled by the host through the keyboard set on the host.
