Abstract

The utility model relates to a power strip, especially relates to a portable power strip capable of being overlapped freely when being used outside. The portable power strip comprises at least an independent socket module, at least an independent USB module, a power line, a conductive jack, a conductive plug, and a power supply indicating lamp. Each module is controlled by a circuit board, which is disposed in the module. When in use, the conductive jack of the power line can be connected with the conductive plug of the independent socket module in an inserted manner for the independent use, and also can be connected with the conductive plug of the independent USB module in an inserted manner for the independent use, and also can be connected with the socket module and the USB module in an inserted manner, and then the power strip bodies can be used in a mixed manner, and therefore the requirements of various electrical appliances on the charging jacks can be satisfied. The portable power strip capable of being overlapped freely is advantageous in that the strong expansion capability can be provided, the installation is convenient and fast, the combination is smart, and the power strip is suitable for being carried with the user for daily use, especially suitable for being used for travels and business trips.

Description

A kind of portable insert row freely superposeing
Technical field
The utility model relates to a kind of electric power plug socket, particularly a kind of portable insert row freely superposeing.
Background technology
The utility model relates to a kind of insert row, the portable insert row that can freely superpose using while being particularly useful for going out.In daily life, people go out often to wish that it is the lightweight feature that can simultaneously charge to plurality of devices again that entrained insert row has, and also wish to have USB jack simultaneously, meet the demand of different mobile devices.The portable insert row freely superposeing that the utility model relates to, there is following beneficial effect: insert row profile is rectangle, can guarantee that a plurality of jacks can be used simultaneously, can also connect as required the demand that corresponding module meets greater amount socket, on insert row, USB socket is also set simultaneously, can meets the electronic products such as mobile phone, panel computer, digital camera and not charge when having charger or insert row socket not enough.
Summary of the invention
For above-mentioned prior art, the utility model provides that a kind of volume is little, lightweight, jack utilance is high and the portable insert row that can arbitrarily freely superpose.
The utility model is achieved through the following technical solutions:
The portable insert row that can freely superpose, comprises at least one independently jack module, and at least one is USB module, power line, conductive jack, conductive plug and power supply indicator etc. independently; Each module is controlled by a circuit board, is arranged on the inside of module.Each individual receptacle module is cuboid, wherein two plane of symmetry one end are provided with conductive jack, the other end is set to conductive plug, all the other four adjacent surfaces are all provided with jack, jack is three hole jacks, and three hole jacks also can be done two hole jacks and use, each independently jack module can provide four jacks to use simultaneously.Each independently USB module be square, two plane of symmetry one end are provided with conductive jack, the other end is set to conductive plug, all the other four adjacent surfaces are all provided with two USB sockets and power supply indicator, and each independent USB module can provide the USB socket of 8 low-voltages to use simultaneously.Each independently the conductive plug of jack module can plug with the conductive jack of another individual receptacle module, also can with another independently USB module conductive jack plug.There are three attaching plugs power line one end, and the other end is conductive plug.During use, the conductive jack of power line can plug with the conductive plug of an individual receptacle module independent use, also can plug with the conductive plug of an independent USB module independent use, can also peg graft into insert row body with two above jack modules uses, can also peg graft and mix the use of insert row body with jack module and USB module, meet the demand to charging jack of various electrical equipment.
The beneficial effects of the utility model:
The utility model decomposes some jack modules that can freely superpose by old-fashioned insert row, can use separately a module, and use simultaneously also can a plurality of modules freely superposes; Between described power line and modules, can install flexibly, each jack module jack integrates two holes, three hole jacks, and bearing capacity is large, also there is USB jack simultaneously, can meet the demand of various electrical equipment, and unaffected each other while using, utilance is high, the feature being convenient for carrying.
Accompanying drawing explanation

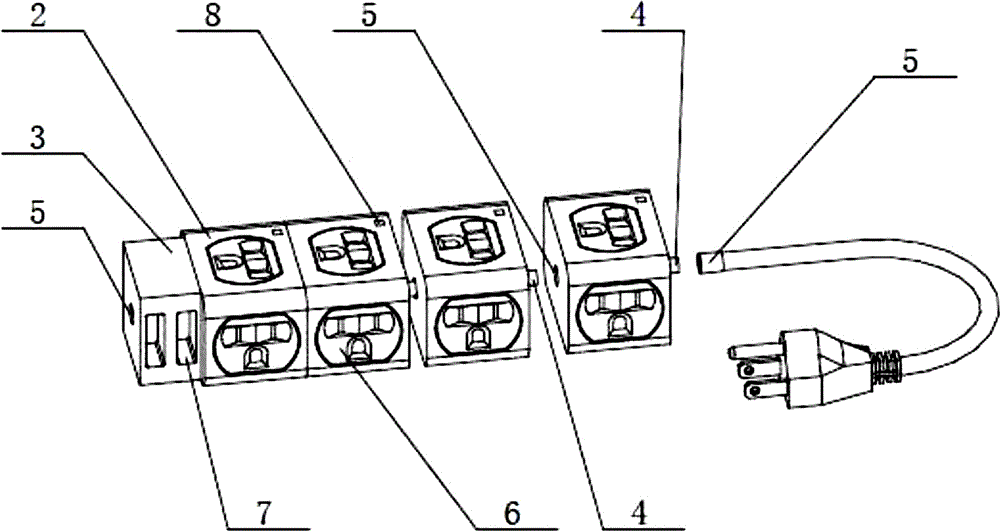

Fig. 1 is the utility model schematic diagram.
Fig. 2 is the utility model exploded view.
Fig. 3 is USB module diagram of the present utility model.
Fig. 4 is jack module schematic diagram of the present utility model.
Number in the figure: 1. power line; 2. jack module; 3.USB module; 4. conductive plug, 5. conductive jack; 6. supply hub; 7.USB jack; 8 power supply indicators
Embodiment
The utility model relates to provides a kind of portable insert row that can freely superpose, and below in conjunction with drawings and Examples, the utility model is described further.
As depicted in figs. 1 and 2, a kind of portable insert row that can freely superpose.Comprise power line (1), at least one independently jack module (2), at least one independently USB module (3), conductive plug (4), conductive jack (5), supply hub (6), USB jack (7), power supply indicator (8).
Power line (2) one end and three plug all-in-one-pieces are for follow-up module for power supply, the other end of power line is conductive plug (4), can freedom and individual receptacle module (2) or USB module (3) plug and be superimposed as insert row body, guarantee that the electric current of subsequent module provides.Indicator light (8) sends light when switching on power, and reminds this module of user in energising
As shown in Figure 3, each independently USB module (3) be square, two plane of symmetry one end are provided with conductive jack (5), the other end is set to conductive plug (4), all the other four adjacent surfaces are all provided with two USB sockets and power supply indicator (8), and each independent USB module (3) can provide the USB socket (7) of 8 low-voltages to use simultaneously.
As shown in Figure 4, each module is controlled by a circuit board, is arranged on the inside of module.Each individual receptacle module (2) is cuboid, wherein two plane of symmetry one end are provided with conductive jack (5), the other end is set to conductive plug (4), all the other four adjacent surfaces are all provided with supply hub (6), jack is three hole jacks, and three hole jacks also can be done two hole jacks and use, each independently jack module (2) can provide four supply hubs (6) to use simultaneously.
Fig. 3 and Fig. 4 as shown in Figure 1, Figure 2,, each independently the conductive plug (4) of jack module (2) can plug with the conductive jack (5) of another individual receptacle module (2), also can with another independently USB module (3) conductive jack (5) plug.During use, the conductive jack of power line (5) can plug independent use with the conductive plug (4) of an individual receptacle module (2), also can plug independent use with the conductive plug (4) of an independent USB module (3), can also peg graft into insert row body with two above jack modules (2) uses, can also connect and mix the use of insert row body with jack module (2) and USB module slotting (3), meet the demand to supply hub of various electrical equipment.During use, user can select jack module (2) or the USB module (3) of respective numbers as required, by one of them independently the conductive jack (5) of jack module (2) or USB module (3) be plugged on power supply and connect on jack (5), all the other independently jack module (2) or USB module be plugged in last independently jack module (2) or USB module (3) is upper, can be combined into a whole insert row.
This novel insert row that freely superpose has powerful extended capability, and it is quick and easy for installation, and combination flexibly, is particularly suitable for daily carrying, and particularly travels, use when away on official business.
The utility model is not limited to above-mentioned embodiment. and the utility model person of ordinary skill in the field can make multiple modification, supplements or adopt similar mode to substitute to described embodiment; not departing from spirit of the present utility model or surmounting the defined scope of appended claims, all in the claimed scope of the utility model.

Claims (2)

1. the portable insert row freely superposeing, comprises jack module, USB module, power line, supply hub, USB jack; Described power line one end is three-phase power plug, and the other end is line trap; One end of described jack module or USB module is provided with conductive jack, and the other end is line trap; Described conductive plug and wire jack plug, and it is characterized in that: described power line wire jack can freedom and the line trap of jack module or USB module plug.
2. the portable insert row freely superposeing according to claim 1, is characterized in that: in jack module and USB module, be provided with indicator light.
