Abstract
The utility model relates to the technical field of electric power line protection, in particular to an intelligent electric pole monitoring device. The intelligent electric pole monitoring device comprises two half-round supports and a controller case. The intelligent electric pole monitoring device is characterized in that one ends of the two supports are movably connected, matched fixing fasteners are arranged at the other ends of the two supports, a plurality of touch panels are arranged on the bottoms of the supports, locating sensors are arranged on the inner sides of the touch panels, the controller case is arranged on one support, and a controller, an electronic level meter, a GPS, a displayer, a wireless signal transceiver and a plurality of indicators corresponding to the locating sensors are arranged inside the controller case. The intelligent electric pole monitoring device has the advantages of being simple and practical and capable of detecting the inclination degree of electric poles when being fixed to the electric poles, if abnormal conditions occur, the locating information and the monitoring data can be sent to a power supply company through the wireless signal transceiver, and therefore staff can go to the site in time and carry out maintenance work such as correction of the electric poles.
Description
Technical field
The utility model relates to power line protection technical field, relates in particular to a kind of electric pole intelligent monitoring device.
Background technology
Owing to being subject to the impact of the reasons such as geology, weather, construction, electric pole easily run-off the straight in long-term use procedure.Particularly angle pole and terminal pole need to guarantee electric pole balance by connecting stay wire on electric pole.Electric pole is different at the suffered tension force of all directions, causes electric pole to tilt to different directions.In the middle of the power grid maintenance of our power department, electric pole safeguards it is important and don't easily pinpoint the problems and process an in time thing, electric pole plays a part to support whole electrical network, so the safe operation whether safety of electric pole is directly connected to electrical network whether, electric pole is once topple over, gently pull apart cable or overhead transmission line, when serious, may cause electrical network paralysis, even jeopardize people's productive life and life security.
Utility model content
The purpose of this utility model is to provide a kind of device that can monitor electric pole inclined degree and can determine electric pole position.
The utility model solves the technical scheme that its technical matters adopts:
A kind of electric pole intelligent monitoring device, comprise two semicircular supports and a controller housing, it is characterized in that: two support one end are flexibly connected, two support other ends are provided with adaptive fixedly snap close, frame bottom is provided with some touch panels, touch panel inner side is provided with positioning inductor, one of them support is provided with controller housing, and wherein controller housing inside is provided with controller, electrolevel, GPS locating device, display, wireless signal transceiver and the some pilot lamp corresponding with positioning inductor.
Described controller, GPS locating device, electrolevel are arranged on controller housing inside, display is arranged on the centre position of controller housing end face, pilot lamp is arranged on display side, and wireless signal transceiver is located on one of them angle of controller housing end face.
Described electrolevel, GPS locating device, display, wireless signal transceiver, positioning inductor are to being connected with controller respectively with pilot lamp.
Above-mentioned device is fixed on electric pole by fixing snap close by two supports, make the positioning inductor on touch panel be attached to electric pole surface, and the pilot lamp corresponding with positioning inductor shows when normal, electrolevel detects and acquisition testing data the inclined degree of electric pole, if detection data exception, GPS locating device can position and collection position information this electric pole, finally by wireless signal transceiver, positional information and Monitoring Data are sent to electric company, the electric company according to circumstances personnel of arranging work carries out the maintenance jobs such as electric pole correction.
The beneficial effects of the utility model are: simple and practical, when this device is fixed on electric pole, pilot lamp can show that whether fixing situation is accurate, when pilot lamp shows when normal, electrolevel can detect the inclination situation of electric pole, if the detected value that display shows has extremely, wireless signal transceiver can send to electric company by wireless signal transceiver by locating information and Monitoring Data, facilitates the staff scene of arriving in the very nick of time to carry out the maintenance jobs such as electric pole correction.
Accompanying drawing explanation
Below in conjunction with drawings and Examples, the utility model is further illustrated.

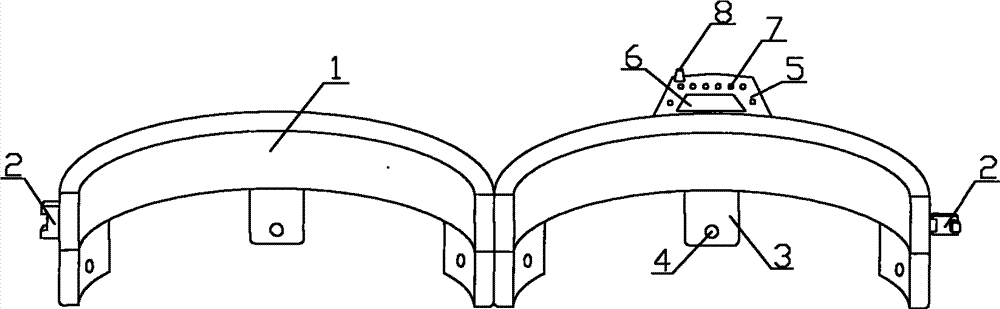

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the inner structure schematic diagram of controller housing;
Fig. 3 is electrical block diagram of the present utility model;
Fig. 4 is the structural representation that the utility model is used state;
In figure: 1 support, 2 is snap close, 3 touch panels, 4 positioning inductors, 5 controller housings, 51 controllers, 6 displays, 7 pilot lamp, 8 wireless signal transceivers, 9 electric poles, 10 electrolevels, 11GPS locating device fixedly.
Embodiment
As shown in the figure, a kind of electric pole intelligent monitoring device, comprise two semicircular supports 1 and a controller housing 5, two support 1 one end are flexibly connected, two support 1 other ends are provided with adaptive fixedly snap close 2, support 1 bottom is provided with some touch panels 3, touch panel 3 inner sides are provided with positioning inductor 4, one of them support 1 is provided with controller housing 5, controller housing 5 is arranged on support 1 centre position, wherein controller housing 5 inside are provided with controller 51, electrolevel 10, GPS locating device 11, display 6, wireless signal transceiver 8 and the some pilot lamp 7 corresponding with positioning inductor 4.
Its middle controller 51, electrolevel 10, GPS locating device 11 are arranged on controller housing 5 inside, display 6 is arranged on the centre position of controller housing 5 end faces, pilot lamp 7 is arranged on display 6 sides, and wireless signal transceiver 8 is located on any one angle of controller housing 5 end faces.
Wherein electrolevel 10, GPS locating device 11, display 6, wireless signal transceiver 8, positioning inductor 4 and pilot lamp 7 are connected with controller 51 respectively, controller 51 can be single-chip microcomputer or other programming controllers, can make all parts between information transmitted, control whole device and can normally move.
Two supports 1 of this device are fixed on electric pole 9 by fixing snap close 2, make the positioning inductor 4 on touch panel 3 be attached to electric pole 9 surfaces, and the pilot lamp corresponding with positioning inductor 47 shows when normal, the inclined degree of 10 pairs of electric poles 9 of electrolevel detects and acquisition testing data, if detection data exception, GPS locating device 11 can position and collection position information this electric pole 9, finally by wireless signal transceiver 8, positional information and Monitoring Data are sent to electric company, the electric company according to circumstances personnel of arranging work carries out the maintenance jobs such as electric pole correction.
Claims (3)
1. an electric pole intelligent monitoring device, comprise two semicircular supports and a controller housing, it is characterized in that: two support one end are flexibly connected, two support other ends are provided with adaptive fixedly snap close, frame bottom is provided with some touch panels, touch panel inner side is provided with positioning inductor, one of them support is provided with controller housing, and wherein controller housing inside is provided with controller, electrolevel, GPS locating device, display, wireless signal transceiver and the some pilot lamp corresponding with positioning inductor.
2. a kind of electric pole intelligent monitoring device according to claim 1, it is characterized in that: described controller, GPS locating device, electrolevel are arranged on controller housing inside, display is arranged on the centre position of controller housing end face, pilot lamp is arranged on display side, and wireless signal transceiver is located on one of them angle of controller housing end face.
3. a kind of electric pole intelligent monitoring device according to claim 1, is characterized in that: described electrolevel, GPS locating device, display, wireless signal transceiver, positioning inductor are to being connected with controller respectively with pilot lamp.
