CN203393992U - Guiding ruler for pargeting of building internal and external corners - Google Patents
Guiding ruler for pargeting of building internal and external corners Download PDFInfo
- Publication number
- CN203393992U CN203393992U CN201320459139.3U CN201320459139U CN203393992U CN 203393992 U CN203393992 U CN 203393992U CN 201320459139 U CN201320459139 U CN 201320459139U CN 203393992 U CN203393992 U CN 203393992U
- Authority
- CN
- China
- Prior art keywords
- guiding ruler
- pargeting
- support bar
- plaster
- plaster ground
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Conveying And Assembling Of Building Elements In Situ (AREA)
Abstract
The utility model discloses a guiding ruler for pargeting of building internal and external corners and belongs to the technical field of pargeting construction tools. The guiding ruler comprises two guiding ruler plates, two horizontal supporting rods, an adjusting sleeve and inclined supporting rods. The guiding ruler plates, sections of which are rectangular, are arranged in parallel. The ends of the two horizontal supporting rods are connected onto the guiding ruler plates, and threads are opened at the other ends. The adjusting sleeve is connected with the two horizontal supporting rods through screw ports and can adjust the distance between the two guiding ruler plates. The inclined supporting rods are connected onto the guiding ruler plates and the horizontal supporting rods to keep the perpendicularity of the guiding ruler plates and the horizontal supporting rods. The guiding ruler is applicable to pargeting of building internal and external corners, vertical upright structuring of pargeting of the internal and external corners is facilitated, the construction operation is simple and rapid, the work efficiency is high, consumption of auxiliary pargeting materials is reduced, and the pargeting construction quality of the internal and external corners is improved.
Description
Technical field
The utility model relates to a kind of building negative and positive angle pargeting guiding ruler, is mainly used in building the levelling of negative and positive angle, the Founder and vertically regular of pargeting in vertical member, belongs to pargeting construction tool technical field.
Background technology
In Building Construction, after civil engineering main body construction, on vertical member, need to plaster, and door and window hole in vertical member, vertical pillar etc., there is the external corner part protruding and the internal corner part falling in, plastering of these positions, adopt in the past the minor diameter reinforcing bar of an angle of 90 degrees that guiding ruler and workman bend up temporarily or bamboo wood clamp bar etc. to carry out temporary fixed, the operation standard that there is no standard, lack and be convenient to negative and positive angle that workman the uses aid of plastering, cause workman's operating process inconvenient, construct lack of standardization, plaster and be not easy moulding in negative and positive angle, cause negative and positive angle to plaster irregular, not upright, vertical lines are not smooth, overall appearance quality and perception effect that impact is plastered.
Summary of the invention
For existing practical problem in above-mentioned, the utility model provides a kind of building negative and positive angle pargeting guiding ruler, is applicable to vertical member, particularly the plastering of negative and positive angle between hole.
The utility model is achieved through the following technical solutions: a kind of building negative and positive angle pargeting guiding ruler, comprise that Liang Ge cross section is the plaster ground of rectangle and parallel placement, Liang Ge one end is connected on plaster ground, the other end is opened threaded horizontal support bar, silk mouthful connects the two horizontal support bar ends of thread and can regulate the regulating sleeve of distance between two plaster grounds, is connected on plaster ground and horizontal support bar and keeps plaster ground and the mutually perpendicular oblique support bar of horizontal support bar.
It is further: described plaster ground is preferably the rectangular aluminium alloy light-wall pipe of hollow.
Described plaster ground is provided with and crosses having strong market potential of plaster ground; Described having strong market potential fixed by little round pin; Described horizontal support bar is connected on having strong market potential of plaster ground inside.
Described oblique support bar is hinged on plaster ground and horizontal support bar by short pin.
Its method of operating is that first definite depth of plastering as requested, finds out datum, makes a vertical plaster ground in place, operates adjusting sleeve pipe and makes another plaster ground in place, more vertical plaster ground is carried out to verticality afterwards and checks, and then plasters.
The utility model has the advantage of: the external corner that more adapts to vertical member is plastered, convenient operation, convenient formation, can guarantee the straight and upright of negative and positive angle, guarantees presentation quality and the perception effect of plastering.
Accompanying drawing explanation

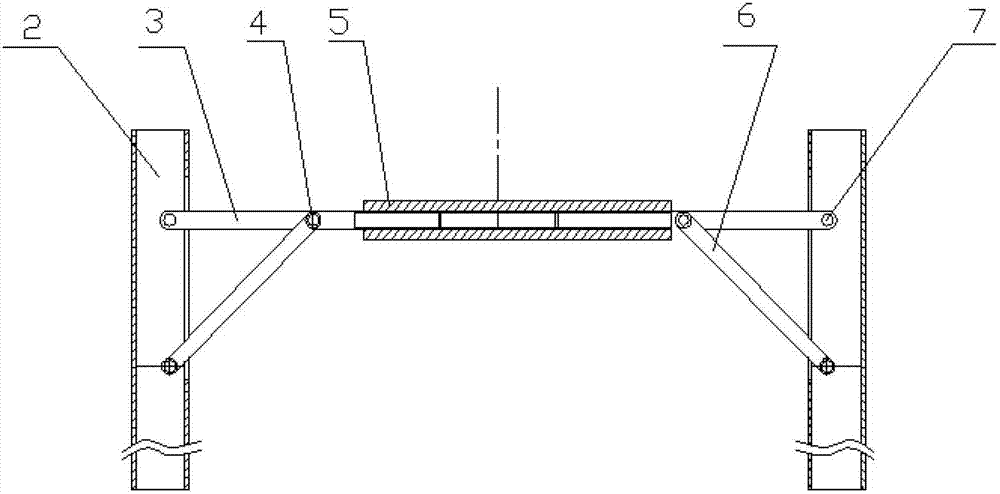

Fig. 1 is that the utility model master looks sectional view;
Fig. 2 is top view of the present utility model.
In figure: 1, little round pin; 2, plaster ground; 3, horizontal support bar; 4, short pin; 5, adjusting sleeve pipe; 6, oblique support bar; 7, have strong market potential.
The specific embodiment
Be below a specific embodiment of the present utility model, and by reference to the accompanying drawings the utility model done further.
As depicted in figs. 1 and 2: a kind of building negative and positive angle pargeting guiding ruler, comprise that Liang Ge cross section is the plaster ground 2 of rectangle and parallel placement, Liang Ge one end is connected on plaster ground 2, the other end is opened threaded horizontal support bar 3, silk mouthful connects two horizontal support bar 3 ends of thread and can regulate the regulating sleeve 5 of distance between two plaster grounds 2, is connected on plaster ground 2 and horizontal support bar 3 and keeps plaster ground 2 and the mutually perpendicular oblique support bar 6 of horizontal support bar 3.
Plaster ground 2 is preferably the rectangular aluminium alloy light-wall pipe of hollow, and cross section is that rectangle ，Si angle is upright, and surfacing is straight.
Plaster ground 2 be provided with cross plaster ground 2 have strong market potential 7; Have strong market potential 7 fixing by roundlet pin 1; Horizontal support bar 3 is connected to having strong market potential on 7 of plaster ground 2 inside.
For door opening external corner, plaster, first determine as requested depth of plastering, find out datum, vertical vertical plaster ground 2, makes a vertical plaster ground in place, the distance of adjusting between two plaster grounds 2 by operation adjusting sleeve pipe 5, that another vertical plaster ground 2 is in place, plaster ground 2 is carried out to verticality and check, after meeting the demands, just can carry out the float work of external corner.
A kind of building negative and positive angle pargeting guiding ruler providing is provided, and external corner is plastered and can be guaranteed straight Founder, and lines are attractive in appearance, takes and tears open conveniently, construction convenient and efficient.
Above embodiment is described preferred embodiment of the present utility model, and the utility model is also applicable to that in building, the external corner of vertical member is plastered, hole external corner is plastered etc.
Claims (4)
1. build negative and positive angle pargeting guiding ruler for one kind, it is characterized in that: comprise that Liang Ge cross section is the plaster ground (2) of rectangle and parallel placement, Liang Ge one end is connected on plaster ground (2), the other end is opened threaded horizontal support bar (3), silk mouthful connects two horizontal support bars (3) end of thread and can regulate the regulating sleeve (5) of distance between two plaster grounds (2), is connected to plaster ground (2) and horizontal support bar (3) and goes up and keep plaster ground (2) and the mutually perpendicular oblique support bar of horizontal support bar (3) (6).
2. a kind of building negative and positive angle pargeting guiding ruler according to claim 1, is characterized in that: described plaster ground (2) is the rectangular aluminium alloy light-wall pipe of hollow.
3. a kind of building negative and positive angle pargeting guiding ruler according to claim 1 and 2, is characterized in that: described plaster ground (2) is provided with have strong market potential (7) of crossing plaster ground (2); Described have strong market potential (7) are fixing by little round pin (1); Described horizontal support bar (3) is connected to inner the having strong market potential on (7) of plaster ground (2).
4. a kind of building negative and positive angle pargeting guiding ruler according to claim 1, is characterized in that: described oblique support bar (6) is hinged on plaster ground (2) and horizontal support bar (3) by short pin (4).
