CN203384539U - Hose coupler component - Google Patents
Hose coupler component Download PDFInfo
- Publication number
- CN203384539U CN203384539U CN201320327730.3U CN201320327730U CN203384539U CN 203384539 U CN203384539 U CN 203384539U CN 201320327730 U CN201320327730 U CN 201320327730U CN 203384539 U CN203384539 U CN 203384539U
- Authority
- CN
- China
- Prior art keywords
- sleeve
- hose
- flexible pipe
- connecting rod
- hangnail
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model relates to a hose coupler component used for connecting a hose to another device. The hose coupler component comprises a sleeve, a coupler and the hose, and is characterized in that the sleeve is connected with the coupler in a sleeving manner, a connecting rod is arranged on the coupler, the house is sleeved on the connecting rod, a plurality of clamping portions and barbs are arranged on the inner wall of the sleeve at intervals, the hose is pressed by the clamping portions and clamped by the barbs, and an annular limiting surface is arranged in the sleeve. Compared with the prior art, the hose coupler component has the advantages of simple structure, reasonable design, reliability in connection and good sealing effect.
Description
Technical field
The utility model relates to a kind of hose joint assembly, for flexible pipe being connected to another device.
Background technique
Has in actual life on much equipment and need to use flexible pipe, and flexible pipe is while being connected with other devices, usually just by hose proof outside hard tube, this Placement makes flexible pipe be easier to come off, and affects user's use.Also do not have at present a kind of simple in structure, reasonable in design, the hose joint assembly of reliable performance.
The model utility content
The purpose of this utility model is to overcome above shortcomings in prior art, and provides a kind of reasonable in design, reliable performance, articulated elements easy to use.
The technical scheme in the invention for solving the above technical problem is: this hose joint assembly, comprise sleeve, joint, flexible pipe, and it is characterized in that: described sleeve and adaptor cup jointing; Described joint is provided with connecting rod, and described tube socket is on connecting rod; Described sleeve lining is provided with some card-tight parts and hangnail, described card-tight part and hangnail arranged spaced, and described card-tight part is pushed down flexible pipe, and described hangnail blocks flexible pipe; Be provided with annular confined planes in described sleeve, confined planes plays position-limiting action to flexible pipe.The utility model is simple in structure, reasonable in design, connects reliable; Tube socket is inserted sleeve after on joint again can complete connection; Need flatten sleeve during use, now the card-tight part in sleeve plays the effect that compresses flexible pipe, and hangnail can prevent that flexible pipe from deviating from, and the confined planes of the annular in sleeve plays position-limiting action to flexible pipe.
Sleeve described in the utility model is provided with groove No. one, and described joint is provided with groove No. two, and a described groove is corresponding with No. two Cao positions.A groove and No. two grooves form seal groove, and while in seal groove, installing seal ring, sealing effect is better.
Connecting rod described in the utility model is provided with some grooves.Frictional force in the time of can increasing flexible pipe and adaptor cup jointing, prevent that flexible pipe from deviating from from connecting rod.
The utility model compared with prior art, has the following advantages and effect: simple in structure, reasonable in design, connect reliably good sealing effect.
The accompanying drawing explanation

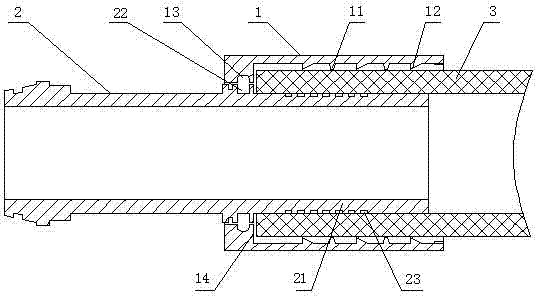

Fig. 1 is the structural representation of hose joint assembly in the utility model.
Fig. 2 is the structural representation of the utility model middle joint.
Fig. 3 is the structural representation of the utility model middle sleeve.
Embodiment
Below in conjunction with accompanying drawing and by embodiment, the utility model is described in further detail, and following examples are to explanation of the present utility model and the utility model is not limited to following examples.
Embodiment.
Referring to Fig. 1 to Fig. 3, the hose joint assembly in the present embodiment comprises sleeve 1, card-tight part 11, hangnail 12, groove 13, confined planes 14, joint 2, connecting rod 21, No. two grooves 22, groove 23, flexible pipe 3.
The present embodiment middle sleeve 1 and joint 2 sockets; Joint 2 is provided with connecting rod 21, and flexible pipe 3 is socketed on connecting rod 21; Sleeve 1 inwall is provided with card-tight part 11 and the hangnail 12 of some annulars, as preferred card-tight part 11 quantity, be that 2, the quantity of hangnail 12 are 3, card-tight part 11 and hangnail 12 arranged spaced, after flexible pipe 3 inserts sleeves 1 in company with joint 2, card-tight part 11 is pushed down flexible pipe 3, and hangnail 12 blocks flexible pipe 3; 14 pairs of flexible pipes 3 of confined planes of annular in sleeve 1 play position-limiting action.Flatten sleeve 1 during use and get final product, now the card-tight part 11 in sleeve 1 plays the effect of compression flexible pipe 3, and hangnail 12 can prevent that flexible pipe 3 from deviating from.
Sleeve 1 in the present embodiment is provided with groove 13 No. one, and it is corresponding with the position of No. two grooves 22 that joint 2 is provided with 22, numbers grooves 13 of No. two grooves, after sleeve 1 is socketed with joint 2, a groove 13 and No. two grooves 22 form seal groove, and while in seal groove, installing seal ring, sealing effect is better.
Connecting rod 21 in the present embodiment is provided with some grooves 23, and the frictional force in the time of can increasing flexible pipe 3 with joint 2 socket prevents that flexible pipe 3 from deviating from from connecting rod 21.
In addition, it should be noted that, the specific embodiment described in this specification, the shape of its parts and components, institute's title of being named etc. can be different, and the above content described in this specification is only to the explanation of the utility model structure example.Allly according to the utility model patent, conceive equivalence variation or the simple change that described structure, feature and principle are done, be included in the protection domain of the utility model patent.The utility model person of ordinary skill in the field can make various modifications or supplements or adopt similar mode to substitute described specific embodiment; only otherwise depart from structure of the present utility model or surmount this scope as defined in the claims, all should belong to protection domain of the present utility model.
Claims (3)
1. a hose joint assembly, comprise sleeve, joint, flexible pipe, it is characterized in that: described sleeve and adaptor cup jointing; Described joint is provided with connecting rod, and described tube socket is on connecting rod; Described sleeve lining is provided with some card-tight parts and hangnail, described card-tight part and hangnail arranged spaced, and described card-tight part is pushed down flexible pipe, and described hangnail blocks flexible pipe; Be provided with annular confined planes in described sleeve.
2. hose joint assembly according to claim 1, it is characterized in that: described sleeve is provided with groove No. one, and described joint is provided with groove No. two, and a described groove is corresponding with No. two Cao positions.
3. hose joint assembly according to claim 1, it is characterized in that: described connecting rod is provided with some grooves.
