The utility model discloses a socket clamp, which comprises a clamp body, wherein the clamp body is formed by two mutually hinged clamping sheets (1); one of the clamping sheets (1) is provided with a socket (2); and the other clamping sheet (1) is provided with a clamping groove (3), and the socket (2) is arranged in the clamping groove (3). With the adoption of the socket clamp, the socket can be clamped and fixed very conveniently, thereby preventing displacement during the application process, and improving the safety of electricity utilization.
Description
Technical field
The utility model relates to the socket field, is a kind of socket folder specifically.
Background technology
Can be divided into two kinds according to whether socket is removable, a kind of is the socket be fixedly mounted on body of wall, and another is terminal block, and terminal block is mainly to enlarge the wiring scope.In student dormitory, bed is often on upper berth, because below is desk, people lie on a bed, toward the contact meeting learnt, mobile phone charging etc., now just need, with terminal block, the power supply of below is guided to bedside, and terminal block is suspended on to bedside, but owing to fixing, in use easily be subjected to displacement, cause the harm of plug from falling to use safe phenomenon.
The utility model content
The technical problems to be solved in the utility model is that a kind of socket folder of being convenient to fixing and clamping is provided.
Technical solution of the present utility model is, a kind of socket folder of following structure is provided, and comprises clamp, and described clamp is comprised of two mutual hinged holding pieces; A holding piece is provided with socket therein.
Adopt above structure, the utility model compared with prior art has the following advantages: adopt the utility model, owing to being provided with socket on holding piece, can clamp easily and fix, thereby prevent from being subjected to displacement in its use procedure, improved Electrical Safety.
As improvement, described holding piece is provided with clip slot, and described socket is placed in clip slot; Socket can slidably be connected with holding piece like this, and the pull by it in clip slot is realized dismounting and the installation of socket.
The accompanying drawing explanation

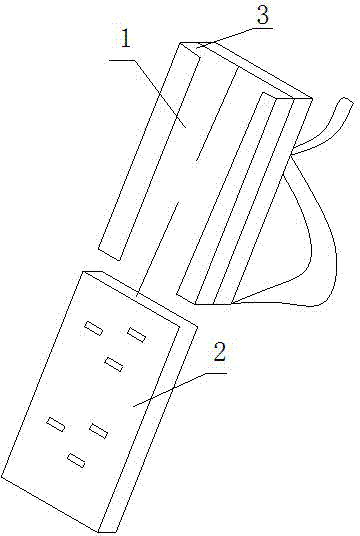

The structural representation that Fig. 1 is the utility model socket folder.
As shown in the figure 1, holding piece, 2, socket, 3, clip slot.
Embodiment
Below in conjunction with the drawings and specific embodiments, the utility model is described in further detail.
As shown in Figure 1, socket folder of the present utility model, comprise clamp, and described clamp is comprised of two mutual hinged holding pieces 1; A holding piece 1 is provided with socket 2 therein.
Described holding piece 1 is provided with clip slot 3, and described socket 2 is placed in clip slot 3.
It should be noted that, the shape of two holding pieces that are hinged can be different, and this is to consider mounting receptacle, the needs that grip.
Operation principle of the present utility model is as follows: owing to being provided with socket on holding piece, during use, socket is inserted in clip slot, clamp can be clamped on the railing of bedside, can clamp easily and fix, thereby prevent from being subjected to displacement in its use procedure.
Below only with regard to the utility model preferred embodiment, be described, but can not be interpreted as it is limitations on claims.The utility model not only is confined to above embodiment, and its concrete structure allows to change.In a word, all various variations of doing in the protection range of the utility model independent claims are all in protection range of the present utility model.
Claims (2)
1. a socket folder, comprise clamp, and described clamp is comprised of two mutual hinged holding pieces (1); It is characterized in that: a holding piece (1) is provided with socket (2) therein.
2. socket according to claim 1 presss from both sides, and it is characterized in that: described holding piece (1) is provided with clip slot (3), and described socket (2) is placed in clip slot (3).
