Abstract
The utility model discloses a magnetic sprinkler. The magnetic sprinkler is characterized in that a sprinkler head and a metal panel are included, back faces of the sprinkler are two intersected inclined faces, magnetic pasting pieces are arranged in the two inclined faces, a switch is further included and is arranged on a water inlet tube, and the metal panel is a steel plate. According to the magnetic sprinkler, the magnetic pasting pieces are arranged on the sprinkler head and are matched with the metal panel arranged on a wall, so that the effect of freely adjusting the height of the sprinkler is achieved, and applicable people of the sprinkler are increased; the back faces of the sprinkler head are designed to be the intersected inclined faces, so that different inclined faces can be selected to be attracted with the metal panel according to requirements, and the purpose of selecting water outlet directions of the sprinkler is achieved.
Description
Technical field
The utility model relates to a kind of bathroom utensil, more particularly, relates to a kind of magnetic shower.
Background technology
At present, the installation position of most showerheads is all fixed, such design has caused many problems to the user, such as, the user often will leave gondola water faucet and smear shampoo in hair washing, very trouble so not only seems, but also wasted water resource, for another example, the user usually will clean a certain position of health in the shower process, now can only grip gondola water faucet by a hand, the another hand is cleaned, very inconvenient, and the effect of cleaning is also bad, and, for different people, demand difference to gondola water faucet, as too short as child, can't get at gondola water faucet, old man's trick waist is dumb, the pregnant woman can't bend over, , the arthritic, the people that hand is injured, disabled person's trick inconvenience, common gondola water faucet can't meet these people's demand.
On the other hand, for the people, health is very important, and a lot of people lack some exercises and health care owing to being busy with one's work, can't reach best condition, and water and human body's skin directly contacts when taking a shower, and is the best opportunity kept healthy, therefore, utilize keep healthy and must get twice the result with half the effort the opportunity of taking a shower.
The utility model content
The purpose of this utility model is to solve problem set forth above, and a kind of magnetic shower is provided.
A kind of magnetic shower, it comprises gondola water faucet and metal decking, the inside that the back side of described gondola water faucet is two crossing ，Liang Ge inclined-planes, inclined-plane all is provided with Magnetic adhesive mat.
As preferably, described magnetic shower also comprises switch, and described switch is arranged on water inlet pipe.
As preferably, described metal decking is steel plate.
The beneficial effects of the utility model are as follows:
The technical solution of the utility model is such:
1, by Magnetic adhesive mat is set on gondola water faucet, with the metal decking arranged on the wall, match, reached the effect of random adjustment gondola water faucet height, the applicable crowd who has improved gondola water faucet;
2, the back side of gondola water faucet is designed to two crossing inclined-planes, can select as required different inclined-planes and metal decking adhesive, reaches the selection to gondola water faucet water outlet direction.
The accompanying drawing explanation

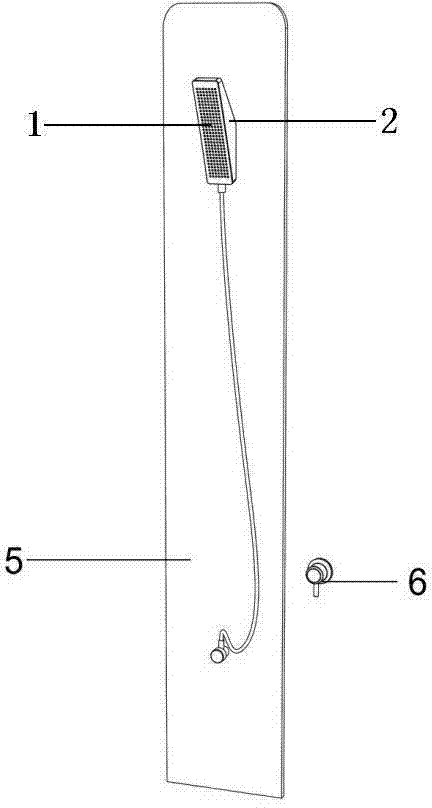

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the structural representation of the utility model gondola water faucet;
Fig. 3 is the side structure schematic diagram of the utility model gondola water faucet;
Fig. 4 is use state diagram of the present utility model;
In figure: 1. apopore, 2. gondola water faucet, 3. water inlet, 4. Magnetic adhesive mat, 5. metal decking, 6. switch, 7. water inlet pipe.
The specific embodiment
Below in conjunction with accompanying drawing, embodiment of the present utility model is further elaborated:
As shown in Figure 1, 2, a kind of magnetic shower that the utility model is mentioned, it is characterized in that, it comprises gondola water faucet 2 and metal decking 5, and the inside that the back side of described gondola water faucet 2 is two crossing ，Liang Ge planes, plane all is provided with Magnetic adhesive mat 4, by Magnetic adhesive mat 4 is set on gondola water faucet 2, match with the metal decking 5 arranged on the wall, reached the effect of random adjustment gondola water faucet 2 height, the applicable crowd who has improved gondola water faucet; Select as required different inclined-planes and metal decking adhesive, reach the selection to gondola water faucet water outlet direction.
Described magnetic shower also comprises switch 6, and described switch 6 is arranged on water inlet pipe 7.
Described metal decking 5 is steel plate, and the adhesive of steel plate and Magnetic adhesive mat 4 is more firm.
The utility model in use, only need gondola water faucet 2 be pull-in on to height suitable on metal decking 5 according to user's height, by selecting different inclined-planes and metal decking 5 adhesives at gondola water faucet 2 back sides, the water outlet direction of change gondola water faucet slightly makes progress or is slightly downward, meets user's demand.
Due to the fixedly dependence of gondola water faucet 2 be magnetic force, therefore be fixed up very convenient, anyone can easily grasp, and is suitable for applying.
Finally it is also to be noted that; what more than enumerate is only specific embodiment of the utility model; obviously; the utility model is not limited to above examples of implementation; many distortion can also be arranged, for those of ordinary skill in the art, under the prerequisite that does not break away from the utility model core technology feature; can also make some improvements and modifications, these improvements and modifications also should be considered as protection domain of the present utility model.
Claims (3)
1. a magnetic shower, is characterized in that, it comprises gondola water faucet (2) and metal decking (5), and the inside that the back side of described gondola water faucet (2) is two crossing ，Liang Ge inclined-planes, inclined-plane all is provided with Magnetic adhesive mat (4).
2. magnetic shower according to claim 1, is characterized in that, described magnetic shower also comprises switch (6), and described switch (6) is arranged on water inlet pipe (7).
3. magnetic shower according to claim 1, is characterized in that, described metal decking (5) is steel plate.
