The utility model relates to a take storing space's desk lamp, including desk lamp main part and the storing seat of setting in desk lamp main part top. The center of the top of the desk lamp main body is provided with an installation groove with an upward opening; the storage seat comprises a seat body and a mounting tenon which is arranged in the center below the seat body and protrudes downwards; the shape and size of the mounting tenon correspond to the shape and size of the mounting groove of the desk lamp main body; the storage seat is inserted into the mounting groove on the lampshade of the desk lamp main body through the mounting tenon of the storage seat, so that the storage seat is mounted on the desk lamp main body. At least one partition plate is arranged in the seat body of the storage seat, and the seat body is divided into at least two storage spaces by the partition plate. The utility model discloses a take storing space's desk lamp not only provides a fine space of storing office supplies for people, can also be used for breeding goldfish or hanging orchid etc. simultaneously, has improved the availability factor in desktop space, provides a silk life and interest for the office environment.
Description
Technical field
The utility model belongs to the daily living article field, particularly a kind of desk lamp.
Background technology
Desk lamp is one of life lighting instrument of desk and study indispensability.People tend to because of various mixed and disorderly office appliances worries on desk, desk simultaneously.And desk lamp is only used as the utensil that has taken quite a few space when throwing light on, wasted undoubtedly the space on the desktop.
The utility model content
The technical problems to be solved in the utility model is to provide a kind of desk lamp with storage space that improves the desk-top space service efficiency.
The technical scheme that realizes the utility model purpose is to provide the storage base that a kind of desk lamp with storage space comprises the desk lamp main body and is arranged on desk lamp main body top.
The center of top of desk lamp main body is provided with the mounting groove of an opening upwards.The installation tenon that storage base comprises pedestal and is arranged on the bottom center of pedestal, protrudes downwards.And the shape size that tenon is installed is corresponding with the shape size of the mounting groove of desk lamp main body.
Thereby storage base storage base in the mounting groove on the lampshade of its installation tenon insertion desk lamp main body is arranged on the desk lamp main body, and matched in clearance between tenon and mounting groove is installed.
At least one interblock dividing plate is set in the pedestal of storage base, and space bar is separated at least two storage spaces by pedestal.
The desk lamp main body comprises lamp socket, lamp body and lampshade.The lamp body is fixedly installed on lamp socket, and the lampshade of round platform shelly is arranged on it lamp, and it is fixing irremovable with respect to lamp body position with it the time that lampshade is arranged on lamp.The center of top of lampshade is provided with the mounting groove of cylindrical a, opening upwards.
One interblock dividing plate is set in the pedestal of storage base, and space bar is along the vertical setting, and space bar is divided into one little one large two spaces by pedestal.
The utlity model has positive effect: the desk lamp with storage space of the present utility model not only provides a space that well stores office appliance for people, simultaneously can also be used for breeding goldfish or bracketplant etc., improved the service efficiency of desk-top space, for working environment provides a joy of life.
The accompanying drawing explanation

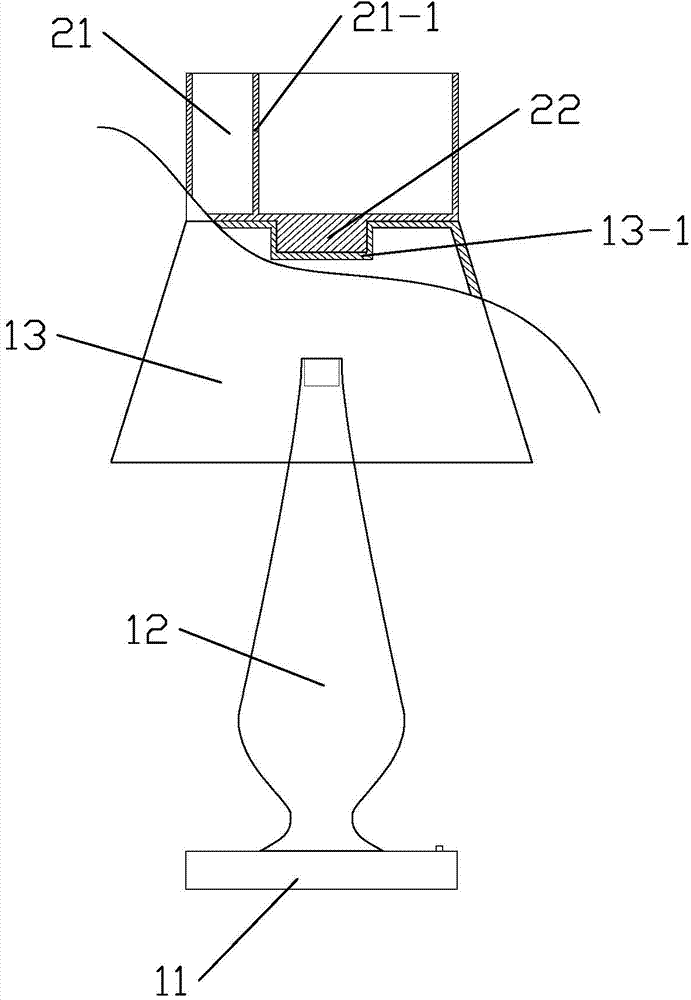

Fig. 1 is a kind of structural representation of the present utility model (front view).
The top view that Fig. 2 is Fig. 1.
Mark in above-mentioned accompanying drawing is as follows:
The specific embodiment
The utility model, carrying out orientation while describing, is described with orientation shown in Fig. 1, and the orientation up and down in figure is also up and down in description, and the orientation of court of picture in picture face institute is the place ahead, and the orientation that deviates from drawing is rear.
(embodiment 1)
See Fig. 1 and Fig. 2, the desk lamp with storage space of the present embodiment comprises the desk lamp main body and is arranged on the storage base of desk lamp main body top.
Still see Fig. 1 and Fig. 2, the desk lamp main body comprises lamp socket 11, lamp body 12 and lampshade 13.Lamp body 12 is fixedly installed on lamp socket 11, and the lampshade 13 of round platform shelly is arranged on lamp body 12, fixing irremovable with respect to lamp body 12 positions when lampshade 13 is arranged on lamp body 12.The center of top of lampshade 13 is provided with the mounting groove 13-1 of cylindrical a, opening upwards.In the present embodiment, lampshade 13 axially parallel with vertical.
Storage base comprises the pedestal 21 of the opening upwards that is tubbiness and is arranged on the bottom center of pedestal 21, the installation tenon 22 protruded downwards.One interblock dividing plate 21-1 is set in pedestal 21, and space bar 21-1 is separated into two spaces by pedestal 21; The present embodiment central dividing plate 21-1 is along the vertical setting, and space bar 21-1 is divided into two spaces left small and right large by pedestal 21.Tenon 22 is installed cylindrical, and the size of installation tenon 22 is corresponding with the size of the mounting groove 13-1 of lampshade 13.
Thereby storage base storage base in the mounting groove 13-1 on the lampshade 13 of its installation tenon 22 insertion desk lamp main bodys is arranged on the desk lamp main body, and matched in clearance between tenon 22 and mounting groove 13-1 is installed.When the desk lamp with storage space of the present embodiment is used, two spaces that storage base is divided into by its space bar 21-1, wherein less space can be used to deposit some office appliances as pen, clip and so on, larger space can be used for breeding goldfish or bracketplant etc., to increase the joy of life of working environment.
Obviously, above-described embodiment is only for the utility model example clearly is described, and is not the restriction to embodiment of the present utility model.For those of ordinary skill in the field, can also make other changes in different forms on the basis of the above description.Here exhaustive without also giving all embodiments.And these belong to apparent variation that spirit of the present utility model extended out or change still among protection domain of the present utility model.
Claims (4)
1. the desk lamp with storage space, is characterized in that: comprise desk lamp main body and the storage base that is arranged on desk lamp main body top;
The center of top of desk lamp main body is provided with the mounting groove (13-1) of an opening upwards; The installation tenon (22) that storage base comprises pedestal (21) and is arranged on the bottom center of pedestal (21), protrudes downwards; And the shape size that tenon (22) is installed is corresponding with the shape size of the mounting groove (13-1) of desk lamp main body;
Storage base by it, mounting groove (13-1) on lampshade (13) that tenon (22) inserts the desk lamp main body is installed thus in storage base be arranged on the desk lamp main body, and matched in clearance between tenon (22) and mounting groove (13-1) is installed.
2. the desk lamp with storage space according to claim 1, it is characterized in that: at least one interblock dividing plate (21-1) is set in the pedestal of storage base (21), and space bar (21-1) is separated at least two storage spaces by pedestal (21).
3. the desk lamp with storage space according to claim 2, it is characterized in that: the desk lamp main body comprises lamp socket (11), lamp body (12) and lampshade (13); Lamp body (12) is fixedly installed on lamp socket (11), and it is upper that the lampshade of round platform shelly (13) is arranged on lamp body (12), fixing irremovable with respect to lamp body (12) position when lampshade (13) is arranged on lamp body (12); The center of top of lampshade (13) is provided with the mounting groove (13-1) of cylindrical a, opening upwards.
4. the desk lamp with storage space according to claim 2, it is characterized in that: an interblock dividing plate (21-1) is set in the pedestal of storage base (21), space bar (21-1) is along the vertical setting, and space bar (21-1) is divided into one little one large two spaces by pedestal (21).
