Abstract
The utility model discloses a waste rubber crushing machine which comprises a machine body, wherein a motor is arranged at the bottom of the machine body; a material inlet is formed in the top of the machine body; a smashing device is arranged in the material inlet; stretching rods are respectively arranged on two side walls of the machine body below the smashing device; grinding plates are arranged on the stretching rods; a grinding roller structure is arranged in the machine body below the grinding plates; a regrinding material outlet is formed in the side wall of the machine body below the grinding roller structure; a filter net is correspondingly arranged in the machine body below the grinding roller structure; a fine grinding chamber is arranged below the filter net; a millstone, a plurality of grinding rings, pull rods and a control shaft are arranged in the fine grinding chamber; the plurality of grinding rings are arranged in the millstone; the tops of the grinding rings are connected with the pull rods; the tops of the pull rods are connected with the control shaft; the control shaft is driven by a motor. The waste rubber crushing machine has the advantages that waste rubber enters the crushing machine from the material inlet; the smashing device smashes the waste rubber into blocks which are ground by the grinding plates into small-size blocks; then the small-size blocks are ground into small particles through the grinding roller structure; the small particles enter the fine grinding chamber through the filter net and are ground into powder. The waste rubber crushing machine is small in volume and convenient to maintain.
Description
Technical field
The utility model relates to a kind of disintegrating machine, relates in particular to a kind of waste old disintegrating machine.
Background technology
Along with popularizing of private car, annual car scrappage is got on the bus gradually, the tire of car needs recycling, niggerhead after mainly roughing being pulverized for the disintegrating machine of waste old is broken into granulated rubber, first, through the cutter sweep cutting, the final powder comminution becomes graininess, but can not further wear into thinner powder again, and this equipment volume is larger, the plant maintenance difficulty.Therefore, need to provide a kind of new technical scheme to solve the problems referred to above.
The utility model content
The purpose of this utility model is to provide that a kind of volume is little, the cutting area is large, the waste old disintegrating machine of good crushing effect.
The technical solution adopted in the utility model is:
A kind of waste old disintegrating machine, comprise body, described organism bottom is equipped with motor, described body top has charging aperture, in described charging aperture, reducing mechanism is installed, the body two side of described reducing mechanism below is separately installed with expansion link, on described expansion link, nog plate is installed, in the body of described nog plate below, grinding roller structure is installed, the organism sidewall of described grinding roller structure below is provided with the discharging opening of refacing, in the body of described grinding roller structure below, correspondence is provided with filter screen, described filter screen below is provided with the fine grinding chamber, the described discharging opening of refacing passes into the fine grinding chamber by pipeline, the indoor mill that is provided with of described fine grinding, a plurality of bull rings, pull bar and Control Shaft, a plurality of bull rings are arranged in mill, described bull ring top cylinder lever connecting rod, described pull bar top is connected with Control Shaft, described Control Shaft is by motor driven.
Described reducing mechanism comprises two pulverization rollers that opposing parallel arranges, and every pulverization roller is provided with Disintegrating knife.
Described grinding roller structure comprises main shaft, driven spindle and blade, and described blade sets gradually along the axial location of main shaft and driven spindle.
Described main shaft and driven spindle are fixed in body up and down.
The beneficial effects of the utility model: waste old enters from charging aperture, and reducing mechanism is broken into bulk by waste old, through nog plate, is polished into small-sized bulk, wear into granule through grinding roller structure again, then enter fine grinding chamber, pulverize through filter screen, it is little that this machine takies volume, easy to maintenance.
The accompanying drawing explanation

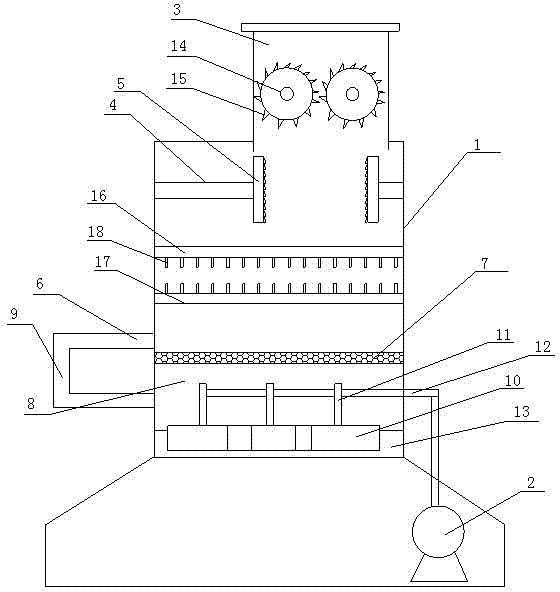

Fig. 1 is structural representation of the present utility model.
Wherein: 1, body, 2, motor, 3, charging aperture, 4, expansion link, 5, nog plate, 6, the discharging opening of refacing, 7, filter screen, 8, the fine grinding chamber, 9, pipeline, 10, bull ring, 11, pull bar, 12, Control Shaft, 13, mill, 14, pulverization roller, 15, Disintegrating knife, 16, main shaft, 17, driven spindle, 18, blade.
The specific embodiment
Below in conjunction with the drawings and specific embodiments, the utility model is described in further detail.
Following examples only, for the utility model is described, are not used for limiting protection domain of the present utility model.
As shown in Figure 1, a kind of waste old disintegrating machine of the present utility model, comprise body 1, body 1 bottom is equipped with motor 2, body 1 top has charging aperture 3, in charging aperture 3, reducing mechanism is installed, reducing mechanism comprises two pulverization rollers 14 that opposing parallel arranges, every pulverization roller 14 is provided with Disintegrating knife 15, body 1 two side of reducing mechanism below is separately installed with expansion link 4, nog plate 5 is installed on expansion link 4, in the body 1 of nog plate 5 belows, grinding roller structure is installed, grinding roller structure comprises main shaft 16, driven spindle 17 and blade 18, blade 18 sets gradually along the axial location of main shaft 16 and driven spindle 17, main shaft 16 and driven spindle 17 are fixed in body 1 up and down, body 1 sidewall of grinding roller structure below is provided with the discharging opening 6 of refacing, the interior correspondence of body 1 of grinding roller structure below is provided with filter screen 7, filter screen 7 belows are provided with fine grinding chamber 8, the discharging opening 6 of refacing passes into fine grinding chamber 8 by pipeline 9, fine grinding is provided with mill 13 in chamber 8, a plurality of bull rings 10, pull bar 11 and Control Shaft 12, a plurality of bull rings 10 are arranged in mill 13, bull ring 10 top cylinder lever connecting rods 11, pull bar 11 tops are connected with Control Shaft 12, Control Shaft 12 is by motor 2 transmissions.
Reducing mechanism has two pulverization rollers 14 that opposing parallel arranges, two pulverization rollers 14 relatively rotate waste old are smashed, nog plate 5 is back and forth flexible by expansion link 4, waste old is knocked and smashes, the discharging opening 6 of refacing passes into fine grinding chamber 8 by pipeline 9, the waste old that does not meet particle requirement can be polished again, finally constantly be polished to powder rubber at mill 13 by the interior bull ring 10 in fine grinding chamber 8, be met Production requirement.
Waste old enters from charging aperture 3, and reducing mechanism is broken into bulk by waste old, through nog plate 5, is polished into small-sized bulk, then wears into granule through grinding roller structure, then enters fine grinding chamber 8 through filter screen 7, pulverize, and it is little that this machine takies volume, easy to maintenance.
Claims (4)
1. a waste old disintegrating machine, comprise body, described organism bottom is equipped with motor, it is characterized in that: described body top has charging aperture, in described charging aperture, reducing mechanism is installed, the body two side of described reducing mechanism below is separately installed with expansion link, on described expansion link, nog plate is installed, in the body of described nog plate below, grinding roller structure is installed, the organism sidewall of described grinding roller structure below is provided with the discharging opening of refacing, in the body of described grinding roller structure below, correspondence is provided with filter screen, described filter screen below is provided with the fine grinding chamber, the described discharging opening of refacing passes into the fine grinding chamber by pipeline, the indoor mill that is provided with of described fine grinding, a plurality of bull rings, pull bar and Control Shaft, a plurality of bull rings are arranged in mill, described bull ring top cylinder lever connecting rod, described pull bar top is connected with Control Shaft, described Control Shaft is by motor driven.
2. a kind of waste old disintegrating machine according to claim 1 is characterized in that: described reducing mechanism comprises two pulverization rollers that opposing parallel arranges, and every pulverization roller is provided with Disintegrating knife.
3. a kind of waste old disintegrating machine according to claim 1, it is characterized in that: described grinding roller structure comprises main shaft, driven spindle and blade, described blade sets gradually along the axial location of main shaft and driven spindle.
4. a kind of waste old disintegrating machine according to claim 3, it is characterized in that: described main shaft and driven spindle are fixed in body up and down.
