An insulation wire equipment wire clamp is disclosed and mainly comprises a wire clamp main body and pressing plates which are connected through screw bolts, wherein the lower part of the wire clamp main body is a wire connecting end, the upper part is a wire groove part which is formed by connecting a first lead wire groove and a second lead wire groove, the first lead wire groove is larger than the second lead wire groove in depth, a lead wire groove is added in the wire clamp main body, part of the insulation layer of an insulation wire and a bare lead wire are fixed in the equipment wire clamp, and the problem that the bare lead wire is broken can be prevented; the strength of the insulation layer is used, the strength of the lead wire in the equipment wire clamp does not decrease even in the condition of outside force vibration and self vibration, and therefore a distribution network line can operate safely and reliably.
Description
Technical field
The utility model relates to a kind of electric armour clamp, especially a kind of insulated wire device clamp.
Background technology
In electric power system, when being connected with the electric equipment terminal, wire usually adopts device clamp, in order to transmit electrical load; The wire clamp of copper-aluminum apparatus generally used in distribution line at present is two block pressur plate fixing cords (copper core aluminum stranded wire or insulated wires), insulating barrier need be peelled off to a part when the installing insulating line, plain conductor is arranged in the metallic channel of device clamp, and insulating barrier is exposed at outside device clamp, thus, running time long afterwards, the interface of device clamp and plain conductor, it is the junction of insulating barrier and plain conductor, under the impact of external environment, disconnected burst phenomenon can occur, then break, accidents caused.
Summary of the invention
The purpose of this utility model is to overcome the deficiency that prior art exists, and provides a kind of simple in structure, makes the more safe and reliable insulated wire device clamp of power distribution network operation.
The purpose of this utility model is achieved by the following technical solution: mainly comprise wire clamp main body and the pressing plate connected by bolt; The bottom of described wire clamp main body is terminals, and top is wire casing section; Described wire casing section is formed by the first metallic channel and the second metallic channel continued access, and wherein the degree of depth of the first metallic channel is greater than the degree of depth of the second metallic channel.
Described pressing plate comprises the first pressing plate and the second pressing plate, and wherein the first pressing plate is arranged on the first metallic channel, and the second pressing plate is arranged on the second metallic channel.
As preferably, the thickness of described the first pressing plate is less than the thickness of the second pressing plate.
As preferably, described the second pressing plate is two.
As preferably, described pressing plate is the arch pressing plate.
The beneficial effects of the utility model are: increased metallic channel one in device clamp, a part of insulating barrier of insulated wire is fixed in device clamp together with plain conductor, avoided plain conductor to occur disconnected strand; Utilize self intensity of insulating barrier, even in the situation that external force and self vibration, the intensity of the wire in device clamp does not still subtract, and makes running more secure, reliable of distribution line simultaneously.
The accompanying drawing explanation

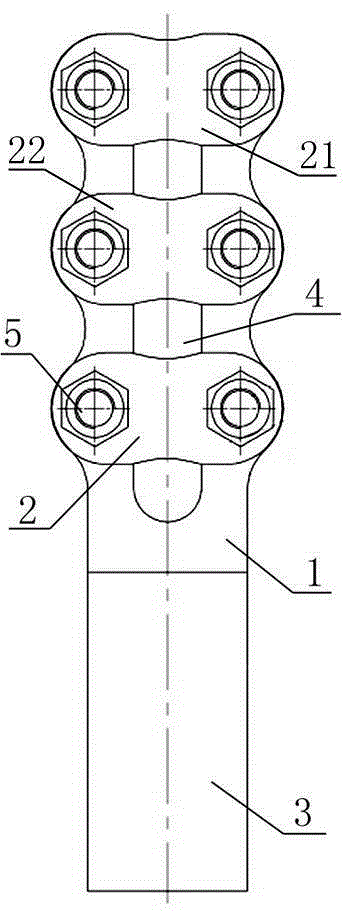

Fig. 1 is structural representation of the present utility model.
Fig. 2 is the structural representation of wire clamp main body described in the utility model.
Embodiment
Below in conjunction with accompanying drawing, the utility model is described in detail: as shown in Figure 1, 2, mainly comprise the wire clamp main body 1 connected by bolt 5 and pressing plate 2; The bottom of described wire clamp main body 1 is terminals 3, and top is wire casing section 4; Described wire casing section 4 is formed by the first metallic channel 41 and the second metallic channel 42 continued accesses, wherein the degree of depth of the first metallic channel 41 is greater than the degree of depth 42 of the second metallic channel, shown in figure, the both sides of wire casing section 4 are provided with bolt hole, by bolt, wire clamp main body 1 is fixedly connected with pressing plate 2, and insulated wire is fixed in wire casing section 4.
Described pressing plate 2 comprises the first pressing plate 21 and the second pressing plate 22, and wherein the first pressing plate 21 is arranged on the first metallic channel 41, and the second pressing plate 22 is arranged on the second metallic channel 42.
The thickness of described the first pressing plate 21 is less than the thickness of the second pressing plate 22.
Described the second pressing plate 22 is two, increases the protection intensity to plain conductor in the second metallic channel.
Described pressing plate 2 is the arch pressing plate, and its domes are mainly to reserve spatial accommodation for insulated wire.
Because the outer wrap of insulated wire has an insulating barrier, after peelling off insulating barrier, outside plain conductor is exposed to, easily because of folding or crooked, occur disconnected strand, increased metallic channel one in therefore online clip main body, a part of insulating barrier of insulated wire is fixed in device clamp together with plain conductor, utilizes self intensity of insulating barrier, avoided plain conductor to occur disconnected strand; Even, in the situation that external force and self vibration, the intensity of the wire in device clamp does not still subtract, and makes running more secure, reliable of distribution line.
Certainly, above-mentioned explanation is not limitation of the utility model, and the utility model also is not limited to above-mentioned giving an example; those skilled in the art; in scope of the present utility model, the variation of making, change and add or replace, all should belong to protection range of the present utility model.
Claims (5)
1. an insulated wire device clamp, mainly comprise wire clamp main body and the pressing plate connected by bolt; It is characterized in that: the bottom of described wire clamp main body is terminals, and top is wire casing section; Described wire casing section is formed by the first metallic channel and the second metallic channel continued access, and wherein the degree of depth of the first metallic channel is greater than the degree of depth of the second metallic channel.
2. insulated wire device clamp according to claim 1, it is characterized in that: described pressing plate comprises the first pressing plate and the second pressing plate, and wherein the first pressing plate is arranged on the first metallic channel, and the second pressing plate is arranged on the second metallic channel.
3. insulated wire device clamp according to claim 2, it is characterized in that: the thickness of described the first pressing plate is less than the thickness of the second pressing plate.
4. insulated wire device clamp according to claim 2, it is characterized in that: described the second pressing plate is two.
5. insulated wire device clamp according to claim 1 and 2, it is characterized in that: described pressing plate is the arch pressing plate.
