CN203320635U - Water-saving device for automatically collecting household domestic wastewater for flushing toilet - Google Patents
Water-saving device for automatically collecting household domestic wastewater for flushing toilet Download PDFInfo
- Publication number
- CN203320635U CN203320635U CN2013203422256U CN201320342225U CN203320635U CN 203320635 U CN203320635 U CN 203320635U CN 2013203422256 U CN2013203422256 U CN 2013203422256U CN 201320342225 U CN201320342225 U CN 201320342225U CN 203320635 U CN203320635 U CN 203320635U
- Authority
- CN
- China
- Prior art keywords
- water tank
- water
- separated water
- split
- auxiliary
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Sanitary Device For Flush Toilet (AREA)
Abstract
The utility model discloses a water-saving device for automatically collecting household domestic wastewater for flushing the toilet. The water-saving device comprises an outer separated water tank, an auxiliary separated water tank, a central separated water tank and a hollow-cylinder common shaft, wherein the edges of the outer separated water tank, the auxiliary separated water tank and the central separated water tank are provided with water stopping edges, and one side of each of the outer separated water tank, the auxiliary separated water tank and the central separated water tank is provided with a handle and an air ventilating hole; and the outer-side separated water tank, the auxiliary separated water tank and the central separated water tank are connected into a whole body by the hollow-cylinder common shaft. The water-saving device disclosed by the utility model has the advantages that bathing and washing wastewater is recycled to flush a toilet automatically, so that secondary utilization of wastewater is achieved and the valuable water source is further saved; the water-saving device has the separated water tanks, the water tanks are directly arranged on the floor without occupying the space, and simultaneously, the surfaces of the water tanks are designed with irregular bulges to realize a sole massaging function.
Description
Technical field
The utility model relates to the articles for daily use field, is that a kind of family domestic waste water is collected the water saving fixtures for flushing the toilet automatically specifically.
Background technology
Water is all things on earth Source of life.China is the country of a shortage of water resources.Water resource of per capita is about 2200m3, is about 1/4th of world average level.The normal time water deficit in the whole nation is 40,000,000,000 m3 approximately, the development of the serious China of water crisis economic society.Due to shortage of water resources, it is particularly thorny that some areas industry and urban life, agricultural production and ecological environment are striven water.Some areas rivers cutout, the groundwater table continuous decrease, ecological environment goes from bad to worse.The situation is tense for urban water shortage in recent years, and urban water shortage has from the provincialism problem and is evolved into nationwide trend, and some cities are because lack of water has had a strong impact on the orders of life in city, and urban development faces the challenge.Along with the development of economic society, the increase of exhausting and industrial water use, higher to the requirement of water supply quality and coverage ratio.Using water wisely, efficient water are the fundamental ways of alleviating the contradiction of supply and demand for the water resource.Along with the pay attention to day by day of country to water resource utilization and environmental protection, to water supply volumes such as The Wash, bath centers, larger industry limits in country.Relevant policies regulation city domestic sewage must could discharge after after-treatment is up to standard, and the waste water after simultaneously processing, advocate the secondary utilization.
At present, China's daily life sewage reclamation rate is extremely low, the washing of family, have a bath, laundrywastes is not used basically and directly discharge, this part waste water slightly deals with, reclaiming for toilet flushing is to be accepted by people.A lot of families adopt and artificially collect, and use the barreled flushing closet using waste water, very inconvenient.
Existing wastewater collection use device adopts lower water box to collect waste water, by water pump lifting, arrives high level cistern, utilizes the potential energy of water to flush the toilet.Existing waste water collection device at least needs to arrange a high level cistern, and that the monolithic water tank takes up space is larger, heaviness.Need water pump to be drawn water simultaneously, consume electric energy.And water pump uses easy generation corrosion and leaky in a humid environment, cause potential safety hazard.
In existing house, the water supply volume maximum be washroom and kitchen, and, in design of water supply and drainage system, but do not consider the secondary utilization of daily life sewage, living water use directly enters municipal drainage pipeline after once using, and causes the significant wastage of water resource.The while flushing supply is less demanding to water quality, but uses the living water use that water quality requirement is higher, has increased the water cost.
The utility model content
In sum, the purpose of this utility model is to provide a kind of family domestic waste water automatically to collect the water saving fixtures for flushing the toilet.
The purpose of this utility model realizes by following technology:
A kind of family domestic waste water is collected the water saving fixtures for flushing the toilet automatically, comprise outside split water tank 1, auxiliary split water tank, center split water tank and hollow cylinder common axis, the edge of outside split water tank, auxiliary split water tank, center split water tank is provided with water stop edge, and the one side is provided with handle and air vent; Outside split water tank, auxiliary split water tank, center split water tank are socketed as a whole by the hollow cylinder common axis.
The surface of above-mentioned outside split water tank, auxiliary split water tank, center split water tank is provided with irregular projection.
Above-mentioned air vent seals by rubber stopper.
Above-mentioned hollow cylinder common axis is provided with limbers, and the one end is provided with yi word pattern and reverses spanner, other end connecting hose.
Above-mentioned center split water tank is provided with blasthole; The bottom of blasthole is provided with screen pack, and its top is threaded connection cock.
Above-mentioned outside split water tank is 2; Described center split water tank is 1; At least 2, described auxiliary split water tank.
Advantage of the present utility model and beneficial effect:
1, this device is by reclaiming bathing, laundrywastes, the auto-flushing flush toilet, reach the secondary utilization of waste water, and then save valuable water resource, and take three-person household as example, had a bath and once calculate by one week: shower water is about 25 liters per capita, the use in washing machine water yield is 40 liters, once need twice calculating of drift ice by washing, maximum wastewater flow rate is about the 25*3+40*2=155 liter, and can economize on water 7.2 cubic metres every whole year.Population is in 300,000 small city, but the whole year saving water resource 72 ten thousand steres, reduce the approximately sewerage treatment expense of 50 ten thousand steres.
2, the utility model is sectional water tank, can be applicable to the washroom of different area size according to on-the-spot size independent assortment, even single group water tank damages, utilizes function of self closing, does not affect all the other water tank normal operations.Be positioned at ordinary times under shower nozzle, people's shower is not formed to impact, the fixed high level cistern of comparing belt supporting frame does not take up room, design with water stop edge, be beneficial to automatic collection shower waste, the water tank surface is provided with irregular projection simultaneously, has the function of foot massages concurrently.
3, the utility model Non-energy-consumption, without running cost, noiselessness, safe and reliable to operation; Product adopts PVC plastics parts, not corrosion; Product structure is simple, and cost price is low; Install simply, original sanitary fittings is not changed substantially, safeguard simple; Collect waste water and only need simple operations to the water-closet tank water filling.
The accompanying drawing explanation

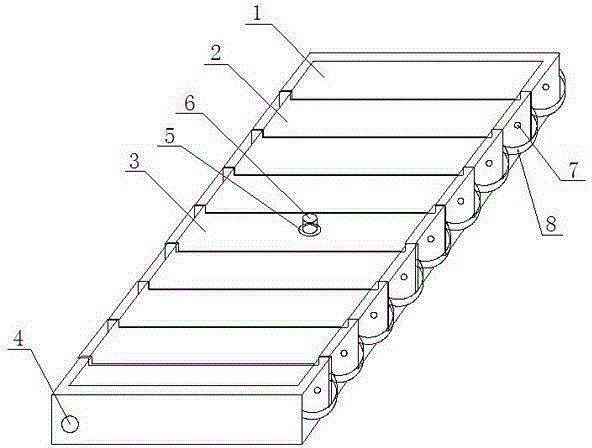

Fig. 1 is structural representation of the present utility model.
The schematic diagram that Fig. 2 is Fig. 1 hollow core cylinder common axis.
In figure: the auxiliary split water tank 3-center split water tank 4-hollow cylinder common axis 5-blasthole 6-cock 7-air vent 8-handle 9-flexible pipe 10-yi word pattern of 1-outside split water tank 2-reverses spanner
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is described further:
As shown in Figure 1, a kind of family domestic waste water is collected the water saving fixtures for flushing the toilet automatically, comprise outside split water tank 1, auxiliary split water tank 2, center split water tank 3 and hollow cylinder common axis 4, the edge of outside split water tank 1, auxiliary split water tank 2, center split water tank 3 is provided with water stop edge, and the one side is provided with handle 8 and air vent 7; Outside split water tank 1, auxiliary split water tank 2, center split water tank 3 are socketed as a whole by hollow cylinder common axis 4.
The surface of outside split water tank 1, auxiliary split water tank 2, center split water tank 3 is provided with irregular projection.
Hollow cylinder common axis 4 is provided with limbers, and the one end is provided with yi word pattern and reverses spanner 10, other end connecting hose 9.
Center split water tank 3 is provided with blasthole 5; The bottom of blasthole 5 is provided with screen pack, and its top is threaded connection cock 6.
Outside split water tank 1 is 2; Described center split water tank 3 is 1; 2 at least 2, described auxiliary split water tank.
Embodiment
At first, the assembling sectional water tank, 2 outside 1,4 auxiliary split water tanks 2 of split water tank and 1 center split water tank 3 are as a whole through circular hole 9 sockets on each casing by hollow cylinder common axis 4, each casing side has the water stop edge of 3 centimetres, there are carrying handle 8 and air vent 7 in side, and air vent 7 use rubber stoppers seal.8 centimetres of inlet openings 5 are opened on center split water tank 3 surfaces, detachable stainless steel screen pack is arranged in inlet opening 5 and be used for the tap of plastic 6 sealed; One end of hollow cylinder common axis 4 connects the water tank of flush toilet by flexible pipe, the yi word pattern spanner of cylinder axis one end is in a horizontal position, and guarantees that the cylinder axis perforate overlaps with the perforate of split water tank.
During shower, shower waste comes together in the surface of sectional water tank body, by the screen pack in inlet opening 5 and inlet opening 5, directly imports in center split water tank 3, then by the perforate on hollow cylinder common axis 4, is diverted in other casing.
If the waste water after laundry only need be inserted into water hole 5 to gutter and get final product.
Be to the water-closet tank water filling, twist the cock 6 on good inlet opening 5, the yi word pattern spanner of one hand grip hollow cylinder common axis prevents the cylinder axis rotation, mention any component body water tank to position perpendicular to the ground by handle 8 on the other hand, take out the rubber stopper on air vent 7, utilize the principle of linker, under external atmospheric pressure, vertically the water in the split water tank injects the hollow cylinder common axis by the perforate with hollow cylinder common axis 4, then is the water-closet tank moisturizing automatically by the flexible pipe be connected with the hollow cylinder common axis.If the split water tank is not full water state, only need repetitive operation, then mention another component body water tank can be to the water filling of water-closet tank secondary.If water-closet tank is full water not yet, then mention the 3rd component body water tank, repetitive operation gets final product.Water-closet tank band ball float, can stop water filling after water is full automatically.
The cleaning deodorizing is, only sectional water tank need be taken apart, with the clear water with cleaning agent, rinses and gets final product, and screen pack can be scrubbed with brush.
Claims (6)
1. a family domestic waste water is collected the water saving fixtures for flushing the toilet automatically, comprise outside split water tank (1), auxiliary split water tank (2), center split water tank (3) and hollow cylinder common axis (4), it is characterized in that: the edge of outside split water tank (1), auxiliary split water tank (2), center split water tank (3) is provided with water stop edge, and the one side is provided with handle (8) and air vent (7); Outside split water tank (1), auxiliary split water tank (2), center split water tank (3) are socketed as a whole by hollow cylinder common axis (4).
2. a kind of family domestic waste water as claimed in claim 1 is collected the water saving fixtures for flushing the toilet automatically, it is characterized in that: the surface of described outside split water tank (1), auxiliary split water tank (2), center split water tank (3) is provided with irregular projection.
3. a kind of family domestic waste water as claimed in claim 1 is collected the water saving fixtures for flushing the toilet automatically, and it is characterized in that: described air vent (7) seals by rubber stopper.
4. a kind of family domestic waste water as claimed in claim 1 is collected the water saving fixtures for flushing the toilet automatically, it is characterized in that: described hollow cylinder common axis (4) is provided with limbers, the one end is provided with yi word pattern and reverses spanner (10), other end connecting hose (9).
5. a kind of family domestic waste water as claimed in claim 1 or 2 is collected the water saving fixtures for flushing the toilet automatically, and it is characterized in that: described center split water tank (3) is provided with blasthole (5); The bottom of blasthole (5) is provided with screen pack, and its top is threaded connection cock (6).
6. a kind of family domestic waste water as claimed in claim 1 or 2 is collected the water saving fixtures for flushing the toilet automatically, and it is characterized in that: described outside split water tank (1) is 2; Described center split water tank (3) is 1; (2) at least 2, described auxiliary split water tank.
