Abstract
A household garbage classifying and recycling cabinet comprises a cabinet body (10). The cabinet body (1) is divided into three layers of recycling boxes by partitions (11 and 12). Openings (131, 141 and 151) are formed in the front faces of the recycling boxes respectively. A recycling case (133) is placed in the upper-layer recycling box (13). Two elongated recycling cases (143 and 144) are arranged in the middle-layer recycling box (14). Two elongated recycling cases (153 and 154) are arranged in the lower-layer recycling box (15). Two recycling cases (16) are arranged on the upper portions of the left outer side and the right outer side of the cabinet body (1) respectively. Rails (17) are arranged on the lower portions of the left outer side and the right outer side of the cabinet body (1). By the household garbage classifying and recycling cabinet, garbage can be classified according to recycling purposes, recycling value and garbage physical properties, and rotten and metamorphic garbage emitting odor with unpleasant smell or harmful smell and garbage capable of being stored for a long term can be classified and placed.
Description
Technical field
The utility model relates to one way of life rubbish (comprising life waste product) reclaiming scrap, particularly one way of life garbage sorting and recovery cabinet.
Background technology
Many house refuses (comprising life waste product), particularly all thrown into rubbish container by people as rubbish as dangerous class life waste products such as heavy metal class, circuit card class, dangerous liquid class, Glass, well do not utilized, but also contaminated environment, mainly because be all with the collection box of large volume, daily dangerous waste to be flocked together and deposits in the streets and lanes in city, when throwing in, just do not classified, or reclaim dangerous waste by recovery point, both blocked sight line on the collection box Bai Zai street of large volume, and Meteorological is also very large, due to high its limited amount that makes of the tall and big cost of casing, can not random placement as litterbin, people throw in inconvenience, dangerous class waste product in many times people's life is little or nothing often, put dangerous class life waste product and will run far road and go to throw in order to throw in this point, a lot of people can abandon throwing in, people have often thrown into rubbish container using dangerous class life waste product as common rubbish, so problem that can't the dangerous class waste recovery of fine solution with the collection box of large volume or fixing recovery point.
This addresses the above problem, the applicant has applied for the dangerous waste recovering cabinet patent (patent No.: 200920259833.4), although the problem that it can be classified with some waste recovery of solution, but find that in practice it also comes with some shortcomings: at present, the dangerous waste that can recycle mainly can be divided into battery class chemical industry waste products such as () batteries, chip class (chip, the electronic cards such as bank card, circuit card, Deng), the plain metal class (also is little metal species, is mainly the more iron of routine use, the scrap metal pieces such as aluminium), heavy metal class (containing plumbous waste product such as heavy metal such as grade, is poisonous, so will be divided into separately a class mostly), Glass (fluorescent tube, bottle etc.), dangerous liquid class toxic medicament such as (, the dangerous articles such as sulfuric acid) agricultural chemicals, and the dangerous waste recovering cabinet (patent No.: 200920259833.4) dangerous liquid class waste classifying is placed on to one deck topmost, with the battery class, the chip class, plain metal class and heavy metal class are placed on same layer, very dangerous, because dangerous liquid class waste product may produce some seepages, affect the waste product safety on side on the one hand, also may produce water clock on the other hand, affect the waste product safety of lower floor, Glass is placed on to one deck topmost, and the large part class such as bulb, fluorescent tube is placed on separately to basecoat, the waste product of same attribute is divided into two classes, obviously classifies unreasonable, also takies two waste classifying spaces, and the space of cabinet is reclaimed in waste, to the chemical industry waste products such as battery also not well classification, be put in other waste product, it is not fully utilized, also may produce danger, and, do not keep off door in each waste product list lattice, easily allow rainwater immerse, make waste product produce corruption and attack or cause other chemical reaction, but the waste product value is reduced, also may produce secondary pollution, even cause the generation of Peril Incident.
This addresses this problem, the applicant has applied for that dangerous waste classifying reclaims the cabinet patent (patent No.: 201120377945.7), although it can reclaim the classification of waste product to combine with input, when reclaiming, just directly and naturally classify, saving of work and time, and can not produce phase mutual interference or generation chemical reaction between waste product; The design of three layers of collection box and label design make classification more more reasonable, the chemical industry waste products such as battery are classified, the heavy metal class is separated more rationally (the heavy metal waste product is poisonous mostly) with plain metal, particularly the dangerous liquid class be divided into separately to a class and be placed in orlop, safety and reliability.But there is following problem in it: at present, the house refuse (comprising life waste product) produced in people's life, but except can being classified according to above value, do not consider the resting period of house refuse and the situation of surrounding environment Influence of production is classified, from the resting period of house refuse with house refuse can be divided into to two large classes to surrounding environment Influence of production aspect: a class is easily to rot, distribute unpleasant or noxious odor class rubbish, even can pollute, this class rubbish Keeping life is short, need every day, even in several hours, will be processed, mainly comprise the residual dish leftovers of life, the biomass garbages such as dead mouse, biomass garbage can rot, distribute bad smell, also may spread disease germs, be easy to pollute and endanger, another kind of is to be rubbish that can long-term storage, this class rubbish does not need frequent processing, also be not easy to rot, can not distribute unpleasant or noxious odor, it is put at home on not significantly impact and harm of people's life, be difficult for rotting, do not distribute unpleasant or noxious odor class rubbish, such as " battery class ", " chip class ", " little metal species ", " heavy metal class ", " Glass such as fluorescent tube " etc.Because current waste product (comprising rubbish) classification recovery cabinet is separately deposited this two classes rubbish, so people are easily rotted these often, distributing unpleasant or noxious odor class rubbish mixed storage enters in other waste product (comprising rubbish), make people need to remove to process these rubbish everyday, waste product, so on the one hand can be pretty troublesome, very time-consuming, on the other hand, people remove to dispose these rubbish and waste product everyday, every day, waste product did not accumulate, amount seldom, waste product is worth also few, people are often when disposal of refuse, the waste product that originally can recycle (for example " battery class " by those a small amount of, " chip class ", " little metal species ", " heavy metal class ", " Glass such as fluorescent tube ") together with easily rotting, distributing unpleasant or noxious odor class rubbish still falls together, can not deliver to special recovery shop goes, caused the in fact waste of waste product, this waste classifying reclaims cabinet and also in fact only plays the effect of an interim waste deposit case, do not play real recovery, (waste product only accumulates to when a certain amount of to gather waste product in house refuse, people just can feel to be worth being sent to special recovery shop and go) effect.
Summary of the invention
The purpose of this utility model is overcome the above-mentioned deficiency of prior art and the one way of life garbage sorting and recovery cabinet is provided, it not only can be classified rubbish (comprise may as the waste product of rubbish) according to reclaiming purposes, recovery value, rubbish physical property, but its can also by rubbish according to the resting period and on people live the impact characteristic classified, the rubbish that can rot, distribute by having unpleasant or noxious odor is stored classifiedly with rubbish that can long-term storage, solved timely processing live perishable rubbish with gather for a long time the problem of life waste product.
The technical solution of the utility model is: the one way of life garbage sorting and recovery cabinet, it comprises cabinet, be divided into upper strata collection box, middle level collection box and three layers of collection box of lower floor's collection box by dividing plate in cabinet, the front of upper strata collection box, middle level collection box and lower floor's collection box is equipped with opening, and the left and right outer upper of described cabinet is respectively equipped with recycling box.
The further technical scheme of the utility model is: the recycling box that the left and right outer upper of described cabinet is provided with is two, and recycling box is installed in the left and right outer upper of cabinet by carriage or hook.
The utility model further technical scheme is: be respectively equipped with label on two recycling boxes of the left-external side of described cabinet or carriage, be marked with respectively the printed words of " battery class ", " class " on these two labels; Right lateral two recycling boxes or the carriage of cabinet are respectively equipped with label, are marked with respectively the printed words of " movement class ", " metal species " on these two labels.
The utility model further technical scheme is: the left and right outer lower portion of described cabinet is respectively equipped with fence.
The utility model also further technical scheme is: described left side fence is provided with label, is marked with the printed words of " foodstuff " on this label; The right side fence is provided with label, is marked with the printed words of animal classes such as " dead " mouse on label.
The further technical scheme of the utility model is: lay a recycling box in the collection box of described upper strata; Be provided with two recycling boxes in the collection box of middle level; Be provided with two recycling boxes in lower floor's collection box.
The further technical scheme of the utility model is: each layer of collection box on described cabinet is respectively equipped with door leaf corresponding to the position of opening, and each door leaf and cabinet are hinged; The door leaf outside face of upper strata collection box is provided with tag along sort, is marked with the printed words of " Glass such as fluorescent tube " on label; The door leaf outside face of middle level collection box is respectively equipped with label corresponding to recycling box, is marked with respectively the printed words of " discarded drug class ", " dangerous liquid class " on label; The corresponding recycling box of the door leaf outside face of lower floor's collection box is respectively equipped with label, is marked with respectively the printed words of containers such as " " frangible Bottle & Cans, containers such as " " non-friable Bottle & Cans on label.
The further technical scheme of the utility model is: the left and right outer upper of described cabinet is respectively equipped with weather shield corresponding to the position of recycling box; The left and right outer lower portion of cabinet is respectively equipped with weather shield corresponding to the position of fence top; Also be provided with hanging hook assembly between each door leaf and cabinet; Also be provided with hanging hook assembly between each door leaf and cabinet, when throwing in or take out waste product, can be with by hanging hook assembly, door leaf being hung up, the convenient input or the taking-up waste product; The top of cabinet also is connected with baffle plate.
The utility model compared with prior art has following features: the left and right outer lower portion of cabinet is respectively equipped with fence, can deposit some biomass garbages in fence, these rubbish are generally to put in the inner after using plastic bag to install, often can withdraw, fence is placed in the outside of cabinet, biomass garbage in it just can not affect the available waste product in three layers of the inside case of cabinet, and fence is positioned at the bottom of cabinet, can prevent from that biomass garbage in it from falling down to cause to overturn other waste product.The utility model not only can be classified rubbish (comprise may as the waste product of rubbish) according to reclaiming purposes, recovery value, rubbish physical property, but its can also by rubbish according to the resting period and on people live the impact characteristic classified, the rubbish that can rot, distribute by having unpleasant or noxious odor is stored classifiedly with rubbish that can long-term storage, solved timely processing live perishable rubbish with gather for a long time the problem of life waste product.
Below in conjunction with the drawings and specific embodiments, detailed construction of the present utility model is further described.
The accompanying drawing explanation

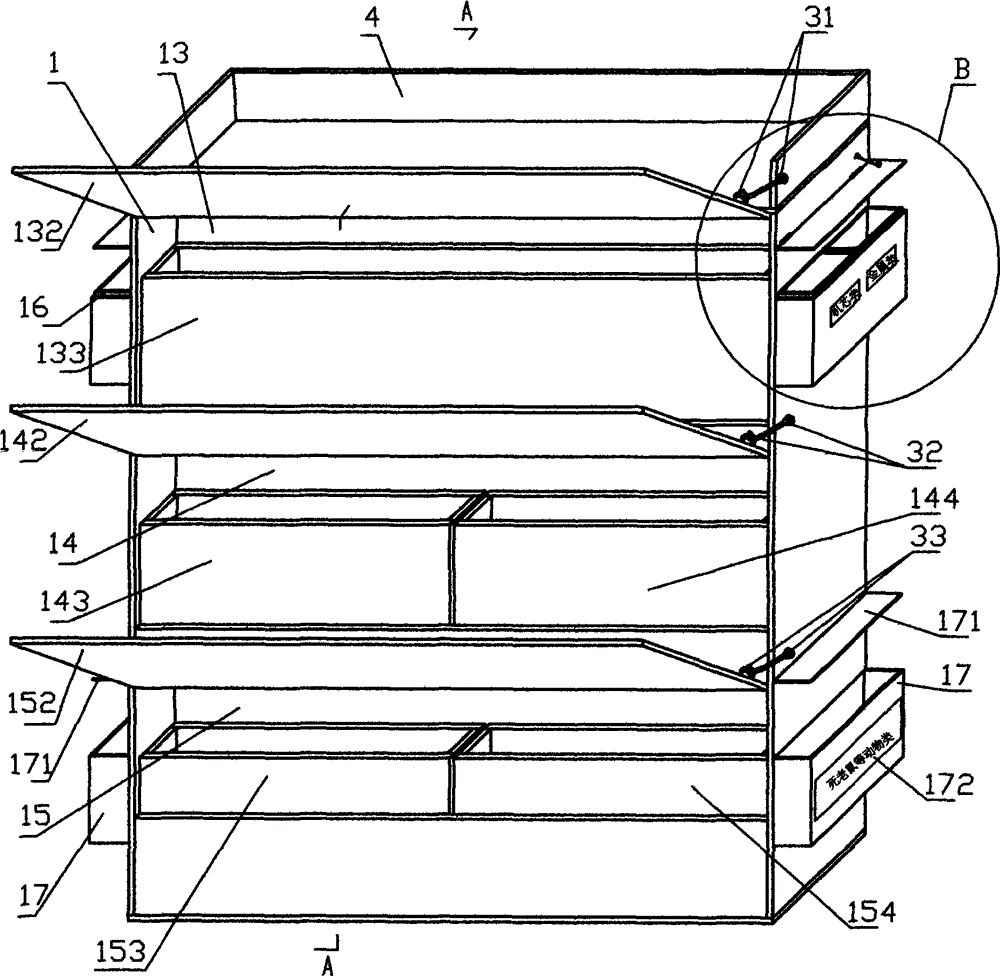

Fig. 1 is structural representation of the present utility model;
The A-A cutaway view that Fig. 2 is Fig. 1;
Fig. 3 is that Fig. 1 is along the partial enlarged drawing in B line scope;
Fig. 4 is the structural representation that each door leaf of the present utility model closes lower time;
The structural representation that Fig. 5 is another form of the utility model;
Fig. 6 is that Fig. 5 is along the partial enlarged drawing in C line scope;
The left view that Fig. 7 is Fig. 6.
The specific embodiment
Embodiment 1
As Figure 1-4: the one way of life garbage sorting and recovery cabinet, it comprises cabinet 1, pass through dividing plate (11 in cabinet 1, 12) be divided into upper strata collection box 13, 15 3 layers of collection box of middle level collection box 14 and lower floor's collection box (as shown in Figure 2), upper strata collection box 13, the front of middle level collection box 14 and lower floor's collection box 15 is equipped with opening (131, 141, 151), in order to put into, take out waste product or recycling box, each layer of collection box on cabinet 1 (is upper strata collection box 13, middle level collection box 14 and lower floor's collection box 15) corresponding to opening (131, 141, 151) position is respectively equipped with door leaf (132, 142, 152), each door leaf (132, 142, 152) with cabinet 1, be hinged, each door leaf (132, 142, 152) can block respectively the foreign matters such as rainwater and enter each layer of collection box (13, 14, 15) in, lay a recycling box (133) in upper strata collection box 13, recycling box (133) can be taken out from the opening 131 of upper strata collection box 13, recycling box 133 is mainly used in reclaiming the glass waste products such as fluorescent tube, the home-use general length of fluorescent tube is less than 122 centimetres at present, the diameter of annular lamp tube is less than 32 centimetres, thus recycling box 133 inner chambers generally be designed to length less times greater than 122 centimetres (133 centimetres of left and right), width less times greater than 32 centimetres (33 centimetres of left and right), be provided with two strip shape recycling boxes (143,144) in middle level collection box 14, left side recycling box 143 is mainly used in collecting deposits discarded medicine, and the right recycling box 144 is mainly used in collecting the storage of hazardous class I liquid I, be provided with two strip shape recycling boxes (153,154) in lower floor's collection box 15, left side recycling box 153 is mainly used in collecting deposits the containers such as frangible bottle, tank, the Bottle & Can of beer bottle, Coke bottle, seasonings, cosmetics and so on for example, the right recycling box 154 is mainly used in collecting deposits the containers such as non-friable bottle, tank, for example flexible packaging, pop can.
As shown in Figure 4, be respectively equipped with the refuse classification label on each door leaf (132,142,152); Door leaf 132 outside faces of upper strata collection box 13 are provided with tag along sort (1321), are marked with the printed words of " Glass such as fluorescent tube " on label; Door leaf 142 outside faces of middle level collection box 14 are respectively equipped with label (1431,1441) corresponding to recycling box (143,144), and label is marked with respectively the printed words of " discarded drug class ", " dangerous liquid class " on (1431,1441); The door leaf 152 corresponding recycling boxes of outside faces (153,154) of lower floor's collection box 15 are respectively equipped with label (1531,1541), and label is marked with respectively the printed words of containers such as " " frangible Bottle & Cans, containers such as " " non-friable Bottle & Cans on (1531,1541).
Also be provided with hanging hook assembly (31,32,33) between each door leaf (132,142,152) and cabinet 1, when throwing in or take out waste product, can be with by hanging hook assembly (31,32,33), door leaf (132,142,152) being hung up, the convenient input or the taking-up waste product.
Middle level and lower floor's door leaf (142,152) all can be divided into two, are divided into the right and left independently two (accompanying drawing does not illustrate), each recycling box in the respectively corresponding cabinet 1 of each door leaf.
The top of cabinet 1 also is connected with baffle plate 4, and baffle plate 4 surrounds the interval that can place the dryness foreign material such as oil bottle by the top of cabinet 1.
The left and right outer upper of cabinet 1 is respectively equipped with two recycling boxes 16, recycling box 16 is by carriage 161 (as shown in Figure 1,3) or link up with the left and right outer upper that 162 (as shown in Fig. 5-6) are installed in cabinet 1, corresponding to the left and right outer upper of the cabinet 1 of recycling box 16, is respectively equipped with weather shield 163; Be respectively equipped with label (166,167) corresponding to (on carriage 161 or on recycling box 16) on the position of two recycling boxes 16 of the left-external side of cabinet 1, be marked with respectively the printed words (as shown in Figure 7) of " battery class ", " class " on these two labels; On position corresponding to right lateral two recycling boxes 16, (on carriage 161 or on recycling box 16) is respectively equipped with label (164,165), is marked with respectively the printed words (as shown in Fig. 3,6) of " movement class ", " metal species " on these two labels.
The left and right outer lower portion of cabinet 1 is respectively equipped with fence 17, fence 17 is interior can deposit some biomass garbages, these rubbish are generally to put in the inner after using plastic bag to install, often can withdraw, fence 17 is placed in the outside of cabinet 1, biomass garbage in it just can not affect the available waste product in three layers of the inside case of cabinet 1, and fence 17 is positioned at the bottom of cabinet 1, can prevent from that biomass garbage in it from falling down to cause to overturn other waste product; The outside, left and right corresponding to the cabinet 1 of fence 17 tops is respectively equipped with weather shield 171.
The utility model is not limited to above-mentioned concrete structure, so long as have within rubbish (waste product) the classification regenerative apparatus of or equivalent structure basic identical with the utility model just drops on protection domain of the present utility model.
Claims (10)
1. one way of life garbage sorting and recovery cabinet, it comprises cabinet (1), be divided into upper strata collection box (13), middle level collection box (14) and (15) three layers of collection box of lower floor's collection box by dividing plate (11,12) in cabinet (1), the front of upper strata collection box (13), middle level collection box (14) and lower floor's collection box (15) is equipped with opening (131,141,151), it is characterized in that: the left and right outer upper of described cabinet (1) is respectively equipped with recycling box (16).
2. categorized consumer waste according to claim 1 reclaims cabinet, it is characterized in that: the recycling box (16) that the left and right outer upper of described cabinet (1) is provided with is two, and recycling box (16) is installed in the left and right outer upper of cabinet (1) by carriage (161) or hook (162).
3. categorized consumer waste according to claim 2 reclaims cabinet, it is characterized in that: be respectively equipped with label (166,167) on two recycling boxes (16) of the left-external side of described cabinet (1) or carriage (161); Right lateral two recycling boxes (16) of cabinet (1) or carriage (161) are respectively equipped with label (164,165).
4. reclaim cabinet according to claim 1 or 2 or 3 described categorized consumer wastes, it is characterized in that: the left and right outer lower portion of described cabinet (1) is respectively equipped with fence (17).
5. categorized consumer waste according to claim 4 reclaims cabinet, and it is characterized in that: described left side fence (17) is provided with label (173); Right side fence (17) is provided with label (172).
6. reclaim cabinet according to claim 1 or 2 or 3 described categorized consumer wastes, it is characterized in that: lay a recycling box (133) in described upper strata collection box (13); Be provided with two strip shape recycling boxes (143,144) in middle level collection box (14); Be provided with two strip shape recycling boxes (153,154) in lower floor's collection box (15).
7. categorized consumer waste according to claim 4 reclaims cabinet, it is characterized in that: lay a recycling box (133) in described upper strata collection box (13); Be provided with two recycling boxes (143,144) in middle level collection box (14); Be provided with two recycling boxes (153,154) in lower floor's collection box (15).
8. categorized consumer waste according to claim 6 reclaims cabinet, it is characterized in that: each layer of collection box on described cabinet (1) is respectively equipped with door leaf (132,142,152) corresponding to the position of opening (131,141,151), and each door leaf (132,142,152) is hinged with cabinet (1); Door leaf (132) outside face of upper strata collection box (13) is provided with tag along sort (1321); Door leaf (142) outside face of middle level collection box (14) is respectively equipped with label (1431,1441) corresponding to recycling box (143,144); The corresponding recycling box of door leaf (152) outside face of lower floor's collection box (15) (153,154) is respectively equipped with label (1531,1541).
9. categorized consumer waste according to claim 7 reclaims cabinet, it is characterized in that: each layer of collection box on described cabinet (1) is respectively equipped with door leaf (132,142,152) corresponding to the position of opening (131,141,151), and each door leaf (132,142,152) is hinged with cabinet (1); Door leaf (132) outside face of upper strata collection box (13) is provided with tag along sort (1321); Door leaf (142) outside face of middle level collection box (14) is respectively equipped with label (1431,1441) corresponding to recycling box (143,144); The corresponding recycling box of door leaf (152) outside face of lower floor's collection box (15) (153,154) is respectively equipped with label (1531,1541).
10. categorized consumer waste according to claim 9 reclaims cabinet, and it is characterized in that: the left and right outer upper of described cabinet (1) is respectively equipped with weather shield (163) corresponding to the position of recycling box (16); The left and right outer lower portion of cabinet (1) is respectively equipped with weather shield (171) corresponding to the position of fence (17) top; Also be provided with hanging hook assembly (31,32,33) between each door leaf (132,142,152) and cabinet (1); The top of cabinet (1) also is connected with baffle plate (4).
