Abstract
The utility model provides a novel heat-exchange apparatus for a wind-power generation device. The heat-exchange apparatus includes a heat-exchange core used for dissipating heat. The heat-exchange core is fixed at the center of the outer side of the top wall of a machine chamber and is provided with an internal-circular air duct and an external-circular air duct. The internal-circular air duct is provided with an internal-circular draught-fan assembly. The external-circular air duct does not include the draught-fan assembly and dissipates heat through natural wind and the direction of the external-circular air duct is vertical to a rotating circumferential face of the fan blades of a wind power generator. The two ends of the internal-circular air duct are connected through a closed pipe and the pipe is connected with the generator in the machine chamber through the machine chamber. The air-inlet port and the air-outlet port of the internal-circular air duct are used as an internal-circular air-inlet port and an internal-circular air-outlet port. The two ends of the external-circular air duct are used as an external-circular air inlet port and an external-circular air outlet port and heat in the heat-exchange core is taken away by the natural wind. The novel heat-exchange apparatus for the wind power generation device realizes internal and external circular and cross heat exchange through use of the natural wind so that the external-circular draught fan assembly is completely saved and heat dissipation efficiency is greatly improved.
Description
Technical field
The utility model relates to technical field of wind power generating equipment, is specifically related to a kind of Novel heat exchanger of wind power plant.
Background technology
In recent decades, worldwide, problem of environmental pollution is on the rise, and forces people to go active research can replace the clean energy resource of traditional energy, and wherein, wind power generation is exactly one of them important component part.Yet wind generating technology is also enough ripe, wind power plant stability and the life-span in use is an insoluble difficult problem in the industry, thereby directly affected the popularization and application of wind generating technology.Wherein, the heat dissipation problem of wind power plant in application is the key factor that affects its useful life and stability, as equipment such as the generator in wind power plant, gear box, frequency converters, can produce amount of heat in running, if distributed not in time, can cause local part excess Temperature, finally cause breaking down.
The utility model content
In view of this, be necessary for the problem described in background technology, a kind of higher heat abstractor of radiating efficiency that is applied to wind power plant is provided.
The purpose of this utility model is achieved through the following technical solutions:
A kind of Novel heat exchanger of wind power plant, comprise a heat exchange core for heat radiation, and described heat exchange core is fixed in the roof outside, cabin central authorities, and it is provided with interior circulation air path and outer circulating air duct; Described interior circulation air path is provided with interior circulating fan assembly; Described outer circulating air duct is dispelled the heat by natural wind, and the outer circulating air duct direction is perpendicular to the periphery of the fan blade rotation of wind power plant; The air inlet of described interior circulation air path is connected by an airtight pipeline with gas outlet, described pipeline passes described cabin and is connected to the generator in cabin, the air inlet of described interior circulation air path and gas outlet respectively as interior circulation air inlet and in recycle air port; The two ends of described outer circulating air duct are respectively external circulation air inlet and outer circulation air outlet, by natural wind, the heat in described heat exchange core are taken away.
Described heat exchange core comprises outer gimbal support and fin, and described interior circulating fan assembly is positioned in fan supporter and is placed in engine room inside, and it is comprised of housing and one or more motor, is equipped with fan blade in the rotating shaft of described motor.
The housing of described interior circulating fan assembly is provided with a plurality of louvres.
Described generator is connected with described interior circulating fan assembly, and the heating part of its air inlet and described generator is contiguous, and its gas outlet is connected with described interior circulation air inlet by described scavenge duct.
Described heat exchange core top is provided with weather shield.
Described weather shield is the metal weather shield.
Compared with prior art, the utility model possesses following advantage:
Described scavenge duct is realized interior cyclical breathing heat radiation, and natural wind enters from described external circulation air inlet, then blows out from the outer circulation air outlet, the heat in heat exchange core is taken away, thereby realized the heat radiation of inner-outer circulation intersection, has improved radiating efficiency.
The accompanying drawing explanation

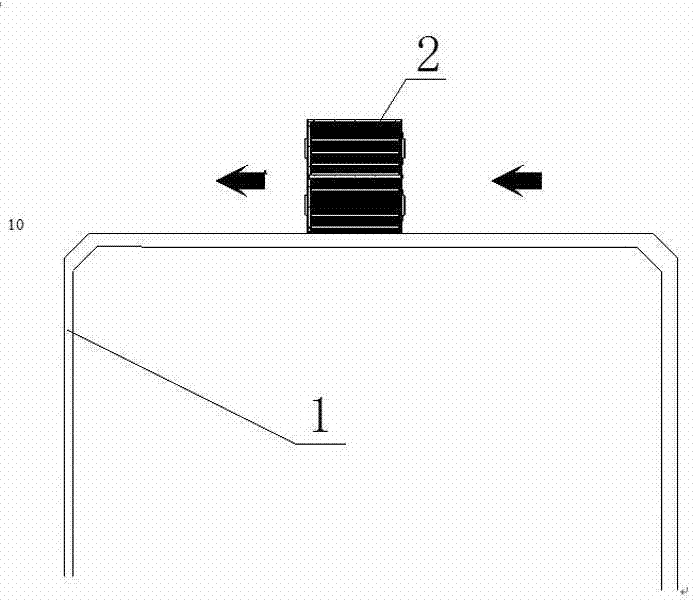

Fig. 1 is circulating current principle schematic outside the utility model embodiment;
Fig. 2 is circulating current principle schematic within the utility model embodiment.
Embodiment
As shown in Figures 1 and 2, the Novel heat exchanger of the wind power plant of the present embodiment, it comprises a heat exchange core 2 for heat radiation, this heat exchange core 2 is fixed in cabin 1 roof outside central authorities, described heat exchange core 2 comprises outer gimbal support and fin, described heat exchange core 2 is provided with interior circulation air path and outer circulating air duct, and described interior circulation air path is provided with interior circulating fan assembly 5; Described outer circulating air duct does not contain fan assembly, dispels the heat by natural wind.Described interior circulating fan assembly 5 is comprised of housing and one or more motor, is equipped with fan blade in the rotating shaft of described motor.
In described cabin 1, be provided with generator 4, described interior circulation air path comprises an airtight pipeline 3, and described pipeline 3 is connected to described generator 4 by described cabin 1.Described generator 4 connects described interior circulating fan assembly 5, in being somebody's turn to do, the air inlet of circulating fan assembly 5 is connected with the position that described generator 4 heat radiations are concentrated, its gas outlet is connected with the interior circulation air inlet of described heat exchange core 2 by described pipeline 3, the air inlet of described heat exchange core 2 interior circulation air paths and gas outlet respectively as interior circulation air inlet and in recycle air port, in Fig. 2, direction shown in arrow is the interior recyclegas direction that flows; The two ends of described heat exchange core 2 outer circulating air duct are respectively external circulation air inlet and outer circulation air outlet, utilize natural wind that the heat in described heat exchange core is taken away, and in Fig. 1, direction shown in arrow is the mobile direction of natural wind.
On the housing of described interior circulating fan assembly 5, can establish a plurality of heat radiation through holes.
The top of described heat exchange core 2 is provided with the metal weather shield.
Claims (5)
1. the Novel heat exchanger of a wind power plant is characterized in that: comprise a heat exchange core for heat radiation, described heat exchange core is fixed in the roof outside, cabin central authorities, and it is provided with interior circulation air path and outer circulating air duct; Described interior circulation air path is provided with interior circulating fan assembly; Described outer circulating air duct is dispelled the heat by natural wind, and the outer circulating air duct direction is perpendicular to the periphery of the fan blade rotation of wind power plant; The air inlet of described interior circulation air path is connected by an airtight pipeline with gas outlet, described pipeline passes described cabin and is connected to the generator in cabin, the air inlet of described interior circulation air path and gas outlet respectively as interior circulation air inlet and in recycle air port; The two ends of described outer circulating air duct are respectively external circulation air inlet and outer circulation air outlet, by natural wind, the heat in described heat exchange core are taken away.
2. the Novel heat exchanger of wind power plant according to claim 1, it is characterized in that: described heat exchange core comprises outer gimbal support and fin, described interior circulating fan assembly is positioned in described fan supporter and is placed in engine room inside, it is comprised of housing and one or more motor, in the rotating shaft of described motor, be equipped with fan blade, the housing of described interior circulating fan assembly is provided with a plurality of louvres.
3. the Novel heat exchanger of wind power plant according to claim 2, it is characterized in that: described generator is connected with described interior circulating fan assembly, in being somebody's turn to do, the heating part of the air inlet of circulating fan assembly and described generator is contiguous, and its gas outlet is connected with described interior circulation air inlet by described pipeline.
4. according to the Novel heat exchanger of the arbitrary described wind power plant of claims 1 to 3, it is characterized in that: described heat exchange core top is provided with weather shield.
5. the Novel heat exchanger of wind power plant according to claim 4, it is characterized in that: described weather shield is the metal weather shield.
