CN203303608U - Badminton teaching device - Google Patents
Badminton teaching device Download PDFInfo
- Publication number
- CN203303608U CN203303608U CN2013203218220U CN201320321822U CN203303608U CN 203303608 U CN203303608 U CN 203303608U CN 2013203218220 U CN2013203218220 U CN 2013203218220U CN 201320321822 U CN201320321822 U CN 201320321822U CN 203303608 U CN203303608 U CN 203303608U
- Authority
- CN
- China
- Prior art keywords
- badminton
- teaching device
- badmintons
- base
- cross rod
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model belongs to teaching tools, and particularly relates to a badminton teaching device. The badminton teaching device comprises badmintons, and is characterized in that the two badmintons are fixed at two ends of a cross rod by elastic ropes, the cross rod is arranged on a vertical rod, telescopic pieces are respectively arranged on the cross rod and the vertical rod, the bottom end of the vertical rod is provided with a base of which the side face is hinged to a support, the interior of the base is provided with a cooling device, and the bottom surface of the base is provided with wheels. The two badmintons are fixed at two ends of the cross rod of the badminton teaching device by the elastic ropes, and the distance between the two badmintons is adjustable, so that a teacher can conveniently teach, students can conveniently learn and grasp badminton skills, particularly a technology for hitting deep clear in forehand and backhand ways, in a short time, and thus twofold results can be got with half the effort during teaching.
Description
(1) technical field
The utility model belongs to teaching aid, particularly a kind of Badminton teaching device.
(2) background technology
Shuttlecock is the strong event of China, mass foundation is very widely arranged, as traditional Mass sports project, be also the important sports curriculum of Students ' Learning in school, wherein positive and negative hand hits high clear needs the emphasis exercise, but teacher needs constantly to pick up ball in teaching or student in the exercise process, waste time very much, and the utmost point is unfavorable for that attention of student concentrates, if two people's air exercises of student, because level is variant, so practice effect is very undesirable, level of student improves slowly.
(3) summary of the invention
The utility model, in order to make up the deficiencies in the prior art, provides a kind of Badminton teaching device simple in structure, easy to use.
The utility model is achieved by the following technical solution:
A kind of Badminton teaching device, comprise shuttlecock, its special character is: two shuttlecocks are fixed on the two ends of cross bar by stretch cord, cross bar is placed on montant, extensible member is placed in respectively on cross bar, montant, the bottom mounting seat of montant, the side hinged support of base, inside arranges heat sink, and wheel is installed in bottom surface.
Badminton teaching device of the present utility model, heat sink preparation remote controller, this heat sink is fan or small-sized cold air, after motion, can lower the temperature by heat sink.
The beneficial effects of the utility model are: two shuttlecocks are fixed on to the cross bar two ends of the utility model device by stretch cord, distance between two shuttlecocks can be adjusted, both be convenient to the teacher professor, be convenient to again the student and can understand and grasp at short notice the shuttlecock skill, especially align the grasp of backhand stroke high clear stroking technique, teaching is got twice the result with half the effort.
(4) accompanying drawing explanation
Below in conjunction with accompanying drawing, the utility model is further described.

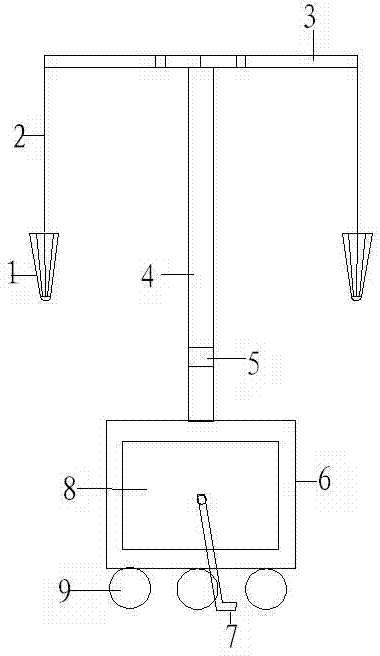

Accompanying drawing 1 is structural representation of the present utility model;
In figure, 1 shuttlecock, 2 stretch cords, 3 cross bars, 4 montants, 5 extensible members, 6 bases, 7 support, 8 heat sinks, 9 wheels.
(5) specific embodiment
Accompanying drawing is a kind of specific embodiment of the present utility model.This embodiment comprises shuttlecock 1, two shuttlecocks 1 are fixed on the two ends of cross bar 3 by stretch cord 2, cross bar 3 is placed on montant 4, montant 4 is fixed on the centre position of cross bar 3, extensible member 5 is placed in respectively cross bar 3, on montant 4, by extensible member 5, can adjust cross bar 3, the length of montant 4, thereby can adjust distance and height thereof between two shuttlecocks 1, with this student or teacher who adapts to differing heights, use, and be conducive to the carrying of this instructional device, the bottom mounting seat 6 of montant 4, the side hinged support 7 of base 6, these support 7 structures can be made the supporting construction that is similar to bicycle, mainly when instructional device of the present utility model moves to correct position, can be fixed by supporting 7, base 6 inside arrange heat sink 8, the cooling dress, 8 preparation remote controllers, this heat sink 8 is fan or small-sized cold air, after motion, can be by heat sink 8 coolings, wheel 9 is installed in base 6 bottom surfaces, be convenient to the movement of whole instructional device.
The beneficial effects of the utility model are: two shuttlecocks 1 are fixed on to cross bar 3 two ends of the utility model device by stretch cord 2, distance between two shuttlecocks 1 can be adjusted, both be convenient to the teacher professor, be convenient to again the student and can understand and grasp at short notice shuttlecock 1 skill, especially align the grasp of backhand stroke high clear stroking technique, teaching is got twice the result with half the effort.
Claims (2)
1. Badminton teaching device, comprise shuttlecock (1), it is characterized in that: two shuttlecocks (1) are fixed on the two ends of cross bar (3) by stretch cord (2), cross bar (3) is placed on montant (4), extensible member (5) is placed in respectively cross bar (3), montant (4) is upper, the bottom mounting seat (6) of montant (4), the side hinged support (7) of base (6), inside arranges heat sink (8), and wheel (9) is installed in bottom surface.
2. Badminton teaching device according to claim 1 is characterized in that: heat sink (8) preparation remote controller, this heat sink (8) is fan or small-sized cold air.
