CN203295978U - Integrated structure of wind power generation device and bridge tower - Google Patents
Integrated structure of wind power generation device and bridge tower Download PDFInfo
- Publication number
- CN203295978U CN203295978U CN2013202975327U CN201320297532U CN203295978U CN 203295978 U CN203295978 U CN 203295978U CN 2013202975327 U CN2013202975327 U CN 2013202975327U CN 201320297532 U CN201320297532 U CN 201320297532U CN 203295978 U CN203295978 U CN 203295978U
- Authority
- CN
- China
- Prior art keywords
- bridge tower
- bridge
- king
- wind
- power generation
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y02E10/722—
Landscapes
- Wind Motors (AREA)
Abstract
The utility model discloses an integrated structure of a wind power generation device and a bridge tower. The integrated structure comprises the bridge tower, and a wind wheel is arranged on the bridge tower. Other equipment of the wind power generation device is arranged inside a bridge tower box chamber. The bridge tower integrated structure integrates the wind power generation device and the bridge tower. Not only are the functions of the bridge tower maintained, but also the wind power generation function is added. The bridge tower is used as a wind power generation carrier, and therefore the advanced ideas of green, low carbon, environmental friendliness and energy saving are fully reflected. Meanwhile, the structure of a bridge is made to be more vivid and rich, strong visional impact can be generated, and beautiful scenery is provided for the bridge landscape and especially the urban bridge landscape. The integrated structure of the wind power generation device and the bridge tower has good social benefits and economical benefits and wide application prospects.
Description
Technical field
The utility model belongs to the bridge engineering construction technical field, is specifically related to a kind of wind electricity generating system and bridge tower integral structure.
Background technology
Along with expanding economy, tellurian non-renewable energy resources day is becoming tight, and numerous researchers invest regenerative resource to sight one after another, therefore, this clean regenerative resource of wind energy enters researcher's sight line, and obtains the attention of height countries in the world, and wind power generation is developed rapidly.Wind power generation, generally need a large amount of wind fields, to land resources, will have very large taking, wind-driven generator need to be arranged on high, the spacious region of frame, add accumulate, grid-connected, the unit cost is higher, therefore, China's wind power generation general use coastal and near larger, the regional open places of regional this wind energy such as island, the Inner Mongol and Northern Kansu.In recent years, wind energy power technology is combined with house architectural structure gradually, on state, Internal and external building, particularly, on highrise building, has the technical measures that adopt the equipment such as wind wheel generator is installed to generate electricity.On urban road, also progressively adopt in a large number the wind light mutual complementing energy-saving street lamp.
Large bridge has enough spaces, all lies on the table all the time, could not be fully utilized.In fact, many bridge constructions are in relatively spacious zone, and as remote mountain area or river course, wind energy is more sufficient, and relatively stable, if build, higher bridge tower structure arranged, and along with the increase of bridge tower height, tower top place wind energy is more sufficient.
Summary of the invention
The purpose of this utility model is to provide a kind of wind electricity generating system and bridge tower integral structure of simple in structure, easy to implement, functional diversities, this bridge tower structure becomes one wind electricity generating system and bridge tower, both remain with the bridge tower function, increased again the wind power generation function.
The utility model adopts following technical proposals to realize: a kind of wind electricity generating system and bridge tower integral structure, comprise bridge tower, and it is characterized in that: on bridge tower, be provided with wind wheel.
In the specific implementation, according to the structure of bridge tower itself, the installation site of design wind wheel.Other equipment of wind-driven generator, be arranged on the bridge tower case indoor.
The utility model is by wind power generation and the integrated moulding of bridge tower, take full advantage of bridge tower and be positioned at that spacious open area, bridge tower structure are towering, the larger advantage of tower top position wind energy, take full advantage of wind energy, using bridge tower as the wind power generation carrier, the wind wheel apparatus of wind-driven generator, on bridge tower, is realized to wind power generation; Green, low-carbon (LC), environmental protection, energy-conservation Advanced Idea have been fully demonstrated.Simultaneously, bridge tower is the most noticeable view node of bridge construction, and the wind wheel of moulding uniqueness is placed on it, makes Bridges abundanter, can produce strong vision and shake, for Bridge Landscape particularly the Urban Bridge view beautiful landscape is provided one; And the noise that wind energy conversion system produces is again away from residential block, and the drawback of wind power generation can be well solved; Have good Social benefit and economic benefit, be with a wide range of applications.
The accompanying drawing explanation

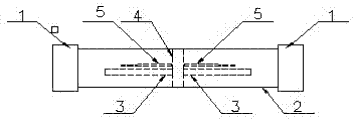

Fig. 1 is the structural representation of the utility model the first embodiment,
Fig. 2 is the longitudinal sectional view of Fig. 1,
Fig. 3 is the top view of Fig. 1,
Fig. 4 is the structural representation of the utility model the second embodiment,
Fig. 5 is the longitudinal sectional view of Fig. 4,
Fig. 6 is the top view of Fig. 5,
Fig. 7 is the structural representation of the third embodiment of the utility model,
Fig. 8 is the longitudinal sectional view of Fig. 7,
Fig. 9 is the top view of Fig. 7,
Figure 10 is the structural representation of the 4th kind of embodiment of the utility model,
Figure 11 is the longitudinal sectional view of Figure 10,
Figure 12 is the top view of Figure 10,
Figure 13 is the structural representation of the 5th kind of embodiment of the utility model,
Figure 14 is the longitudinal sectional view of Fig. 4,
Figure 15 is the top view of Fig. 5.
In figure: 1-king-post, 2-crossbeam, 3-support, 4-central axis, 5-wind wheel, 6-manhole, also claim space.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further elaborated.
Embodiment 1 is as shown in Figure 1, Figure 2 with shown in Figure 3: the wind electricity generating system that the present embodiment provides and bridge tower integral structure comprise bridge tower; Bridge tower comprises between 1, two king-post 1 of two king-posts and is provided with crossbeam 2 one; Crossbeam 2 is provided with manhole 6, and manhole 6 is provided with on 3, two supports 3 of two supports installs wind wheel 5; Two supports 3 are intersected in the center of circle of manhole 6, and the central axis 4 of wind wheel 5 is arranged on two supports 3 position that crosses.The present embodiment is applicable to arrange between two king-posts the bridge tower structure of one crossbeam, and crossbeam is higher.
The quantity that one skilled in the art will appreciate that above-described embodiment intermediate support frame 3 is unrestricted, according to stressing conditions, can increase and can subtract; During concrete application, according to the bridge construction scale, single box single chamber, single-box multi-cell or many casees cell structure can be selected in the cross section of king-post 1, crossbeam 2; The blade of wind wheel 5 can be selected twayblade, three blades or multiple-blade form; Other equipment of wind-driven generator, can be placed on king-post 1 and crossbeam 2 casees indoor as required.
Claims (6)
1. a wind electricity generating system and bridge tower integral structure, comprise bridge tower, on bridge tower, is provided with wind wheel; It is characterized in that: bridge tower comprises two king-posts (1), between two king-posts (1), is provided with one crossbeam (2); Crossbeam (2) is provided with manhole (6), manhole (6) is provided with support (3), the upper wind wheel (5) of installing of support (3), two supports (3) are intersected in the center of circle of manhole (6), and the central axis (4) of wind wheel (5) is arranged on two supports (3) position that crosses.
2. a wind electricity generating system and bridge tower integral structure, comprise bridge tower, on bridge tower, is provided with wind wheel; It is characterized in that: bridge tower comprises two king-posts (1), between two king-posts (1), is provided with twice crossbeam (2); Special composition (6) between twice crossbeam (2), space (6) are interior, twice crossbeam (2) is provided with support (3), the upper wind wheel (5) of installing of support (3).
3. a wind electricity generating system and bridge tower integral structure, comprise bridge tower, on bridge tower, is provided with wind wheel; It is characterized in that: bridge tower comprises a king-post (1), and king-post (1) top is provided with support (3), the upper wind wheel (5) of installing of support (3).
4. a wind electricity generating system and bridge tower integral structure, comprise bridge tower, on bridge tower, is provided with wind wheel; It is characterized in that: bridge tower comprises a king-post (1), and king-post (1) shaft upper area arranges manhole (6), and manhole (6) is provided with support (3), the upper wind wheel (5) of installing of support (3).
5. a wind electricity generating system and bridge tower integral structure, comprise bridge tower, on bridge tower, is provided with wind wheel; It is characterized in that: bridge tower comprises two king-posts (1), two king-posts (1) merge into a single whole at the tower top place, below tower top, between two king-posts (1), establish manhole (6), support (3) is set in manhole (6), the upper wind wheel (5) of installing of support (3).
6. a kind of wind electricity generating system as described as claim 1 to 5 any one and bridge tower integral structure, it is characterized in that: other equipment of wind-driven generator, the case that is arranged on bridge tower is indoor.
