Abstract
本实用新型公开了一种玻璃磨边机，包括传送带、底座、固定块和磨头组件固定器；其特征在于：传送带和底座都是固定于工作台上，底座位于传送带两侧，固定块通过螺丝固定于底座上，磨头组件固定器活动镶嵌于两个固定块之间，每个磨头组件固定器上至少固定有一个磨头组件；所述磨头组件包括动力部件、磨头组件连接块和磨头。本实用新型所提供的玻璃磨边机由于磨头组件固定器的活动镶嵌于两个固定块之间，所以可以上下调整角度，因此具有将玻璃的边打磨出各种不同角度的优点；同时使用多组磨头，让打磨的边角更加一致。
The utility model discloses a glass edging machine, which comprises a conveyor belt, a base, a fixed block and a grinding head assembly fixer; Screws are fixed on the base, and the grinding head assembly fixer is movably embedded between two fixed blocks, and each grinding head assembly fixer is fixed with at least one grinding head assembly; the grinding head assembly includes power components, grinding head assembly connection blocks and grinders. The glass edging machine provided by the utility model has the advantages of grinding the edges of the glass into various angles because the grinding head assembly fixer is movable and embedded between two fixed blocks, so the angle can be adjusted up and down, and it can be used at the same time Multiple sets of grinding heads make the grinding edges more consistent.
Description
Technical field
The utility model relates to the glass processing device field, particularly a kind of glass edge-grinding machine.
Background technology
Glass edge-grinding machine mainly is suitable for the processing of furniture glass and building glass and artistic glass, is in the glass machinery deep processing equipment, to produce the earliest and one of the cold working equipment of consumption maximum.Be mainly used in the grinding of ordinary plate glass base and chamfering, polishing.Generally have manually, the configurations such as digital display control, the control of PLC computer.Existing glass edge-grinding machine can only grind straight line, the limit of glass can not be ground to various angles, just uses simultaneously a small amount of bistrique, and making corner polish can not be in full accord.
The utility model content
Order of the present utility model is to provide a kind of glass edge-grinding machine, and it can polish the glass on various different angles limit, to solve the simple glass edge polisher, can not polish the problem on angle limit.
A kind of glass edge-grinding machine, it comprises conveyer belt, base, fixed block and grinding head assembly fixator; It is characterized in that: conveyer belt and base are all to be fixed on workbench, base is positioned at the conveyer belt both sides, fixed block is screwed on base, and the grinding head assembly fixator is movably embedded between two fixed blocks, on each grinding head assembly fixator, is fixed with at least a grinding head assembly; Described grinding head assembly comprises power part, grinding head assembly contiguous block and bistrique; Power part is motor.
Preferably, the top on described conveyer belt both sides all is equipped with water injector.
Preferably, on each grinding head assembly fixator, be fixed with four grinding head assemblies.
Preferably, described power part, grinding head assembly contiguous block and bistrique are all that stainless steel is made.
Preferably, a power supply base is installed at least on workbench.
Preferably, between described power part and power supply base, be electrically connected to.
Preferably, described fixed block and grinding head assembly fixator are all that the high-carbon steel material is made.
In sum, glass edge-grinding machine provided by the utility model, because the grinding head assembly fixator is movably embedded between two fixed blocks, so can adjust up and down angle, therefore has advantages of the limit of glass is polished to various different angles; Use simultaneously many group bistriques, make the corner of polishing more consistent.
The accompanying drawing explanation

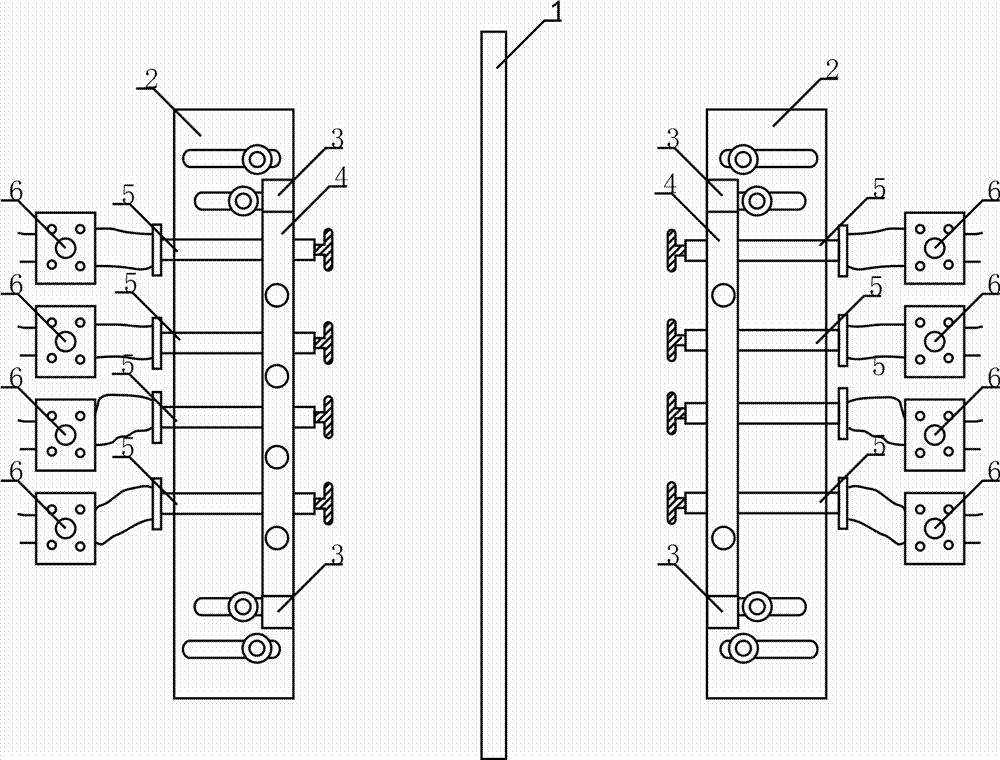

Fig. 1 is the glass edge-grinding machine structure chart;
Fig. 2 is the grinding head assembly structure chart.
Wherein, 1, conveyer belt; 2, base; 3, fixed block; 4, grinding head assembly connector; 5, grinding head assembly; 51, power part; 52, grinding head assembly contiguous block; 53, bistrique.
The specific embodiment
Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in detail.
-as depicted in figs. 1 and 2, this glass edge-grinding machine comprises conveyer belt 1, base 2, fixed block 3 and grinding head assembly fixator 4; It is characterized in that: conveyer belt 1 and base 2 are all to be fixed on workbench, base 2 is positioned at conveyer belt 1 both sides, fixed block 3 is screwed on base 2, grinding head assembly fixator 4 is movably embedded between two fixed blocks 3, on each grinding head assembly fixator 4, is fixed with at least a grinding head assembly 5; Described grinding head assembly 5 comprises power part 51, grinding head assembly contiguous block 52 and bistrique 53.The top on described conveyer belt 1 both sides all is equipped with water injector.On each grinding head assembly fixator 4, be fixed with four grinding head assemblies.Described power part 51, grinding head assembly contiguous block 52 are all that stainless steel is made with bistrique 53.At least one power supply base 6 is installed on workbench.Between described grinding head assembly 5 and power supply base 6, be electrically connected to.Described fixed block 3 and grinding head assembly fixator 4 are all that the high-carbon steel material is made; Power part 51 is motor.
Glass is placed on conveyer belt 1, by conveyer belt 1, drive and travel forward, in advance grinding head assembly fixator 4 is adjusted to a suitable angle, then when glass process bistrique 53, glass edge is polished by bistrique, due to the angle of having adjusted in advance bistrique 53, so can polish the glass of special corner.
Although by reference to the accompanying drawings the specific embodiment of the present utility model is described in detail, should not be construed as the restriction to the protection domain of this patent.In the described scope of claims, the various modifications that those skilled in the art can make without creative work and distortion still belong to the protection domain of this patent.
Claims (7)
1. a glass edge-grinding machine, comprise conveyer belt (1), base (2), fixed block (3) and grinding head assembly fixator (4); It is characterized in that: conveyer belt (1) and base (2) are all to be fixed on workbench, base (2) is positioned at conveyer belt (1) both sides, fixed block (3) is screwed on base (2), grinding head assembly fixator (4) is movably embedded between two fixed blocks (3), on each grinding head assembly fixator (4), is fixed with at least a grinding head assembly (5); Described grinding head assembly (5) comprises power part (51), grinding head assembly contiguous block (52) and bistrique (53), and power part (51) is motor.
2. glass edge-grinding machine according to claim 1, it is characterized in that: the top on described conveyer belt (1) both sides all is equipped with water injector.
3. according to the described glass edge-grinding machine of claim 2, it is characterized in that: on each grinding head assembly fixator (4), be fixed with four grinding head assemblies (5).
4. glass edge-grinding machine according to claim 3 is characterized in that: described power part (51), grinding head assembly contiguous block (52) are all that stainless steel is made with bistrique (53).
5. glass edge-grinding machine according to claim 4, is characterized in that: a power supply base (6) is installed on workbench at least.
6. glass edge-grinding machine according to claim 5 is characterized in that: between described power part (51) and power supply base (6), be electrically connected to.
7. glass edge-grinding machine according to claim 6, it is characterized in that: described fixed block (3) and grinding head assembly fixator (4) are all that the high-carbon steel material is made.
