The utility model discloses a three-dimensional effect surface decoration film, which can be attached onto a surface outer housing of a household appliance for instance, and comprises a bottom film, a printing layer arranged on one surface of the bottom layer, an embossing processing layer arranged on the printing layer, and a hardness processing layer arranged on the embossing processing layer in sequence. The utility model also provides a film coated baseplate adopting the surface decoration film. The three-dimensional effect surface decoration film and the film coated baseplate can provide a three-dimensional effect for a surface decoration board of the household appliance, and patterns are diversified and real, so that a product is allowed to be full of artistic aesthetic feeling, have strong visuality, be able to satisfy requirements of a high grade consumer, and have excellent properties of dirt resistance, weather-resistance, and scratch resistance.
Description
Technical field
The utility model relates to a kind of surface decorative film, and more specifically, the utility model relates to a kind of stereoeffect of 3D for household electrical appliances surface decorative film and overlay film substrate.
Background technology
The appearance design of household electrical appliances occupies larger psychological status when the consumer buys these products; appearance along with high light film; the white appliances commodity have been obtained from the great leap of steel plate to precoated steel sheet of spraying paint aspect outward appearance; in contrast to spray coating steel plates; use refrigerator and the small household appliances of precoated steel sheet, not only have antirust, antifouling, antisepsis, and appearance vivid bright and clean, pattern color is naturally colourful; can play protective substrate and attractive, decorative effect, attract consumer's eyeball.But the product with three-dimensional stereo effect outward appearance is actually rare, find by inquiry the consumer for this soon hand touch, the stereoeffect outward appearance interest of different style is strong.
The patent No. provides a kind of printed refrigerator steel plate for the utility model of CN102350828A, although this product outward appearance and ornamental aspect make certain improvements, still be weak aspect product resistance to soiling, weatherability and three-dimensional stereo effect protection.
Therefore, need at present a kind of high-performance, high glaze, attractive and durable stereoeffect surface decorative film.
The utility model content
The utility model discloses a kind of stereoeffect of 3D for household electrical appliances surface decorative film and the overlay film substrate with this surface decorative film.
On the one hand, the utility model provides a kind of stereoeffect of 3D for household electrical appliances surface decorative film, and this surface decorative film comprises successively: counterdie; Be arranged at lip-deep printed layers of described counterdie; Be arranged at the embossing processing layer on described printed layers; And be arranged at hardness processing layer on described embossing processing layer.
According to a preferred embodiment of surface decorative film of the present utility model, described counterdie is polyvinyl chloride (PVC) film or cast polypropylene (CPP) film.
According to another preferred embodiment of surface decorative film of the present utility model, described printed layers is color printing layer, pearl effect printed layers, metal effect printed layers or local pattern effect printed layers.
According to another preferred embodiment of surface decorative film of the present utility model, described embossing processing layer is three-dimensional embossed layers.
According to another preferred embodiment of surface decorative film of the present utility model, described hardness processing layer is the UV processing layer.
On the other hand, the utility model also provides a kind of overlay film substrate with above-mentioned surface decorative film, and described overlay film substrate comprises successively: substrate; Be arranged at the adhesive layer on described substrate; Be arranged at the above-mentioned surface decorative film on described adhesive layer, another surface of wherein said counterdie contacts with described adhesive layer.
According to a preferred embodiment of overlay film substrate of the present utility model, described substrate can be steel plate, aluminium sheet or galvanized sheet.
Than prior art, useful technique effect of the present utility model comprises: by form successively printed layers, embossing processing layer and hardness processing layer on counterdie, can make surface decorative film have the 3D stereoeffect, pattern is more diversified and true, make product be full of aesthetic, visual strong, can meet high-grade consumer's requirement, but also have the premium properties of resistant, weather-proof, resistance to marring.
Description of drawings
Be described more specifically the specific embodiment according to surface decorative film of the present utility model and overlay film substrate below in conjunction with accompanying drawing, in the accompanying drawings:

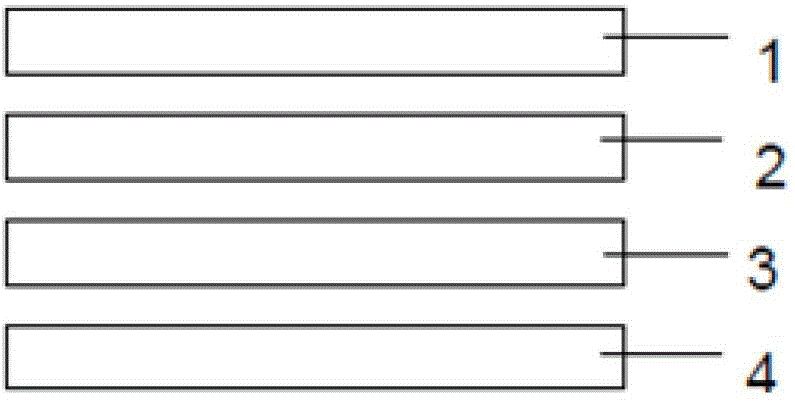

Fig. 1 illustrates the structural representation according to a preferred embodiment of surface decorative film of the present utility model.
Fig. 2 illustrates the structural representation according to a preferred embodiment of overlay film substrate of the present utility model.
Wherein, description of reference numerals is as follows:
1 hardness processing layer
2 embossing processing layers
3 printed layers
4 counterdies
5 adhesive layers
6 substrates.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further described, should understand these embodiment only is used for explanation the utility model and is not used in restriction scope of the present utility model, after having read the utility model, those skilled in the art all fall within the application's claims limited range to the modification of the various equivalent form of values of the present utility model.For ease of understanding and describing, " inboard " described in the utility model refers to the side of surface decorative film near substrate to be attached, and " outside " refers to the side of surface decorative film away from substrate to be attached.
Fig. 1 shows preferred embodiment of surface decorative film of the present utility model, and wherein this surface decorative film comprises the counterdie 4 that sets gradually laterally from inboard, printed layers 3, embossing processing layer 2, hardness processing layer 1.
Fig. 2 shows a preferred embodiment of overlay film substrate of the present utility model, and wherein this overlay film substrate comprises the substrate 6 that sets gradually laterally from inboard, adhesive layer 5, counterdie 4, printed layers 3, embossing processing layer 2, hardness processing layer 1.
Counterdie of the present utility model can be and utilizes prior art to roll PVC film or the CPP film of production, can carry out dissimilar calendering for concrete pattern and pattern in production process.Simultaneously,, for the appearance effect that guarantees that electric appliance surface is final, can adopt the PVC film with various effects, for example monochromatic PVC film, pearly-lustre PVC film, fluorescence PVC film, metal effect PVC film and transparent PVC film.
Printed layers is to print and the color printing layer, pearl effect printed layers, metal effect printed layers or the local pattern effect printed layers that form at the counterdie outer surface, and printed layers can make this decorating film have to enrich changeable appearance effect.
The embossing processing layer is to carry out three-dimensional embossing at the printed layers outer surface to process the three-dimensional embossed layers that forms, the embossing degree of depth and pattern can be made according to market popularity trend, flexible and changeable, compare with other plane Printings, can make household appliance appearance more abundant high-grade, meet the high-level life of modern.
The hardness processing layer is that the outer surface at the embossing processing layer carries out UV (antiultraviolet) and processes, and is about to the UV inorganic agent and is applied to the outer surface of embossing processing layer and the UV processing layer that is solidified to form under the ultra violet lamp condition.Process and can make 3D stereoeffect surface decorative film of the present utility model still keep obvious 3 D stereo embossing effect at the compound electric appliance surface of high temperature later by this UV, and make product have the soft and moist glossiness in surface, and the premium properties such as resistance to soiling, weatherability, adhesion strength.
Adhesive layer is this area adhesive commonly used, preferably is applicable to the compound adhesive of PVC or CPP and steel plate, for example the thermoplasticity mylar.
Substrate can be such as the steel plate of household electrical appliances outer surface, aluminium sheet or galvanized sheet etc.
Use 3D stereoeffect surface decorative film of the present utility model and overlay film substrate, can make the surface decorating plate of household appliances have 3-D effect, pattern is more diversified and true, make product be full of aesthetic, visual strong, can meet high-grade consumer's requirement, but also have the premium properties of resistant, weather-proof, resistance to marring.
Although with reference to exemplary embodiments, described the utility model, should be appreciated that term used is explanation and exemplary, and nonrestrictive term.Because the utility model can specifically be implemented in a variety of forms and not break away from the Spirit Essence of utility model, so be to be understood that, above-described embodiment is not limited to any aforesaid details, explain and should take precautions against ground in the spirit and scope that the claim of enclosing limits, therefore, falling into whole variations in claim or its equivalent scope and remodeling all should be the claim of enclosing and contains.
Claims (7)
1. a 3D stereoeffect surface decorative film that is used for household electrical appliances, is characterized in that, described surface decorative film comprises successively:
Counterdie (4);
Be arranged at described (4) lip-deep printed layers of counterdie (3);
Be arranged at the embossing processing layer (2) on described printed layers (3); And
Be arranged at the hardness processing layer (1) on described embossing processing layer (2).
2. according to claim 1 surface decorative film, is characterized in that, described counterdie (4) is PVC film or CPP film.
3. according to claim 2 surface decorative film, is characterized in that, described printed layers (3) is color printing layer, pearl effect printed layers, metal effect printed layers or local pattern effect printed layers.
4. according to claim 3 surface decorative film, is characterized in that, described embossing processing layer (2) is three-dimensional embossed layers.
5. according to claim 4 surface decorative film, is characterized in that, described hardness processing layer (1) is the UV processing layer.
6. the overlay film substrate with surface decorative film of any one according to claim 1 to 5, is characterized in that, described overlay film substrate comprises successively:
Substrate (6);
Be arranged at the adhesive layer (5) on described substrate (6); And
Be arranged at the described surface decorative film on described adhesive layer (5), another surface of wherein said counterdie contacts with described adhesive layer.
7. according to claim 6 overlay film substrate, is characterized in that, described substrate (6) is steel plate, aluminium sheet or galvanized sheet.
