Abstract

The utility model relates to a novel LED wall clock, comprising a wall clock main body (10), a circle of LED light bulbs a (101) arranged on the front of the wall clock main body (10), and a circle of LED light bulbs b (102) arranged on the side of the wall clock main body (10). The back of the main body (10) of the wall clock is provided with a hanging hole (103), a light brightness adjusting paddle (104) and a storage battery (105). The utility model is simple in structure and easy to use. The light intensity of LED light bulb a and LED light bulb b is controlled by turning the light brightness adjustment paddle. The main body of the wall clock can be placed on the desktop or hung on the wall, which improves the The comfort of people's lives.

Description

A new type of LED wall clock

Technical field:

The utility model relates to a watch device, in particular to a novel LED wall clock.

Background technique:

LED is a semiconductor that can convert electrical energy into light energy. It changes the principle of tungsten filament luminescence of incandescent lamps and the three-based toner luminescence of energy-saving lamps, and uses electric field luminescence. According to the analysis, the characteristics of LED are very obvious, such as long life, high luminous efficiency, low radiation and low power consumption. The spectrum of white LEDs is almost all concentrated in the visible light frequency band, and its luminous efficiency can exceed 150lm/W. Therefore, LED technology is widely used and can be used in various lighting fixtures; clocks and watches are a common decoration in indoor homes. Single, without innovation, this problem can be solved if LED bulbs with long life and high brightness are introduced into the surface of clocks and watches, so it is very beneficial to design a new type of LED wall clock.

Utility model content:

The purpose of the utility model is to provide a novel LED wall clock aiming at the deficiencies of the prior art. The utility model has the advantages of simple structure and convenient use. The light intensity of LED light bulb a and LED light bulb b is controlled by turning the light brightness adjustment paddle. The main body of the wall clock can be placed on the desktop or hung on the wall to improve The advantages of improving the comfort of people's lives.

The technical solutions of the present utility model are as follows:

A new type of LED wall clock, comprising a main body of the wall clock, a ring of LED light bulbs a on the front of the main body of the wall clock, a circle of LED light bulbs b on the side of the main body of the wall clock, a hanging hole, a paddle for adjusting light brightness and a storage battery on the back of the main body of the wall clock.

In the above technical solution, the light brightness adjustment paddle is stuck in the rectangular groove.

In the above technical solution, the storage battery is embedded in the back of the main body of the wall clock, and two charging jacks are provided on the storage battery.

In the above technical solution, a supporting foot is provided at the bottom of the main body of the wall clock.

The beneficial effects of the utility model are:

The utility model is simple in structure and easy to use. The light intensity of LED light bulb a and LED light bulb b is controlled by turning the light brightness adjustment paddle. The main body of the wall clock can be placed on the desktop or hung on the wall, which improves the The comfort of people's lives.

Description of drawings:

Fig. 1 is a schematic diagram of the front structure of the utility model;

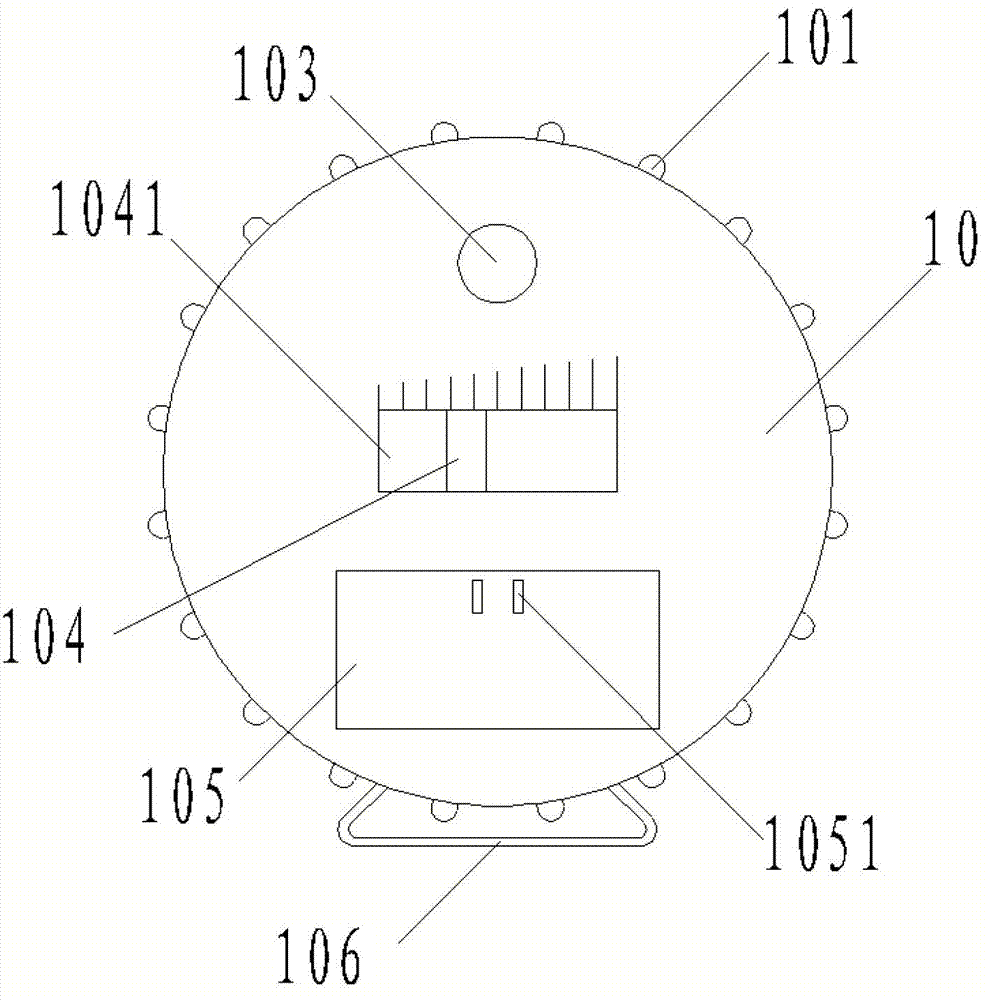

Fig. 2 is a schematic diagram of the back structure of the utility model.

In the figure: 10, main body of wall clock; 101, LED bulb a; 102, LED bulb b; 103, hanging hole; 104, paddle for adjusting light brightness; 1041, rectangular groove; 105, storage battery; 1051, charging jack; 106 , Supporting feet.

Detailed ways:

The following descriptions are only preferred embodiments of the present utility model, and are not intended to limit the scope of the present utility model.

Embodiment: As shown in Fig. 1 and Fig. 2, a new type of LED wall clock includes a wall clock main body 10, a circle of LED light bulbs a101 is arranged on the front of the wall clock main body 10, a circle of LED light bulbs b102 is arranged on the side of the wall clock main body 10, the wall clock main body The back side of 10 is provided with a hanging hole 103 , a light brightness adjusting paddle 104 and a storage battery 105 .

The light brightness adjustment paddle 104 is locked in the rectangular groove 1041 .

The storage battery 105 is embedded in the back of the main body 10 of the wall clock, and two charging jacks 1051 are provided on the storage battery 105 .

A support foot 106 is provided at the bottom of the main body 10 of the wall clock.

working principle:

A new type of LED wall clock, a ring of LED light bulbs a101 is arranged on the front of the main body 10 of the wall clock, a ring of LED light bulbs b102 is arranged on the side of the main body 10 of the wall clock, a hanging hole 103, a paddle 104 for adjusting light brightness and a storage battery 105 are arranged on the back of the main body 10 of the wall clock, The light brightness adjustment paddle 104 is stuck in the rectangular groove 1041, the battery 105 is embedded in the back of the main body 10 of the wall clock, the battery 105 is provided with two charging jacks 1051, and the bottom of the main body 10 of the wall clock is provided with a support foot 106, by turning the light The brightness adjustment paddle 104 is used to control the light intensity of the LED light bulb a101 and the LED light bulb b102. The LED light bulb a101 and the LED light bulb b102 are convenient for seeing the clock face at night, and also play a decorative effect. On the desktop, the hanging hole 103 can also be used to hang on the wall, the storage battery 105 provides electric energy for the entire circuit, and the charging jack 1051 is convenient for charging the storage battery 105 .

Claims (4)

1. A new type of LED wall clock, comprising a wall clock main body (10), characterized in that: a circle of LED light bulbs a (101) is provided on the front of the wall clock main body (10), and a circle of LED light bulbs b is provided on the side of the wall clock main body (10) (102), the back side of the wall clock main body (10) is provided with a hanging hole (103), light brightness adjustment paddle (104) and storage battery (105). 2. A new type of LED wall clock according to claim 1, characterized in that: the light brightness adjustment paddle (104) is stuck in the rectangular groove (1041). 3. A new type of LED wall clock according to claim 1, characterized in that: the battery (105) is embedded in the back of the wall clock main body (10), and two charging jacks (1051) are provided on the battery (105). 4. The novel LED wall clock according to claim 1, characterized in that: a support foot (106) is provided at the bottom of the wall clock main body (10).
