The utility model discloses a 360-degree full-covering shadow-free illuminating LED lamp which is composed of a lamp holder, a support and a lamp face. A switch and a charging jack are arranged on the lamp holder, the support is composed of an upper support and a lower support, the upper support and the lower support are connected through hinges, the lamp face comprises a primary lamp face and two sub lamp faces, the sides of the primary lamp face are respectively provided with one sub lamp face, the primary lamp face and the two sub lamp faces are connected through hinges, and the primary lamp face and the sub lamp faces are LED flat-board lamp faces. According to the 360-degree full-covering shadow-free illuminating LED lamp, the angle between the primary lamp face and the sub lamp faces is adjustable, the shadow-free effect under the lamp is achieved through adjustment of the angle between the primary lamp face and the sub lamp faces, and the shadow-free effect under the lamp means that when a user writes under the lamp face of a table lamp, the two sub lamp faces respectively give out light from the left side and the right side to eliminate the shadow of a hand.
Description
Technical field
The utility model relates to a kind of illuminating lamp, relates in particular to a kind of 360 ° of all standing shadowless lighting LED lamps.
Background technology
The illuminating lamp that generally uses at present has a light-emitting area, and the field of illumination is narrower and small, and in addition, tend to occur the situation of some shadows when using night, can not satisfy the requirement that many people use simultaneously.
The utility model content
The purpose of this utility model is to propose a kind of 360 ° of all standing shadowless lighting LED lamps, can effectively solve the above-mentioned technical problem that exists in prior art.
To achieve these goals, the utility model adopts following technical scheme:
360 ° of all standing shadowless lighting LED lamps, formed by lamp socket, support and lamp face, be provided with switch and charging jack on lamp socket, support is comprised of upper bracket and lower carriage, be connected through the hinge between upper bracket and lower carriage, the lamp face comprises a king light face and two secondary lamp faces, and two secondary lamp faces lay respectively at a side of king light face, be connected through the hinge between king light face and secondary lamp face, described king light face and secondary lamp face are LED flat lamp face.
The utility model has the advantages that:
The utility model is designed with three lamp faces, three lamp faces are hinged, one, can reach the effect of " under lamp without shadow " when having increased intensity of illumination by the angle of regulating secondary lamp face and king light face, when namely writing under desk lamp lamp face without shadow under lamp, two secondary lamp faces emit beam from the left and right sides respectively and eliminate the hand shadow, its two, can make three lamp faces form the effect that regular triangular prisms reach " surrounding illumination ", can be used for study illumination use.
Description of drawings

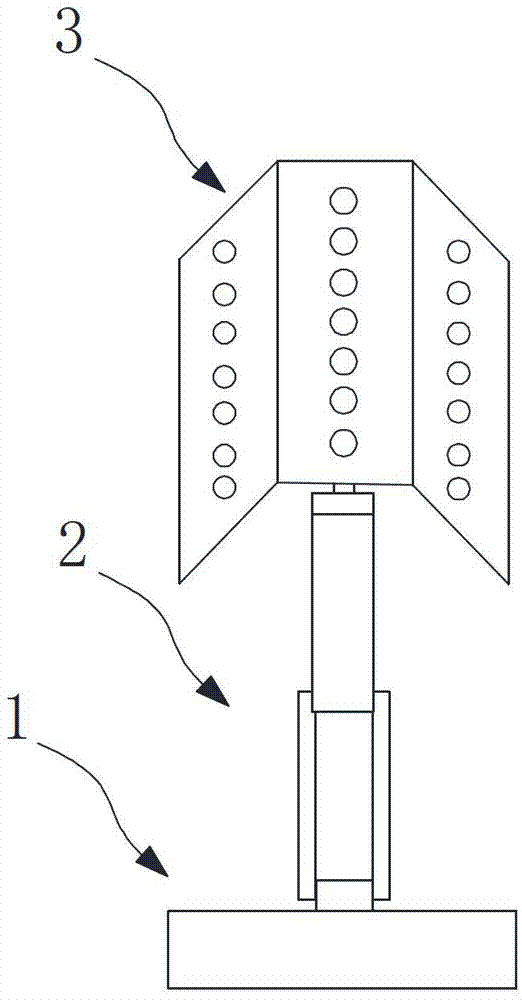

Fig. 1 is the structural representation of 360 ° of all standing shadowless lighting LED lamps in the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and the specific embodiment, the utility model is described in further detail:
In conjunction with shown in Figure 1,360 ° of all standing shadowless lighting LED lamps are comprised of lamp socket 1, support 2 and lamp face 3.Lamp socket and support, support all is connected with hinge respectively with the lamp face, along hinge axis angle free to rotate, has met on the one hand the characteristics of " folding ", the user according to angle between self-condition or custom capable of regulating lamp face horizontal plane, has the most basic human oriented design on the other hand.The simplicity of design of lamp socket is clean, and the side is a switch and charging jack.The switch adjustable desk lamp has two kinds of brightness.One jiao of the lamp socket top is provided with an aperture pen stand, can be used for placing pen.Lamp socket inside is equipped with the savings power supply, can be for charging.Support is made of two parts, it is the support of two equal length, be respectively upper bracket and lower carriage, wherein upper bracket can embed in lower support structure, two stands is connected with hinge simultaneously, can coincide together after making support through Z-shaped folding, greatly reduce the volume of folding fully rear desk lamp.Institute is different from the single lamp face of desk lamp in the past, and this kind desk lamp has designed three lamp faces, and three lamp faces are the identical rectangle lamp face of size dimension, and the lamp face in the middle of wherein is the king light face, and two other is secondary lamp face.The long side of the side that secondary lamp face is long and king light face is hinged.So three lamp faces have formed the general layout that three row lamp faces are arranged side by side, wherein two adjacent lamp faces can be along hinge axis rotational angle, and two secondary lamp faces are without connection.The king light face is connected with the lower end upper bracket by hinge again.The design of three lamp faces: one can reach the effect of " under lamp without shadow " by the angle of regulating secondary lamp face and king light face when having increased intensity of illumination.When namely writing under desk lamp lamp face without shadow under lamp, two secondary lamp faces emit beam from the left and right sides respectively and eliminate the hand shadow, its two, can make three lamp faces form the effect that regular triangular prisms reach " surrounding illumination ".
Three LED flat lamp faces are used in this design, and three lamp faces can form lamp towards outer triangular prism, realize 360 ° of illuminations.The angle that the lamp plate of both sides can also be rotated to secondary lamp face and king light face is 120 °, can be used for the study illumination and uses.
It has 360 ° of illuminations; being suitable for many people uses jointly; but the electric weight that consumes only is equivalent to a common desk lamp; in the situation that the one-man uses; three lamp faces can be shone a direction simultaneously; and can eliminate simultaneously dash area write, office etc. to a certain extent, make that to write environment more comfortable, and play the effect of protection eyes.It will be more suitable for consumer demand.
This design innovation point is three LED flat lamp faces of its use, the desk lamp that breaks traditions only has the structure of a lamp face, more novel is that three lamp faces can form lamp towards outer triangular prism, take one of them as main body, be connected with the secondary lamp plate of both sides with revolute pair, can realize 360 ° of illuminations, and the secondary lamp plate of both sides can be forwarded to the combination of secondary lamp face and king light face, form arbitrarily angled general illumination.This desk lamp can be used for study illumination to be used, and it also is suitable for many people and jointly uses, but the electric weight that consumes only is equivalent to a common desk lamp.
Certainly; above explanation is only preferred embodiment of the present utility model; the utility model is not limited to enumerate above-described embodiment; should be noted that; any those of ordinary skill in the art are under the instruction of this specification; alternative, obvious variant that all that make are equal within all dropping on the essential scope of this specification, ought to be subject to protection of the present utility model.
Claims (1)
1.360 ° all standing shadowless lighting LED lamp, it is characterized in that, formed by lamp socket, support and lamp face, be provided with switch and charging jack on lamp socket, support is comprised of upper bracket and lower carriage, is connected through the hinge between upper bracket and lower carriage, the lamp face comprises a king light face and two secondary lamp faces, two secondary lamp faces lay respectively at a side of king light face, are connected through the hinge between king light face and secondary lamp face, and described king light face and secondary lamp face are LED flat lamp face.
