Abstract
The utility model discloses an auxiliary nursing mobilizer which comprises a bed body, a moving frame, a rotating bent axle, a pedal plate, fixing pieces, hand exercisers and a folding leg. The moving frame is mounted on the tail portion of the bed body. The rotating bent axle is mounted on the moving frame. The pedal plate is fixedly mounted on the rotating bent axle. The fixing pieces are arranged at the two ends of the head portion of the bed body. The hand exercisers are mounted on the fixing pieces. The folding leg is fixedly mounted on the bed body. The auxiliary nursing mobilizer is simple in structure, convenient to use and obvious in effect, the pedal plate is used for making bending and stretching movement, patients can well exercise the lower limbs of the patients self, the hand exercisers can also effectively exercise the hand strength of the patients, and rehabilitation of the patients can be assisted.
Description
Technical field
This utility model relates to a kind of mobilizer, is specifically related to a kind of assisted care mobilizer, belongs to the medical treatment and nursing instrument field.
Background technology
At present, the sick bed that the institutes uses of seeking medical advice, sick bed only has single function mostly, be not provided with corresponding assisted care head, can not carry out assisted care to sufferer well, can not effectively effectively nurse for all kinds of patients, can not carry out reconditioning to sufferer well, the physical rehabilitation that is unfavorable for sufferer has brought difficulty also for simultaneously medical worker's assisted care work, has affected job schedule and efficient.
Summary of the invention
For the problems referred to above, the technical problems to be solved in the utility model is to provide the good assisted care mobilizer of a kind of nursing efficacy.
Assisted care mobilizer of the present utility model comprises a body, adjustable shelf, turning crankshaft, pedal, fixture, hand exerciser and folding stand; Described adjustable shelf is arranged on a body afterbody; Described turning crankshaft is arranged on adjustable shelf; Described pedal is fixedly mounted on turning crankshaft; Described fixture is arranged on bed body head two ends; Described hand exerciser is arranged on fixture; Described folding stand is fixedly mounted on a body.
Further, be provided with fixing band on described pedal.
Further, described hand exerciser is formed by connecting by holding rod and elastic cord.
Further, described adjustable shelf is formed by base plate and baffle combination.
Further, described turning crankshaft two ends are provided with massage rod.
This utility model beneficial effect: this utility model is simple in structure, easy to use, successful, do flexion and extension by pedal, can finely carry out lower limb exercise to sufferer, and hand exerciser also can be tempered patient's hand strength effectively, bring help for patient's rehabilitation.
Description of drawings
In order to be easy to explanation, this utility model is done to describe in detail by following concrete enforcement and accompanying drawing.

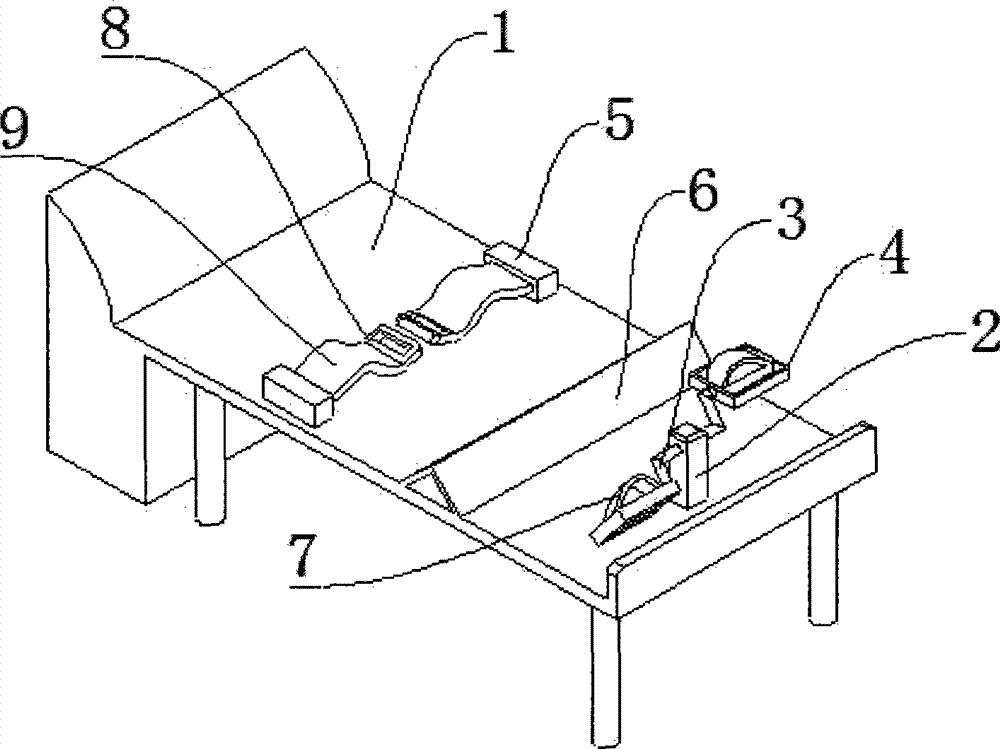

Fig. 1 is structure chart of the present utility model.
1-bed body; The 2-adjustable shelf; The 3-turning crankshaft; The 4-pedal; The 5-hand exerciser; The 6-folding stand; The 7-fixing band; The 8-holding rod; The 9-elastic cord.
The specific embodiment
As shown in Figure 1, assisted care mobilizer of the present utility model comprises a body 1, adjustable shelf 2, turning crankshaft 3, pedal 4, fixture 5, hand exerciser and folding stand 6; Described adjustable shelf 2 is arranged on a body 1 afterbody; Described turning crankshaft 3 is arranged on adjustable shelf 2; Described pedal 4 is fixedly mounted on turning crankshaft 3; Described fixture 5 is arranged on a body 1 head two ends; Described hand exerciser is arranged on fixture 5; Described folding stand 6 is fixedly mounted on a body.
Wherein, be provided with fixing band 7 on described pedal 4; Described hand exerciser is formed by connecting by holding rod 8 and elastic cord 9; Described adjustable shelf 2 is formed by base plate and baffle combination; Described turning crankshaft 3 two ends are provided with massage rod.
This utility model is simple in structure, easy to use, successful, does flexion and extension by pedal, can finely carry out lower limb exercise to sufferer, and hand exerciser also can be tempered patient's hand strength effectively, has brought help for patient's rehabilitation.
Embodiment recited above is described preferred implementation of the present utility model, is not that design of the present utility model and scope are limited.Under the prerequisite that does not break away from this utility model design concept; various modification and improvement that this area ordinary person makes the technical solution of the utility model; all should drop into protection domain of the present utility model; the technology contents that this utility model is asked for protection all is documented in claims.
Claims (5)
1. an assisted care mobilizer, is characterized in that: comprise a body (1), adjustable shelf (2), turning crankshaft (3), pedal (4), fixture (5), hand exerciser and folding stand (6); Described adjustable shelf (2) is arranged on a body (1) afterbody; Described turning crankshaft (3) is arranged on adjustable shelf (2); Described pedal (4) is fixedly mounted on turning crankshaft (3); Described fixture (5) is arranged on a body (1) head two ends; Described hand exerciser is arranged on fixture (5); Described folding stand (6) is fixedly mounted on a body (1).
2. assisted care mobilizer according to claim 1, is characterized in that: be provided with fixing band (7) on described pedal (4).
3. assisted care mobilizer according to claim 1, it is characterized in that: described hand exerciser is formed by connecting by holding rod (8) and elastic cord (9).
4. assisted care mobilizer according to claim 1, it is characterized in that: described adjustable shelf (2) is formed by base plate and baffle combination.
5. assisted care mobilizer according to claim 1 is characterized in that: described turning crankshaft (3) two ends are provided with massage rod.
