Abstract

The utility model relates to a new type of trash can, which comprises a barrel body (1), a funnel-shaped collection cover (2) is arranged above the barrel body (1), and the lower cover mouth (3) of the collection cover (2) is set Connect a garbage bag (4), the garbage bag (4) is located in the bucket body (1), and the outer side wall of the lower cover mouth (3) is provided with a plurality of hooks (5), and the upper edge hook of the garbage bag (4) Hang on the hook (5). Because the new trash can is provided with a collection cover and a garbage bag, the collection cover has a large collection area, which is convenient for putting and collecting garbage, and reduces the scattering of garbage, and the collection cover is provided with a hook for hanging and fixing the garbage bag, which can Prevent the falling off of the garbage bag and avoid the phenomenon that the garbage cannot be put into the bag.

Description

new trash can

技术领域technical field

本实用新型涉及一种卫生工具，特别是一种垃圾桶。The utility model relates to a sanitary tool, in particular to a trash can.

背景技术：Background technique:

垃圾桶是人们普遍使用的一种卫生工具，但传统垃圾桶的垃圾投放

较小，在投放垃圾时往往要把手靠近投放口，这样就容易弄脏投放者的手，因此在公共场所投放垃圾时，不少人喜欢在离垃圾桶较远的地方就把垃圾扔过来，这就会造成一部分垃圾不能入桶而散落在外的现象，从而影响市容污染环境。The trash can is a kind of sanitation tool commonly used by people, but the waste disposal of traditional trash cans

Smaller, when throwing garbage, you often have to put your hands close to the opening, which is easy to dirty the hands of the thrower. Therefore, when throwing garbage in public places, many people like to throw the garbage far away from the trash can. This will cause a part of the garbage to be scattered outside the bucket, thereby affecting the appearance of the city and polluting the environment.

发明内容Contents of the invention

本实用新型要解决的技术问题是：克服传统垃圾桶的不足，提供一种方便垃圾投放和收集的新型垃圾桶。The technical problem to be solved by the utility model is: to overcome the shortcomings of the traditional trash can and provide a new trash can which is convenient for putting and collecting garbage.

为实现上述技术问题，本实用新型采用的技术方案是：For realizing above-mentioned technical problem, the technical scheme that the utility model adopts is:

一种新型垃圾桶，包括桶身，在桶身的上方设有一个漏斗状的收集罩，收集罩的下罩口套接一个垃圾袋，垃圾袋位于桶身内，下罩口的外侧侧壁上设有多个挂钩，垃圾袋的上缘钩挂在挂钩上。A new type of garbage can, including a bucket body, a funnel-shaped collection cover is arranged on the top of the bucket body, a garbage bag is sleeved on the lower cover of the collection cover, the garbage bag is located in the bucket body, and the outer side wall of the lower cover mouth A plurality of hooks are provided, and the upper edge hooks of the garbage bags are hung on the hooks.

采用上述技术方案后，本实用新型的有益效果是：After adopting above-mentioned technical scheme, the beneficial effect of the utility model is:

由于本新型垃圾桶设有收集罩和垃圾袋，收集罩有较大的收集面积，便于投放和收集垃圾，减少垃圾的散落，并且在收集罩上设有挂钩，用于悬挂固定垃圾袋，能防止垃圾袋的脱落和避免发生垃圾不能入袋的现象。Because the new trash can is provided with a collection cover and a garbage bag, the collection cover has a large collection area, which is convenient for putting and collecting garbage, and reduces the scattering of garbage, and the collection cover is provided with a hook for hanging and fixing the garbage bag, which can Prevent the falling off of the garbage bag and avoid the phenomenon that the garbage cannot be put into the bag.

附图说明：Description of drawings:

下面结合附图和具体实施方式对本实用新型做进一步详细说明。The utility model will be described in further detail below in conjunction with the accompanying drawings and specific embodiments.

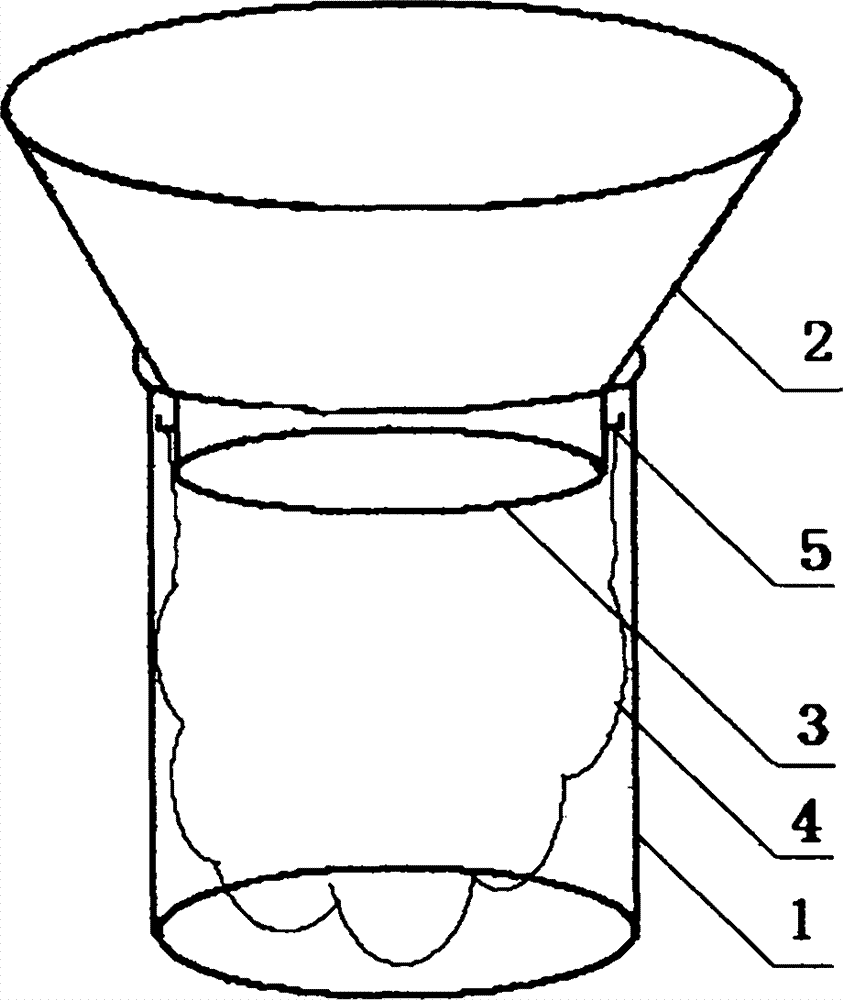

附图1为新型垃圾桶一个具体实施例的透视结构示意图。Accompanying drawing 1 is the perspective structure schematic diagram of a specific embodiment of novel dustbin.

具体实施方式：Detailed ways:

如附图1所示：一种新型垃圾桶，包括桶身1，在桶身1的上方设有一个漏斗状的收集罩2，收集罩2的下罩口3套接一个垃圾袋4，垃圾袋4位于桶身1内，下罩口3的外侧侧壁上设有多个挂钩5，垃圾袋4的上缘钩挂在挂钩5上。As shown in accompanying drawing 1: a kind of novel trash can, comprises bucket body 1, is provided with a funnel-shaped collection cover 2 above bucket body 1, and the lower cover mouth 3 of collection cover 2 is socketed with a garbage bag 4, garbage Bag 4 is positioned at barrel body 1, is provided with a plurality of hooks 5 on the outer side wall of lower cover opening 3, and the upper edge of garbage bag 4 is hooked on the hooks 5.

在使用本新型垃圾桶时，拔下收集罩2，把一个大小与桶身1相配合的垃圾袋4套在收集罩2的下罩口3上，并且把其上缘钩挂在挂钩5上，然后再把收集罩2套进桶身1的上方，当需要清倒垃圾时，再次拔下收集罩2则同时就把垃圾袋4提出来，从而把垃圾转运掉。When using the new garbage can, pull out the collection cover 2, put a garbage bag 4 matching the size of the bucket body 1 on the lower cover mouth 3 of the collection cover 2, and hang its upper edge on the hook 5 , and then put the collection cover 2 into the top of the bucket body 1, when the garbage needs to be cleared, pull out the collection cover 2 again and then simultaneously put out the garbage bag 4, so that the garbage is transported away.

Claims

1. novel garbage can, comprise ladle body (1), it is characterized in that: be provided with a funnelform collecting hood (2) in the top of ladle body (1), lower cover mouth (a 3) socket refuse bag (4) of collecting hood (2), refuse bag (4) is positioned at ladle body (1), the outside sidewall of lower cover mouth (3) is provided with a plurality of hooks (5), and the upper limb of refuse bag (4) is hooked on hook (5).
