CN203245062U - Watering device combined with intelligent solar street lamp - Google Patents
Watering device combined with intelligent solar street lamp Download PDFInfo
- Publication number
- CN203245062U CN203245062U CN 201220756604 CN201220756604U CN203245062U CN 203245062 U CN203245062 U CN 203245062U CN 201220756604 CN201220756604 CN 201220756604 CN 201220756604 U CN201220756604 U CN 201220756604U CN 203245062 U CN203245062 U CN 203245062U
- Authority
- CN
- China
- Prior art keywords
- rainwater
- power generation
- solar
- watering device
- street lamp
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 23
- 238000009825 accumulation Methods 0.000 claims abstract description 22
- 238000010248 power generation Methods 0.000 claims abstract description 17
- 238000000034 method Methods 0.000 claims abstract description 15
- 238000005096 rolling process Methods 0.000 claims description 4
- 238000005516 engineering process Methods 0.000 abstract description 5
- 230000000694 effects Effects 0.000 abstract description 2
- 238000005192 partition Methods 0.000 abstract description 2
- 238000005507 spraying Methods 0.000 abstract 1
- 238000004140 cleaning Methods 0.000 description 3
- 230000005611 electricity Effects 0.000 description 2
- 239000007921 spray Substances 0.000 description 2
- 101710021301 TRIM23 Proteins 0.000 description 1
- OKTJSMMVPCPJKN-UHFFFAOYSA-N carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 description 1
- 239000003245 coal Substances 0.000 description 1
- 230000002950 deficient Effects 0.000 description 1
- 238000005286 illumination Methods 0.000 description 1
- 229910052500 inorganic mineral Inorganic materials 0.000 description 1
- 230000002262 irrigation Effects 0.000 description 1
- 238000003973 irrigation Methods 0.000 description 1
- 239000011707 mineral Substances 0.000 description 1
- 239000003345 natural gas Substances 0.000 description 1
- 238000005381 potential energy Methods 0.000 description 1
- 239000002699 waste material Substances 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/72—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps in street lighting
Abstract
Provided is a watering device combined with an intelligent solar street lamp. The watering device combined with the intelligent solar street lamp comprises a process rainwater power generation device b, a rainwater accumulation spraying device c connected with the lower end of the process rainwater power generation device b, a solar power generation rainwater accumulation device a and an energy saving lamp lighting device d. The solar power generation rainwater accumulation device a and the energy saving lamp lighting device d are arranged at the upper end of process rainwater power generation device b. The watering device for the intelligent solar street lamp has following advantages: solar energy technology is used in lighting of street lamps; solar energy is utilized to the maximum degree by adopting an arc-shaped partition and a solar energy following system; a large quantity of rainwater as natural resources is fully used so that not only energy but also water resource is saved, and an intelligentized design of the street lamps is free from the laying of a large quantity of electric wires and workload of a sprinkling truck. Therefore, environmentally-friendly and energy-saving effects are achieved and a people-oriented objective is fulfilled.
Description
Technical field
The utility model relates to the traffic environment field of energy-saving technology, specifically a kind of intelligent solar road lamp watering device.
Background technology
Since 21 century, along with coal, oil, the mineral resources such as natural gas day by day deficient, as on the earth the most direct the most general also be that the solar energy that cleans most becomes more and more important, but the energy density of solar energy is low, although the technology that present human use's solar energy generates electricity reaches its maturity, the efficient of but utilizing but is not very high, and the street lamp of both sides, road surface is still common street lamp mostly now, the power consumption power consumption.
During every rainy day, the rainwater on road surface runs off in a large number; When fine, when traffic ground is cleaned, need again the sprinkling truck to carry out the ground watering, the great lot of water resources waste of not only running off, and also the use on large-scale sprinkling truck is made troubles to people and traffic.
The utility model content
The purpose of this utility model is that design is a kind of solar electrical energy generation, rain water electricity generating and road surface cleaning, the intelligent solar road lamp watering device that street lighting integrates.Spray the road surface after assembling rainwater by the street lamp gathering-device, and utilize potential energy generation technology comprehensive electric generating.
The utility model intelligent solar road lamp watering device, comprise: process power generation apparatus by rainwater b, process power generation apparatus by rainwater b lower end connects rainwater accumulation flusher c, and process power generation apparatus by rainwater b upper end is equipped with sun generating rainwater converging device a CFL lighting device d.
Described sun generating rainwater converging device a, comprise: arc-shaped solar dividing plate 1, solar energy dividing plate 1 therebetween one rectangle water inlet automatically-controlled door 2, solar energy dividing plate 1 is fixed on rainwater by rolling bearing 3 and converges on the case 6, water inlet automatically-controlled door 2 belows connect rainwater and converge box 4, and rainwater converges box 4 lower ends and connects water inlet pipe 5.
Described process power generation apparatus by rainwater b, comprise: street lamp outer tube 8, be connected to inner tube 9 in the street lamp outer tube 8,9 one of inner tubes connect rainwater and converge case 6, the other end is transferred in the rainwater accumulation box 10, the impeller 7 of uniform several generators that distribute in the inner tube 9, the axostylus axostyle of each impeller 7 connects the generator 11 of street lamp outer tube 8.
Described rainwater accumulation flusher c comprises: four insufflation showerheads 13 installing on rainwater accumulation box 10 and the rainwater accumulation box 10.
Described CFL lighting device d comprises the lampshade 14 on LED electricity-saving lamp 12 and the LED electricity-saving lamp 12.
The advantage of the utility model intelligent solar road lamp watering device is: heliotechnics is applied on the street lighting, and adopt arc-shaped partition and solar energy system for tracking maximum utility utilization solar energy, a large amount of natural resources rainwater is utilized fully, both save energy, saved again water resource; And laying and the sprinkling truck workload of a large amount of electric wires have been saved in the intelligentized design of street lamp, and the effect of both having accomplished the greenization energy-saving has been accomplished again the purpose that people-oriented.
Description of drawings

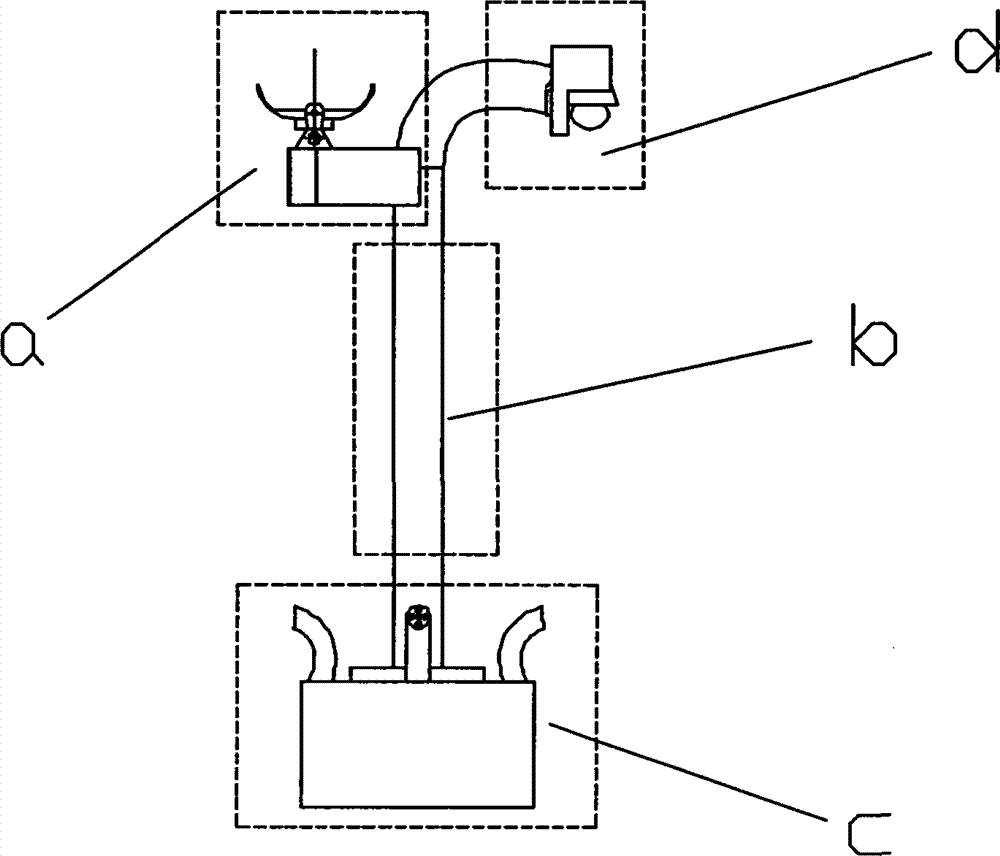

Fig. 1 is the front view of intelligent solar road lamp watering device.
Fig. 2 is the structural representation of intelligent solar road lamp watering device
The specific embodiment
As shown in the figure, a kind of intelligent solar road lamp watering device, comprise: process power generation apparatus by rainwater b, process power generation apparatus by rainwater b lower end connects rainwater accumulation flusher c, and process power generation apparatus by rainwater b upper end is equipped with sun generating rainwater converging device a and CFL lighting device d.
Described sun generating rainwater converging device a, comprise: arc-shaped solar dividing plate 1, two solar energy dividing plates, 1 therebetween, one rectangle water inlet automatically-controlled door 2, two solar energy dividing plates 1 are fixed on rainwater by two rolling bearings 3 and converge on the case 6, water inlet automatically-controlled door 2 belows connect rainwater and converge box 4, and rainwater converges box 4 lower ends and connects water inlet pipe 5.
Described process power generation apparatus by rainwater b, comprise: street lamp outer tube 8, be connected to inner tube 9 in the street lamp outer tube 8,9 one of inner tubes connect rainwater and converge case 6, the other end is transferred in the rainwater accumulation box 10, the impeller 7 of uniform several generators that distribute in the inner tube 9, the axostylus axostyle of each impeller 7 connects the generator 11 of street lamp outer tube 8.
Described rainwater accumulation flusher c comprises: four insufflation showerheads 13 installing on rainwater accumulation box 10 and the rainwater accumulation box 10.
Described CFL lighting device d comprises the lampshade 14 on LED electricity-saving lamp 12 and the LED electricity-saving lamp 12.
The utility model intelligent solar road lamp watering device is achieved in that
When fine day, solar energy dividing plate 1 adopts two arcs to be conducive to converge light, realizes the light intensity stack, two rolling bearings 3 cooperate built-in single-chip microcomputer system for tracking, so that solar energy arc 1 is followed solar motion when illumination is sufficient, the realization maximal efficiency is utilized solar electrical energy generation.
When the rainy day, arc-shaped solar dividing plate 1 is collected rainwater, when the centre reaches certain pressure, water inlet automatically-controlled door 2 intelligence are pushed open to both sides, rainwater just enters rainwater and converges in the box 4, the rainwater that rainwater converges 4 li in box enters rainwater by water inlet pipe 5 and converges in the case 6, when rainwater converges case 6 water when full, the pressure that pressure sensor on the promotion door is sensed reaches certain value, pushing is open, and large water gaging is gushed out from case, promotes impeller 7 generatings, the axostylus axostyle of impeller 7 connects the generator 11 of outer tube, to sun generating rainwater converging device a and energy-saving lamp device d and the rainwater accumulation flusher c power supply of street lamp outer tube 8 connections.
Rainwater converges case 6 from rainwater and flows out, and flow in the rainwater accumulation box 10 along inner tube 9, and level sensor, temperature sensor and little water pump also are equipped with in rainwater accumulation box 10 inside.When water is filled in the rainwater accumulation box, hydraulic pressure sensor reaction, notify in time that rainwater converges case 6 automatically-controlled doors mandatory close and solar electrical energy generation rainwater converging device a in water inlet automatically-controlled door 2 mandatory closing; The variations in temperature of temperature sensor senses outside, when external temperature is too high, little water pump energising work, shower nozzle 13 is opened water spray, and four insufflation showerheads 13 are respectively applied to the irrigation of flowers, plants and trees on every side and the cleaning of dry roads respectively towards four direction.
Smaller even when being zero when hydraulic pressure, push and close, rainwater converges case 6 and continues ponding until fill, and if when arc-shaped solar dividing plate 1 intermediate pressure during less than certain value, just on automatically-controlled door 2 automatic pressings of intaking.
Described water inlet pipe 5 adopts elastoplast to make, and can follow solar energy dividing plate 1 and rotate, and rainwater converges case 6 delivery ports and also is equipped with intelligent driving door.
Claims (5)
1. intelligent solar road lamp watering device, it is characterized in that: comprising: process power generation apparatus by rainwater b, process power generation apparatus by rainwater b lower end connects rainwater accumulation flusher c, and process power generation apparatus by rainwater b upper end is equipped with sun generating rainwater converging device a and CFL lighting device d.
2. intelligent solar road lamp watering device according to claim 1, it is characterized in that: described sun generating rainwater converging device a, comprise: arc-shaped solar dividing plate (1), solar energy dividing plate (1) therebetween one rectangle water inlet automatically-controlled door (2), solar energy dividing plate (1) is fixed on rainwater by rolling bearing (3) and converges on the case (6), water inlet automatically-controlled door (2) below connects rainwater and converges box (4), and rainwater converges box (4) lower end and connects water inlet pipe (5).
3. intelligent solar road lamp watering device according to claim 1, it is characterized in that: described process power generation apparatus by rainwater b, comprise: street lamp outer tube (8), be connected to inner tube (9) in the street lamp outer tube (8), (9) one of inner tubes connect rainwater and converge case (6), the other end is transferred in the rainwater accumulation box (10), the impeller (7) of uniform several generators that distribute in the inner tube (9), the axostylus axostyle of each impeller (7) connects the generator (11) of street lamp outer tube (8).
4. intelligent solar road lamp watering device according to claim 1 is characterized in that: described rainwater accumulation flusher c comprises: upper four insufflation showerheads (13) installed of rainwater accumulation box (10) and rainwater accumulation box (10).
5. intelligent solar road lamp watering device according to claim 1, it is characterized in that: described CFL lighting device d comprises the lampshade (14) on LED electricity-saving lamp (12) and the LED electricity-saving lamp (12).
