CN203242881U - A data line of an automated operating table - Google Patents
A data line of an automated operating table Download PDFInfo
- Publication number
- CN203242881U CN203242881U CN 201320079701 CN201320079701U CN203242881U CN 203242881 U CN203242881 U CN 203242881U CN 201320079701 CN201320079701 CN 201320079701 CN 201320079701 U CN201320079701 U CN 201320079701U CN 203242881 U CN203242881 U CN 203242881U
- Authority
- CN
- China
- Prior art keywords
- joint
- data wire
- subsequent use
- data line
- core
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Processing Of Terminals (AREA)
Abstract
The utility model discloses a data line of an automated operating table. The data line comprises a data line body. The data line body comprises a rubber pipe and two wire cores disposed in the rubber pipe. The two wire cores comprise a main wire core and a standby wire core. One end of the data line body is equipped with an operating table connector which is connected with the main wire core and the standby wire core simultaneously. The main wire core on the other end of the data line body is connected with a main connector. The standby wire core on the other end of the data line body is connected with a standby connector. If the main connector is damaged, the standby connector can be used immediately. The data line is prevented from repairing when a device is turned off. Therefore, the data line has beneficial effects of maintaining continuous operation of a device and increasing work efficiency.
Description
Technical field
The utility model relates to a kind of field of data transmission, relates in particular to a kind of data wire of automatically working platform.
Background technology
At present; in automatic production line; the automatically working platform is connected with mould by data wire; mould is fixed on and carries out operation on the automatically working platform; because mould needs frequent; the attachment plug of data wire and mould also needs to plug frequently; simultaneously in process of production; the mould vibrations are larger; these reasons all can cause the joint of data wire to break down easily and cause signal undesired; reduce the final useful life that affects data wire, and this just needs to shut down maintenance, will affect like this production efficiency of mould.
Chinese patent Granted publication number: CN201294273Y, August 19 2009 Granted publication day, a kind of data wire is disclosed, this data wire comprises data wire line body and at least two joints that are connected on this data wire line body, described data wire line body includes many heart yearns, wherein, described data wire line body also includes the plastically deformable wire rod more than, this plastically deformable wire rod is arranged to make whole data wire line body to produce plastic deformation, thereby can keep the deformation state of this data wire line body.This kind data wire line body can produce plastic deformation as required, thereby keeps its deformation state in the time of can changing in the position, has made things convenient for the use of data wire.Its weak point is that this kind data wire lacks joint for subsequent use, and when a joint of data wire damaged, making needed to shut down maintenance, has a strong impact on utilization rate of equipment and installations.
The utility model content
The utility model need to be shut down maintenance in order to overcome when data line interface of the prior art damages; have a strong impact on the deficiency of the utilization rate of equipment; a kind of joint for subsequent use of being with is provided; when damaging, joint can directly use joint for subsequent use; need not to shut down, thus the data wire of the automatically working platform of raising utilization rate of equipment and installations.
To achieve these goals, the utility model adopts following technical scheme:
A kind of data wire of automatically working platform, comprise the data wire body, described data wire body comprises rubber tube and is located at two groups of interior cores of rubber tube, be respectively master core and core for subsequent use, one end of data wire body is provided with the workbench joint, described workbench joint is connected core connection for subsequent use simultaneously with master core, be connected with on the master core of the other end of described data wire body on major joint, the core for subsequent use and be connected with joint for subsequent use.The workbench joint is connected with the automatically working platform; major joint and mould or other equipment connections; so just can cross master core to the information exchange in the automatically working platform and pass to mould or other equipment; because mould needs frequent; when major joint damages; extract immediately major joint; plug joint for subsequent use; owing to and be connected the other end and the master core common bed joint of core for subsequent use of joint connection; therefore the information in the automatically working platform also can be delivered to joint for subsequent use by core for subsequent use and then pass to mould etc.; mould or other equipment just can work like this; then the maintainer keeps in repair or changes major joint; can not waste time, can not affect the equipment downtimes such as mould, utilization rate of equipment and installations is more increased.
As preferably, four sides of described workbench joint, major joint and joint for subsequent use all are provided with boss, and the height of boss end face reduces to the other end gradually from the end near the data wire body.A lot of workbench joints, major joint and the connection of joint of being connected are all tighter, inconvenient when sometimes extracting, damage easily core when firmly pullling, can pinch boss by two fingers this moment workbench joint, major joint and joint for subsequent use are made things convenient for, pull out easily, safer, convenient.
As preferably, the end face of described boss is provided with anti-skidding striped.When speckling with on hand greasy dirt or sweat is arranged, because sliding being difficult to of hand pulled out workbench joint, major joint and joint for subsequent use, anti-skidding striped can increase frictional force, and is even also can pull out joint when finger is relatively more sliding, more laborsaving.
As preferably; the outside of described rubber tube is arranged with the silk screen protective sleeve; the link of described major joint, joint for subsequent use and data wire body is provided with connection reinforcing sleeve, and an end of described connection reinforcing sleeve is enclosed within on major joint, the joint for subsequent use, and the other end is connected with the silk screen protective sleeve.The silk screen protective sleeve can be strengthened the tensile strength of data wire body; the end of silk screen protective sleeve is connected with major joint, joint for subsequent use respectively; can prevent effectively that operating personnel from directly pullling because of carelessness the data wire body and causing joint and data wire body to disconnect and damage when pulling out joint; the silk screen protective sleeve also has shielding action simultaneously; can disturb by the extraneous electric field of shielding, transfer of data is more stable.
Therefore, the utlity model has following beneficial effect: (1) can use joint for subsequent use immediately when major joint damages, do not need shutdown maintenance, keeps the equipment continuous operation; (2) plug of workbench joint, major joint and joint for subsequent use is all very convenient.
Description of drawings

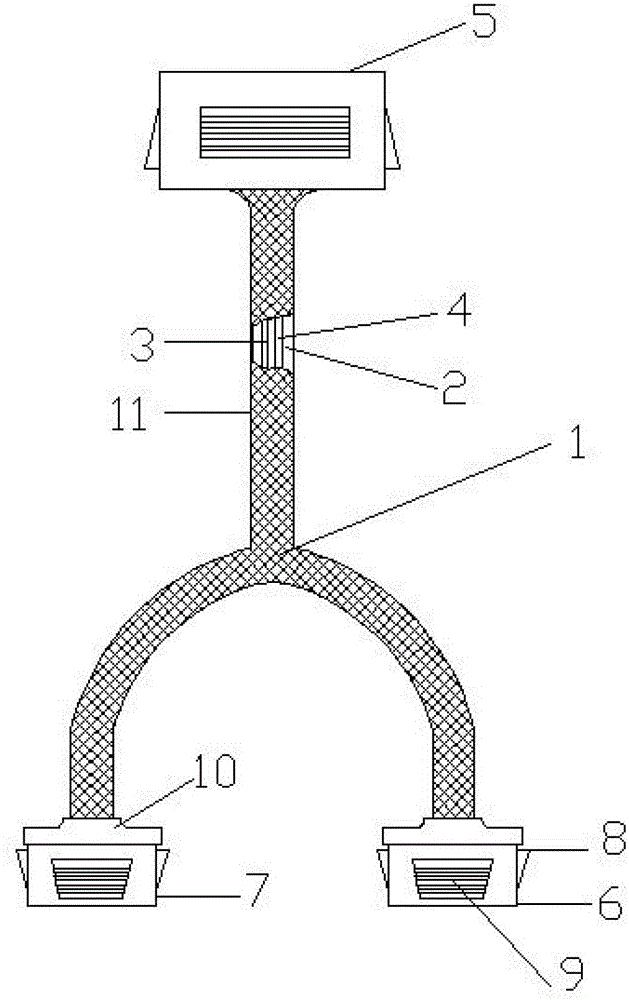

Fig. 1 is a kind of structural representation of the present utility model.
Among the figure: data wire body 1 rubber tube 2 master cores 3 core 4 workbench joints 5 joint 6 major joints 7 boss 8 anti-skidding striped 9 connection reinforcing sleeves 10 silk screen protective sleeves 11 for subsequent use for subsequent use
Embodiment
Below in conjunction with the drawings and specific embodiments the utility model is further described:
The data wire of a kind of automatically working platform as shown in Figure 1, comprise data wire body 1, data wire body 1 comprises rubber tube 2 and is located at two groups of interior cores of rubber tube, two groups of cores are respectively master core 3 and core for subsequent use 4, data wire body integral body is Y-shaped, have three terminals, be connected with workbench joint 5 on one of them terminals, in rubber tube corresponding to these terminals master core 3 and core for subsequent use 4 are arranged, master core be connected core and be connected with the workbench joint simultaneously, the workbench joint is connected with the automatically working platform, two other terminals of data wire body are connected with respectively major joint 7 and joint for subsequent use 6, major joint is connected with master core, joint for subsequent use is connected with core for subsequent use, the outside cover of rubber tube 2 has silk screen protective sleeve 11, the silk screen protective sleeve is the tubulose cover that is formed by thin metal wire knitted, has very strong stretch-proof ability, the effect that also has electrostatic screen, major joint 7, joint 6 for subsequent use is provided with connection reinforcing sleeve 10 with the link of data wire body 1, one end of connection reinforcing sleeve tightly be enclosed within major joint, the end of joint for subsequent use, the other end is connected with the silk screen protective sleeve, in the time of operating personnel's unplugg, directly pulled out because of carelessness the data wire body, and the active force major part has all been born by silk screen protective sleeve and connection reinforcing sleeve, core in the rubber sleeve can under tension, thereby the protection core is broken; Four sides of workbench joint 5, major joint 7 and joint for subsequent use 6 all are provided with boss 8, the end face of boss 8 is the inclined-plane, the height of end face reduces to the other end gradually from the end near the data wire body, the end face of boss 8 is provided with anti-skidding striped 9, two fingers pinch respectively the boss of the relative both sides of joint when pulling out any one joint, pull out joint just very the labour-saving extract joint, even speckle with sweat or greasy dirt also can easily be extracted joint on the finger.
By reference to the accompanying drawings; using method of the present utility model is as follows: the workbench joint is connected with the automatically working platform; the equipment connection such as major joint and mould; when the data transmission goes wrong; extract immediately major joint; insert joint for subsequent use; the equipment such as mould still can work; the maintenance personal keeps in repair major joint; changing again major joint after joint for subsequent use damages gets final product; like this with regard to avoiding because maintenance or change and to look for joint and cause the equipment downtime such as mould, thereby improve the production efficiency of the equipment such as mould.Therefore, the utlity model has and to keep the equipment continuous operation, the beneficial effect of increasing work efficiency.
Claims (4)
1. the data wire of an automatically working platform, it is characterized in that, comprise data wire body (1), described data wire body (1) comprises rubber tube (2) and is located at two groups of interior cores of rubber tube, be respectively master core (3) and core for subsequent use (4), one end of data wire body (1) is provided with workbench joint (5), described workbench joint (5) while and master core (3), core for subsequent use (4) connects, and (3) are connected with major joint (7) on the master core of the other end of described data wire body (1), be connected with joint for subsequent use (6) on the core for subsequent use (4).
2. the data wire of a kind of automatically working platform according to claim 1, it is characterized in that, four sides of described workbench joint (5), major joint (7) and joint for subsequent use (6) all are provided with boss (8), and the height of boss end face reduces to the other end gradually from the end near the data wire body.
3. the data wire of a kind of automatically working platform according to claim 2 is characterized in that, the end face of described boss (8) is provided with anti-skidding striped (9).
4. the data wire of a kind of automatically working platform according to claim 1; it is characterized in that; the outside of described rubber tube (2) is arranged with silk screen protective sleeve (11); described major joint (7), joint for subsequent use (6) are provided with connection reinforcing sleeve (10) with the link of data wire body (1); one end of described connection reinforcing sleeve (10) is enclosed within on major joint (7), the joint for subsequent use (6), and the other end is connected with silk screen protective sleeve (11).
