CN203240334U - Intelligent light-adjusting LED (light-emitting diode) lamp - Google Patents
Intelligent light-adjusting LED (light-emitting diode) lamp Download PDFInfo
- Publication number
- CN203240334U CN203240334U CN2013201455306U CN201320145530U CN203240334U CN 203240334 U CN203240334 U CN 203240334U CN 2013201455306 U CN2013201455306 U CN 2013201455306U CN 201320145530 U CN201320145530 U CN 201320145530U CN 203240334 U CN203240334 U CN 203240334U
- Authority
- CN
- China
- Prior art keywords
- module
- control module
- circuit
- led lamp
- led
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Circuit Arrangement For Electric Light Sources In General (AREA)
Abstract
The utility model provides an intelligent light-adjusting LED (light-emitting diode) lamp and relates to the field of an LED electronic circuit. The lamp comprises a power conversion module, a Zigbee control module, a PWM (Pulse-Width Modulation) control module and an intelligent light-adjusting module, wherein the power conversion module is connected with a power supply and is connected with the Zigbee control module and the PWM control module; the intelligent light-adjusting module is connected with the Zigbee control module; the Zigbee control module is connected with the PWM control module; the PWM control module is connected with the LED lamp; the intelligent light-adjusting module is used for receiving an input signal of a user and outputting a corresponding control signal; the control signal is transmitted to the PWM control module through the Zigbee control module and is used for controlling the work of the LED. The brightness of the LED lamp is adjusted optionally in all-color range; the LED lamp is matched with an intelligent domestic system and then can be applied in a plurality of scenes.
Description
Technical field
The utility model relates to the electrical lighting field, relates in particular to a kind of intelligent dimming LED lamp and intelligent dimming module.
Background technology
Since the human consciousness arrives by every possible means energy-saving and emission-reduction, after could solving the pressing issues that atmosphere warms, how reducing electric consumption on lighting just puts on the agenda as an important problem, at present, overwhelming majority family still adopts fluorescent lamp or electricity-saving lamp to throw light on, saved to a great extent the energy, but electricity-saving lamp can not carry out brightness regulation, needing the occasion of Dimming, such as WA in the late into the night, bulb still keeps normal brightness, not only makes us feeling dazzling, has also caused the waste of the energy; And traditional energy-saving lamp can only send single white light, can not mix colours, and can not realize various scene lighting effects.Can't satisfy the living needs that the user is become increasingly abundant.Use the utility model LED bulb, can realize the theory of " as required illumination, Dimmable lighting, color-adjustable illumination ", reach good energy-conservation and light variation effect.
The utility model content
The utility model is intended to solve at least the technical problem that exists in the prior art, has proposed to special innovation a kind of intelligent dimming LED lamp and intelligent dimming module.
In order to realize above-mentioned purpose of the present utility model, the utility model provides a kind of intelligent dimming LED lamp, comprising: power transfer module, Zigbee control module, PWM control module and intelligent dimming module;
Described power transfer module links to each other with power supply, and described power transfer module also links to each other with the PWM control module with the Zigbee control module respectively, is used for supply voltage is converted to the use voltage of Zigbee control module and PWM control module;
Described intelligent dimming module links to each other with described Zigbee control module, described Zigbee control module links to each other with the PWM control module, described PWM control module links to each other with the LED lamp, described intelligent dimming module receives user's input signal and exports corresponding control signal, described control signal is transferred to described PWM control module by described Zigbee control module, is used for controlling the work of described LED.
The beneficial effect of such scheme is: this LED bulb can pass through software adjustment brightness, brightness regulation at times, as the late into the night bulb brightness automatically reduce lamp from dazzling when avoiding getting up in the night to urinate; This LED bulb can also be by selecting chromatogram at terminal software, and carrying out panchromatic to the bulb color is that scope is regulated arbitrarily; Can cooperate intelligent domestic system, realize the several scenes application, under the stage pattern, gateway can be controlled the LED bulb and automatically carry out color checker, flicker, realizes stage-lighting effect.
Described intelligent dimming LED lamp, preferred, described intelligent dimming module comprises: select module, light configuration module, lighting effects memory module, calling module and sending module;
Described selection module connects the light configuration module, described selection module is used for the user and disposes needed scene mode or call the scene mode that the lighting effects memory module is stored, described selection module connecting lamp light effect memory module, described light configuration module connecting lamp light effect memory module, described light configuration module stores the lighting effects memory module into according to user's input signal configuration scene mode and with the scene mode that configuration is finished, described lighting effects memory module call connected module, described calling module is used for calling the scene mode that described lighting effects memory module is stored, described calling module connects sending module, is used for described scene mode is sent to the Zigbee control module.
The beneficial effect of such scheme is: the user is by selection module, light configuration module, lighting effects memory module, calling module and the sending module of described intelligent dimming module, coordinated is brought into play more optimal effect for the LED lighting effects after using.
Described intelligent dimming LED lamp, preferred, also comprise: intelligent terminal, gateway module;
Described intelligent terminal is connected with gateway module, described intelligent terminal comprises local intelligent terminal and remote intelligent terminal, the local intelligent terminal directly is connected with gateway module, remote intelligent terminal is connected with gateway module by the internet, and described intelligent terminal is used for sending the scene mode instruction by gateway module control intelligent dimming module.
The beneficial effect of such scheme is: use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
Described intelligent dimming LED lamp, preferred, described PWM control module comprises: ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit;
Described power transfer module connects the ac-dc converter circuit input, described ac-dc converter circuit output connects generation circuit and square-wave input, and described ac-dc converter circuit is converted to direct current for the alternating current with power transfer module and supplies with described generation circuit and square-wave;
Described generation circuit and square-wave output connects the filter circuit input, described filter circuit output connects the adjusting control circuit input, described adjusting control circuit output connects transforming circuit, the luminance instructions that described adjusting control circuit is used for regulating the LED lamp is transferred to the LED lamp by transforming circuit;
Described ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit are in parallel successively, and described transforming circuit is connected in series the LED lamp.
The beneficial effect of such scheme is: described ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit are in parallel successively, described transforming circuit is connected in series the connected mode of LED lamp, can make lighting effects, and is stable, beautiful, the LED lamp is prolonged service life.
Described intelligent dimming LED lamp, preferred, also comprise: lampshade, described lampshade use the milky lampshade with bulb envelope.
The beneficial effect of such scheme is: lampshade uses the milky lampshade can make lighting effects more accurate, beautiful bulb envelope.
Described intelligent dimming LED lamp, preferred, described LED lamp comprises three kinds of LED lamps of red, green, blue pearl.
The beneficial effect of such scheme is: trichromatic configuration, and make the LED lamp under the most brief configuration, producing panchromatic is lighting effects.
The utility model also discloses a kind of intelligent dimming module, comprising: select module, light configuration module, lighting effects memory module, calling module and sending module;
Described selection module connects the light configuration module, described selection module is used for user selection and disposes needed scene mode or call the scene mode that the lighting effects memory module is stored, described selection module connecting lamp light effect memory module, described light configuration module connecting lamp light effect memory module, the scene mode that configuration is finished stores the lighting effects memory module into, described lighting effects memory module call connected module, described calling module is used for calling the scene mode that described lighting effects memory module is stored, described calling module connects sending module, is used for described scene mode is sent to the Zigbee control module.
The beneficial effect of such scheme is: the user is by selection module, light configuration module, lighting effects memory module, calling module and the sending module of described intelligent dimming module, coordinated is brought into play more optimal effect for the LED lighting effects after using.
Described intelligent dimming module, preferably, also comprise: intelligent terminal, gateway module, described intelligent terminal is connected with gateway module, described intelligent terminal comprises local intelligent terminal and remote intelligent terminal, the local intelligent terminal directly is connected with gateway module, and remote intelligent terminal is connected with gateway module by the internet, and described intelligent terminal is used for sending the scene mode instruction by gateway module control intelligent dimming module.
The beneficial effect of such scheme is: use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
In sum, owing to adopted technique scheme, the beneficial effects of the utility model are: this LED bulb can pass through software adjustment brightness, brightness regulation at times, as the late into the night bulb brightness automatically reduce lamp from dazzling when avoiding getting up in the night to urinate; This LED bulb can also be by selecting chromatogram at terminal software, and carrying out panchromatic to the bulb color is that scope is regulated arbitrarily; Can cooperate intelligent domestic system, realize the several scenes application, under the stage pattern, gateway can be controlled the LED bulb and automatically carry out color checker, flicker, realizes stage-lighting effect.
Use this LED bulb, can realize dimming function, the late into the night WA, light is no longer dazzling, and is not only comfortable but also energy-conservation.
Use this LED bulb, your lighting environment no longer only has dull white.
Use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
Family uses in the hall this light modulation toning LED bulb, brings a kind of different impression for household and guest, except energy savings, can also show fully luxurious and warm;
In the bedroom or the study use this LED bulb, can satisfy the different light demand of user.
Enterprise uses the utility model, and the personalized light environment of construction can show the strength of enterprise fully.
Additional aspect of the present utility model and advantage in the following description part provide, and part will become obviously from the following description, or recognize by practice of the present utility model.
Description of drawings
Above-mentioned and/or additional aspect of the present utility model and advantage are from obviously and easily understanding becoming the description of embodiment in conjunction with following accompanying drawing, wherein:

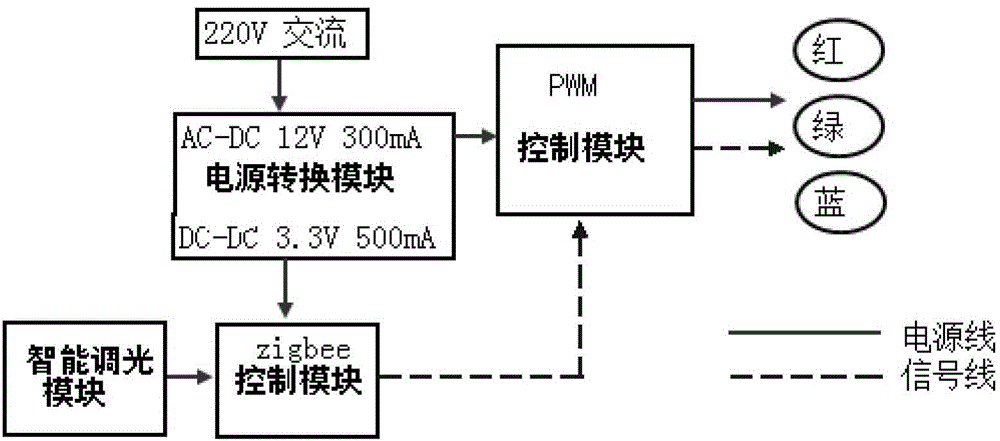

Fig. 1 is the utility model intelligent dimming LED circuit for lamp structure chart;
Fig. 2 is the utility model intelligent dimming LED lamp light modulation toning control principle drawing;
Fig. 3 is the utility model intelligent dimming LED lamp light modulation toning circuit diagram;
Fig. 4 is the intelligent dimming modular circuit schematic diagram of the utility model intelligent dimming LED lamp;
Fig. 5 is the utility model intelligent dimming LED lamp network topological diagram;
Fig. 6 is the utility model intelligent dimming LED lamp RGB color matching principle figure;
Fig. 7 is the stage pattern configurations interface of the utility model intelligent dimming LED lamp.
The specific embodiment
The below describes embodiment of the present utility model in detail, and the example of described embodiment is shown in the drawings, and wherein identical or similar label represents identical or similar element or the element with identical or similar functions from start to finish.Be exemplary below by the embodiment that is described with reference to the drawings, only be used for explaining the utility model, and can not be interpreted as restriction of the present utility model.
In description of the present utility model, it will be appreciated that, term " vertically ", " laterally ", " on ", D score, " front ", " afterwards ", " left side ", " right side ", " vertically ", " level ", " top ", " end " " interior ", orientation or the position relationship of indications such as " outward " are based on orientation shown in the drawings or position relationship, only be for convenience of description the utility model and simplified characterization, rather than device or the element of indication or hint indication must have specific orientation, with specific orientation structure and operation, therefore can not be interpreted as restriction of the present utility model.
In description of the present utility model, unless otherwise prescribed and limit, need to prove that term " installation ", " linking to each other ", " connection " should be done broad understanding, for example, can be mechanical connection or electrical connection, also can be the connection of two element internals, can be directly to link to each other, and also can indirectly link to each other by intermediary, for the ordinary skill in the art, can understand as the case may be the concrete meaning of above-mentioned term.
Technical problem to be solved in the utility model is: by a bulb, can realize the function of linearity light adjusting, the toning of panchromatic system, and can regulate by remote terminals such as smart mobile phones, also can realize the lighting effects of different scene modes.
As shown in Figure 1, intelligent dimming LED lamp is by the Zigbee control module, PWM control module, and change-over circuit AC-DC, and DC-DC.
As shown in Figure 2, the utility model provides a kind of intelligent dimming LED lamp, comprising: power transfer module, Zigbee control module, PWM control module and intelligent dimming module;
Described power transfer module links to each other with power supply, and described power transfer module also links to each other with the PWM control module with the Zigbee control module respectively, is used for supply voltage is converted to the use voltage of Zigbee control module and PWM control module;
Described intelligent dimming module links to each other with described Zigbee control module, described Zigbee control module links to each other with the PWM control module, described PWM control module links to each other with the LED lamp, described intelligent dimming module receives user's input signal and exports corresponding control signal, described control signal is transferred to described PWM control module by described Zigbee control module, is used for controlling the work of described LED.
The beneficial effect of such scheme is: this LED bulb can pass through software adjustment brightness, brightness regulation at times, as the late into the night bulb brightness automatically reduce lamp from dazzling when avoiding getting up in the night to urinate; This LED bulb can also be by selecting chromatogram at terminal software, and carrying out panchromatic to the bulb color is that scope is regulated arbitrarily; Can cooperate intelligent domestic system, realize the several scenes application, under the stage pattern, gateway can be controlled the LED bulb and automatically carry out color checker, flicker, realizes stage-lighting effect.
As shown in Figure 4, described intelligent dimming LED lamp, preferred, described intelligent dimming module comprises: select module, light configuration module, lighting effects memory module, calling module and sending module;
Described selection module connects the light configuration module, described selection module is used for the user and disposes needed scene mode or call the scene mode that the lighting effects memory module is stored, described selection module connecting lamp light effect memory module, described light configuration module connecting lamp light effect memory module, described light configuration module stores the lighting effects memory module into according to user's input signal configuration scene mode and with the scene mode that configuration is finished, described lighting effects memory module call connected module, described calling module is used for calling the scene mode that described lighting effects memory module is stored, described calling module connects sending module, is used for described scene mode is sent to the Zigbee control module.
The beneficial effect of such scheme is: the user is by selection module, light configuration module, lighting effects memory module, calling module and the sending module of described intelligent dimming module, coordinated is brought into play more optimal effect for the LED lighting effects after using.
As shown in Figure 5, described intelligent dimming LED lamp, preferred, also comprise: intelligent terminal, gateway module;
Described intelligent terminal is connected with gateway module, described intelligent terminal comprises local intelligent terminal and remote intelligent terminal, the local intelligent terminal directly is connected with gateway module, remote intelligent terminal is connected with gateway module by the internet, and described intelligent terminal is used for sending the scene mode instruction by gateway module control intelligent dimming module.
The beneficial effect of such scheme is: use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
As shown in Figure 3, described intelligent dimming LED lamp, preferred, described PWM control module comprises: ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit;
Described power transfer module connects the ac-dc converter circuit input, described ac-dc converter circuit output connects generation circuit and square-wave input, and described ac-dc converter circuit is converted to direct current for the alternating current with power transfer module and supplies with described generation circuit and square-wave;
Described generation circuit and square-wave output connects the filter circuit input, described filter circuit output connects the adjusting control circuit input, described adjusting control circuit output connects transforming circuit, the luminance instructions that described adjusting control circuit is used for regulating the LED lamp is transferred to the LED lamp by transforming circuit;
Described ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit are in parallel successively, and described transforming circuit is connected in series the LED lamp.
The beneficial effect of such scheme is: described ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit are in parallel successively, described transforming circuit is connected in series the connected mode of LED lamp, can make lighting effects, and is stable, beautiful, the LED lamp is prolonged service life.
Described intelligent dimming LED lamp, preferred, also comprise: lampshade, described lampshade use the milky lampshade with bulb envelope.
The beneficial effect of such scheme is: lampshade uses the milky lampshade can make lighting effects more accurate, beautiful bulb envelope.
Described intelligent dimming LED lamp, preferred, described LED lamp comprises: be comprised of three kinds of LED lamps of red, green, blue.
The beneficial effect of such scheme is: trichromatic configuration, and make the LED lamp under the most brief configuration, producing panchromatic is lighting effects.
The utility model also discloses a kind of intelligent dimming module, comprising: select module, light configuration module, lighting effects memory module, calling module and sending module;
Described selection module connects the light configuration module, described selection module is used for user selection and disposes needed scene mode or call the scene mode that the lighting effects memory module is stored, described selection module connecting lamp light effect memory module, described light configuration module connecting lamp light effect memory module, the scene mode that configuration is finished stores the lighting effects memory module into, described lighting effects memory module call connected module, described calling module is used for calling the scene mode that described lighting effects memory module is stored, described calling module connects sending module, is used for described scene mode is sent to the Zigbee control module.
The beneficial effect of such scheme is: the user is by selection module, light configuration module, lighting effects memory module, calling module and the sending module of described intelligent dimming module, coordinated is brought into play more optimal effect for the LED lighting effects after using.
Described intelligent dimming module, preferably, also comprise: intelligent terminal, gateway module, wired or the wireless connections of described intelligent terminal and gateway module, described intelligent terminal comprises local intelligent terminal and remote intelligent terminal, the local intelligent terminal directly is connected with gateway module, and remote intelligent terminal is connected with gateway module by the internet, and described intelligent terminal is used for sending the scene mode instruction by gateway module control intelligent dimming module.
The beneficial effect of such scheme is: use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of PWM light modulation, toning LED bulb comprise lamp pearl, power transfer module, PWM control module that a zigbee module, three kinds of led chip encapsulation of RGB form.Three I/O mouths of Zigbee connect three kinds of led chip control pins by three PWM control modules respectively.Power transfer module converts 220V AC to low-voltage direct to zigbee module, PWM module and the power supply of LED lamp pearl.
The utility model is by zigbee module controls pwm signal, and the PWM duty that can regulate each led chip is recently realized the adjusting of brightness, realizes that by RGB colour mixture principle panchromatic is variable color in the scope.
The lamp pearl that the utility model relates to is integral by three kinds of red, green and blue LED chip packages, and the quantity of the LED of each color can be adjusted according to the requirement of concrete light fixture.
The utility model is realized wireless connections by Zigbee module and gateway, and gateway links to each other with terminals such as smart mobile phone or computers by the internet.Intelligent terminal can carry out to the LED bulb adjusting of brightness, color by software.
The utility model uses the milky lampshade that bulb envelope is got up, and can carry out better colour mixture, and color changeable effect is better.
Present embodiment provides the LED bulb of a kind of tunable optical, toning, as shown in Figure 1, comprises a lampshade and internal circuit board.
LED bulb lampshade 1
Described LED bulb shell has a milky lampshade.
Internal circuit board 2
Described circuit board 2 comprises zigbee control module, power transfer module, PWM control module, LED lamp.Power transfer module links to each other with zigbee control module, LED lamp and PWM control module respectively, is used for powering to zigbee communication module and PWM control module, LED lamp pearl, and the zigbee control module is used for communicating with gateway module.
Described zigbee communication module in order to set up the zigbee network, communicates with home gateway
Described power transfer module is used for 220V AC is converted to 5V DC and 3.3V DC, gives PWM control module, LED lamp and the power supply of zigbee control module.
The utility model adopts the PWM light regulating technology, and the zigbee module sends dimmer command by the IO mouth to the PWM module, regulates the dutycycle of pwm signal, namely the LED lamp bright, the time ratio goes out.But the high-frequency flicker like this of human eye None-identified can only be felt the variation of bulb brightness.The step of brightness regulation is: open LED control software at mobile phone or computer 1.; 2. above chromatogram selector bar on the software interface, be the brightness selector bar, by dragging this selector bar, can realize the linear regulation of LED bulb brightness.
The utility model toning is RGB toning method (referring to Fig. 6): this LED lamp pearl is by red (R), green (G), blue (B) three LEDs chip packages form, respectively every chips PWM dutycycle is regulated, can realize the brightness regulation of every chips, we pass through red (R), green (G), variation and their stacks each other of blue (B) three Color Channels obtain color miscellaneous, Here it is uses the widest RGB toning at present, this almost comprised human eyesight can perception all colours, cooperate the milky lampshade, color blending effect is better.Select random color by the chromatogram at software interface, the utility model all can present corresponding color.The toning step is: 1. open LED control software at computer or mobile phone,
2. drag three kinds of vittas of red, green, blue of below, can regulate the brightness of every kind of color, 3. click " color selection " button, can eject chromatogram for user selection, as long as select certain color in chromatogram, the LED lamp is regulated automatically becomes the color of choosing on the chromatogram.
The utility model cooperates intelligent domestic system, forms the zigbee communication network.By simply disposing in gateway, can realize the application of multiple intelligent scene, for example the stage pattern: configuration step is 1. to open light configuration interface (see figure 7) in the gateway, need 2. to select respectively the alternately light color of flicker.3. input light flash blanking time, configuration is finished.Then we are by intelligent terminal, and for example mobile phone behind the connection gateway, is clicked " stage pattern ", and the LED bulb will present the alternately effect of flicker of three kinds of colors, as light of stage.
Comprehensive technique scheme, the beneficial effects of the utility model: this LED bulb can pass through software adjustment brightness, brightness regulation at times, as the late into the night bulb brightness automatically reduce lamp from dazzling when avoiding getting up in the night to urinate; This LED bulb can also be by selecting chromatogram at terminal software, and carrying out panchromatic to the bulb color is that scope is regulated arbitrarily; Can cooperate intelligent domestic system, realize the several scenes application, under the stage pattern, gateway can be controlled the LED bulb and automatically carry out color checker, flicker, realizes stage-lighting effect.
Use this LED bulb, can realize dimming function, the late into the night WA, light is no longer dazzling, and is not only comfortable but also energy-conservation.
Use this LED bulb, your lighting environment no longer only has dull white.
Use this LED bulb, can use the intelligent terminals such as mobile phone, computer, by brightness and the color of terminal software control bulb.
Use this LED bulb, cooperate Internet of things intelligent home system, can realize the several scenes pattern, such as the stage pattern, can realize splendid lighting effects as the stage.
Family uses in the hall this light modulation toning LED bulb, brings a kind of different impression for household and guest, except energy savings, can also show fully luxurious and warm;
In the bedroom or the study use this LED bulb, can satisfy the different light demand of user.
Enterprise uses the utility model, and the personalized light environment of construction can show the strength of enterprise fully.
In the description of this specification, the description of reference term " embodiment ", " some embodiment ", " example ", " concrete example " or " some examples " etc. means to be contained at least one embodiment of the present utility model or the example in conjunction with specific features, structure, material or the characteristics of this embodiment or example description.In this manual, the schematic statement of above-mentioned term not necessarily referred to identical embodiment or example.And the specific features of description, structure, material or characteristics can be with suitable mode combinations in any one or more embodiment or example.
Although illustrated and described embodiment of the present utility model, those having ordinary skill in the art will appreciate that: can carry out multiple variation, modification, replacement and modification to these embodiment in the situation that does not break away from principle of the present utility model and aim, scope of the present utility model is limited by claim and equivalent thereof.
Claims (4)
1. an intelligent dimming LED lamp is characterized in that, comprising: power transfer module, Zigbee control module, PWM control module and intelligent dimming module;
Described power transfer module links to each other with power supply, and described power transfer module also links to each other with the PWM control module with the Zigbee control module respectively, is used for supply voltage is converted to the use voltage of Zigbee control module and PWM control module;
Described intelligent dimming module links to each other with described Zigbee control module, described Zigbee control module links to each other with the PWM control module, described PWM control module links to each other with the LED lamp, described intelligent dimming module receives user's input signal and exports corresponding control signal, described control signal is transferred to described PWM control module by described Zigbee control module, is used for controlling the work of described LED.
2. intelligent dimming LED lamp according to claim 1 is characterized in that, described PWM control module comprises: ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit;
Described power transfer module connects the ac-dc converter circuit input, described ac-dc converter circuit output connects generation circuit and square-wave input, and described ac-dc converter circuit is converted to direct current for the alternating current with power transfer module and supplies with described generation circuit and square-wave;
Described generation circuit and square-wave output connects the filter circuit input, described filter circuit output connects the adjusting control circuit input, described adjusting control circuit output connects transforming circuit, the luminance instructions that described adjusting control circuit is used for regulating the LED lamp is transferred to the LED lamp by transforming circuit;
Described ac-dc converter circuit, generation circuit and square-wave, filter circuit, adjusting control circuit and transforming circuit are in parallel successively, and described transforming circuit is connected in series the LED lamp.
3. intelligent dimming LED lamp according to claim 1 is characterized in that, also comprises: lampshade, described lampshade use the milky lampshade with bulb envelope.
4. intelligent dimming LED lamp according to claim 1 is characterized in that, described LED lamp comprises three kinds of LED lamps of red, green, blue pearl.
