CN203231440U - air purification device - Google Patents
air purification device Download PDFInfo
- Publication number
- CN203231440U CN203231440U CN201320040415.2U CN201320040415U CN203231440U CN 203231440 U CN203231440 U CN 203231440U CN 201320040415 U CN201320040415 U CN 201320040415U CN 203231440 U CN203231440 U CN 203231440U
- Authority
- CN
- China
- Prior art keywords
- air
- purification device
- kuppe
- humidity
- guide cover
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000004887 air purification Methods 0.000 title abstract description 14
- 239000011248 coating agent Substances 0.000 claims abstract description 7
- 238000000576 coating method Methods 0.000 claims abstract description 7
- 239000011941 photocatalyst Substances 0.000 claims abstract description 4
- 239000011943 nanocatalyst Substances 0.000 claims description 3
- 238000000746 purification Methods 0.000 claims description 2
- 238000004140 cleaning Methods 0.000 claims 4
- 239000010453 quartz Substances 0.000 claims 1
- VYPSYNLAJGMNEJ-UHFFFAOYSA-N silicon dioxide Inorganic materials O=[Si]=O VYPSYNLAJGMNEJ-UHFFFAOYSA-N 0.000 claims 1
- 230000009286 beneficial effect Effects 0.000 description 2
- 230000001954 sterilising effect Effects 0.000 description 2
- 230000003749 cleanliness Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 230000000249 desinfective effect Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000004659 sterilization and disinfection Methods 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
- Y02A50/20—Air quality improvement or preservation, e.g. vehicle emission control or emission reduction by using catalytic converters
Landscapes
- Catalysts (AREA)
Abstract
本实用新型属于空气净化装置，特别涉及一种可以根据客户需要调节空气湿度的空气净化装置。空气净化装置，包括通过螺钉连接在风道壁上的底座，所述的底座上连接有导流罩，所述的导流罩上设置有供空气进入空气净化装置的引流孔，所述的导流罩内部的底座上设置有安装板，安装板上安装有紫外线灯管，所述的导流罩的内壁涂覆有纳米光催化剂涂层，其特征在于：所述的导流罩的顶部设置有出气孔，导流罩顶部延伸设置有安装架，所述的出气孔外部设置有检测净化后空气的湿度传感器，湿度传感器固定在安装架上，所述的安装架上还设置有用于提高空气湿度的加湿器。本实用新型可以根据客户需要调节空气湿度。
The utility model belongs to an air purification device, in particular to an air purification device which can adjust the air humidity according to the needs of customers. The air purification device includes a base connected to the wall of the air duct by screws, a guide cover is connected to the base, and the guide cover is provided with drainage holes for air to enter the air purification device. A mounting plate is arranged on the base inside the flow cover, and an ultraviolet lamp tube is installed on the mounting plate. The inner wall of the flow guide cover is coated with a nano photocatalyst coating, and it is characterized in that: the top of the flow guide cover is set There is an air outlet, and the top of the air deflector is extended with a mounting frame, and the outside of the air outlet is provided with a humidity sensor for detecting the purified air, and the humidity sensor is fixed on the mounting frame. humidity humidifier. The utility model can adjust the air humidity according to the needs of customers.
Description
技术领域 technical field
本实用新型属于空气净化装置，特别涉及一种可以根据客户需要调节空气湿度的空气净化装置。 The utility model belongs to an air purification device, in particular to an air purification device which can adjust the air humidity according to the needs of customers. the
背景技术 Background technique
目前市面上传统的空调机缺少对空气杀菌的功能，随着生活水平的不断提高，人们对室内空气质量的要求越来越高，传统的空调机显然已经不能满足需求。传统的空气净化装置是可以对空气进行杀菌和消毒，但其在杀菌和消毒的同时也损失了空气中的湿度，造成屋内的空气过于干燥，不利于室内人员的身体健康。 At present, the traditional air conditioners on the market lack the function of air sterilization. With the continuous improvement of living standards, people have higher and higher requirements for indoor air quality, and the traditional air conditioners obviously cannot meet the demand. The traditional air purification device can sterilize and disinfect the air, but it also loses the humidity in the air while sterilizing and disinfecting, causing the air in the house to be too dry, which is not conducive to the health of indoor personnel. the
发明内容 Contents of the invention
本实用新型针对现有技术的不足，设计了一种可以安装在风道内或者在室内可以单独使用的空气净化装置，本实用新型能够对空气进行杀菌和消毒，并且可以根据空气湿度的不同对空气湿度进行补充，保证空气的清洁度同时也保证了空气的湿度，提高了经过净化后空气的舒适度。 Aiming at the deficiencies of the prior art, the utility model designs an air purification device that can be installed in the air duct or used alone indoors. The utility model can sterilize and disinfect the air, and can clean the air according to the difference of air humidity Humidity is supplemented to ensure the cleanliness of the air and the humidity of the air, which improves the comfort of the purified air. the
本实用新型通过以下技术方案实现： The utility model is realized through the following technical solutions:
空气净化装置，包括通过螺钉连接在风道壁上的底座，所述的底座上连接有导流罩，所述的导流罩上设置有供空气进入空气净化装置的引流孔，所述的导流罩内部的底座上设置有安装板，安装板上安装有紫外线灯管，所述的导流罩的内壁涂覆有纳米光催化剂涂层，其特征在于：所述的导流罩的顶部设置有出气孔，导流罩顶部延伸设置有安装架，所述的出气孔外部设置有检测净化后空气的湿度传感器，湿度传感器固定在安装架上，所述的安装架上还设置有用于提高空气湿度的加湿器。 The air purification device includes a base connected to the wall of the air duct by screws, a guide cover is connected to the base, and the guide cover is provided with drainage holes for air to enter the air purification device. A mounting plate is arranged on the base inside the flow cover, and an ultraviolet lamp tube is installed on the mounting plate. The inner wall of the flow guide cover is coated with a nano photocatalyst coating, and it is characterized in that: the top of the flow guide cover is set There is an air outlet, and the top of the shroud is extended with a mounting frame, and the outside of the air outlet is provided with a humidity sensor for detecting the purified air, and the humidity sensor is fixed on the mounting frame, and the mounting frame is also provided with a device for improving humidity humidifier. the
导流罩内部的上部设置有将空气吸入和推送出导流罩的风扇。 The upper portion inside the shroud is provided with a fan that draws air in and pushes air out of the shroud. the
所述的安装板上也涂覆有纳米催化剂涂层。 The mounting plate is also coated with a nano-catalyst coating. the
本实用新型具有以下有益效果:本实用新型所述的空气净化装置能够对净化后的空气的湿度进行检测，并能根据人们设置的湿度需要对空气进行加湿，满足人们对空气湿度的需要。 The utility model has the following beneficial effects: the air purification device described in the utility model can detect the humidity of the purified air, and can humidify the air according to the humidity set by people to meet people's needs for air humidity. the
附图说明 Description of drawings
通过下面结合附图的详细描述，本实用新型前述的和其他的目的、特征和优点将变得显而易见。其中： The foregoing and other objects, features and advantages of the present invention will become apparent from the following detailed description in conjunction with the accompanying drawings. in:

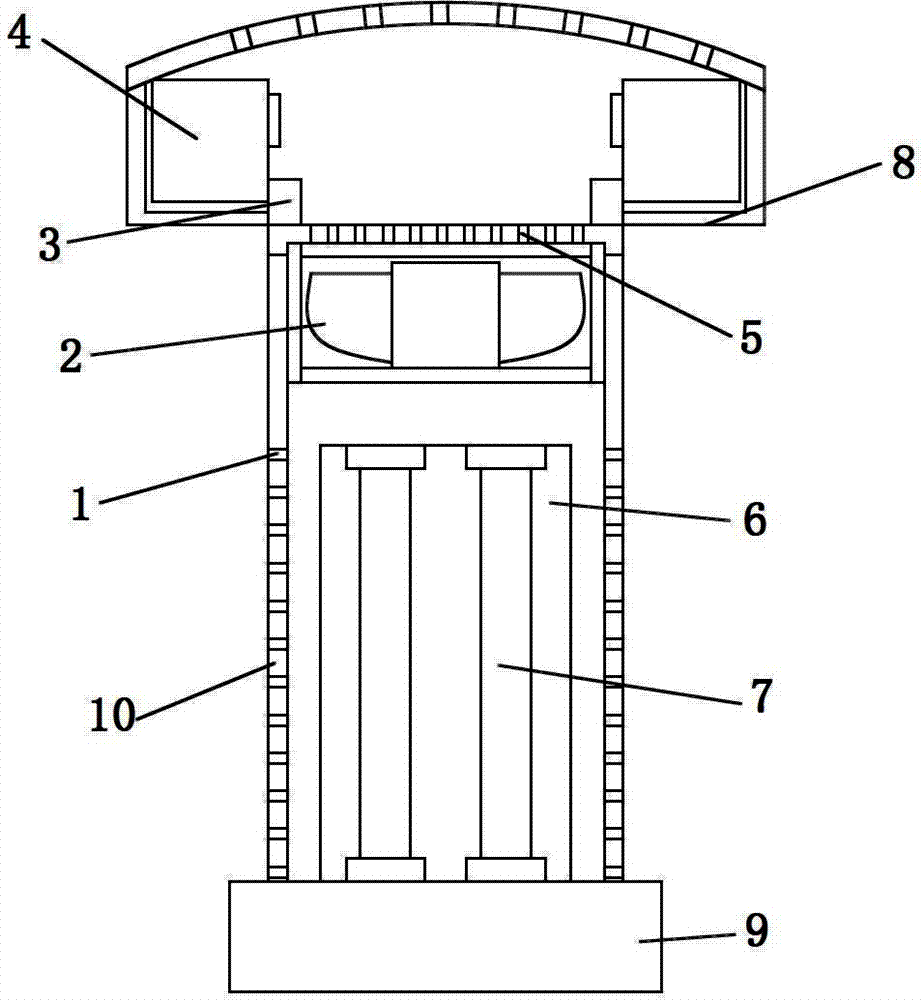

图1为本实用新型的结构示意图； Fig. 1 is the structural representation of the utility model;
图中1为引流孔，2为风扇，3为湿度传感器，4为加湿器，5为出气孔，6为安装板，7为紫外线灯管，8为安装架，9为底座,10为导流罩。 In the figure, 1 is a drainage hole, 2 is a fan, 3 is a humidity sensor, 4 is a humidifier, 5 is an air outlet, 6 is a mounting plate, 7 is an ultraviolet lamp, 8 is a mounting frame, 9 is a base, and 10 is a flow guide cover. the
具体实施方式 Detailed ways
如图1所示的空气净化装置，包括通过螺钉连接在风道壁上的底座9，所述的底座9上连接有导流罩10，所述的导流罩10上设置有供空气进入空气净化装置的引流孔1，所述的导流罩10内部的底座上设置有安装板6，安装板6上安装有紫外线灯管7，所述的导流罩10的内壁涂覆有纳米光催化剂涂层，其特征在于：所述的导流罩的顶部设置有出气孔5，导流罩10顶部延伸设置有安装架8，所述的出气孔外部设置有检测净化后空气的湿度传感器3，湿度传感器3固定在安装架8上，所述的安装架8上还设置有用于提高空气湿度的加湿器4。 The air purification device shown in Figure 1 includes a base 9 connected to the wall of the air duct by screws, and a guide cover 10 is connected to the base 9, and the guide cover 10 is provided with a The drainage hole 1 of the purification device, the inner base of the air guide cover 10 is provided with a mounting plate 6, and the ultraviolet lamp tube 7 is installed on the mounting plate 6, and the inner wall of the air guide cover 10 is coated with a nano photocatalyst The coating is characterized in that: the top of the air guide cover is provided with an air outlet 5, the top of the air guide cover 10 is extended with a mounting bracket 8, and the outside of the air outlet is provided with a humidity sensor 3 for detecting purified air, The humidity sensor 3 is fixed on the mounting frame 8, and the humidifier 4 for increasing the air humidity is also arranged on the mounting frame 8. the
导流罩内部的上部设置有将空气吸入和推送出导流罩的风扇。 The upper portion inside the shroud is provided with a fan that draws air in and pushes air out of the shroud. the
所述的安装板上也涂覆有纳米催化剂涂层。 The mounting plate is also coated with a nano-catalyst coating. the
本实用新型具有以下有益效果:本实用新型所述的空气净化装置能够对净化后的空气的湿度进行检测，并能根据人们设置的湿度需要对空气进行加湿， 满足人们对空气湿度的需要。 The utility model has the following beneficial effects: the air purification device described in the utility model can detect the humidity of the purified air, and can humidify the air according to the humidity needs set by people to meet people's needs for air humidity. the
本实用新型并不局限于所述的实施例，本领域的技术人员在不脱离本实用新型的精神即公开范围内，仍可作一些修正或改变，故本实用新型的权利保护范围以权利要求书限定的范围为准。 The utility model is not limited to the described embodiments, those skilled in the art can still make some amendments or changes without departing from the spirit of the utility model, that is, within the scope of disclosure, so the scope of protection of the utility model is defined in the claims The scope of the book shall prevail. the
Claims (3)
