The utility model discloses a clamping pincer with hammerheads and solves the problem of inconvenience brought by the case that communication line maintenance personnel needs to carry more tools in the line patrolling and maintaining process. The clamping pincer comprises a clamping pincer jaw and clamping pincer handles (1); the end parts of the clamping pincer handles (1) are fixedly provided with the hammerheads (2); the hammerheads (2) are embedded in the clamping pincer handles (1); and hammer surfaces (3) of the hammerheads (2) and outer lateral surfaces (4) of the clamping pincer handles (1) are on the same plane. The hammerheads are arranged in both the two clamping pincer handles, and the two hammerheads are symmetrically arranged by using the axis of the clamping pincer as the symmetric axis. The clamping pincer is particularly suitable for communication line maintenance personnel to carry and use.

Description

The conductor clamp of band tup
Technical field
The utility model relates to a kind of conductor clamp, particularly employed conductor clamp during a kind of making netting twine the end of a thread.
Background technology
When making netting twine, conductor clamp is the instrument that often uses, and operating personnel produce the needed joint of wiring with conductor clamp.In the manufacturing process of netting twine, usually also need wiring, fixing on the wall netting twine with CABLE CLIPS, just need this moment to use hammer, in wiring process, just require operating personnel to carry more instrument, brought inconvenience for the personnel of maintain communications circuit.。
Summary of the invention
The utility model provides a kind of conductor clamp with tup, has solved that the communication line attendant needs to carry more instrument and the problem of making troubles in line inspection is safeguarded.
The utility model is to solve above technical problem by the following technical programs:
A kind of conductor clamp with tup comprises conductor clamp mouth and conductor clamp handle, is set with tup in the end of conductor clamp handle, and tup is embedded in the conductor clamp handle, and the lateral surface of the flat side of a hammer of tup and conductor clamp handle is on same plane.
In two conductor clamp handles, be provided with tup, and this two tup is that axis with conductor clamp is that symmetry axis is symmetrically arranged.
Conductor clamp of the present utility model has had the fixedly function of CABLE CLIPS concurrently when making netting twine, improved operating efficiency, and the staff who has alleviated the maintain communications circuit carries the weight load of instrument.
Description of drawings

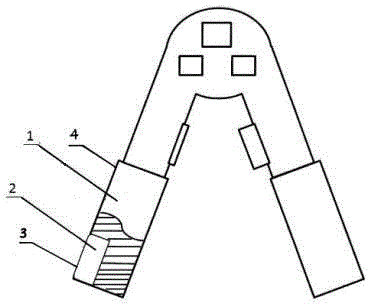

Fig. 1 is structural representation of the present utility model.
The specific embodiment
A kind of conductor clamp with tup, comprise conductor clamp mouth and conductor clamp handle 1, be set with tup 2 in the end of conductor clamp handle 1, tup 2 is embedded in the conductor clamp handle 1, and the lateral surface 4 of the flat side of a hammer 3 of tup 2 and conductor clamp handle 1 is on same plane.
In two conductor clamp handles, be provided with tup, and this two tup is that axis with conductor clamp is that symmetry axis is symmetrically arranged.
The conductor clamp of band tup of the present utility model is that tup is embedded in the lower clamp handle of conductor clamp at the inner tup that increases a pair of steel of the lower clamp handle of conductor clamp, the flat side of a hammer and the neat face of lower clamp handle lateral surface, the feel when the card line that does not influence conductor clamp is operated.

Claims (2)

1. conductor clamp with tup, comprise conductor clamp mouth and conductor clamp handle (1), it is characterized in that, be set with tup (2) in the end of conductor clamp handle (1), tup (2) is embedded in the conductor clamp handle (1), and the lateral surface (4) of the flat side of a hammer (3) of tup (2) and conductor clamp handle (1) is on same plane.
2. a kind of conductor clamp with tup according to claim 1 is characterized in that, is provided with tup in two conductor clamp handles, and this two tup is that axis with conductor clamp is that symmetry axis is symmetrically arranged.
