CN203202953U - Novel LED straight lamp end cap connecting part - Google Patents
Novel LED straight lamp end cap connecting part Download PDFInfo
- Publication number
- CN203202953U CN203202953U CN 201320219488 CN201320219488U CN203202953U CN 203202953 U CN203202953 U CN 203202953U CN 201320219488 CN201320219488 CN 201320219488 CN 201320219488 U CN201320219488 U CN 201320219488U CN 203202953 U CN203202953 U CN 203202953U
- Authority
- CN
- China
- Prior art keywords
- female
- end cap
- plug
- copper pin
- led straight
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Arrangement Of Elements, Cooling, Sealing, Or The Like Of Lighting Devices (AREA)
Abstract
The utility model discloses a novel LED straight lamp end cap connecting part which is composed of a male end cap and a female end cap. The male end cap is composed of a male end cap shell, a male copper needle and a wire. The female end cap is composed of a female end cap shell, female copper needles and a wire. The female end cap shell is provided with a protruded plug portion. Two copper needle holes are formed in the plug portion. The female needles are arranged in the copper needle holes and connected with the wire. The male end cap shell is provided with a concave insertion portion. The male copper needle is arranged in the insertion portion and connected with the wire. A plug portion of the female end cap shell can be inserted into an insertion portion of the male end cap shell. The novel LED straight lamp end cap connecting part has the advantages that adjacent LED straight lamps can be directly connected by adopting LED straight lamps with the end plug and installation cost is saved.
Description
Technical field
The utility model relates to the LED lighting technical field, relates in particular to a kind of New LED straight strap lamp plug connector.
Background technology
Because LED has rich color, the advantages such as volume is little, environmental protection and energy saving, life-span length, therefore, it is made the LED module and is applied in a large number commercial lighting, for example the LED straight strap lamp.
Each LED straight strap lamp all is independent installation at present, the five metals plastic parts need to independently be installed, occasion in extensive illumination, the often LED straight strap lamp use that need to closely link together, the independent like this LED straight strap lamp of installing just needs a plurality of five metals plastic parts of independently installing, and has promoted material cost and cost of labor, if the adjacent LED straight strap lamp can be realized interconnecting, so just can save cost, this just requires the two ends to the LED straight strap lamp, and namely plug improves design.
Summary of the invention
In order to solve the technical problem of above-mentioned existence, the utility model provides a kind of New LED straight strap lamp plug connector.
The technical scheme that its technical problem that solves the utility model adopts is:
A kind of New LED straight strap lamp plug connector, formed by Gongdu's head and female plug, Gongdu's head is comprised of Gongdu's casing, public copper pin and wire rod, and female plug is comprised of female plug housing, female copper pin and wire rod, and female plug housing has the plug position of projection, there are two copper pin holes at the plug position, copper pin hole inside is placed with female copper pin, and female copper pin links to each other with wire rod, and Gongdu's casing has the insertion position of depression, insert inside, position and be placed with public copper pin, public copper pin links to each other with wire rod.
Better, the insertion position of Gongdu's casing can be inserted in the plug position of described female plug housing.
Better, there is small raised body on the surface at the plug position of described female plug housing, and there is perforate at the insertion position of Gongdu's casing, and the raised body of female plug housing can embed the perforate of Gongdu's casing.
Better, described female copper pin can insert male copper pin and realize that electricity connects.
A kind of New LED straight strap lamp plug connector described in the utility model, the beneficial effect of its generation is: the LED straight strap lamp that adopts this plug to design can be realized the direct connection of adjacent LED straight strap lamp, has saved installation cost.
Description of drawings

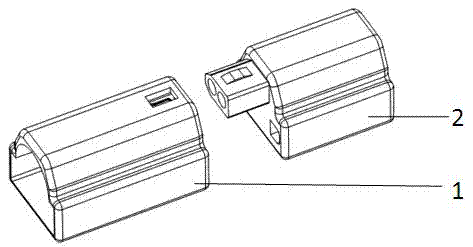

Fig. 1 is Gongdu's head and be connected the state schematic perspective view of plug before connecting.
Fig. 2 is the explosive view of Gongdu's head.
Fig. 3 is the explosive view of female plug.
Description of reference numerals: 1, Gongdu's head; 2, female plug; 3, Gongdu's casing; 4, public copper pin; 5, wire rod; 6, female plug housing; 7, female copper pin; 8, plug position; 9, copper pin hole; 10, insert the position; 11, raised body; 12, perforate.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
Referring to figs. 1 through Fig. 3, a kind of New LED straight strap lamp plug connector, formed by Gongdu 1 and female plug 2, Gongdu 1 is comprised of Gongdu's casing 3, public copper pin 4 and wire rod 5, female plug 2 is comprised of female plug housing 6, female copper pin 7 and wire rod 5, female plug housing 6 has the plug position 8 of projection, there are two copper pin holes 9 at plug position 8, copper pin hole 9 inside are placed with female copper pin 7, female copper pin 7 links to each other with wire rod 5, Gongdu's casing 3 has the insertion position 10 of depression, inserts 10 inside, position and is placed with public copper pin 4, and public copper pin 4 links to each other with wire rod 5.
The insertion position 10 that Gongdu's casing 3 can be inserted in the plug position 8 of female plug housing 6.
There is small raised body 11 on the surface at the plug position 8 of female plug housing 6, and there is perforate 12 at the insertion position 10 of Gongdu's casing 3, and the raised body 11 of female plug housing 6 can embed the perforate 12 of Gongdu's casing 3.
Above embodiment has only expressed embodiment of the present utility model, and it describes comparatively concrete and detailed, but can not therefore be interpreted as the restriction to the utility model claim.Should be pointed out that for the person of ordinary skill of the art, without departing from the concept of the premise utility, can also make some distortion and improvement, these all belong to protection domain of the present utility model.
Claims (4)
1. New LED straight strap lamp plug connector, it is characterized in that, this New LED straight strap lamp plug connector is comprised of Gongdu's head and female plug, described Gongdu's head is comprised of Gongdu's casing, public copper pin and wire rod, described female plug is comprised of female plug housing, female copper pin and wire rod, described female plug housing has the plug position of projection, there are two copper pin holes at the plug position, copper pin hole inside is placed with female copper pin, female copper pin links to each other with wire rod, described Gongdu's casing has the insertion position of depression, inserts inside, position and is placed with public copper pin, and public copper pin links to each other with wire rod.
2. New LED straight strap lamp plug connector according to claim 1 is characterized in that, the insertion position of Gongdu's casing can be inserted in the plug position of described female plug housing.
3. New LED straight strap lamp plug connector according to claim 1, it is characterized in that, there is small raised body on the surface at the plug position of described female plug housing, there is perforate at the insertion position of described Gongdu's casing, and the raised body of described female plug housing can embed the perforate of Gongdu's casing.
4. New LED straight strap lamp plug connector according to claim 1 is characterized in that, described female copper pin can insert male copper pin and realize that electricity connects.
