The utility model discloses a clothes hanger which comprises a main rod frame (1), wherein a rotatable hook (2) is connected to the main rod frame (1), the two ends of the main rod frame (1) are connected with two inclined connecting rods (4) respectively through sleeves (3), a protruding part (6) with grooves (5) is arranged on each inclined connecting rod (4), the two inclined connecting rods (4) are connected with two horizontal rods (7) respectively, the two horizontal rods (7) are connected through a connecting sleeve (8), and elastic bands (9) are arranged between the main rod frame (1) and each inclined connecting rod (4), between each inclined connecting rod (4) and each horizontal rod (7) and between each horizontal rod (7) and the connecting sleeve (8) respectively. In comparison with the prior art, the detachable and foldable structural design is adopted, the whole rigidity is good, and the clothes hanger is suitable for drying various objects.

Description

A kind of clothes hanger
Technical field
The utility model relates to a kind of foldable clothes hanger, belongs to the articles for daily use field.
Background technology
Existing clothes hanger structure or in form all more single, the airing of article that can only corresponding some particular type is for example specially for clothes, specially for socks or underwear, again or be applicable to bed clothes.So just must buy a lot of dissimilar clothes hangers, be not only quantitatively, those for the clothes hanger of large piece article its to deposit be a very large problem.The rigidity of this coat hanger not usually can be made the clothing distortion and crumple; Do not have enough frictional force on the clothes hanger, wet and slippery clothing is easy to landing.Above-mentioned these deficiencies become the important attraction that attracts the consumer so that have the clothes hanger of Foldable multifunctional.
Summary of the invention
The technical problems to be solved in the utility model is: a kind of clothes hanger is provided, and dismountable foldable is applicable to the airing of various article simultaneously, and integral rigidity is good.
The technical solution of the utility model is: a kind of clothes hanger, comprise the mobile jib frame, be connected with rotatable hook on it, mobile jib frame two ends link to each other with two oblique connecting rods respectively by sleeve, protruding part with groove is tiltedly arranged on the connecting rod, two oblique connecting rods are connected with two horizon bars respectively, link to each other by connecting cylinder between two horizon bars; The mobile jib frame and tiltedly between the connecting rod, tiltedly between connecting rod and the horizon bar and between horizon bar and the connecting cylinder tendon rope is arranged all.Hook can rotate before and after the body frame bar, makes things convenient for folding storage; Soft connection after the mode that adopts tendon rope to connect can make things convenient for each parts to disassemble is beneficial to collection.
Sleeve and mobile jib frame, oblique connecting rod, oblique connecting rod and horizon bar, connecting cylinder all adopts with horizon bar and is threaded.The mode that is threaded simply firmly combines oblique connecting rod, sleeve, horizon bar and connecting cylinder.
It is terminal that protruding part is connected to oblique connecting rod, and its surperficial groove length direction is with tiltedly connecting rod is vertical.Two protruding parts that the both sides of clothes hanger arrange can play the effect that prevents the shoulder distortion, fluted on the protruding part outer surface simultaneously, can increase frictional force and prevent the clothing landing, protruding part can also be along the tiltedly terminal outwards upset of connecting rod in addition, as a rigid supporter, be convenient to the airing footgear.
Clothes hanger is made by the vivid engineering plastics of color and luster, and wherein tiltedly connecting rod and horizon bar are hollow circular-tube, good rigidity in the time of light, and for the airing of some large piece articles, bed clothes for example, what blanket etc. can be relieved hangs on the horizon bar.
The utility model is compared with existing product, adopts the structural design of dismountable foldable, and the connected mode of this soft or hard combination of threaded engagement tendon rope is very practical, is convenient to dismounting, has saved collection space.Novel, fashion in the moulding, one-object-many-purposes, its whole size and length can be adjusted as required.In addition, the utility model meets ergonomics on the whole, has demonstrated fully the design concept that people-oriented, is a daily product that function and form are merged mutually.
Description of drawings

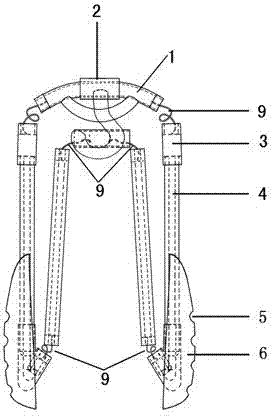

Fig. 1 is the structural front view of clothes hanger (protruding part is opened);
Fig. 2 is the structural front view of clothes hanger (protruding part withdrawal);
Fig. 3 is the structure top view of clothes hanger (protruding part withdrawal);
Fig. 4 is the structural representation after clothes hanger folds.
The specific embodiment
Such as Fig. 1~shown in Figure 3, a kind of clothes hanger, comprise mobile jib frame 1, be connected with rotatable hook 2 on it, mobile jib frame 1 two ends link to each other with two oblique connecting rods 4 respectively by sleeve 3, tiltedly there are 6, the two oblique connecting rods 4 of protruding part with groove 5 to be connected with two horizon bars 7 respectively on the connecting rod 4, link to each other by connecting cylinder 8 between two horizon bars 7; Mobile jib frame 1 and tiltedly between the connecting rod 4, tiltedly between connecting rod 4 and the horizon bar 7 and between horizon bar 7 and the connecting cylinder 8 tendon rope 9 is arranged all.Sleeve 3 and mobile jib frame 1, oblique connecting rod 4, oblique connecting rod 4 and horizon bar 7, connecting cylinder 8 all adopts with horizon bar 7 and is threaded.Protruding part 6 is a housing, and an arc-shaped outer surface is arranged, and is connected to oblique connecting rod 4 ends, and four grooves 5 are arranged on its outer surface, and groove 5 length directions are with tiltedly connecting rod 4 is vertical.The whole engineering plastics that adopt of clothes hanger, wherein tiltedly connecting rod 4 is hollow circular-tube with horizon bar 7.
Such as Fig. 4, Rotary hanging hook 1, after being threaded between each parts being opened, clothes hanger can get up by folding shrinking, the connection between each parts of maintenance that tendon rope 9 can be orderly again.

Claims (4)

1. clothes hanger, it is characterized in that: comprise mobile jib frame (1), be connected with rotatable hook (2) on it, mobile jib frame (1) two ends link to each other with two oblique connecting rods (4) respectively by sleeve (3), the protruding part (6) that band groove (5) are tiltedly arranged on the connecting rod (4), two oblique connecting rods (4) are connected with two horizon bars (7) respectively, link to each other by connecting cylinder (8) between two horizon bars (7); Mobile jib frame (1) and tiltedly between the connecting rod (4), tiltedly between connecting rod (4) and the horizon bar (7) and between horizon bar (7) and the connecting cylinder (8) tendon rope (9) is arranged all.
2. a kind of clothes hanger according to claim 1 is characterized in that: sleeve (3) and mobile jib frame (1), oblique connecting rod (4), and tiltedly connecting rod (4) and horizon bar (7), connecting cylinder (8) all adopts with horizon bar (7) and is threaded.
3. a kind of clothes hanger according to claim 1, it is characterized in that: protruding part (6) is connected to oblique connecting rod (4) end, and its surperficial groove (5) length direction is with tiltedly connecting rod (4) is vertical.
4. a kind of clothes hanger according to claim 1 is characterized in that: tiltedly connecting rod (4) is hollow circular-tube with horizon bar (7).
