The utility model discloses a vertical decoration structural component for a double-end reverse right-angle epitaxial wall face and belongs to the technical field of decoration and installation. The vertical decoration structural component for the double-end reverse right-angle epitaxial wall face is characterized in that a vertical decoration single batten is formed by two structural types in a combination mode, and the two structural types comprise a vertical decoration single batten A used for a plane and a vertical decoration single batten B used for a convex angle. The vertical decoration single batten A used for the plane comprises two connected hollow cuboid batten bodies, the outline of the cross section of the left hollow cuboid batten body is in a hollow shape like a Chinese character 'ao', a flat-extending protruding side is arranged at the position, towards the center, of the bottom end of the right foot of the two extended hollow feet and is tightly buckled with the transverse sides of Z-shaped clips which are fixed on the wall face, the cross section of the right hollow cuboid batten body is a hollow cuboid, the single batten B is an unfilled-corner hollow cuboid batten, the cross section of the single batten B is a square formed by chipping off near right 1/4 right angle, and right-angle bending gaps are evenly formed in the cross section of the single batten B. The vertical decoration structural component for the double-end reverse right-angle extension wall face has the advantages of successfully solving the problem of the vertical decoration structure of the double-end reverse right-angle extension wall face and being suitable for popularization and application in the decoration industry.
Description
Technical field
Belong to and decorate the mounting technique field, exactly relate to the mounting structure spare of the fastening chained technology of the reverse right angle of both-end extension wall decoration.
Background technology
Decorate, the installing area, usually need ornamental strip or ornaments are firmly covered the trim surface, often adopt bonding, or directly twist with screw solid, these methods inconvenience installations, also can deface attractive in appearance.The ornamental strip of a kind of novel plasticity lightweight synthetic materials of releasing on the market especially in recent years is able to rapid popularization, application for making these various ornamental strips at international, domestic decoration industry.Require one group of mounting structure spare of design to realize that ornamental strip is easy for installation, function efficiently, by to various metopes, column, the decoration of curved surface is installed, particularly the fastening chained technology of the reverse right angle of both-end extension wall decoration.
Summary of the invention
The utility model provides can be convenient, securely ornaments are vertically decorated on the surface covers the lip-deep a kind of vertical ornamental knot member for the reverse right angle of both-end extension metope of trim.
The technical scheme that the utility model is taked:
A kind of vertical ornamental knot member for the reverse right angle of both-end extension metope, comprise vertical decoration single-piece batten, its scheme is: vertically decorate the single-piece batten and constituted by the vertical decoration single-piece batten A that is used for the plane and two kinds of form of structure being used for the vertical decoration single-piece batten B of salient angle; Described vertical decoration single-piece batten A for the plane, be two continuous hollow cuboid battens, the cross section of left side hollow cuboid batten, its profile is the character cut in bas-relief shape of hollow, there be flat prolonging protrude the limit in the right crus of diaphragm bottom of two hollow pin that stretch out to the center, link closely with the horizontal edge of the Z shape card that is fixed on metope; The cross section of right hollow cuboid batten is the hollow rectangle, and its upper right corner vertical factures forms the right angle bending breach that exposes first undesirable root, and the undesirable root on this breach can vertically be decorated the crimp that the single-piece batten left side prolongs the limit end with salient angle and hook hook; Described vertical decoration single-piece batten B for salient angle is that cross section is the prune unfilled corner hollow cuboid batten at nearly positive 1/4th right angles of square, in outside, the unfilled corner right side vertical factures is arranged, and forms the right angle bending breach that exposes second undesirable root; The breach that second undesirable root forms becomes the vertical insertion mouth that the single-piece batten A left side prolongs the limit end of decorating; The right of single-piece batten A or single-piece batten B prolong porose on the limit all can be fastening by screw and metope as required.
Good effect behind enforcement the utility model is:
Because two kinds of form of structure of the vertical decoration single-piece batten A on employing plane and the vertical decoration single-piece batten B of salient angle constitute decoration, the energy realization is easy to use, installation is firm, beautiful decoration, thereby successfully solved the vertical decorating structure of the reverse right angle of both-end extension metope, be suitable for decoration industry and promote, use.
Description of drawings
Fig. 1 is the vertical decoration single-piece batten A perspective view for the plane,
Fig. 2 is the vertical decoration single-piece batten B perspective view for salient angle,
Fig. 3 is local detachment assembling schematic diagram,

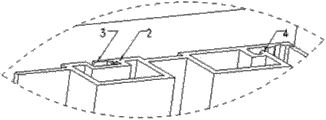

Fig. 4 is the local enlarged diagram of single-piece batten A,
Fig. 5, for the local enlarged diagram of single-piece batten B '
Fig. 6 is for using view
The specific embodiment
Now the utility model is described in further detail by reference to the accompanying drawings
A kind of vertical ornamental knot member for the reverse right angle of both-end extension metope, comprise vertical decoration single-piece batten, it is characterized in that: vertically decorate the single-piece batten and constituted by the vertical decoration single-piece batten A that is used for the plane and two kinds of form of structure being used for the vertical decoration single-piece batten B of salient angle; Described vertical decoration single-piece batten A for the plane, be two continuous hollow cuboid battens, the cross section of left side hollow cuboid batten, its profile is the character cut in bas-relief shape of hollow, there be flat prolonging protrude limit 2 in the right crus of diaphragm bottom of two hollow pin that stretch out to the center, link closely with the horizontal edge of the Z shape card 3 that is fixed on metope; The cross section of right hollow cuboid batten is the hollow rectangle, and its upper right corner vertical factures forms the right angle bending breach that exposes first undesirable root 4, and the undesirable root on this breach can vertically be decorated the crimp hook 5 tight hooks that the single-piece batten left side prolongs the limit end with salient angle; Described vertical decoration single-piece batten B for salient angle is that cross section is the prune unfilled corner hollow cuboid batten at nearly positive 1/4th right angles of square, in outside, the unfilled corner right side vertical factures is arranged, and forms the right angle bending breach that exposes second undesirable root 6; The breach 7 that second undesirable root 6 forms becomes the vertical insertion mouth that the single-piece batten A left side prolongs the limit end of decorating; The right of single-piece batten A or single-piece batten B prolong porose on the limit all can be fastening by screw 8 and metope as required.
Described Z shape card 3 is that cross section is Z shape aluminium sheet, and metope is close on an one plane, and passes installing hole by screw and be anchored on metope.
Described vertical ornamental knot member, the arrangement architecture of its decoration is that the plane metope is vertically installed the Z shape from left to right and is stuck in metope, Z shape edges are inserted on the protrusion limit 2 of the vertical decoration single-piece batten A hollow character cut in bas-relief shape on plane, and extension limit, the right is fastening by screw and metope; The metope re-entrant angle is turned into another vertical plane, and at this face the 2nd Z shape is installed and is stuck in metope, and the vertical decoration single-piece batten A on plane, to the metope salient angle; The vertical decoration single-piece batten B of salient angle is installed, the 3rd Z shape vertically is installed is stuck in metope, Z shape edges are inserted on the protrusion limit 2 of the vertical decoration single-piece batten A hollow character cut in bas-relief shape on plane, the right prolong porose on the limit can be fastening by screw and metope as required.
Claims (3)
1. vertical ornamental knot member that is used for the reverse right angle of both-end extension metope, comprise vertical decoration single-piece batten, it is characterized in that: vertically decorate the single-piece batten and constituted by the vertical decoration single-piece batten A that is used for the plane and two kinds of form of structure being used for the vertical decoration single-piece batten B of salient angle; Described vertical decoration single-piece batten A for the plane, be two continuous hollow cuboid battens, the cross section of left side hollow cuboid batten, its profile is the peripheral formation of the character cut in bas-relief shape of hollow, there be flat prolonging protrude limit (2) in the right crus of diaphragm bottom of two hollow pin that stretch out to the center, link closely with the horizontal edge of the Z shape card (3) that is fixed on metope; The cross section of right hollow cuboid batten is the hollow rectangle, and its upper right corner vertical factures forms the right angle bending breach that exposes first undesirable root (4), and the undesirable root on this breach can vertically be decorated the tight hook of crimp hook (5) that the single-piece batten left side prolongs the limit end with salient angle; Described vertical decoration single-piece batten B for salient angle is that cross section is the prune unfilled corner hollow cuboid batten at nearly positive 1/4th right angles of square, in outside, the unfilled corner right side vertical factures is arranged, and forms the right angle bending breach that exposes second undesirable root (6); The breach (7) that second undesirable root (6) forms becomes the vertical insertion mouth that the single-piece batten A left side prolongs the limit end of decorating; The right of single-piece batten A or single-piece batten B prolong porose on the limit all can be fastening by screw (8) and metope as required.
2. a kind of vertical ornamental knot member for the reverse right angle of both-end extension metope according to claim 1, it is characterized in that: described Z shape card (3) is that cross section is Z shape aluminium sheet, and metope is close on an one plane, and passes installing hole by screw and be anchored on metope.
3. a kind of vertical ornamental knot member for the reverse right angle of both-end extension metope according to claim 1, it is characterized in that: described vertical ornamental knot member, the arrangement architecture of its decoration is that the plane metope is vertically installed the Z shape from left to right and is stuck in metope, Z shape edge is inserted on the protrusion limit (2) of the vertical decoration single-piece batten A hollow character cut in bas-relief shape on plane, and extension limit, the right is fastening by screw and metope; The metope re-entrant angle is turned into another vertical plane, and at this face the 2nd Z shape is installed and is stuck in metope, and the vertical decoration single-piece batten A on plane, to the metope salient angle; The vertical decoration single-piece batten B of salient angle is installed, the 3rd Z shape vertically is installed is stuck in metope, Z shape edge is inserted on the protrusion limit (2) of the vertical decoration single-piece batten A hollow character cut in bas-relief shape on plane, the right prolong porose on the limit can be fastening by screw and metope as required.
