CN203182584U

CN203182584U - Multifunctional spoon

Info

Publication number: CN203182584U
Application number: CN 201320148712
Authority: CN
Inventors: 任正严
Original assignee: Second Affiliated Hospital of Anhui Medical University
Current assignee: Second Affiliated Hospital of Anhui Medical University
Priority date: 2013-03-28
Filing date: 2013-03-28
Publication date: 2013-09-11
Anticipated expiration: 2023-03-28

Abstract

The utility model discloses a multifunctional dining spoon, which comprises a spoon head and a handle. One end of the spoon head is provided with a mounting block, and the mounting block is provided with threaded holes. Fitted in the threaded hole at one end of the spoon head, the upper opening of the handle is covered with a cover, and the lower opening of the handle is located outside the spoon head. The utility model has a simple and reasonable structure, and is easy to install and use. When in use, it is only necessary to screw the handle of the table spoon on the mounting block at one end of the spoon head, so that it can be used as a common table spoon or as a straw, effectively It is convenient for patients with inflexible hands to use the table spoon, and a rubber heat-insulating sleeve is provided outside the handle to prevent users from feeling discomfort in their hands when drinking hot drinks.

Description

A multifunctional table spoon

技术领域 technical field

本实用新型涉及一种餐勺，具体为一种可作为吸管用的多功能餐勺。 The utility model relates to a table spoon, in particular to a multifunctional table spoon which can be used as a straw.

背景技术 Background technique

餐勺是日常生活中的常用餐具，结构多种多样。然而现有的餐勺功能单一，一些手部不灵活的患者在使用时不够方便，因此本实用新型设计一种能够当做吸管使用的餐勺，以方便手部不灵活的患者使用。 Table spoons are common tableware in daily life, with various structures. However, the existing table spoon has a single function, and some patients with inflexible hands are not convenient enough to use it. Therefore, the utility model designs a table spoon that can be used as a straw to facilitate the use of patients with inflexible hands.

实用新型内容 Utility model content

本实用新型的目的是提供一种多功能餐勺，以解决现有技术中传统的餐勺功能单一，一些手部不灵活的患者在使用时不够方便的问题。 The purpose of the utility model is to provide a multifunctional table spoon to solve the problem that the traditional table spoon in the prior art has a single function and is not convenient for some patients with inflexible hands.

为达到上述目的，本实用新型采用的技术方案为： In order to achieve the above object, the technical solution adopted by the utility model is:

一种多功能餐勺，其特征在于：包括有勺头和手柄，所述勺头一端设有安装块，所述安装块上设有螺纹孔，所述手柄为两端开口的吸管状空心管体，所述手柄下端螺合在勺头一端的螺纹孔内，所述手柄的上端开口套有口盖，所述手柄的下端开口位于勺头外侧。 A multifunctional table spoon, characterized in that: it includes a spoon head and a handle, one end of the spoon head is provided with a mounting block, the mounting block is provided with threaded holes, and the handle is a straw-shaped hollow tube with two ends open The lower end of the handle is screwed into the threaded hole at one end of the spoon head, the upper opening of the handle is covered with a cover, and the lower end opening of the handle is located outside the spoon head.

所述的一种多功能餐勺，其特征在于：所述手柄外壁套有橡胶隔热套。 The above-mentioned multifunctional table spoon is characterized in that: the outer wall of the handle is covered with a rubber heat-insulating sleeve.

本实用新型的有益效果为： The beneficial effects of the utility model are:

本实用新型结构简单合理，安装使用方便，使用时只需将餐勺的手柄螺合在勺头一端的安装块上即可，这样既可以作为普通餐勺使用，以可以作为吸管使用，有效地方便了手部不灵活的患者使用餐勺，且手柄外设有橡胶隔热套，防止使用者在吸食热饮时手部感到不适。 The utility model has a simple and reasonable structure, and is easy to install and use. When in use, it is only necessary to screw the handle of the table spoon on the mounting block at one end of the spoon head, so that it can be used as a common table spoon or as a straw, effectively It is convenient for patients with inflexible hands to use the table spoon, and a rubber heat-insulating sleeve is provided outside the handle to prevent users from feeling uncomfortable when drinking hot drinks.

附图说明 Description of drawings

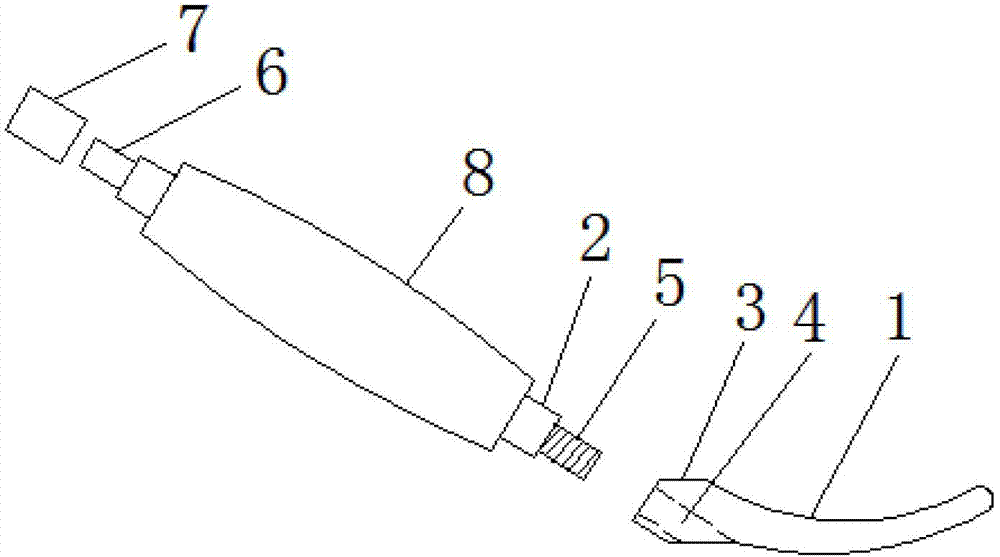

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.

具体实施方式 Detailed ways

如图1所示，一种多功能餐勺，包括有勺头1和手柄2，勺头1一端设有安装块3，安装块3上设有螺纹孔4，手柄2为两端开口的吸管状空心管体，手柄下端螺合在勺头1一端的螺纹孔4内，手柄2的上端开口6套有口盖7，手柄2的下端开口5位于勺头1外侧。 As shown in Figure 1, a multifunctional dining spoon includes a spoon head 1 and a handle 2, one end of the spoon head 1 is provided with a mounting block 3, the mounting block 3 is provided with a threaded hole 4, and the handle 2 is a straw with openings at both ends Shaped hollow pipe body, the lower end of the handle is screwed in the threaded hole 4 at one end of the spoon head 1, the upper opening 6 of the handle 2 is covered with a cover 7, and the lower opening 5 of the handle 2 is located at the outer side of the spoon head 1.

手柄2外壁套有橡胶隔热套8。 The outer wall of the handle 2 is covered with a rubber heat-insulating sleeve 8.

Claims

1. multi-functional meal spoon, it is characterized in that: include spoon head and handle, the first end of described spoon is provided with mounting blocks, described mounting blocks is provided with screwed hole, described handle is the hollow body of suction pipe shape of both ends open, described handle, at its lower end is screwed in the screwed hole of the first end of spoon, and the upper end open of described handle is with flap, and the lower ending opening of described handle is positioned at the spoon head outside.

2. a kind of multi-functional meal spoon according to claim 1, it is characterized in that: described handle outer wall is with the rubber collet.
