Abstract
The utility model discloses a dual-purpose screw driver which comprises a handle, an I-shaped body and a cross head. The head of the I-shaped body is I-shaped while the tail of the same is fixedly connected with the handle. The head of the cross head is crossed, and an inserting groove is formed at the tail of the cross head and matched with the head of the I-shaped body. The head of the I-shaped body can be inserted into the inserting groove and can drive the cross head to rotate. The dual-purpose screw driver is mainly composed of an I-shaped screw driver, and additionally provided with a cross screw driver head matched with the I-shaped screw driver, so that when the dual-purpose screw driver is used, the head of the I-shaped body and the cross head can be exchanged anytime; and the dual-purpose screw driver has functions of the I-shaped screw driver and a cross screw driver, so that a user is no longer annoyed by lack of one of the above screw drivers.
Description
Technical field
The utility model belongs to everyday tools manufacturing technology field, is specifically related to the dual-purpose bottle opener of a kind of having concurrently " " word and two kinds of functions of " ten " word bottle opener.
Background technology
Bottle opener is a kind of instrument extremely important and commonly used, and it is seen everywhere in daily life.Traditional bottle opener can be divided into two kinds, that is: " one " word bottle opener, " ten " word bottle opener based on a kind of purposes.The advantage of tradition bottle opener is with strong points.But, in people's daily life, in a lot of application scenarios, need to use two bottle openers, one being " one " bottle opener, another is " ten " word bottle opener.Yet many bottle opener is carried the user seems comparatively inconvenient; Moreover the user uses bottle opener also to have certain inconvenience, two kinds of separately collections of bottle opener sometimes, and just need seek every bottle opener this moment, uses very inconvenient.
Summary of the invention
For solving the problems referred to above that present technology exists, the utility model discloses dual-purpose bottle opener, it unites two into one two kinds of different types of bottle openers, conveniently takes, carries and use.
The utility model is taked following technical scheme:
A kind of dual-purpose bottle opener comprises handle, " one " word body, and the head of " one " word body is " one " word shape, the fixedly connected described handle of afterbody; Dual-purpose bottle opener also comprises " a ten " prefix, the head of " ten " prefix is " ten " word shape, and afterbody forms slot one, and this slot is suitable with the head of " one " word body, the head of " one " word body can insert described slot, and can drive the rotation of " ten " prefix.
Described dual-purpose bottle opener, handle inside have a cavity, and the upper port of cavity is sealed by the handle lid, can hold described " ten " prefix in the cavity.
The invention also discloses another kind of technical scheme: a kind of dual-purpose bottle opener, comprise handle, " one " word body, the head of " one " word body is " one " word shape, the fixedly connected described handle of afterbody; The head portion of " one " word body forms the groove that one cross section is square, and this groove extends along the length direction of " one " word body head; Described dual-purpose bottle opener also comprises " a ten " prefix, the head of " ten " prefix is " ten " word shape, and the afterbody of " ten " prefix forms square cutting, and this cutting can be inserted described groove, under this state, this physical efficiency of " one " word drives " ten " prefix and rotates.
Described dual-purpose bottle opener, handle inside have a cavity, and the upper port of cavity is sealed by the handle lid, can hold described " ten " prefix in the cavity.
The dual-purpose bottle opener of the utility model mainly is based on " one " word bottle opener, add in addition one with suitable " ten " word screwdriver head of " one " word bottle opener, like this, in use, can change at any time between " one " word and " ten " word, make the utility model bottle opener possess the function of " one " word bottle opener and " ten " word bottle opener.Thereby the user again need not be for wherein a kind of bottle opener is not worried.
When not using, " ten " prefix is put into the bottle opener handle, difficult meeting is lost, and when carrying, only needs one just, and is very convenient.
Description of drawings

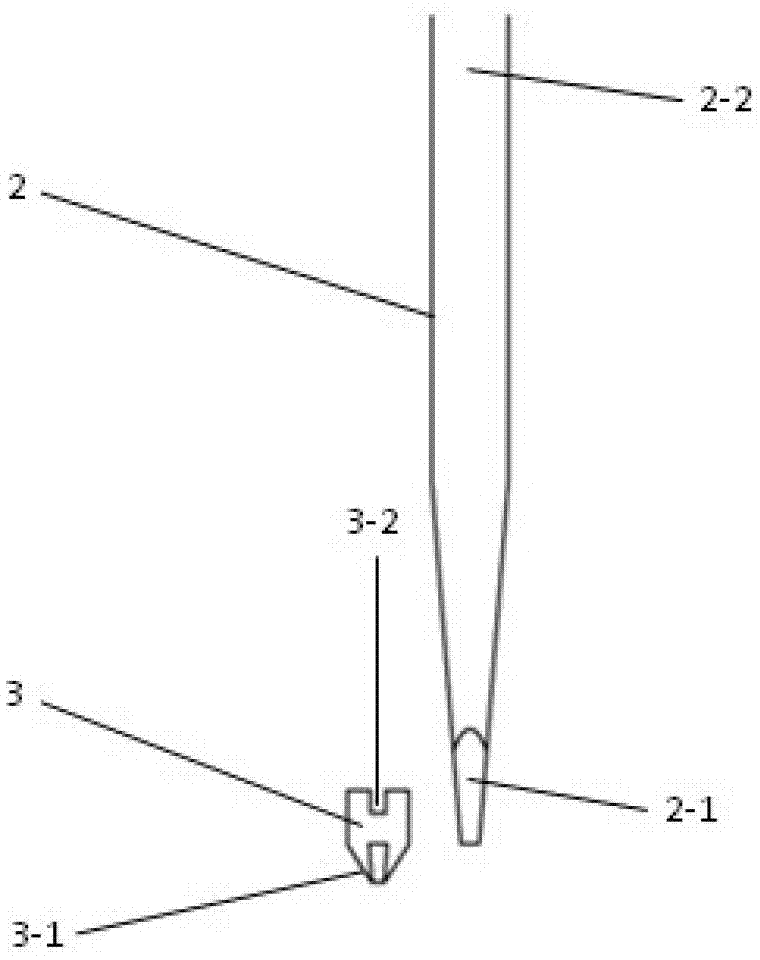

Fig. 1 is the exploded view of embodiment one " one " word body and " ten " prefix.
Fig. 2 is the exploded view of embodiment two " one " word bodies and " ten " prefix.
Fig. 3 is the front view after " one " word body is assembled with " ten " prefix.
Fig. 4 is the left view after " one " word body is assembled with " ten " prefix.
Fig. 5 is the vertical view after " one " word body is assembled with " ten " prefix.
The specific embodiment
Below in conjunction with accompanying drawing the utility model embodiment is elaborated.
Embodiment one: referring to Fig. 1,3,4,5, the dual-purpose bottle opener of present embodiment comprises handle 1, " one " word body 2, " ten " prefix 3 and handle lid 4, effect end when the head 2-1 of " one " word body 2 is bottle opener work, this end is " one " word shape, the fixedly connected handle 1 of its afterbody 2-2.Handle 1 is hollow shape, and namely inside has a cavity, and its upper port is sealed by handle lid 4, can hold " ten " prefix 3 in it.Effect end when the head 3-1 of " ten " prefix 3 also is bottle opener work, this end is " ten " word shape, and its afterbody forms slot 3-2 one, and this slot is suitable with " one " prefix 2-1 of " one " word body, " one " prefix 2-1 can insert this slot, and can drive 3 rotations of whole " ten " prefix.
When needing the work of " one " word bottle opener, " ten " prefix 3 places within the handle 1.When needs " ten " word bottle opener is worked, take out " ten " prefix 3, and at the effect end of " one " word body 2 " ten " prefix 3 of pegging graft, at this moment, the effect end of " ten " prefix 3 just is the effect end of whole bottle opener.
Embodiment two: referring to Fig. 2-5, present embodiment is with the difference of embodiment one: " one " prefix 2-1 portion of " one " word body 2 of present embodiment forms the groove 2-3 that the cross section is square, and this groove 2-3 extends along the length direction of " one " prefix 2-1; Corresponding, the afterbody of " ten " prefix 3 forms square cutting 3-3, and this cutting 3-3 can insert aforementioned recess 2-3, and under this state, " one " word body 2 can drive " ten " prefix 3 and rotate.
Other content reference example one of present embodiment.
Claims (4)
1. a dual-purpose bottle opener comprises handle, " one " word body, and the head of " one " word body is " one " word shape, the fixedly connected described handle of afterbody; It is characterized in that: described dual-purpose bottle opener also comprises " a ten " prefix, the head of " ten " prefix is " ten " word shape, afterbody forms slot one, this slot is suitable with the head of " one " word body, the head of " one " word body can insert described slot, and can drive the rotation of " ten " prefix.
2. dual-purpose bottle opener as claimed in claim 1, it is characterized in that: described handle inside has a cavity, and the upper port of cavity is sealed by the handle lid, can hold described " ten " prefix in the cavity.
3. a dual-purpose bottle opener comprises handle, " one " word body, and the head of " one " word body is " one " word shape, the fixedly connected described handle of afterbody; It is characterized in that: the head portion of " one " word body forms the groove that one cross section is square, and this groove extends along the length direction of " one " word body head; Described dual-purpose bottle opener also comprises " a ten " prefix, the head of " ten " prefix is " ten " word shape, and the afterbody of " ten " prefix forms square cutting, and this cutting can be inserted described groove, under this state, this physical efficiency of " one " word drives " ten " prefix and rotates.
4. dual-purpose bottle opener as claimed in claim 3, it is characterized in that: described handle inside has a cavity, and the upper port of cavity is sealed by the handle lid, can hold described " ten " prefix in the cavity.
