Abstract
The utility model provides a culturing bottle suitable for culturing hyacinth, which comprises a bottle body. The bottle body is divided into a water storage region and a corm placement region; a barrier body is arranged in the corm placement region; the barrier body is a topless and bottomless cone-shaped body; the side wall of the barrier body is provided with a plurality of air holes; and a top opening of the barrier body is sleeved with a flexible check ring, so that a certain gap is kept between a corm of hyacinth and the water surface and is beneficial to growth of hyacinth. The culturing bottle has a simple structure and is easy to implement.
Description
Technical field
The utility model relates to a kind of plant and cultures bottle, especially relates to the breed bottle that a kind of suitable hyacinth is cultured.
Background technology
The hyacinthine breed bottle of existing family-raise, mostly as shown in Figure 1, the breed bottle of this structure is in breeding process, and hyacinth bulb and water surface gap are too small, can cause culturing the water anoxic, influence hyacinthine growth.
The utility model content
The purpose of this utility model provides the breed bottle that a kind of suitable hyacinth is cultured, and solution hyacinth bulb and water surface gap are too small, influences the problem of hyacinth growth.
The technical scheme that its technical problem that solves the utility model adopts is: the breed bottle that a kind of suitable hyacinth is cultured, comprise bottle, described bottle is divided into the water reserve and bulb is put the district, it is characterized in that: put at described bulb and establish the barrier body in the district, described barrier body is one does not have the top bullet at the no end, is provided with a plurality of air-vents at the barrier body sidewall.
Further, for preventing that hyacinth bulb and barrier body contact site from producing hard defects, sheathed soft back-up ring on the mouth of the top of barrier body.
Further, described barrier body and hyacinth bulb are put the district for being wholely set.
As preferably, described barrier body and hyacinth bulb are put the district and are the split setting.
The beneficial effects of the utility model: this breed bottle is provided with the barrier body, is provided with a plurality of air-vents at the barrier body sidewall, makes hyacinth bulb and the water surface keep certain clearance, helps hyacinthine growth.It is simple in structure, is easy to realize.
Below with reference to drawings and Examples, the utility model is carried out comparatively detailed explanation.
Description of drawings
Fig. 1 is the organigram that existing hyacinth is cultured bottle.

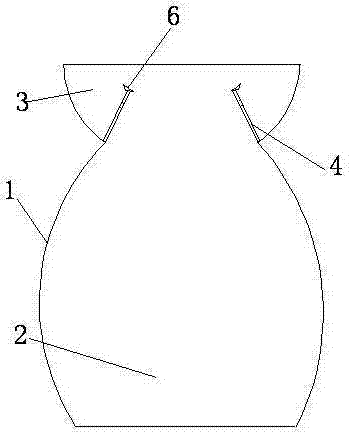

Fig. 2 is organigram of the present utility model.
Fig. 3 is the vertical view of Fig. 2.
Fig. 4 is the organigram of use state of the present utility model.
Among the figure: 1. bottle, 2. the water reserve, 3. bulb is put district, 4. barrier body, 5. air-vent, 6. soft back-up ring, 7. hyacinth.
Embodiment `
Embodiment, shown in Fig. 2,3,4, the breed bottle that a kind of suitable hyacinth is cultured, comprise bottle 1, described bottle 1 is divided into water reserve 2 and bulb is put district 3, it is characterized in that: put in the district 3 at described bulb and establish barrier body 4, described barrier body 4 is one does not have the top bullet at the no end, is provided with a plurality of air-vents 5 at barrier body 4 sidewalls.
Further, for preventing that hyacinth 7 bulbs and barrier body 4 contacts site from producing hard defects, sheathed soft back-up ring 6 on the mouth of the top of barrier body 4.
Further, described barrier body 4 is put district 3 for being wholely set with hyacinth 7 bulbs.
As preferably, described barrier body 4 is put district 3 with hyacinth 7 bulbs and is the split setting.
Above embodiment is described preferred embodiment of the present utility model; be not that scope of the present utility model is limited; under the prerequisite that does not break away from the utility model design spirit; various distortion and improvement that the common engineers and technicians in this area make the technical solution of the utility model all should fall in the definite protection domain of claims of the present utility model.
The utility model does not relate to partly all, and the prior art that maybe can adopt same as the prior art is realized.
Claims (4)
1. breed bottle that suitable hyacinth is cultured, comprise bottle, described bottle is divided into the water reserve and bulb is put the district, it is characterized in that: put at described bulb and establish the barrier body in the district, described barrier body is one does not have the top bullet at the no end, is provided with a plurality of air-vents at the barrier body sidewall.
2. the breed bottle of suitable hyacinth breed according to claim 1 is characterized in that: sheathed soft back-up ring on the mouth of the top of barrier body.
3. the suitable hyacinth according to claim 1 breed bottle of culturing, it is characterized in that: described barrier body and hyacinth bulb are put and are distinguished to being wholely set.
4. the suitable hyacinth according to claim 1 breed bottle of culturing, it is characterized in that: it is the split setting that described barrier body and hyacinth bulb are put the district.
