Abstract

The utility model relates to a solar energy balcony power generation system. The system comprises a solar cell module installed on a balcony wall body, a control inversion all-in-one machine and a storage battery. An output terminal of the solar cell module is connected with the control inversion all-in-one machine. The control inversion all-in-one machine is connected with the storage battery. The control inversion all-in-one machine possesses an alternating current output terminal and a direct current output terminal. The solar cell module is formed by toughened glass, a solar cell, a transparent packaging material and a backboard which are arranged from top to bottom and are packaged an aluminum frame. The solar cell module can be in a triangle shape, a rectangle shape or other polygon shapes. The transparent packaging material is PVB or EVA. The backboard is a transparent backboard or the toughened glass. According to the system, the solar energy power generation system is directly combined with the balcony so that a special space is not needed to be kept in a building to install the solar cell module and overall cost of the building is reduced. Besides, the system can simultaneously generate the green electric energy which is used by a local load so that an effect of energy conservation and emission reduction can be achieved.

Description

A kind of solar energy balcony electricity generation system
Technical field
The utility model relates to the heliotechnics application, be particularly related to a kind of solar energy balcony electricity generation system, this system can take full advantage of the space resources on the balcony, solar module combines with balcony body of wall or railing, conversion of solar energy is become electric energy, and store in the storage battery or directly and use for indoor load.
Background technology
Regenerative resource application under construction can become the newly emerging force of producing the energy to major power consumer, is major fields and the key link of establishing resource economizing type and friendly environment society.That building energy conservation is most widely used at present is integrated (the Building Integrated PV of solar photovoltaic building, BIPV) technology, namely the solar energy utilization is included in the master-plan of building, building, technology and aesthetics are combined together, make solar power-generating facility become wing.The new ideas of " the building generation energy " of Ti Chuing are the research focuses of present energy-saving building technology for this reason.
Solar power generation refers to utilize solar module with the direct generation of electricity form of solar radiation power conversion for electric energy.Solar power system generally is made up of links such as solar module, controller, inverter, storage batterys, and solar energy is converted to available electric energy.Solar module is the core in the solar power system, also is to be worth the highlyest in the system, and its effect mainly is that the emittance with sunlight is converted to electric energy, and sends in the storage battery and store, and also can be directly used in the promotion loaded work piece.The main effect of controller is control whole system operation state, mainly is to charging and discharging of accumulator control and protection.Inverter is that the direct current of solar module or storage battery output is converted to the equipment that alternating current is supplied to electrical network or AC load to adapt to.Storage battery is the energy storage component in the solar power system, and the energy that solar module can be produced stores with the form of chemical energy.
Solar energy is resourceful regenerative resource, and the solar energy power generating process is simple, does not have mechanical component, consume fuel not, do not discharge any material that comprises greenhouse gas, noiseless, pollution-free, solar energy resources is widely distributed and inexhaustible, nexhaustible.Although solar energy has so many advantages, but also there is weak point in it, because the solar energy that can directly obtain on the unit are of land is less, so prior art is actually collection and the utilization of low-density energy to the utilization of solar energy, to be converted to more electric energy by solar energy, can only realize by the area that enlarges photovoltaic system.Yet except the abominable zone of environment such as desert or grassland, do not have too many space to provide enough big area for photovoltaic system, produce more electric energy to guarantee photovoltaic system.So just highlighted the incomparable superiority of other energy on the building when solar power system is applied in, but traditional solar energy and the combination of building are to be directly installed on the ready-made roof or separately by fixed support to arrange.The space of balcony part is not utilized effectively, and solar module is except generating, can not with building combination well, do not build the effect on the meaning, lack aesthetic feeling.
The utility model content
In order to overcome the above problems, the utility model provides a kind of solar energy balcony electricity generation system, and this system combines solar power system and balcony well, utilizes balcony space to collect solar energy and generates electricity.
The technical scheme that its technical problem that solves the utility model adopts is:
A kind of solar energy balcony electricity generation system, comprise the solar module, control inversion all-in-one and the storage battery that are installed on the balcony body of wall, the output of described solar module is connected with control inversion all-in-one, described control inversion all-in-one is connected with storage battery, and control inversion all-in-one has ac output end and dc output end.
Described special solar module is formed by being encapsulated in toughened glass, solar cell, transparent encapsulation material and the backboard of arranging from top to bottom in the aluminium frame.
According to actual needs, described solar module shape can be triangle, rectangle or other polygon.
As preferably, the transparent encapsulation material of described solar module is PVB or EVA.
The backboard of described solar module is transparent back panel or toughened glass.
Operation principle of the present utility model is: when solar light irradiation on can balcony, described special solar module becomes direct current with conversion of solar energy, in storage battery, described control inversion all-in-one converts the direct current that produces to alternating current to described control inversion all-in-one on the other hand with these power storage on the one hand.According to the difference of indoor load power mode, can select alternating current or direct current.
Advantage of the present utility model is solar power system and balcony are combined, need not to reserve special space mounting solar module at building, also saved and aimed at the supporting construction that photovoltaic apparatus provides, integrated solar module itself just can be as the building material, can reduce the overall cost of building, save installation cost; On the other hand, this system produces green electric power supply and alleviates electricity consumption pressure, has also reduced the laying of other cable, has reduced the cost of solar power system.
Description of drawings

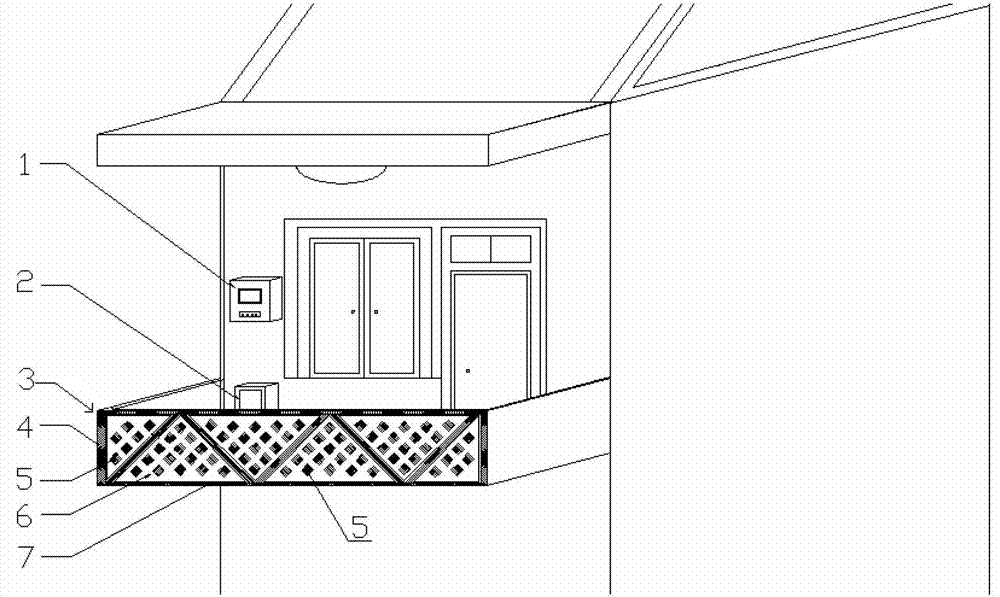

Fig. 1 is the structural representation of the utility model solar energy balcony electricity generation system.
Among the figure, 1 is control inversion all-in-one, and 2 is storage battery, and 3 is solar module, and 4 is the balcony body of wall, and 5 is solar cell, and 6 is toughened glass, 7 aluminium frames.
Fig. 2 is principle schematic of the present utility model.
Fig. 3 is the special solar module structural representation of the utility model.
Among the figure, 5 is solar cell, and 6 is toughened glass, 7 aluminium frames, and 8 is transparent encapsulation material, 9 is backboard.
Embodiment:
For further understanding technical characterictic of the present utility model and content, be described further below in conjunction with accompanying drawing:
As depicted in figs. 1 and 2, a kind of solar energy balcony electricity generation system, comprise the solar module 3, control inversion all-in-one 1 and the storage battery 2 that are installed on the balcony body of wall 4, the output of described solar module is connected with control inversion all-in-one 1, described control inversion all-in-one 1 is connected with storage battery 2, control inversion all-in-one has ac output end a and dc output end b, can be connected to indoor AC load and DC load as required.When mounted, the output of solar module 3 can be connected on the control inversion all-in-one 1 on the wall by the concealed wire in the body of wall.
As shown in Figure 3, described solar module is formed by being encapsulated in toughened glass 6, solar battery sheet 5, transparent encapsulation material 8 and the backboard 9 of arranging from top to bottom in the aluminium frame 7.
Described solar module shape is preferably triangle, has both played the effect of protection assembly, also plays the effect of supporting body of wall.According to actual needs, the shape of solar module also can be rectangle or other polygon.As preferably, the transparent encapsulation material 8 of solar module is PVB or EVA.
The backboard of described solar module is transparent back panel or toughened glass.
Gap between the solar cell in the solar module 3 is bigger, because all be transparent material before and after the solar module, the gap that the part sunlight can see through between solar cell shines in the balcony, has increased balcony and indoor lighting quantity.
Advantage of the present utility model is solar power system and balcony are combined, need not to reserve special space mounting solar module at building, also saved and aimed at the supporting construction that photovoltaic apparatus provides, integrated photovoltaic battery panel itself just can be as the building material, can reduce the overall cost of building, save installation cost; On the other hand, this system produces green electric power supply and alleviates electricity consumption pressure, has also reduced the laying of other cable, has reduced the cost of solar power system.

Claims (5)

1. solar energy balcony electricity generation system is characterized in that:
Comprise the solar module (3), control inversion all-in-one (1) and the storage battery (2) that are installed on the balcony body of wall (4), the output of described solar components is connected with control inversion all-in-one (1), described control inversion all-in-one (1) is connected with storage battery (2), and control inversion all-in-one has ac output end (a) and dc output end (b).
2. solar energy balcony electricity generation system according to claim 1 is characterized in that:
Described solar module is formed by being encapsulated in toughened glass (6), solar cell (5), transparent encapsulation material (8) and the backboard (9) of arranging from top to bottom in the aluminium frame (7).
3. solar energy balcony electricity generation system according to claim 2 is characterized in that:
Described solar module is shaped as triangle, rectangle or other polygon.
4. solar energy balcony electricity generation system according to claim 2 is characterized in that:
The transparent encapsulation material of described solar module (8) is PVB or EVA.
5. solar energy balcony electricity generation system according to claim 1 is characterized in that:
The backboard of described solar module is transparent back panel or toughened glass.
