The utility model relates to a continuous cleaning machine of containers, comprising a cleaning machine body, wherein the cleaning machine body is set into a three-dimensional structure with an upper layer and a lower layer; a feeding port of the cleaning machine body is arranged above a discharging port; the cleaning machine body is provided with a cleaning device, a rinsing device and a water cutting device in sequence at the rear side of the feeding port; the cleaning machine body is provided with an air cutting device which is arranged at the rear side of the water cutting device; and the position of the cleaning machine body at the discharging port is provided with an RFID (Radio Frequency Identification Device) intelligent detection device. The continuous cleaning machine has the advantages that in the use process, hot air blown from a hot-air fan acts on a cleaned workpiece by a hot-air knife, so that complete drying of the containers can be ensured; manual detection can be replaced by the RFID intelligent detection device, not only is the working efficiency improved, but also the use cost is reduced.
Description
Technical field
The utility model relates to a kind of cleaning machine, refers in particular to a kind of Turnover Box continuous wash machine that is provided with the wind cutting apparatus.
Background technology
Present employed Turnover Box continuous wash machine its in the process of using, can not guarantee that Turnover Box dries fully, wet Turnover Box can influence the subsequent operation of follow-up cleaning machine; And be cleaned workpiece in detection and adopt manual detection, not only operating efficiency is not high, and use cost is bigger.
The utility model content
The utility model purpose is that a kind of Turnover Box continuous wash machine that is provided with the wind cutting apparatus is provided in order to overcome the deficiencies in the prior art.
For achieving the above object, the technical solution adopted in the utility model is: comprise the cleaning machine body, described cleaning machine body is arranged to two-layer tridimensional structure up and down; The charging aperture of described cleaning machine body is arranged on the top of discharging opening; Described cleaning machine body is disposed with cleaning device, rinsing device and cuts the water device at the rear side of charging aperture; Described cleaning machine body is provided with the wind cutting apparatus, and described wind cutting apparatus is arranged on the rear side of cutting the water device; Described wind cutting apparatus comprises air-heater, hot-blast stove and hot blast air knife; One end of described hot-blast stove is arranged on the air outlet place of air-heater, and the other end is connected with the hot blast air knife; Be provided with several electrothermal tubes in the described hot-blast stove.
Preferably, described cleaning machine body is provided with the RFID intelligent detection device in the position of discharging opening.
Preferably, described cleaning device is arranged to clean spray, and described cleaning spray is controlled by scavenging pump; Described rinsing device is arranged to the rinsing spray, and described rinsing spray is controlled by the rinsing pump.
Preferably, the described water device of cutting comprises that hairbrush is cut water and water is cut in the grip, and described hairbrush is cut water and top and the bottom that water acts on workpiece respectively cut in the grip.
Because the utilization of technique scheme, the utility model compared with prior art has following advantage:
The Turnover Box continuous wash machine of the utility model scheme, because described cleaning machine body is provided with the wind cutting apparatus, and described wind cutting apparatus is arranged on the rear side of cutting the water device; Described wind cutting apparatus comprises air-heater, hot-blast stove and hot blast air knife; One end of described hot-blast stove is arranged on the air outlet place of air-heater, and the other end is connected with the hot blast air knife; Be provided with several electrothermal tubes in the described hot-blast stove.Turnover Box continuous wash machine of the present utility model, in the process of using, the hot blast that air-heater is produced by boasting acts on by the hot blast air knife and cleans on the workpiece afterwards, can guarantee the oven dry fully of Turnover Box; And the RFID intelligent detection device that is provided with can replace manual detection, has not only improved operating efficiency, and has reduced use cost.
Description of drawings
Below in conjunction with accompanying drawing technical solutions of the utility model are described further:

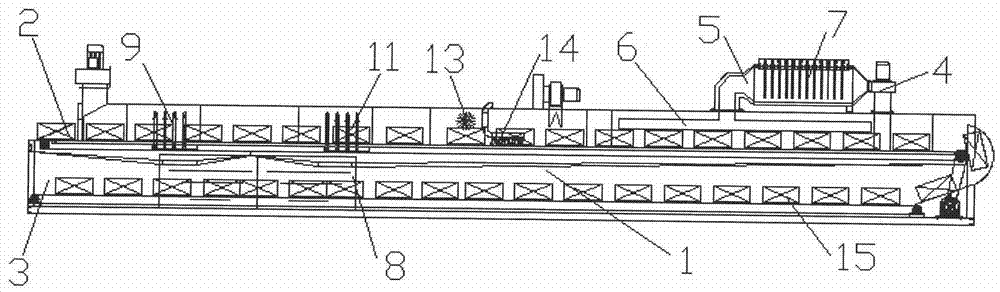

Accompanying drawing 2 is the vertical view of Turnover Box continuous wash machine described in the utility model;
Wherein: 1, cleaning machine body; 2, charging aperture; 3, discharging opening; 4, air-heater; 5, hot-blast stove; 6, hot blast air knife; 7, electrothermal tube; 8, RFID intelligent detection device; 9, clean spray; 10, scavenging pump; 11, rinsing spray; 12, rinsing pump; 13, hairbrush is cut water; 14, water is cut in the grip; 15, workpiece.
The specific embodiment
The utility model is described in further detail below in conjunction with drawings and the specific embodiments.
Accompanying drawing 1-2 is a kind of Turnover Box continuous wash machine described in the utility model, comprises cleaning machine body 1, and described cleaning machine body 1 is arranged to two-layer tridimensional structure up and down; The charging 2 of described cleaning machine body 1 is arranged on the top of discharging 3; Described cleaning machine body 1 is disposed with cleaning device, rinsing device and cuts the water device at the rear side of charging 2; Described cleaning machine body 1 is provided with the wind cutting apparatus, and described wind cutting apparatus is arranged on the rear side of cutting the water device; Described wind cutting apparatus comprises air-heater 4, hot-blast stove 5 and hot blast air knife 6; One end of described hot-blast stove 5 is arranged on the air outlet place of air-heater 4, and the other end is connected with hot blast air knife 6; Be provided with several electrothermal tubes 7 in the described hot-blast stove 5; Described cleaning machine body 1 is provided with RFID intelligent detection device 8 in the position of discharging 3.
Described cleaning device is arranged to clean spray 9, and described cleaning spray 9 is by scavenging pump 10 controls; Described rinsing device is arranged to rinsing spray 11, and described rinsing spray 11 is by 12 controls of rinsing pump; The described water device of cutting comprises that hairbrush is cut water 13 and water 14 is cut in the grip, and described hairbrush is cut water 13 and top and the bottom that water 14 acts on workpiece 15 respectively cut in the grip.
Turnover Box continuous wash machine described in the utility model, in the process of using, the hot blast that air-heater 4 is produced by boasting acts on by hot blast air knife 6 and cleans on the workpiece afterwards, can guarantee the oven dry fully of Turnover Box; And the RFID intelligent detection device 8 that is provided with can replace manual detection, has not only improved operating efficiency, and has reduced use cost.
Below only be concrete exemplary applications of the present utility model, protection domain of the present utility model is not constituted any limitation.All employing equivalents or equivalence are replaced and the technical scheme of formation, all drop within the utility model rights protection scope.
Claims (4)
1. a Turnover Box continuous wash machine comprises the cleaning machine body, and described cleaning machine body is arranged to two-layer tridimensional structure up and down; The charging aperture of described cleaning machine body is arranged on the top of discharging opening; Described cleaning machine body is disposed with cleaning device, rinsing device and cuts the water device at the rear side of charging aperture; It is characterized in that: described cleaning machine body is provided with the wind cutting apparatus, and described wind cutting apparatus is arranged on the rear side of cutting the water device; Described wind cutting apparatus comprises air-heater, hot-blast stove and hot blast air knife; One end of described hot-blast stove is arranged on the air outlet place of air-heater, and the other end is connected with the hot blast air knife; Be provided with several electrothermal tubes in the described hot-blast stove.
2. Turnover Box continuous wash machine according to claim 1, it is characterized in that: described cleaning machine body is provided with the RFID intelligent detection device in the position of discharging opening.
3. Turnover Box continuous wash machine according to claim 2 is characterized in that: described cleaning device is arranged to clean spray, and described cleaning spray is controlled by scavenging pump; Described rinsing device is arranged to the rinsing spray, and described rinsing spray is controlled by the rinsing pump.
4. Turnover Box continuous wash machine according to claim 2 is characterized in that: the described water device of cutting comprises that hairbrush is cut water and water is cut in the grip, and described hairbrush is cut water and top and the bottom that water acts on workpiece respectively cut in the grip.
