Abstract
本实用新型涉及一种鞋柜，特别涉及一种多功能鞋柜。该多功能鞋柜，包括柜体，其特殊之处在于：柜体内设置紫外线照射灯、除味装置、擦鞋器、烘干机，擦鞋器及烘干机位于柜体内的下部，柜体上开有用于换气的出风口、进风口，柜体上配有柜门。本实用新型的有益效果是：装置内部分为多个空间区域，包括若干隔层，满足人们的日常生活需求，并且在每个隔层内都设有除味装置和紫外线照射灯，满足鞋柜内部空间的除味和杀菌，并且在鞋柜的后部设有两个换气通风口，防止鞋柜内部受潮霉变，使用方便而且结构简单。
The utility model relates to a shoe cabinet, in particular to a multifunctional shoe cabinet. The multi-functional shoe cabinet, including the cabinet body, is special in that: the cabinet is equipped with an ultraviolet irradiation lamp, a deodorization device, a shoe polisher, and a dryer, and the shoe polisher and the dryer are located in the lower part of the cabinet body. There are air outlets and air inlets for ventilation on the top, and the cabinet body is equipped with cabinet doors. The beneficial effect of the utility model is: the interior of the device is divided into multiple space areas, including several compartments, which meet people's daily life needs, and each compartment is equipped with a deodorizing device and an ultraviolet irradiation lamp, which meets the needs of shoe cabinets. Deodorization and sterilization of the internal space, and two ventilation vents are provided at the rear of the shoe cabinet to prevent moisture and mildew inside the shoe cabinet, easy to use and simple in structure.
Description
(1) technical field
The utility model relates to a kind of shoe chest, particularly a kind of multi-functional shoe chest.
(2) background technology
In our daily necessities, shoes are the dirtiest class article, because can be stained with various dirts on the shoes, are relatively airtight and general humidity, warm space in the footwear, be conducive to fungi growth, shoe chest is that its inside generally can not cleaned for the place that stores shoes, and the shoe chest inner air is poor, atmosphere draught-free, peculiar smell is heavy, easily goes mouldy, and needs to improve.
(3) summary of the invention
The utility model provides a kind of multi-functional shoe chest simple in structure, easy to use in order to remedy the deficiencies in the prior art.
The utility model is achieved by the following technical solution:
A kind of multi-functional shoe chest, comprise cabinet, its special character is: ultraviolet radiator, deodorizing device, shoe polisher, dryer are set in the cabinet, and shoe polisher and dryer are positioned at the bottom of cabinet, have air outlet, air inlet for ventilation on the cabinet, be furnished with the cabinet door on the cabinet.
Some interlayers are set in the described cabinet, and each interlayer is all prepared ultraviolet radiator, deodorizing device, and shoe polisher, dryer are installed in the nethermost interlayer, shoes convenient for cleaning and be difficult for the ground of making dirty.
Sealing strip is installed at the edge of described cabinet door, and air outlet, air inlet are positioned at the rear portion of cabinet, is conducive to the circulation of air in the cabinet, prevents that the shoe chest internal wetted from going mouldy.
The beneficial effects of the utility model are: device inside is divided into a plurality of area of space, comprise some interlayers, satisfy the daily life demand, and in each interlayer, be provided with deodorizing device and ultraviolet radiator, satisfy taste removal and the sterilization of shoe chest inner space, and be provided with two ventilation ventilating openings at the rear portion of shoe chest, prevent that the shoe chest internal wetted from going mouldy, easy to use and simple in structure.
(4) description of drawings
Below in conjunction with accompanying drawing the utility model is further described.

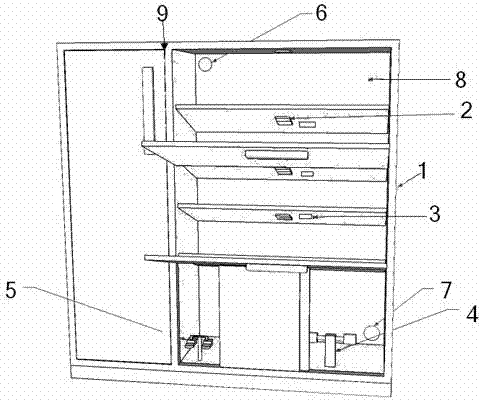

Accompanying drawing 1 is structural representation of the present utility model;
Among the figure, 1 cabinet, 2 ultraviolet radiators, 3 deodorizing devices, 4 shoe polishers, 5 dryers, 6 air outlets, 7 air inlets, 8 interlayers, 9 sealing strips.
(5) specific embodiment
Accompanying drawing is a kind of specific embodiment of the present utility model.This embodiment comprises cabinet 1, ultraviolet radiator 2, deodorizing device 3, shoe polisher 4, dryer 5 are set in the cabinet 1, shoe polisher 4 and dryer 5 are positioned at the bottom of cabinet 1, have air outlet 6, air inlet 7 for ventilation on the cabinet 1, are furnished with the cabinet door on the cabinet 1.Some interlayers 8 are set in the described cabinet 1, and each interlayer 8 is all prepared ultraviolet radiator 2, deodorizing device 3, and shoe polishers 4, dryers 5 are installed in the nethermost interlayer 8, shoes convenient for cleaning and be difficult for the ground of making dirty.Sealing strip 9 is installed at the edge of described cabinet door, and air outlet 6, air inlet 7 are positioned at the rear portion of cabinet 1, is conducive to the circulation of air in the cabinet 1, prevents that the shoe chest internal wetted from going mouldy.
The beneficial effects of the utility model are: device inside is divided into a plurality of area of space, comprise some interlayers 8, satisfy the daily life demand, and in each interlayer 8, be provided with deodorizing device 3 and ultraviolet radiator 2, satisfy taste removal and the sterilization of shoe chest inner space, and be provided with two ventilation ventilating openings (air outlet 6, air inlet 7) at the rear portion of shoe chest, prevent that the shoe chest internal wetted from going mouldy, easy to use and simple in structure.
Claims (3)
1. multi-functional shoe chest, comprise cabinet (1), it is characterized in that: ultraviolet radiator (2), deodorizing device (3), shoe polisher (4), dryer (5) are set in the cabinet (1), shoe polisher (4) and dryer (5) are positioned at the bottom of cabinet (1), have air outlet (6), air inlet (7) for ventilation on the cabinet (1), cabinet is furnished with the cabinet door on (1).
2. multi-functional shoe chest according to claim 1, it is characterized in that: some interlayers (8) are set in the cabinet (1), each interlayer (8) is all prepared ultraviolet radiator (2), deodorizing device (3), and shoe polisher (4), dryer (5) are installed in the nethermost interlayer (8).
3. multi-functional shoe chest according to claim 1 and 2 is characterized in that: sealing strip (9) is installed at the edge of cabinet door, and air outlet (6), air inlet (7) are positioned at the rear portion of cabinet (1).
