The utility model discloses a floating beacon light, comprising a beacon light body, wherein the beacon light body is composed of a buoyancy frame body, a lamp holder and a power unit; the lamp holder is arranged at the upper end face of the buoyancy frame body; the power unit is arranged at the lower end face of the buoyancy frame body; the power unit is composed of a shaking generator, a charging/discharging controller and a storage battery; the storage battery is respectively and electrically connected with the shaking generator and the lamp holder through the charging/discharging controller; and a float bowl is arranged at the tail end of the buoyancy frame body. The floating beacon light is simple in structure and convenient to install; power is supplied through the heaving locations of waves on water surface, so that the floating beacon light is not influenced by external factors like weather and time; and the floating beacon light is low in energy consumption and stable in continuous working performance, so that the working performance of the floating beacon light is greatly improved.
Description
Technical field
The utility model relates to a kind of unsteady navigation light, belongs to using field of electrical equipment.
Background technology
According to relevant regulations, on water surface navigation channel, navigation light must be set, and present employed navigation light mostly is direct commercial power supply energy, during this kind navigation light operate as normal, need continuous non-stop run, therefore energy consumption is bigger, and when interruptions such as commercial power supply hinders for some reason, navigation light is with ineffective simultaneously, simultaneously, when navigation light need be when the distance land water surface far away be provided with, its supply line sets up relatively difficulty and fault rate is also taught height, also has the part navigation light to adopt solar energy to carry out the energy supply at present, but when adopting the solar energy energy supply, weather is had relatively high expectations, and solar cell panel structure is bigger, has had a strong impact on normally using and installing of navigation light.
Summary of the invention
The utility model purpose just is to overcome above-mentioned deficiency, and a kind of unsteady navigation light is provided.
For achieving the above object, the utility model is to be achieved through the following technical solutions:
A kind of unsteady navigation light, comprise the navigation light body, described navigation light body is made of buoyancy support body, lamp holder and power unit, described lamp holder is installed in buoyancy support body upper surface, power unit is installed in buoyancy support body lower surface, described power unit constitutes by rocking generator, charging-discharging controller and batteries, wherein batteries by charging-discharging controller respectively with rock generator, lamp holder is electrically connected, described buoyancy support body end is provided with floating drum.
The utility model is simple in structure, and is easy for installation, provides power by water surface wave fluctuating position, not influenced by extraneous factors such as weather, time, and energy consumption is low and continuous performance stable, thereby improves the service behaviour of the navigation light that floats greatly.
Description of drawings

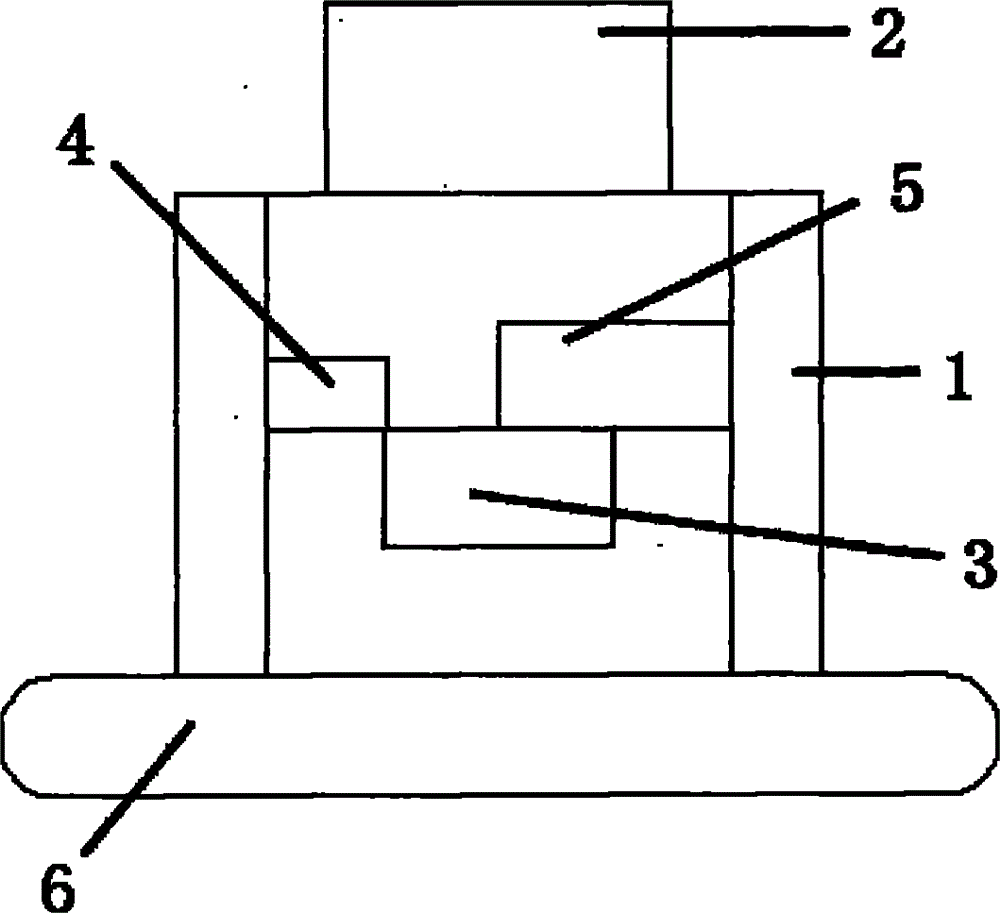

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, a kind of unsteady navigation light, comprise the navigation light body, described navigation light body is made of buoyancy support body 1, lamp holder 2 and power unit, described lamp holder 2 is installed in buoyancy support body 1 upper surface, power unit is installed in buoyancy support body 1 lower surface, described power unit constitutes by rocking generator 3, charging-discharging controller 4 and batteries 5, wherein batteries 5 by charging-discharging controller 4 respectively with rock generator 3, lamp holder 2 is electrically connected, described buoyancy support body 1 end is provided with floating drum 6.
Claims (1)
1. unsteady navigation light, comprise the navigation light body, it is characterized in that: described navigation light body is made of buoyancy support body, lamp holder and power unit, described lamp holder is installed in buoyancy support body upper surface, power unit is installed in buoyancy support body lower surface, described power unit constitutes by rocking generator, charging-discharging controller and batteries, wherein batteries by charging-discharging controller respectively with rock generator, lamp holder is electrically connected, described buoyancy support body end is provided with floating drum.
