Abstract

The utility model discloses a portable medicine bottle for oral type liquid medicine, and belongs to the technical field of medical containers. The portable medicine bottle for the oral type liquid medicine solves the technical problem that an existing medicine bottle cannot be used conveniently. The portable medicine bottle comprises a bottle body and a measuring cup which is fixed on the top of an inner cavity of the bottle body. The periphery of a measuring cup opening and the inner wall of the bottle body are sealed in a waterproof mode. A plurality of liquid measuring holes are sequentially formed in the cup wall of the measuring cup from bottom to top at intervals. Each liquid measuring hole is sealed by waterproof sealing paper, a plurality of liquid inlet holes are formed on the upper portion of the measuring cup wall, and each liquid inlet hole is located above each liquid measuring hole. The portable medicine bottle is capable of measuring a medicine dose for a single time in a quantitative and sanitary mode, convenient to use and low in cost.

Description

The portable medicine bottle that is used for the oral type liquid drug
Technical field
This utility model relates to the containers for medical use technology, particularly relates to a kind of technology that is used for the portable medicine bottle of oral type liquid drug.
Background technology
The oral type liquid drug all is contained in the medicine bottle usually, quantitatively gets it filled when taking, and the medicine bottle that has self indicates scale, and the medicine bottle that has then is equipped with measuring cup.But when measuring liquid drug, be easy to generate following situation: 1) in when falling the medicine, need constantly be seen scale, uses very inconveniently, and owing to be affectedly bashful inaccurate dose, the medicine that needs repeatedly to fall just can reach to demand, also can be often excessive; During 2) with measuring cup amount medicine, be directed at medicine easily and overflow measuring cup, or measuring cup is overturned; 3) measuring cup uses up at every turn all needs to clean, and prepares for measuring medicine next time, very inconvenient, and loses easily.
Also have some oral type liquid drugs to utilize low capacity bottle packing medicament, each bottle single dosage of packing into, though the mode of this small bottle packing single dose has overcome above-mentioned defective, the medicine bottle cost of unit dose expenditure is higher.
The utility model content
At the defective that exists in the above-mentioned prior art, technical problem to be solved in the utility model provide a kind of energy quantitatively, health measure single dosage and the portable medicine bottle that is used for the oral type liquid drug easy to use, with low cost.
In order to solve the problems of the technologies described above, a kind of portable medicine bottle that is used for the oral type liquid drug provided by the utility model comprises bottle, and it is characterized in that: the interior top of chamber of described bottle is fixed with a measuring cup;
Waterproof sealing between the rim of a cup periphery of described measuring cup and the bottle inwall, be interval with a plurality of amount liquid hole on the wall of cup of measuring cup from bottom to up successively, each amount liquid hole is sealed by fluid-tight envelope paper, and the wall of cup top of measuring cup is provided with a plurality of inlet openings, and each inlet opening all is positioned at respectively measures top, liquid hole.
Further, be printed with on the wall of cup of described measuring cup to be used for indicating and respectively measure the liquid hole and offer the volumetrical volume scale of the pairing measuring cup in position.
Further, the volume of described measuring cup is printed with the volume scale that includes 5ml scale value and 10ml scale value greater than 10ml on the wall of cup of described measuring cup, described amount liquid hole has two, one of them amount liquid hole is positioned at 5ml scale value place, and another amount liquid hole is positioned at 10ml scale value place.
The portable medicine bottle that is used for the oral type liquid drug that this utility model provides, measuring cup is fixed in the bottle, and on measuring cup, offer inlet opening and measure the liquid hole, quantitatively obtaining of medicinal liquid realized in utilization liquid hole, and because measuring cup is built in the bottle, so measuring cup do not need after using up to clean at every turn, can be quantitatively, health measure the single dosage, and it is easy to use, with low cost.
Description of drawings

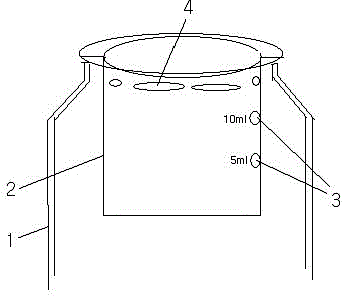

Fig. 1 is the structural representation of the portable medicine bottle that is used for the oral type liquid drug of this utility model embodiment;
Fig. 2, Fig. 3 are the use sketch maps of the portable medicine bottle that is used for the oral type liquid drug of this utility model embodiment.
The specific embodiment
Below in conjunction with description of drawings embodiment of the present utility model is described in further detail, but present embodiment is not limited to this utility model, every employing analog structure of the present utility model and similar variation thereof all should be listed protection domain of the present utility model in.
As shown in Figure 1, a kind of portable medicine bottle that is used for the oral type liquid drug that this utility model embodiment is provided comprises bottle 1, it is characterized in that: the interior top of chamber of described bottle 1 is fixed with a measuring cup 2;
Waterproof sealing between the rim of a cup periphery of described measuring cup 2 and bottle 2 inwalls, be interval with a plurality of amount liquid hole 3 on the wall of cup of measuring cup 2 from bottom to up successively, each amount liquid hole 3 is by fluid-tight envelope paper sealing, the wall of cup top of measuring cup 2 is provided with a plurality of inlet openings 4, and each inlet opening 4 all is positioned at respectively measures 3 tops, liquid hole.
Among this utility model embodiment, be printed with on the wall of cup of described measuring cup 2 to be used for indicating and respectively measure liquid hole 3 and offer the volumetrical volume scale of the pairing measuring cup in position.
Among this utility model embodiment, the volume of described measuring cup 2 is greater than 10ml, be printed with the volume scale that includes 5ml scale value and 10ml scale value on the wall of cup of described measuring cup 2, described amount liquid hole 3 has two, one of them amount liquid hole is positioned at 5ml scale value place, and another amount liquid hole is positioned at 10ml scale value place.
As Fig. 2, shown in Figure 3, the using method of this utility model embodiment is as follows:
Earlier with on the measuring cup wall with the corresponding amount liquid of dosage hole on envelope paper tear off, such as the single medication amount is 5ml, the envelope paper that just will be positioned on the amount liquid hole at 5ml scale value place tears off, and the single medication amount is 10ml, and the envelope paper that just will be positioned on the amount liquid hole at 10ml scale value place tears off;
Reuse bottle cap (not shown) covers the bottleneck of bottle, then bottle is inverted (see figure 2), and the bottle inner liquid medicine can enter measuring cup from the inlet opening on the measuring cup wall of cup;
And then bottle returned to bottleneck state up, the interior medicinal liquid more than dosage of measuring cup this moment promptly goes out measuring cup by the amount liquid orifice flow that tears envelope paper off, make and only stay the required amount of liquid medicine (see figure 3) of single medication in the measuring cup, open bottle cap then, draw the medicinal liquid be deposited in the measuring cup with suction pipe, can realize that single quantitatively takes medicine;
The take medicine back that finishes directly covers the bottleneck of bottle with bottle cap and gets final product, and need not to clean measuring cup.

Claims (3)

1. a portable medicine bottle that is used for the oral type liquid drug comprises bottle, it is characterized in that: the interior top of chamber of described bottle is fixed with a measuring cup;
Waterproof sealing between the rim of a cup periphery of described measuring cup and the bottle inwall, be interval with a plurality of amount liquid hole on the wall of cup of measuring cup from bottom to up successively, each amount liquid hole is sealed by fluid-tight envelope paper, and the wall of cup top of measuring cup is provided with a plurality of inlet openings, and each inlet opening all is positioned at respectively measures top, liquid hole.
2. the portable medicine bottle that is used for the oral type liquid drug according to claim 1 is characterized in that: be printed with on the wall of cup of described measuring cup to be used for indicating and respectively measure the liquid hole and offer the volumetrical volume scale of the pairing measuring cup in position.
3. the portable medicine bottle that is used for the oral type liquid drug according to claim 2, it is characterized in that: the volume of described measuring cup is greater than 10ml, be printed with the volume scale that includes 5ml scale value and 10ml scale value on the wall of cup of described measuring cup, described amount liquid hole has two, one of them amount liquid hole is positioned at 5ml scale value place, and another amount liquid hole is positioned at 10ml scale value place.
