Abstract
A labor induction water bag for an obstetrical and gynecological department comprises a water bag body, a catheter, and a water injection connector, wherein the water bag body is connected with the water injection port through the catheter, the water bag body, the conduit, and an inner cavity of the water injection connector are communicated, the position, departing from the water injection connector by 2-5centimeters, on the catheter is provided with a valve, and anti-sliding lines are arranged on the outer portion of the water bag body. The total length of the catheter is 20-50 centimeters. Compared with the prior art, the labor induction water bag for the obstetrical and gynecological department has the advantages of being simple in structure, safe and convenient to use, and not only sanitary, but also capable of improving the therapeutic effect of water bag labor induction.
Description
Technical field
This utility model relates to the department of obstetrics and gynecology technical field of medical instruments, is specifically related to the special-purpose Induced labor water-bag of a kind of department of obstetrics and gynecology.
Background technology
In the obstetrics and gynecology hospital, induction of labor with water bag is that water pocket is placed between palace wall and the fetal membrane, increases intrauterine pressure and mechanical irritation cervical canal, brings out and causes uterine contraction, the termination of pregnancy method of impelling fetus and Placenta Hominis to discharge.Now unified Induced labor water-bag is not arranged also, medical personnel adopt homemade Induced labor water-bag more, and are both unhygienic, but also cause security incident easily.
The utility model content
The purpose of this utility model is exactly the defective that exists at prior art, provides a kind of department of obstetrics and gynecology special-purpose Induced labor water-bag.
Its technical scheme is: comprise water pocket body, conduit and water filling interface, the water pocket body is connected with the water filling interface by conduit, the intracavity inter-connection of water pocket body, conduit and water filling interface.On the described conduit, be provided with valve apart from 2-5 centimeters of water filling interface, the water pocket external body is provided with anti-skidding stricture of vagina.
Wherein, the total length of described conduit is 20-50 centimetres.
This utility model has following advantage compared with prior art: simple in structure, safe and convenient to use, and not only health but also improved the therapeutic effect of induction of labor with water bag.
Description of drawings

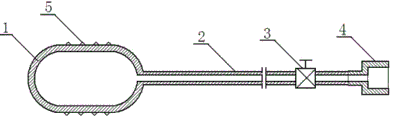

Fig. 1 is the structural representation of a kind of embodiment of this utility model.
The specific embodiment
With reference to Fig. 1, the special-purpose Induced labor water-bag of a kind of department of obstetrics and gynecology comprises the water pocket body 1, conduit 2 and the water filling interface 4 that are used for putting into the pregnant woman uterus chamber, and water pocket body 1 is connected with water filling interface 4 by conduit 2, the intracavity inter-connection of water pocket body 1, conduit 2 and water filling interface 4.On the described conduit 2, be provided with valve 3 apart from 2-5 centimeters of water filling interface 4, water pocket body 1 outside is provided with anti-skidding stricture of vagina 5.Wherein, the total length of described conduit 2 is 20-50 centimetres.
During use, at first the anemia of pregnant woman answers the emptying bladder, and V﹠V is carried out cleaning and sterilizing; After the appearance of water pocket is coated with lubricating oil, put into the pregnant woman uterus intracavity; Opening valve 3 injects an amount of normal saline by water filling interface 4 and gets final product in water pocket body 1; Valve-off 3 can prevent that the normal saline that injects from leaking, thereby guarantees the long period use.After finishing using, open valve 3 and the normal saline discharge or the extraction of injecting got final product by water filling interface 4.
Claims (2)
1. the special-purpose Induced labor water-bag of department of obstetrics and gynecology, comprise water pocket body, conduit and water filling interface, the water pocket body is connected with the water filling interface by conduit, the intracavity inter-connection of water pocket body, conduit and water filling interface, it is characterized in that: on the described conduit, be provided with valve apart from 2-5 centimeters of water filling interface, the water pocket external body is provided with anti-skidding stricture of vagina.
2. the special-purpose Induced labor water-bag of department of obstetrics and gynecology according to claim 1, it is characterized in that: the total length of described conduit is 20-50 centimetres.
