Abstract
本实用新型属于日用品技术领域，特别涉及一种握式手机套。该手机套的特征是，该手机套两边各存在6处凹槽，适于一只手掌把握，便于携拿。由于是根据人的手掌来设计的，可以很好地使人掌握住手机，不易使手机轻易摔落地上，减免手机的“受伤”机会。
The utility model belongs to the technical field of daily necessities, in particular to a grip type mobile phone case. The mobile phone case is characterized in that there are six grooves on both sides of the mobile phone case, which are suitable for one palm to hold and are easy to carry. Because it is designed according to the palm of a person, it can make people grasp the mobile phone well, and it is not easy to make the mobile phone fall to the ground easily, reducing the chance of "injury" of the mobile phone.
Description
Technical field
The utility model belongs to the commodity technical field, particularly a kind of formula cell-phone cover of holding.
Background technology
Mobile phone has been the indispensable consumer electronics of life, and for prolonging the service life of mobile phone, people are more and more stronger for the protection consciousness of mobile phone.The topmost method of protection mobile phone just is to use cell-phone cover on the market.Research and observe around people hold the easy landing of mobile phone, even have on cell-phone cover, hand one is on slippery ground will to be fallen on the ground.
The utility model content
The purpose of this utility model is to overcome the deficiencies in the prior art, and a kind of formula cell-phone cover of holding is provided.
The technical scheme in the invention for solving the technical problem is: a kind of formula cell-phone cover of holding, it is characterized in that respectively there are 6 place's grooves (1) in these cell-phone cover both sides, and be suitable for a palm and hold, be convenient to take and take.
The beneficial effects of the utility model are: the formula cell-phone cover of holding is suitable for taking, and is not easy on the ground.
Description of drawings

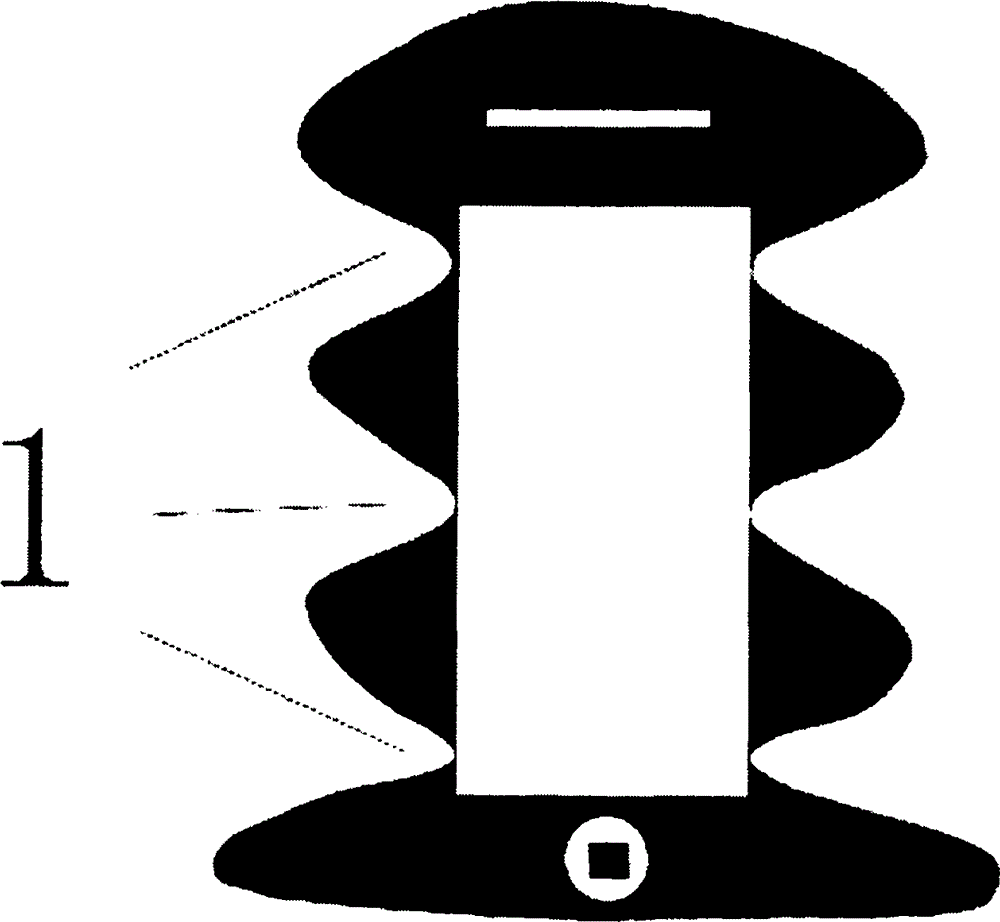

Fig. 1 is a structural representation of the present utility model, and wherein 1 is groove.
The specific embodiment
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.
As shown in Figure 1, a kind of formula cell-phone cover of holding is characterized in that, respectively there are 6 place's grooves (1) in these cell-phone cover both sides, is suitable for a palm and holds, and is convenient to take and takes.Holding mobile phone, finger just embeds in the depression, is difficult for making mobile phone to land.
